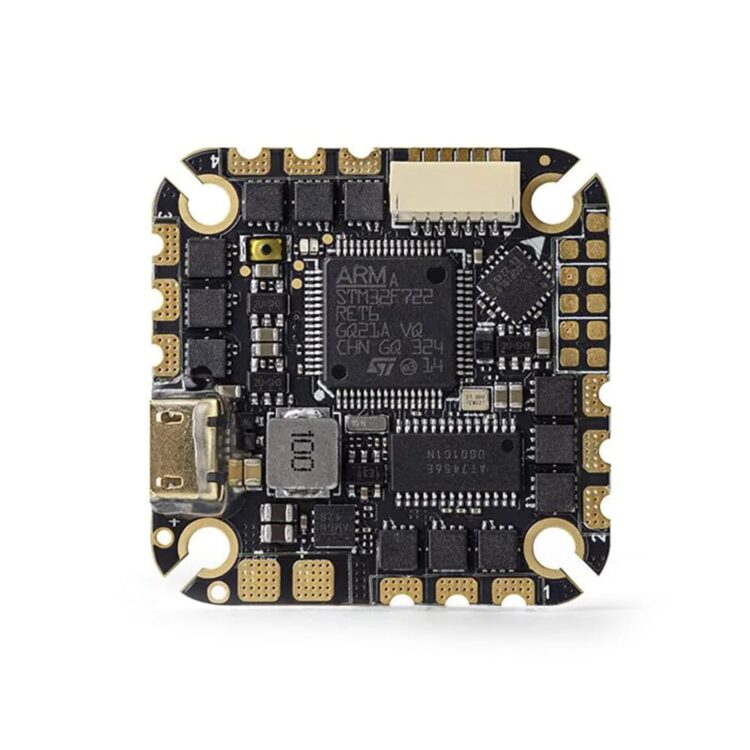

Product Overview:

• High-Performance Processor: Equipped with an STM32F722 MCU for smooth and reliable operation.
• Advanced Gyroscope: Features the MPU6000 gyroscope, ensuring stable and responsive flight dynamics.
• Versatile Interfaces: Includes a camera, receiver, and a unique HD/analog two-in-one direct plug interface for seamless connectivity.
• GPS Compatibility: Fully supports GPS modules, enhancing your navigation capabilities.
• Firmware Flexibility: Comes with BLS firmware pre-installed and the option to flash Bluejay firmware for improved flight efficiency.

Key Specifications:

• MCU: STM32F722 for top-notch processing power.
• MPU: MPU6000, providing accurate and stable gyroscopic feedback.
• BEC: Reliable 5V2A output.
• OSD and LED Support: Enhances user interface and visibility.
• Bee Narrator: A unique feature for flight status feedback.
• Current Ratings: Continuous current at 40A, with a peak of 50A for 10 seconds.
• Protocols Supported: DSHOT600, Oneshot, Multishot.
• Firmware: HGLRCF722AIO Flight Controller Firmware; BLS Electrochemical Firmware.
• Electrical Specs: 8-bit electric with 4-6S 14.8V-22.2V (lipo) input voltage.
• Dimensions: Compact size at 34x34mm, with 25.5×25.5mm.m2 mounting holes.
• Weight: Lightweight at just 9.8g.

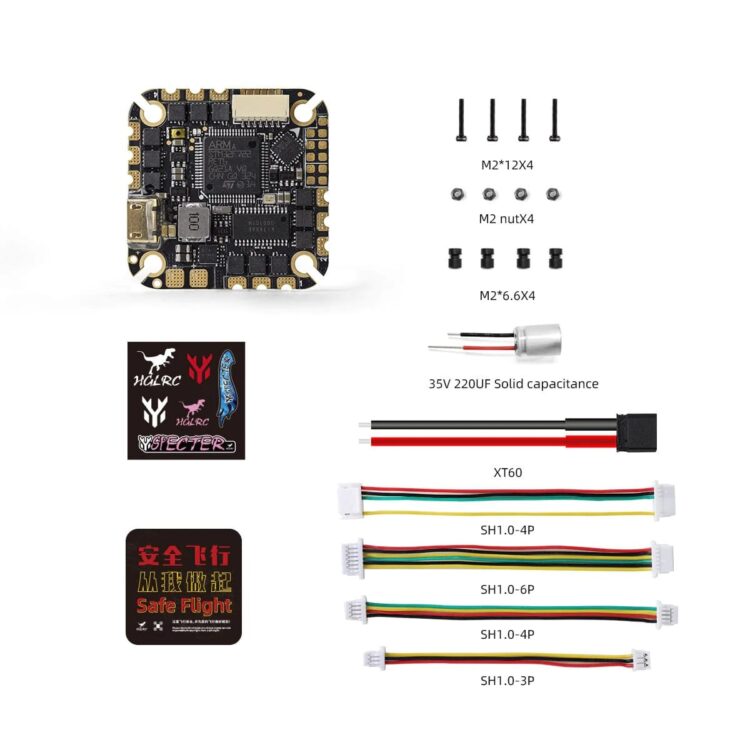

In the Box:

• 1x HGLRC Specter 40A 4-6S AIO Flight Controller.
• Various cables and connectors including XT60 power cable, camera and receiver lines, and HD map passing lines.
• Mounting accessories: shock reduction columns, screws, and self-lock M2 nuts.

This HGLRC Specter F722 AIO controller is ideal for 2-4 inch ring machines and toothpick racks, supporting a wide range of drones. Its inclusion of all necessary accessories ensures you have everything you need for a quick and easy setup. Whether you’re a seasoned pilot or a beginner, this flight controller will take your flying to new heights!
