Skystars H7 Single Gyro HD Flight Controller

Skystars H7 Single Gyro HD Flight Controller

Skystars is now out with their H7 Series to set new standards in the Industry. For digital and analog alike.

Out of stock

4,999

Orders placed before are shipped on same day

Out of stock

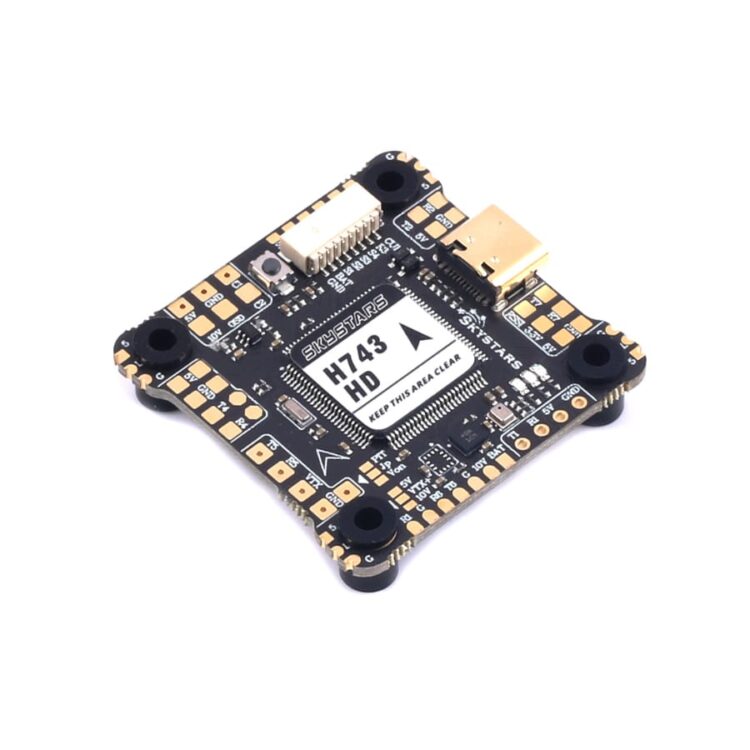

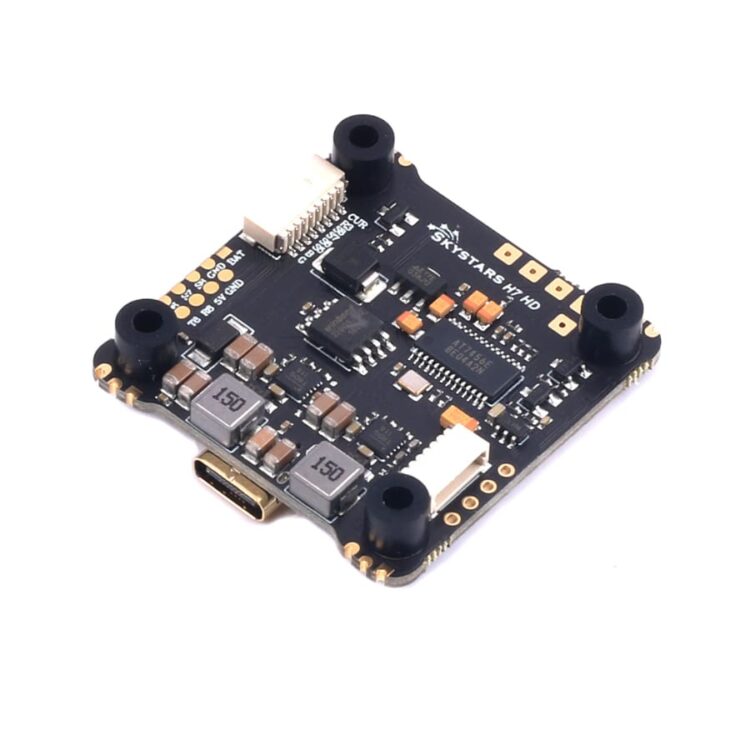

The Skystars H7 HD flight controller supports the DJI HD video system with a dedicated 10V output as well as traditional analogue video OSD. For analogue OSD the board features a dual channel analogue video switcher allowing two cameras to be connected. It features a high speed H743 processor and has 8 uarts for connecting peripherals. This version has a single BMI 270 gyro.

Skystars H743 Single Gyro FC Specifications
– MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
– Gyro: BMI270
– Baro: BMP280
– OSD: AT7456E
– Blackbox: 16M
– 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
– 8x PWM outputs
– 1x I2C
– 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
– USB Type-C(USB2.0)
– 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
– 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
– Dual Camera Inputs switch
– VTX 10V/Vbat filtered power ON/OFF switch
– DJI FPV OSD is supported by any spare UART
– Mounting: 30.5 x 30.5mm
– Dimensions: 39.5 x 39.5 x 7.8 mm
– Weight: 10.1g

Includes:
– 1x Skystars H743 Single Gyro HD Flight Controller
– Accessories

Weight 50 g
