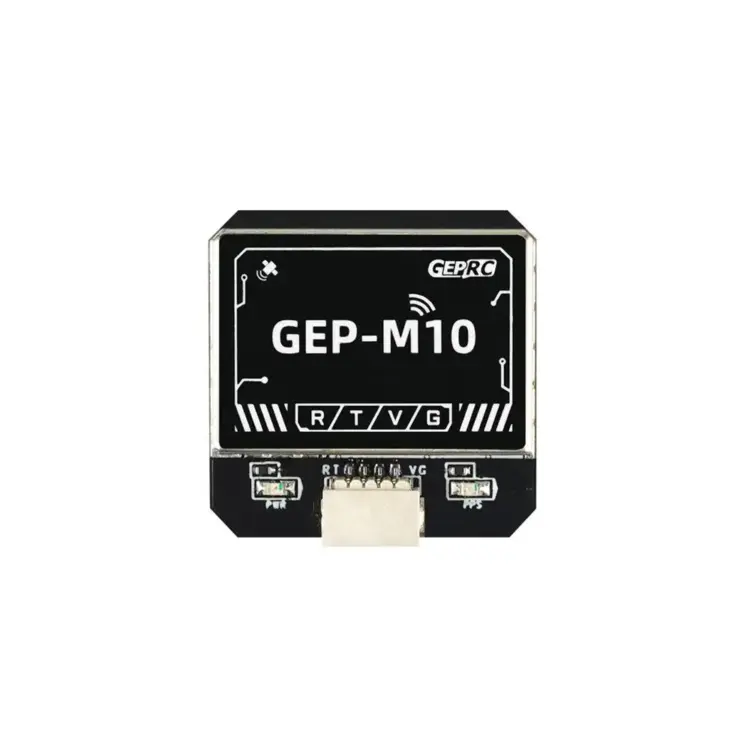

GEPRC M10 GPS Module

GEPRC M10 GPS Module

The GEP-M10 GPS module offers a compact size, fast and stable positioning, and user-friendly operation.

Out of stock

1,699

Orders placed before are shipped on same day

Out of stock

The GEP-M10 GPS module offers a compact size, fast and stable positioning, and user-friendly operation. It uses the u-blox M10 chip to support GPS, BDS, Galileo, QZSS, and SBAS for joint positioning with up to 32 satellites. It also features a built-in Flash chip and farad capacitor for quick hot starts, a small ceramic antenna for excellent reception, and an integrated QMC5883L magnetometer for precise azimuth and altitude data, making it suitable for a wide range of FPV drones and model products.

Features

  • U-blox M10 series chip
  • Fast positioning speed
  • GPS+BDS+Galileo+QZSS+SBAS joint positioning
  • Up to 32 satellites
  • Stable connection quality
  • Unique appearance design
  • Small size and lightweight
  • Built-in Flash chip and Farad capacitor
  • Onboard indicator light, easy to use

Specifications

  • Model: GEP-M10
  • GPS chip: u-blox M10
  • Magnetometer: GEP-M10: No
  • Barometer: GEP-M10: No
  • Input voltage: 3.3V-5V
  • Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
  • Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
  • Channel: 72ch
  • Navigation satellites: Up to 32 pieces
  • Output protocol: GEP-M10: UART(ublox)
  • Baud rate: 115200bps
  • Output Frequency: 10Hz
  • Speed Accuracy: 0.05 m/s
  • Horizontal positioning accuracy: 2D ACC1.5m(Weather)
  • Timing accuracy: 30 ns
  • Receiver sensitivity: Trace-162dBm, Capture-160dBm
  • Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
  • Maximum acceleration: 4G

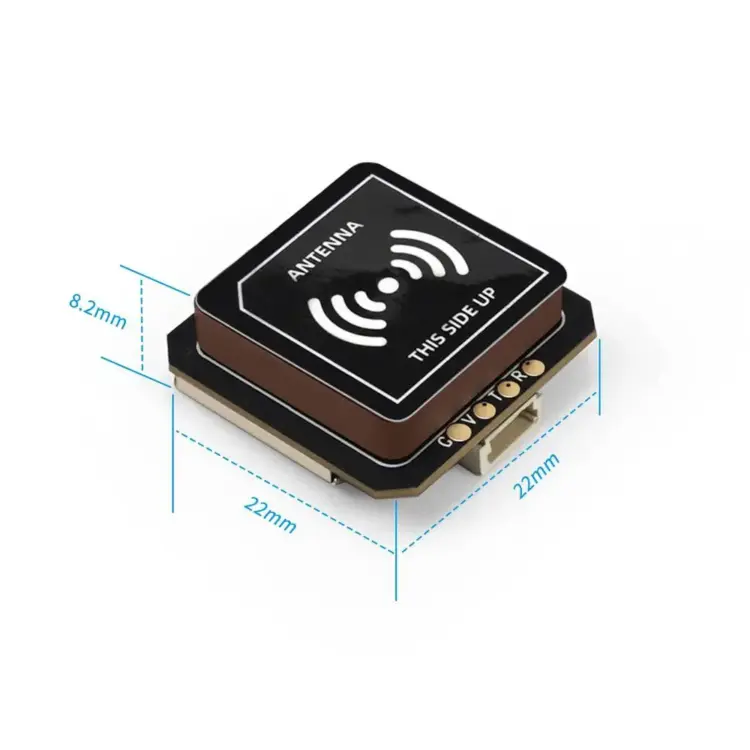

  • Size: GEP-M10: 22*22*8.2mm
  • Weight: GEP-M10:7.8g

Includes

  • 1x GEPRC M10 GPS Module
  • 1x Instruction manual
  • 1x Heat shrink tubing
  • 1x GEPRC sticker
  • 1x Terminal wire
Weight 50 g
