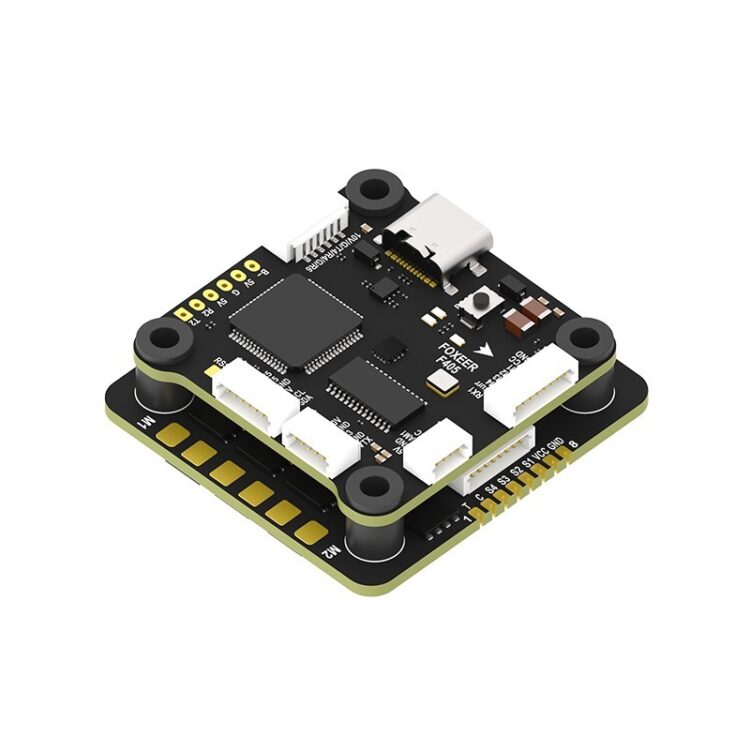

Foxeer F405 V2 (Plug) FC Reaper 55A ESC 8S Stack

Name: Foxeer F405 V2 (Plug) FC Reaper 55A ESC 8S Stack - Quadkart
Brand: Foxeer
SKU: MR##1836
Price: 7499 INR
Availability: OutOfStock

Foxeer F405 V2 (Plug) FC Reaper 55A ESC 8S Stack

Out of stock

₹7,499

Price is Inclusive of GST. Enter GST number at checkout.

Out of stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

Description
Reviews (0)

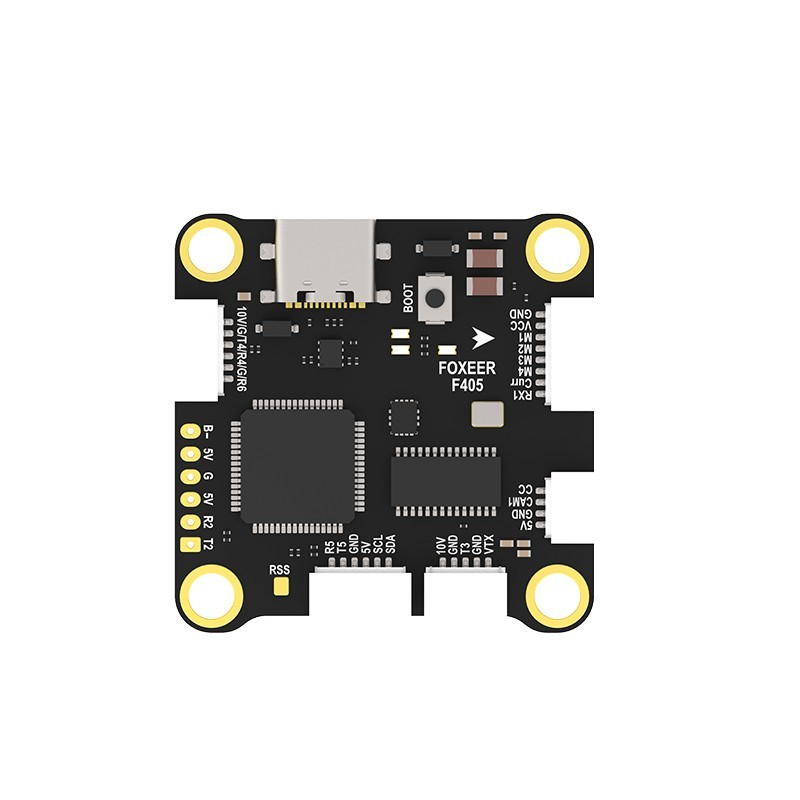

Model	Foxeer F405 V2(Plug) Flight Controller
CPU	STM32F405RGT6
Gyro	ICM42688-P
Barometer	DPS310
Power Supply	4~8S Lipo
BEC Output	DC5V/3A; 10V/3A
OSD	BF OSD
Black Box	16M Flash Memory
UART	6 Set
Connector	DJI; GPS/Compass; 2 Camera Switch; VTX
ESC Telemetry	RX1
X8	Supported
ADC	X3
PWM	1CH
Buzzer	YES
Smart Audio	YES
LED	1 Set 2812 LED
USB	Type-C
Fireware	FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
Size	37X37mm
Mounting Hole	30.5*30.5mm,Φ4mm
Weight(g)	8.4g
Working Temperature	-20℃ ~ +55℃
Working Humidity	20～95%
Storage Temperature	-20℃ ~ +70℃

Model	Foxeer Reaper 55A ESC
Firmware	FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
Continuous /Burst Current	55A4 / 80A4
Input Voltage	DC 9V~36V (3-8S Lipo)
BEC	No
Telemetry	Supported
ESC Programming	BLHeli32
Current Scaling	70
Input Signal	DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
Working Temperature	-20℃ ~ +55℃
Working Humidity	20～95%
Storage Temperature	-20℃ ~ +70℃
Mounting Hole	30.5X30.5mm,Φ4mm/M3
Dimension	42.5x42x5.5mm
Weight	14.6g

Stack Package

1 x FC; 1 x ESC; 8 x M3*8mm silicone grommets, 1 x capacity; 5 x M3 nylon nut; 1 x 120mm camera cable; 1 x 90mm DJI cable; 1 x 120mm GPS/Compass cable; 1 x FC-ESC cable; 1 x 90mm VTx cable; 1 x XT60 cable
