Improved circuit design, better components, and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

Support Betaflight, INAV, Ardupilot firmware

MCU: STM32F745

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Mount pattern: 20*20mm/φ4

Dimensions: 30.5*27 mm

Weight: 4.8g

BEC: 5V 2.5A / 9V 2A

BF Firmware target: IFLIGHT_BLITZ_F7_AIO

Ardupilot Firmware：arduplane_with_bl

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

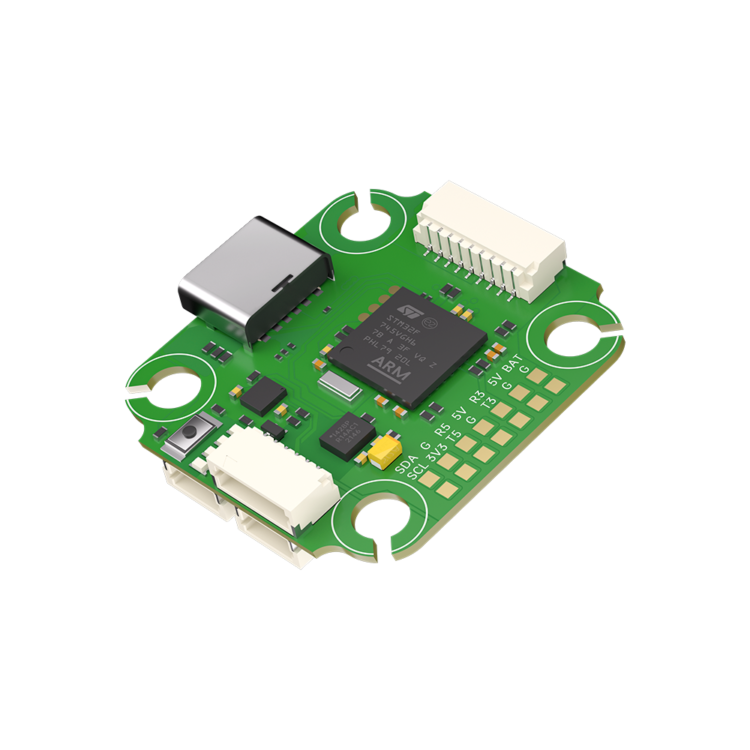

1 x BLITZ Mini F745 Flight Controller

Please use our GoogleDrive Database to download the Ardupilot firmware of the FC：

https://drive.google.com/drive/folders/1r3MNTBNYSzGeRXQg45j4IJVoW1Xjk7Y0
