Skystars F722 Mini HD Pro FC + KM55 55A AM_32 Stack

Skystars F722 Mini HD Pro FC + KM55 55A AM_32 Stack

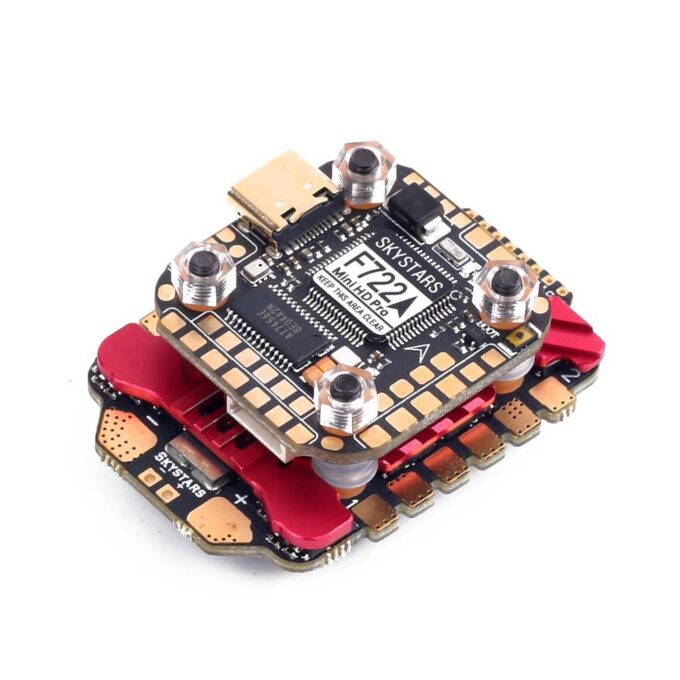

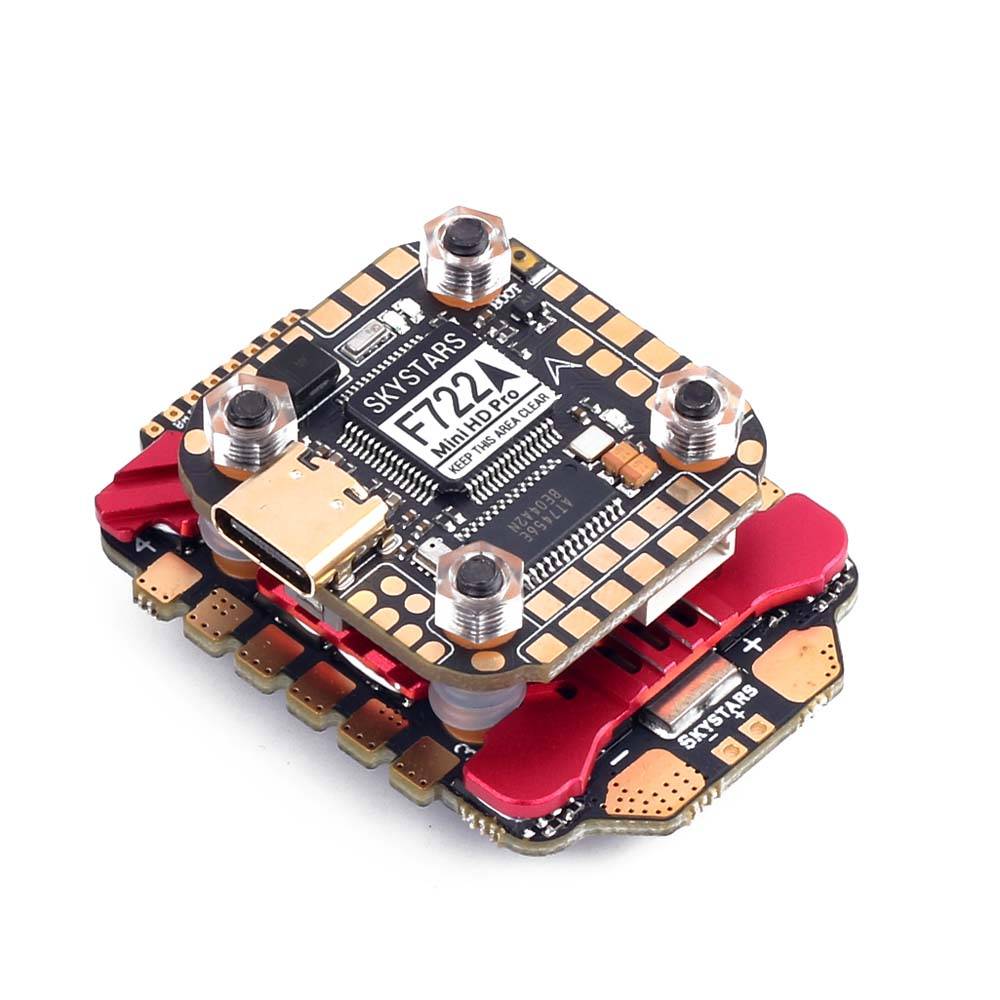

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam 55A AM32 32Bit 3-6S 20×20 4-i-n1 ESC with a 20×20 mounting pattern.

In stock

8,999

In stock

Skystars F722 Mini HD Pro FC + KM55 55A AM_32 Stack

8,999

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam 55A AM32 32Bit 3-6S 20×20 4-i-n1 ESC with a 20×20 mounting pattern.

Features
  • Designed the LED installation position in the four corners, supporting WS2812 Programable LED.
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,). Support 3.3V Satellite Receiver.
  • High-performance / low-noise / high-sensitivity IMU. BMI with 6-axis gyro and accelerometer.
  • Support connect DJI HD air module.
  • Input voltage 12V-26V (3-6S)
  • TVS protect.
  • Automatic voltage monitoring.
Skystars Fly Stack - F7 HD Mini Pro FC + KM55 55A AM_32 3-6S 4-in-1 ESC - 20x20

Specifications

F722 FC

  • MCU: STM32F722RGT6 216MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Barometer: YES
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to the center of holes
  • Weight: 4.2g

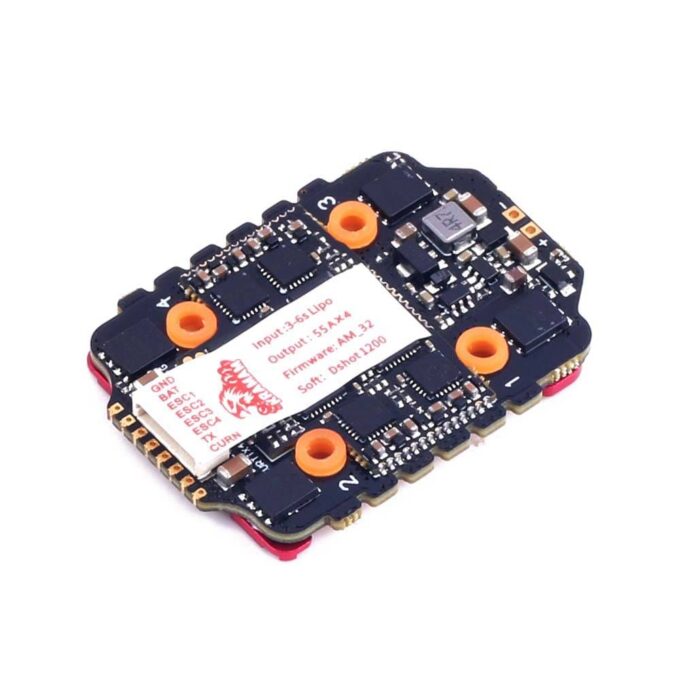

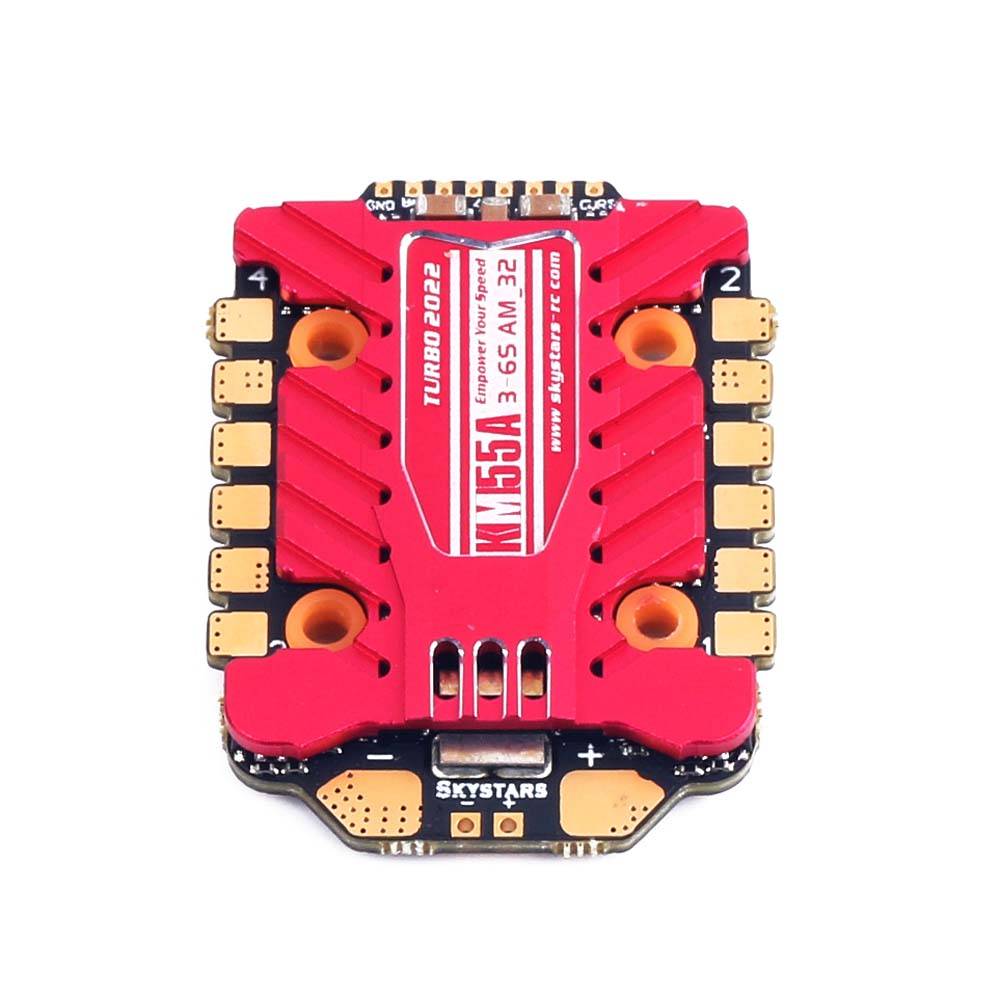

55A 4IN1 ESC

  • Voltage: 3-6S LiPo
  • Con.Current: 55A Peak
  • Current: 70A≥ 10S
  • Firmware: AM_32
  • Support : Dshot 600
  • Mounting hole : 20X20 mm/M3
  • BEC: No
  • Product size: 35*47*6.5mm
  • Weight: 16.5g

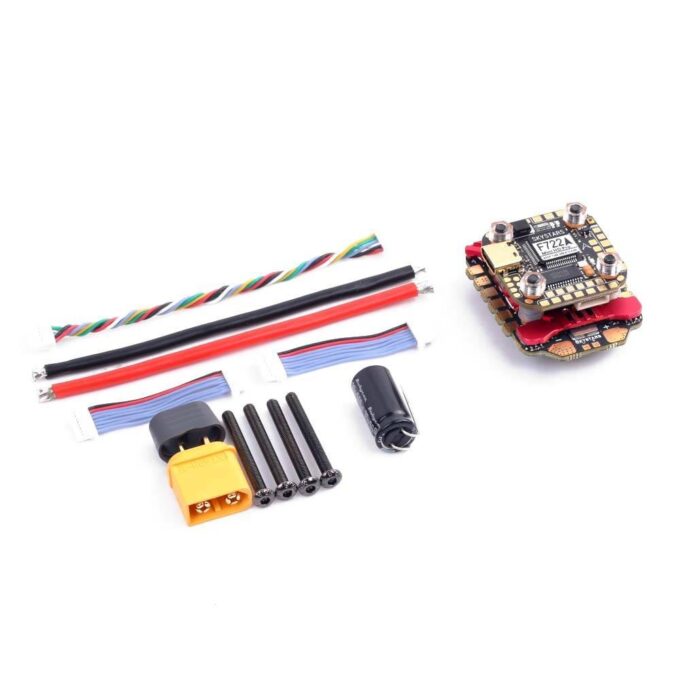

Includes

  • 1x Skystars Kramam 55A AM32 32Bit 3-6S 20×20 4in1 ESC
  • 1x Skystars F722 Mini HD Pro Flight Controller 20×20mm
Weight 150 g
