Important Update Regarding Bluetooth Function

Feb 25, 2026: Due to temporary hardware adjustments, the current batch of the Stack does not support Bluetooth wireless parameter tuning. Please rest assured that the flight controller and ESC perform flawlessly in all other aspects. The resumption time for this feature will be announced separately. We apologize for any inconvenience this may cause!

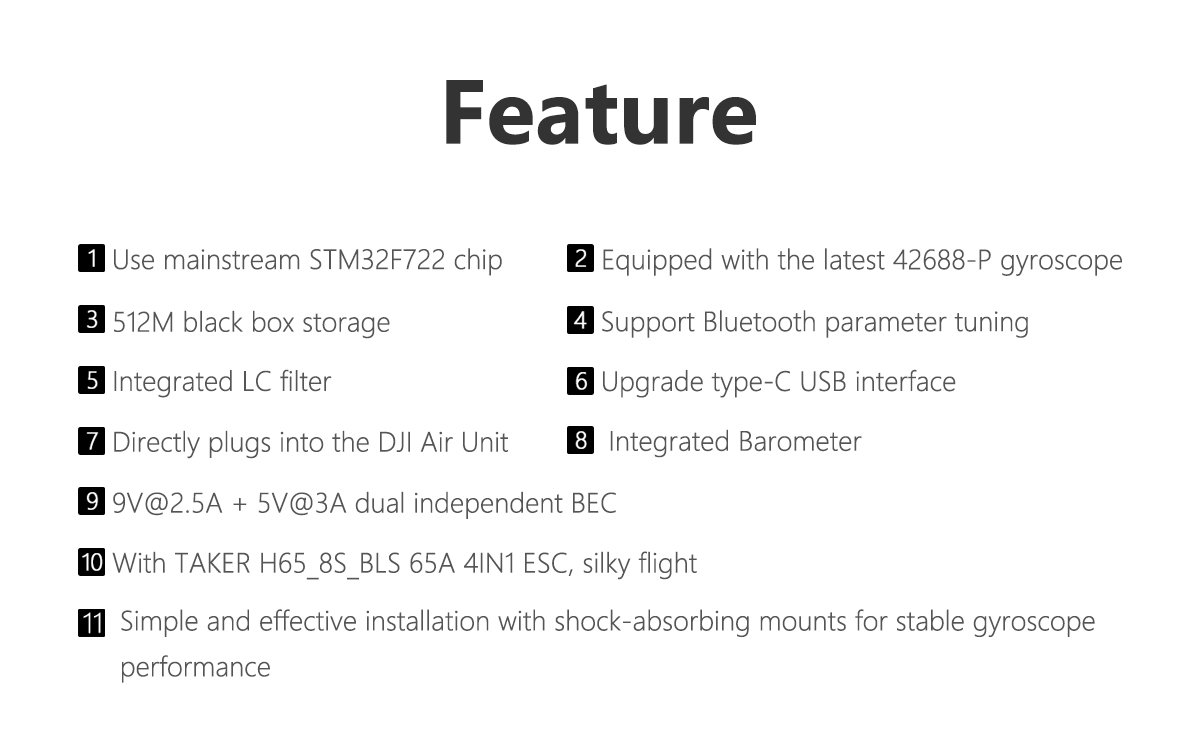

Feature

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. [email protected] + 5V@3A dual independent BEC

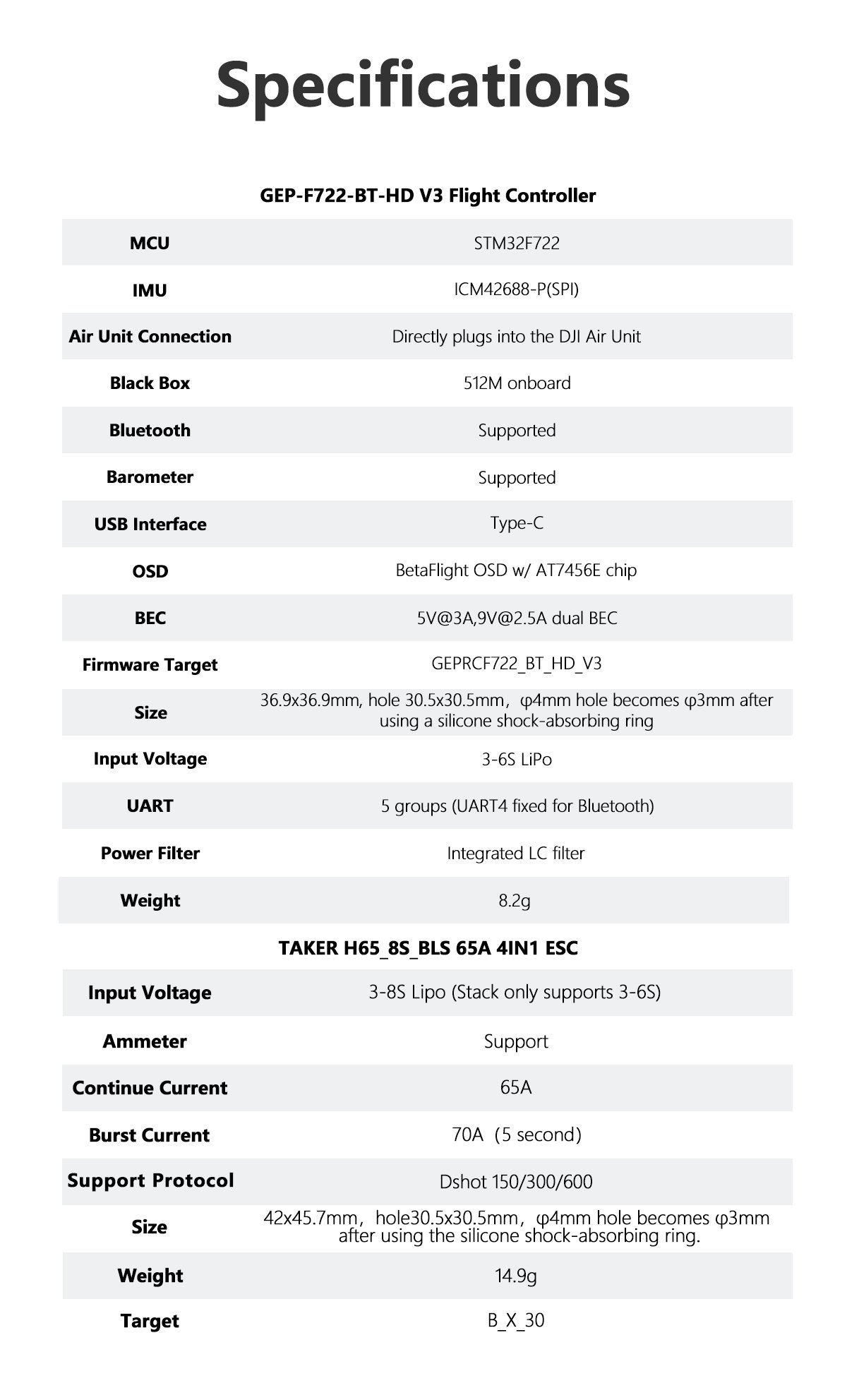

Specifications

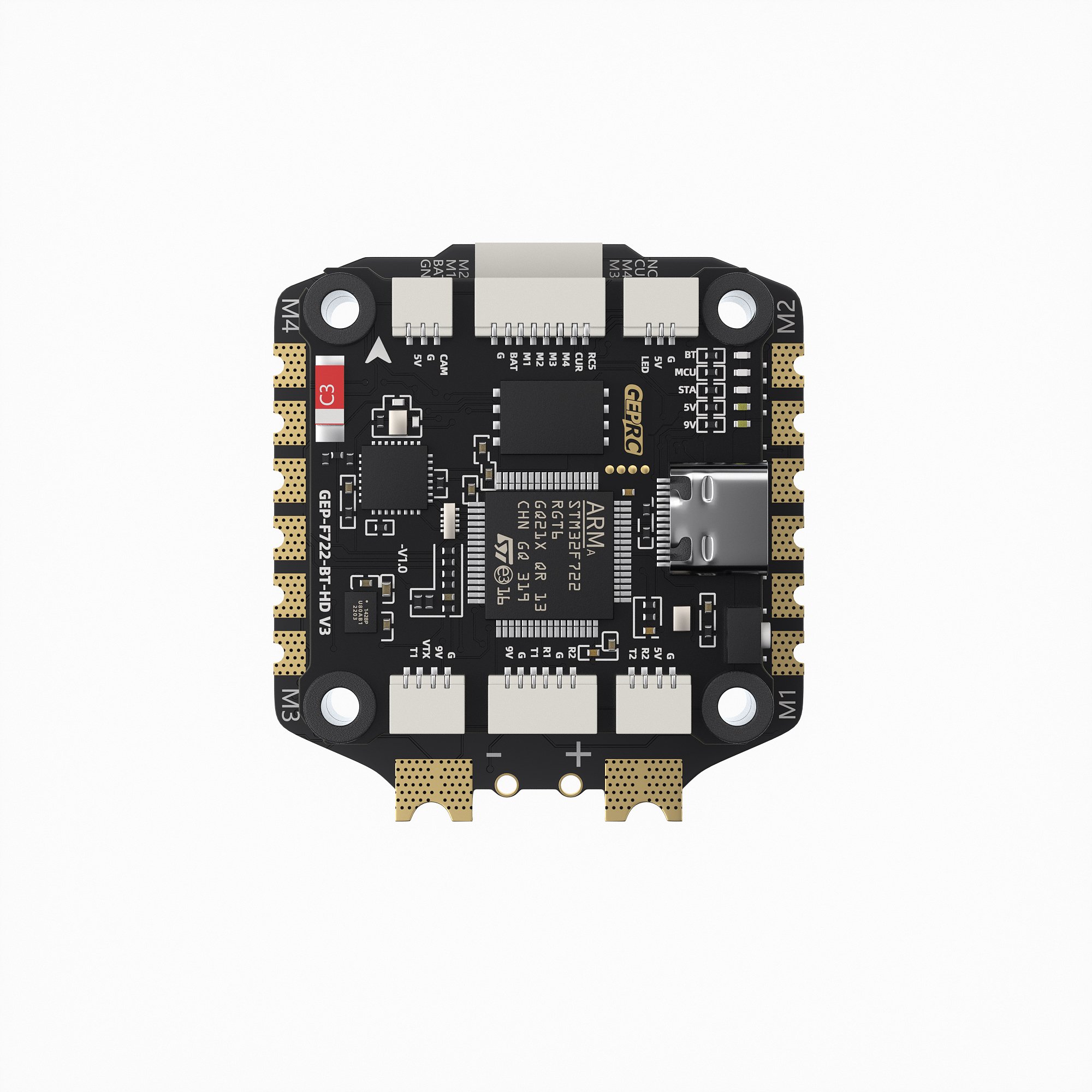

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection: Directly plugs into the DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A, [email protected] dual BEC
• Firmware Target: GEPRCF722_BT_HD_V3
• Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
• Input Voltage: 3-6S LiPo
• UART: 5 groups (UART4 fixed for Bluetooth)
• Power Filter: Integrated LC filter
• Weight: 8.2g

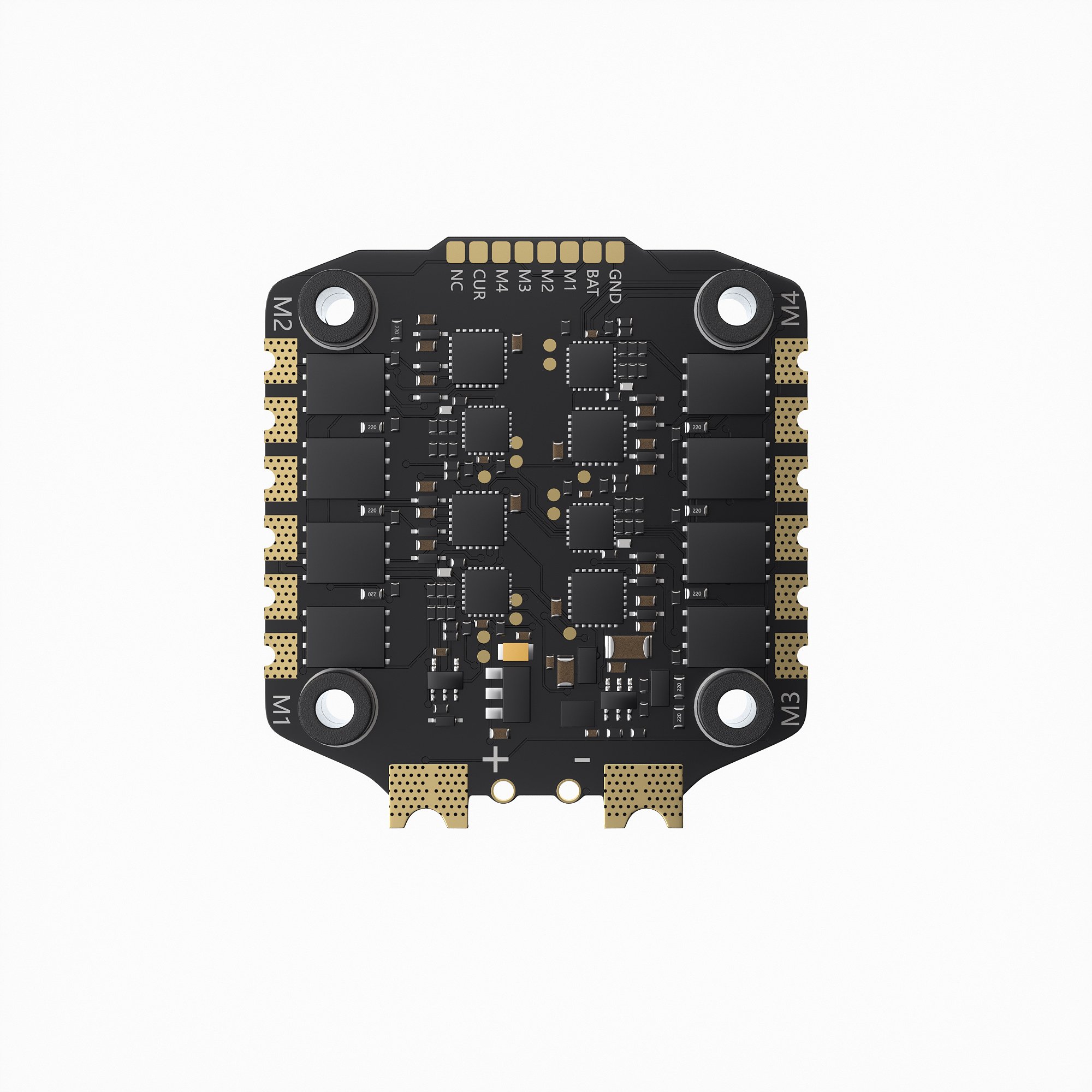

TAKER H65_8S_BLS 65A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Continue Current：65A
• Burst Current: 70A (5 second)
• Support Protocol: Dshot 150/300/600
• Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
• Weight: 14.9g
• Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
