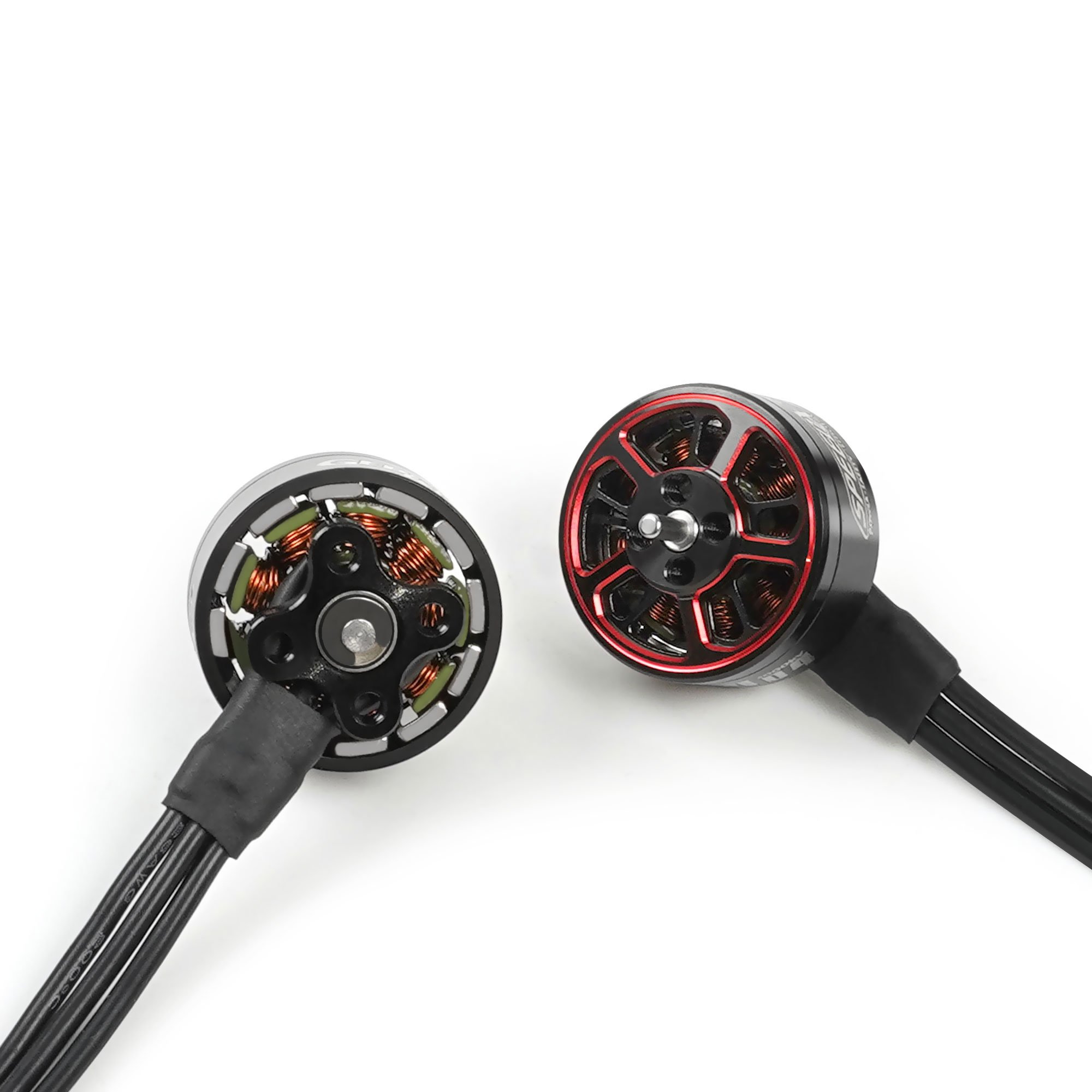

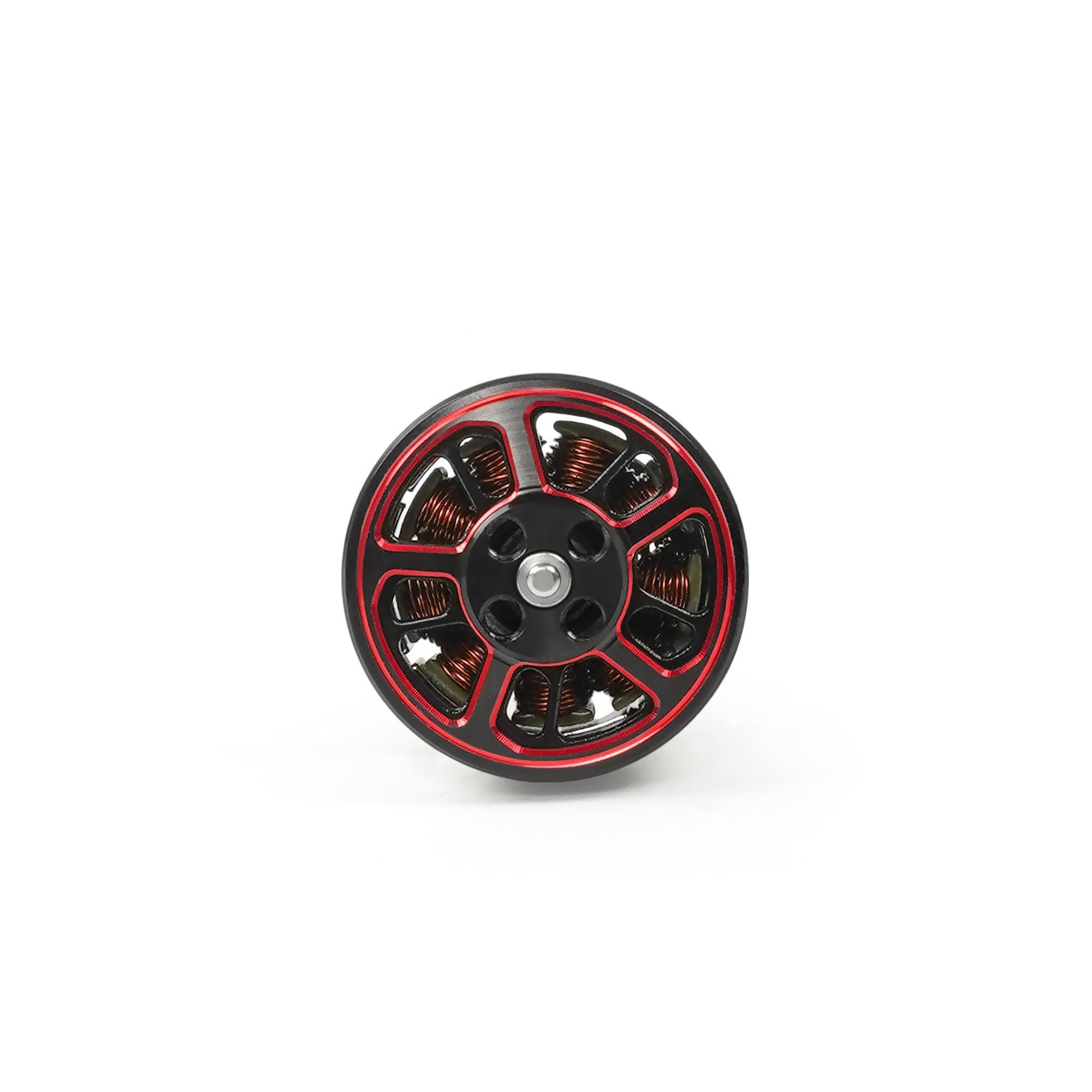

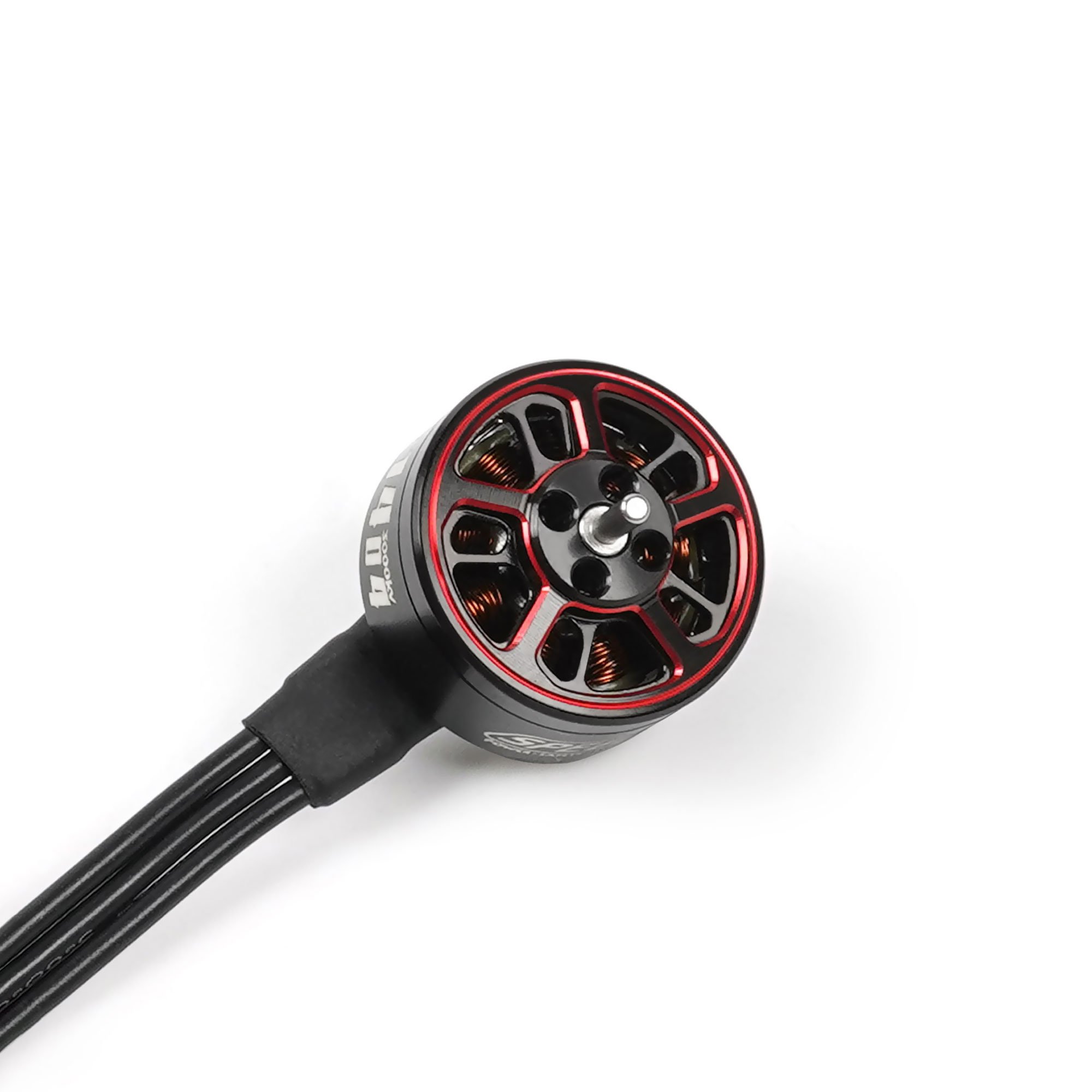

SPEEDX2 1404 4600KV Motor

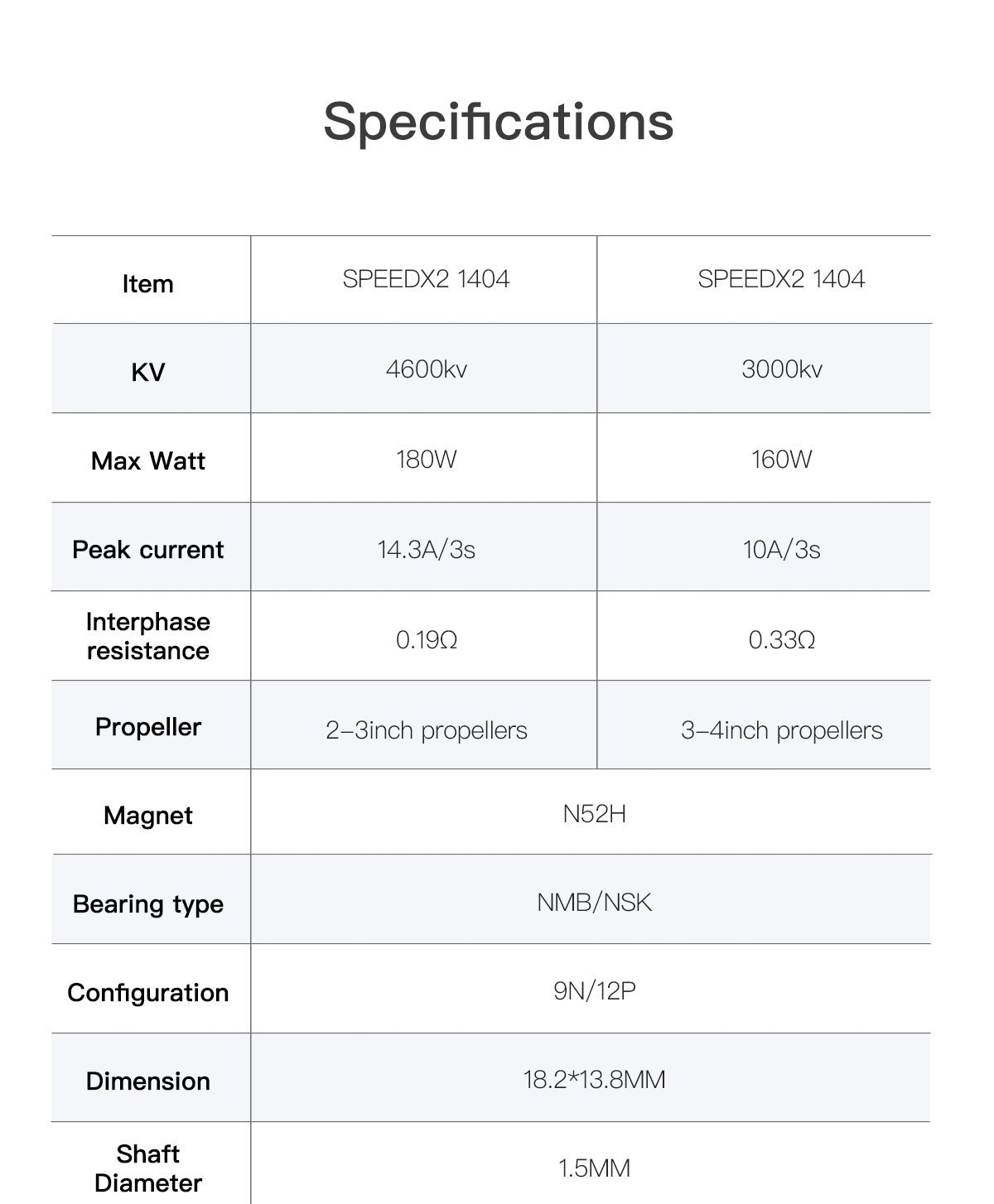

• Model: SPEEDX2 1404 4600KV Motor

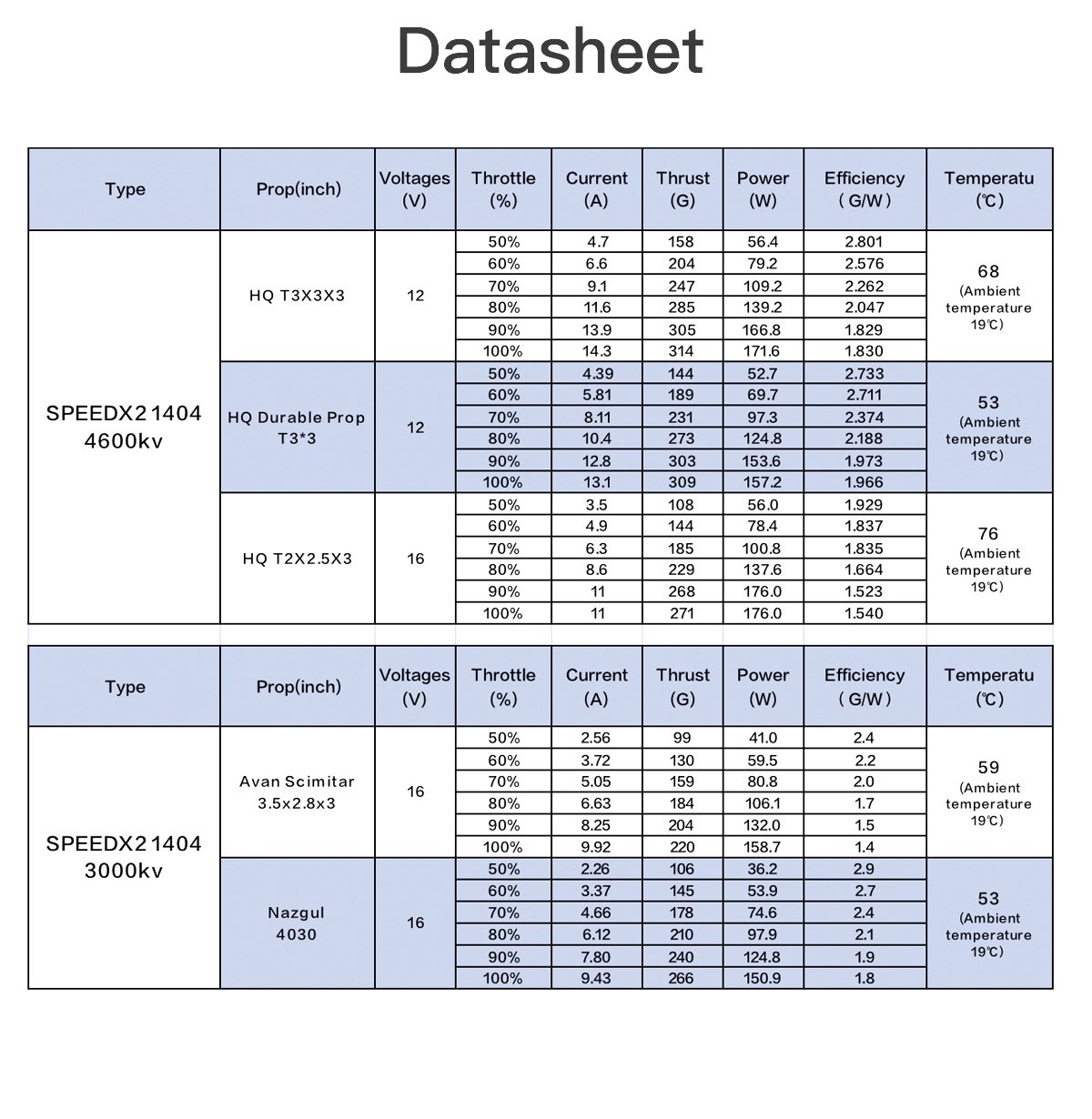

• Max Watt: 180W
• Peak current: 14.3A/3″
• Interphase resistance: 0.19Ω
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 9N12P

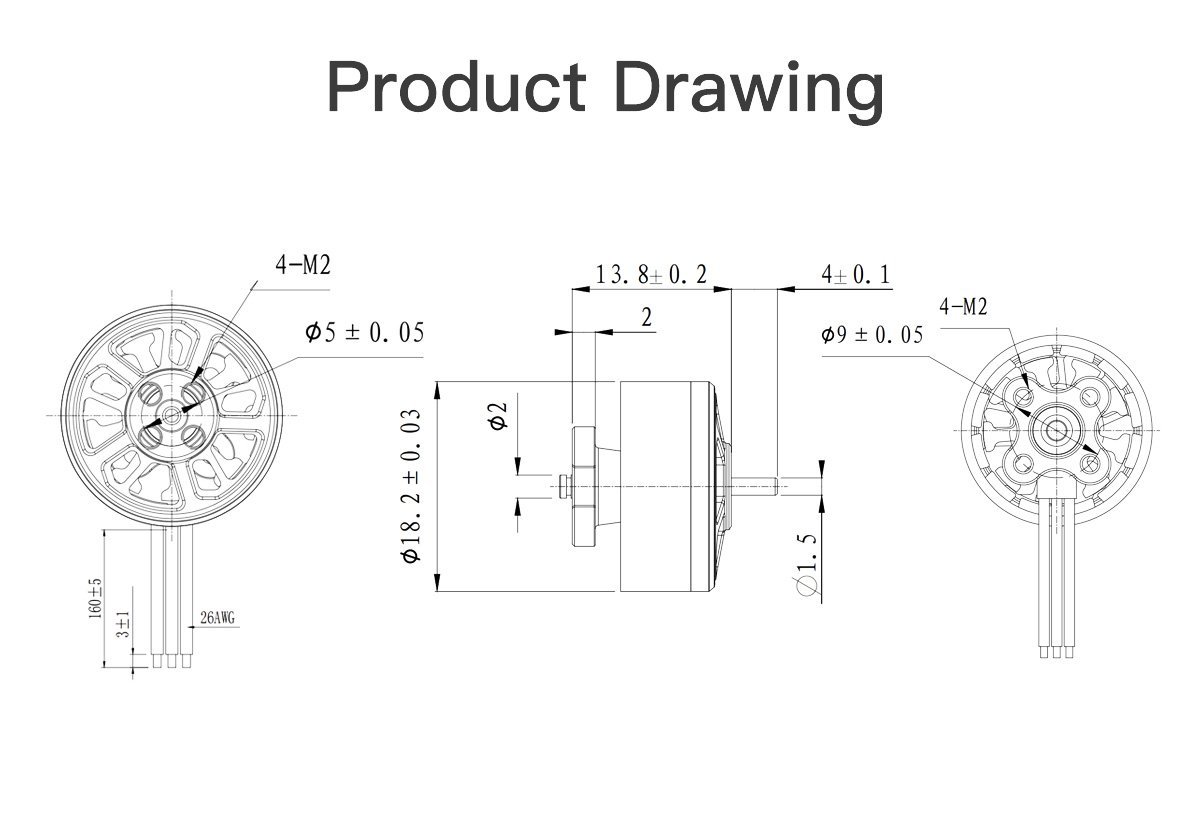

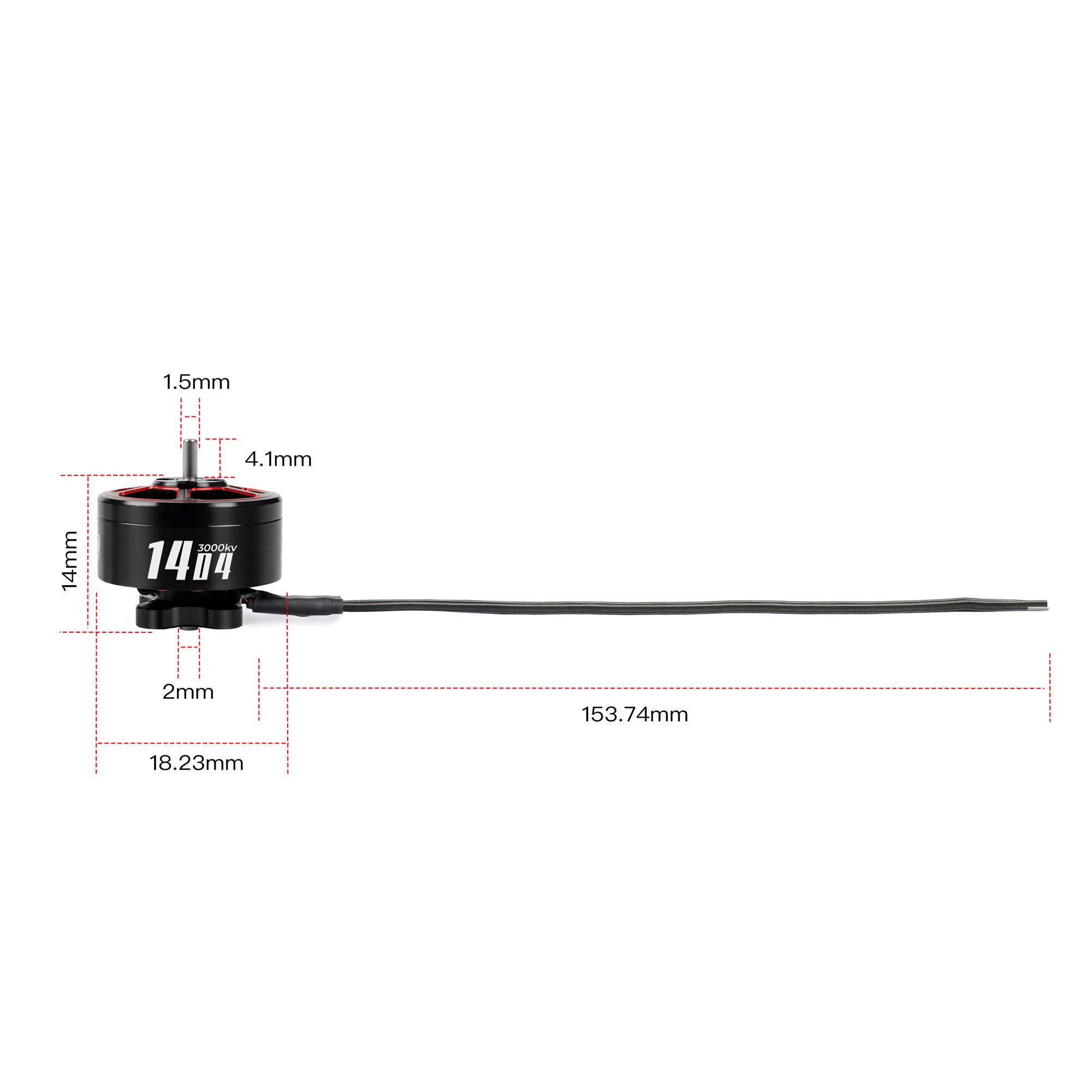

• Dimension: φ18.2mm*13.8mm
• Shaft Diameter: φ1.5mm

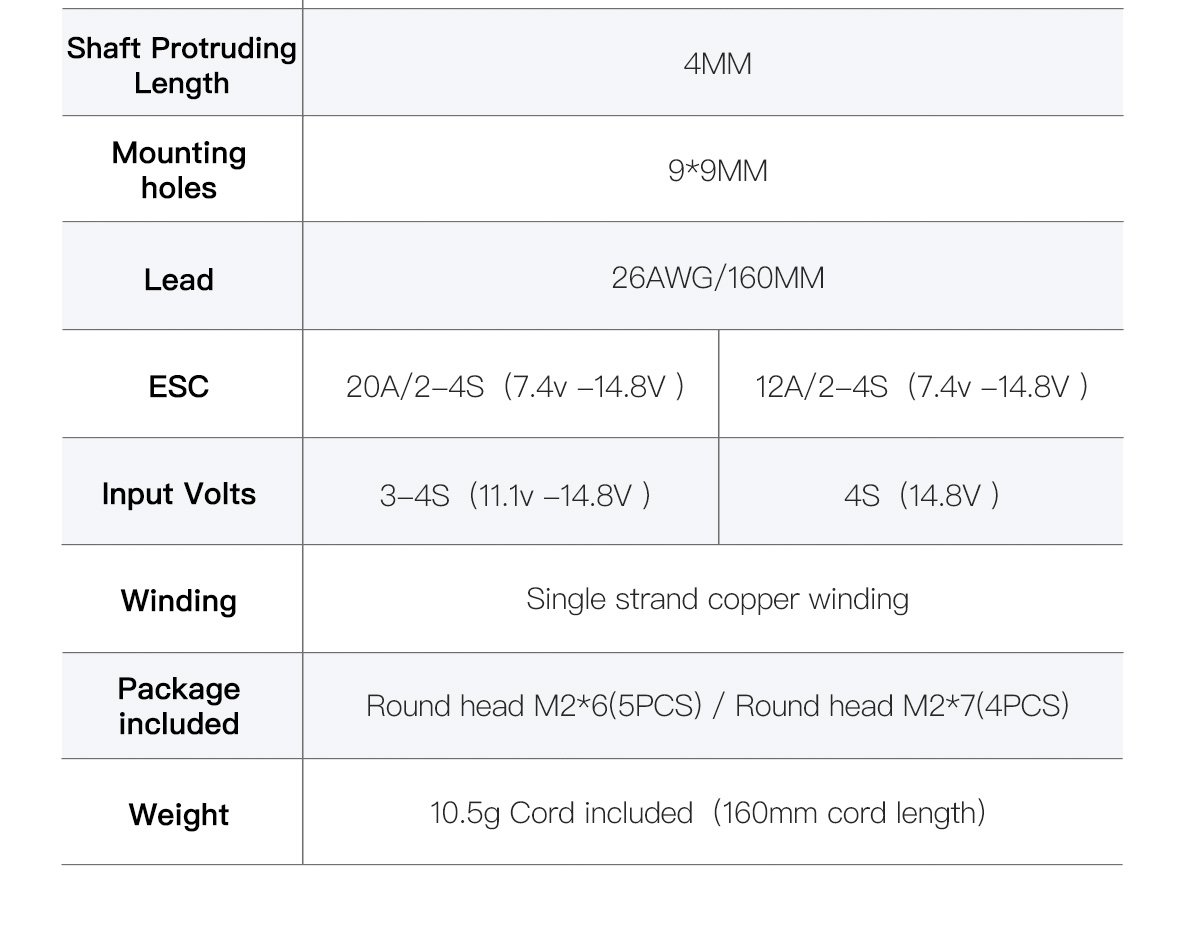

• Shaft Protruding Length: 4mm
• Mounting holes: 9mm*9mm（M2）
• Lead: 160mm/26AWG
• ESC: 20A/2-4S（7.4V-14.8V）
• Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
• Winding: Single strand copper winding

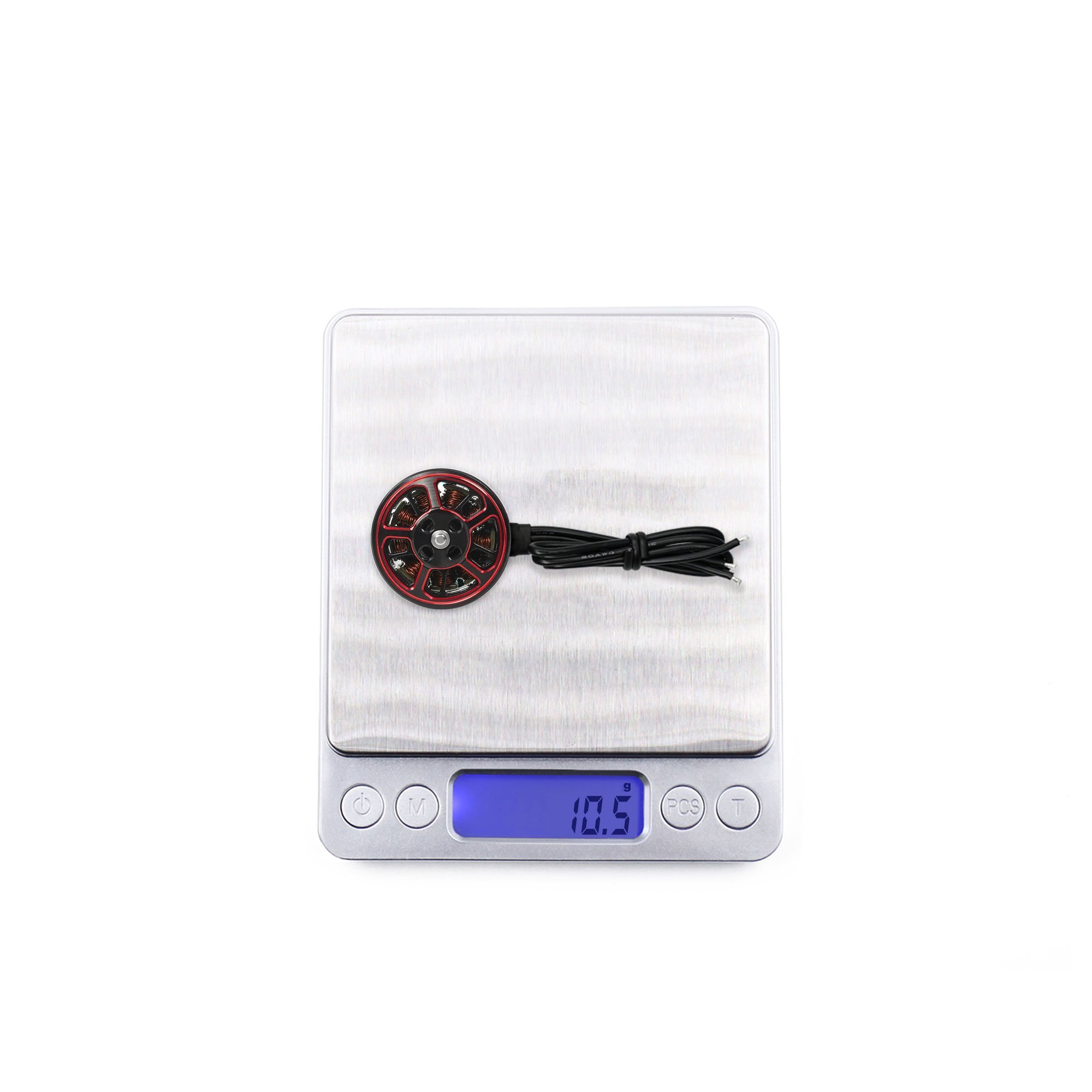

• Weight: 10.5g (included wire)
• Suitable for: 2 inch – 3 inch lightweight models
