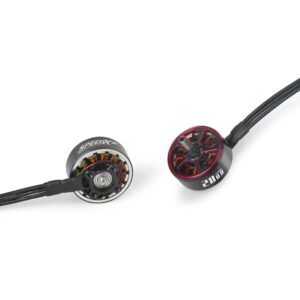

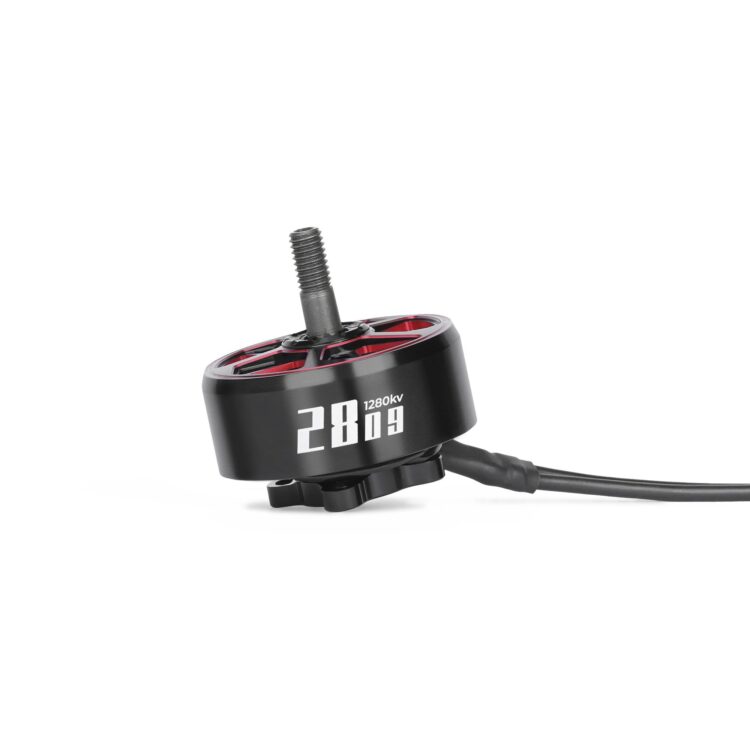

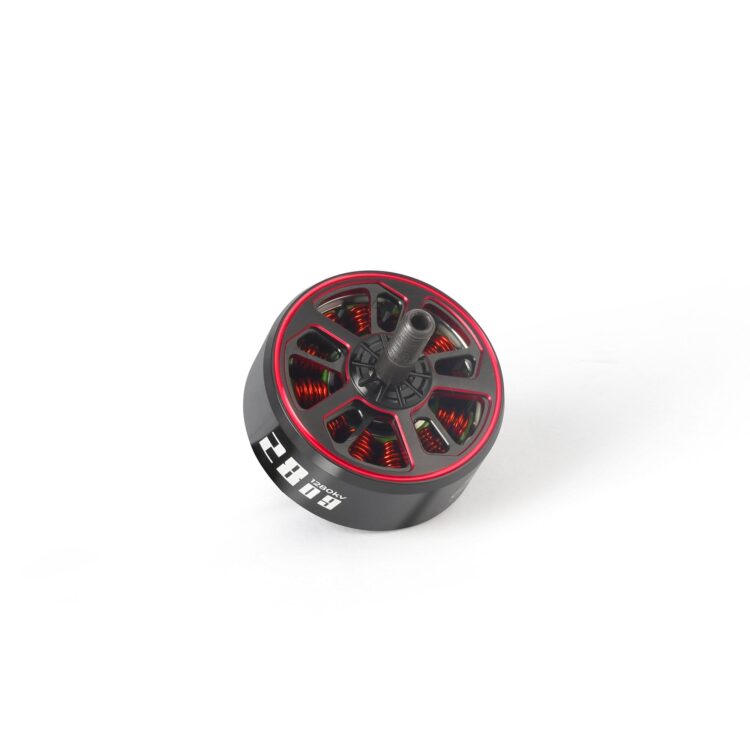

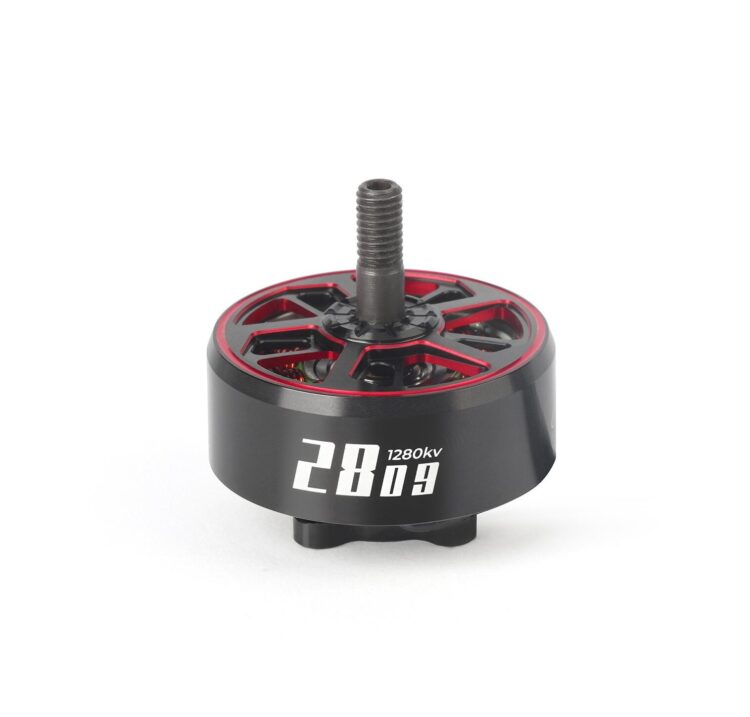

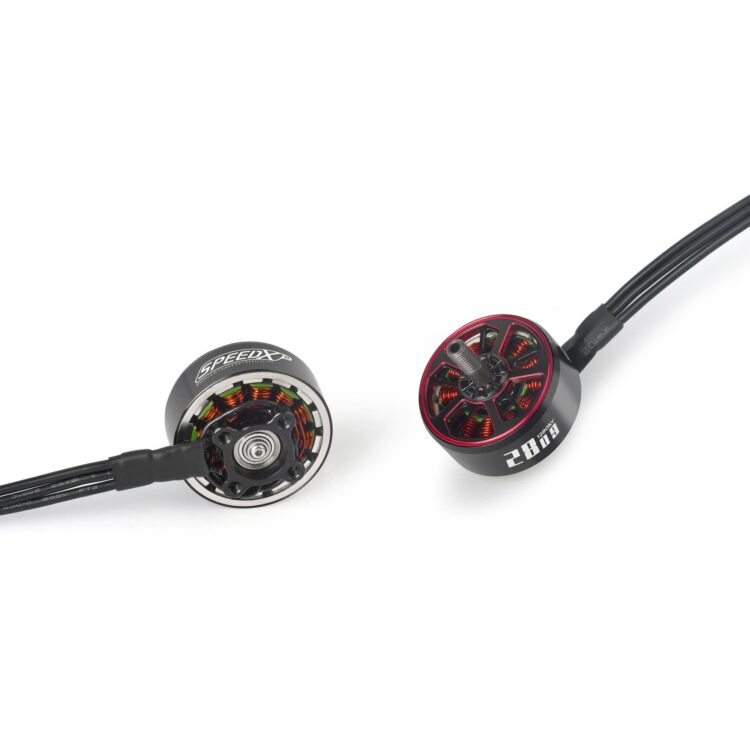

The Geprc SPEEDX2 2809 1280KV Drone Motor is developed for a 7-8 inch large FPV drone. The stator is made of 0.2MM silicon steel sheets from Kawasaki. The magnetic steel uses N52SH, which improves the high temperature resistance by 30%. In terms of appearance, the overall design is dark and red, with a delicate texture. The motor mounting hole is 19mm*19mm.

Features of Geprc SPEEDX2 2809 1280KV Drone Motor

1. Using 7075 aviation aluminum alloy, high-precision CNC integrated
2. Dark appearance with red side strips
3. The rotor edge structure conforms to the load-bearing mechanical design and has strong impact resistance.
4. Adopt high-quality N52SH magnetic steel to prevent high temperature demagnetization

Specifications Geprc 2809 Drone Motor

• Model: SPEEDX2 2809 Motor
• KV:1280KV
• Configuration:12N14P
• Magnet: N52SH ARC
• Rotor material: 7075-T6 aviation aluminum alloy
• Stator diameter: 28mm
• Stator height: 9mm
• Output shaft diameter: Φ5mm
• Dimensions: Φ36.04mm * 36.53mm
• Outlet specification: 18AWG 250mm
• Rated voltage: 25.2V 6S（LiPo）
• Maximum power (W): 1148.9
• Maximum current (A): 49.35A
• Mounting hole: 19x19mm (M3)
• Color: red and black
• Weight: 71.4g
• Applicable models: 7-8 inch long range FPV/7-8 inch X8 models

Includes

1 x SPEEDX2 2809 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
