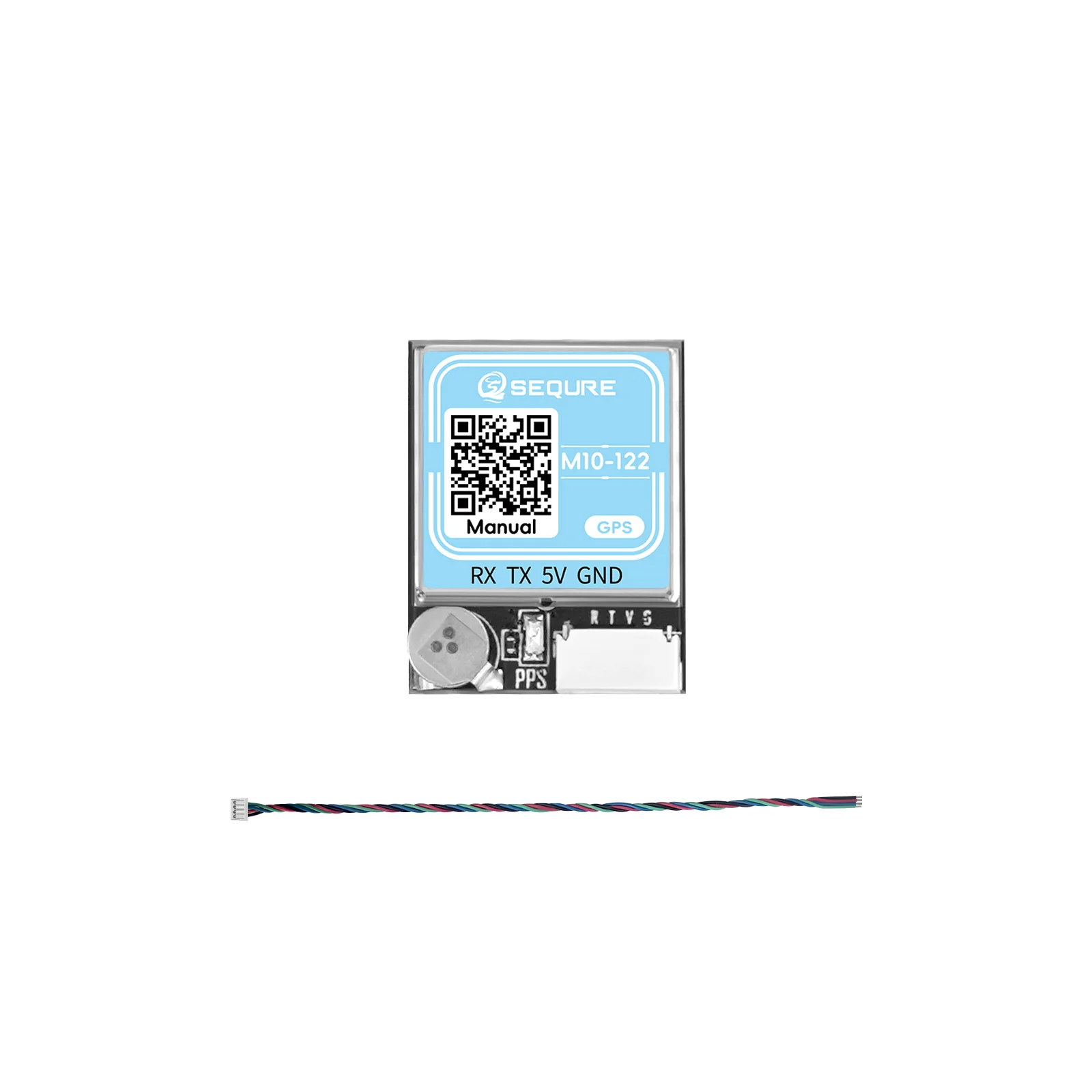

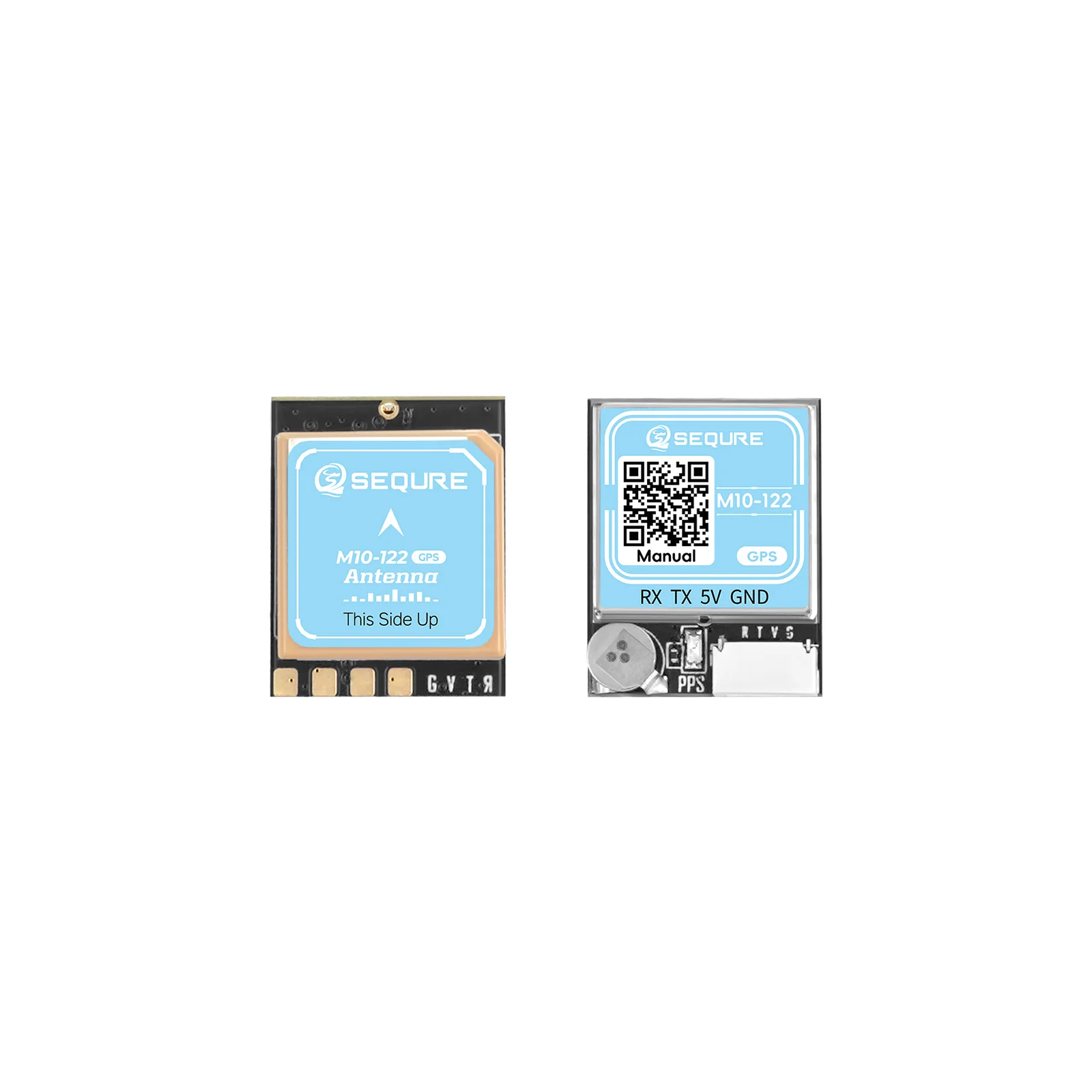

Sequre M10-122 GPS Module

Name: Sequre M10-122 GPS Module - Quadkart
Brand: SEQURE
SKU: PJGPSM10122
Price: 2099 INR
Availability: InStock

New

Sequre M10-122 GPS Module

In stock

₹2,099

Price is Inclusive of GST. Enter GST number at checkout.

In stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

Product Description:
(1) SEQURE M10 second-generation GPS is designed with a 10th-generation chip optimization solution and GPS+BDS+GALILEO positioning system, supporting NMEA/UBLOX protocol. It has a faster positioning speed and stronger anti-interference.
(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.

(3)M10-182Q, M10-252Q respectively integrate QMC5883 compass for a wider range of applications
(4) Miniaturization multi-specification design for easy installation, accommodating drones of various sizes available on the market.
(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.
（6）The full range of GPS is compatible with a variety of mainstream FC firmware on the market: Betaflight, INVA, Ardupilot, etc.

Parameters of Product:

Model	M10-252Q	M10-252	M10-182Q	M10-182	M10-122
Chip	M10050	M10050	M10050	M10050	M10050
Working System	GPS+BDS+GALILEO	GPS+BDS+GALILEO	GPS+BDS+GALILEO	GPS+BDS+GALILEO	GPS+BDS+GALILEO
Auxiliary System	SBAS, QZSS	SBAS, QZSS	SBAS, QZSS	SBAS, QZSS	SBAS, QZSS
Working Voltage	3.3V-5V	3.3V-5V	3.3V-5V	3.3V-5V	3.3V-5V
Size	25258.2mm	25258.2mm	18188.2mm	18188.2mm	16127.3mm
Weight	12g	12g	8g	8g	4.3g
Interface	PCB pad、 sh1.0 6pin straight socket	PCB pad、 sh1.0 6pin straight socket	sh1.0 6pin straight socket	PCB pad、 Sh1.0 4pin straight socket	PCB pad、 Sh0.8 4pin straight socket
Antenna	Ceramic antenna	Ceramic antenna	Ceramic antenna	Ceramic antenna	Ceramic antenna
Receive Channel	72 search channels	72 search channels	72 search channels	72 search channels	72 search channels
Baud Rate	115200	115200	115200	115200	4800-921600， default 115200
Output Protocol	NMEA、UBLOX dual agreement	NMEA、UBLOX dual agreement	NMEA、UBLOX dual agreement	NMEA、UBLOX dual agreement	NMEA、 UBLOX dual agreement
Compass	QMC5883L	/	QMC5883L	/	/
Output Frequency	1Hz-10Hz, default 10Hz	1Hz-10Hz, default 10Hz	1Hz-10Hz, default 10Hz	1Hz-10Hz, default 10Hz	1Hz-18Hz, default 10Hz
Speed Accuracy	0.05m/s	0.05m/s	0.05m/s	0.05m/s	0.05m/s
Horizontal Positioning Accuracy	2D ACC1.5m（open air）	2D ACC1.5m（open air）	2D ACC1.5m（open air）	2D ACC1.5m（open air）	2D ACC1.5m（open air）
Receive Sensitivity	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm	Trace-162dBm、 Capture-160dBm
Working Temperature	-40℃ ～ +85℃	-40℃ ～ +85℃	-40℃ ～ +85℃	-40℃ ～ +85℃	-40℃ ～ +85℃
Storage Temperature	-40℃ ～ +105℃	-40℃ ～ +105℃	-40℃ ～ +105℃	-40℃ ～ +105℃	-40℃ ～ +105℃
