iFlight XING-E 3314 900KV Cinelifter Motor

New

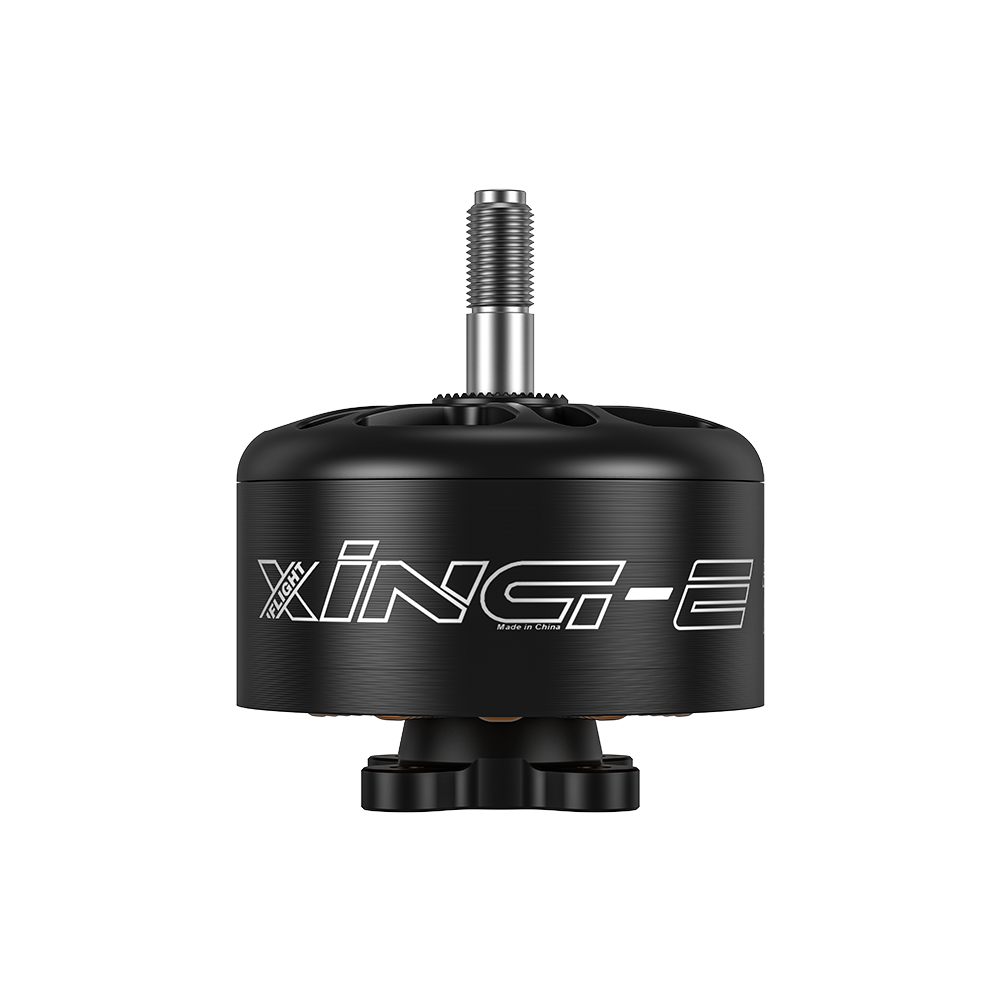

iFlight XING-E 3314 900KV Cinelifter Motor

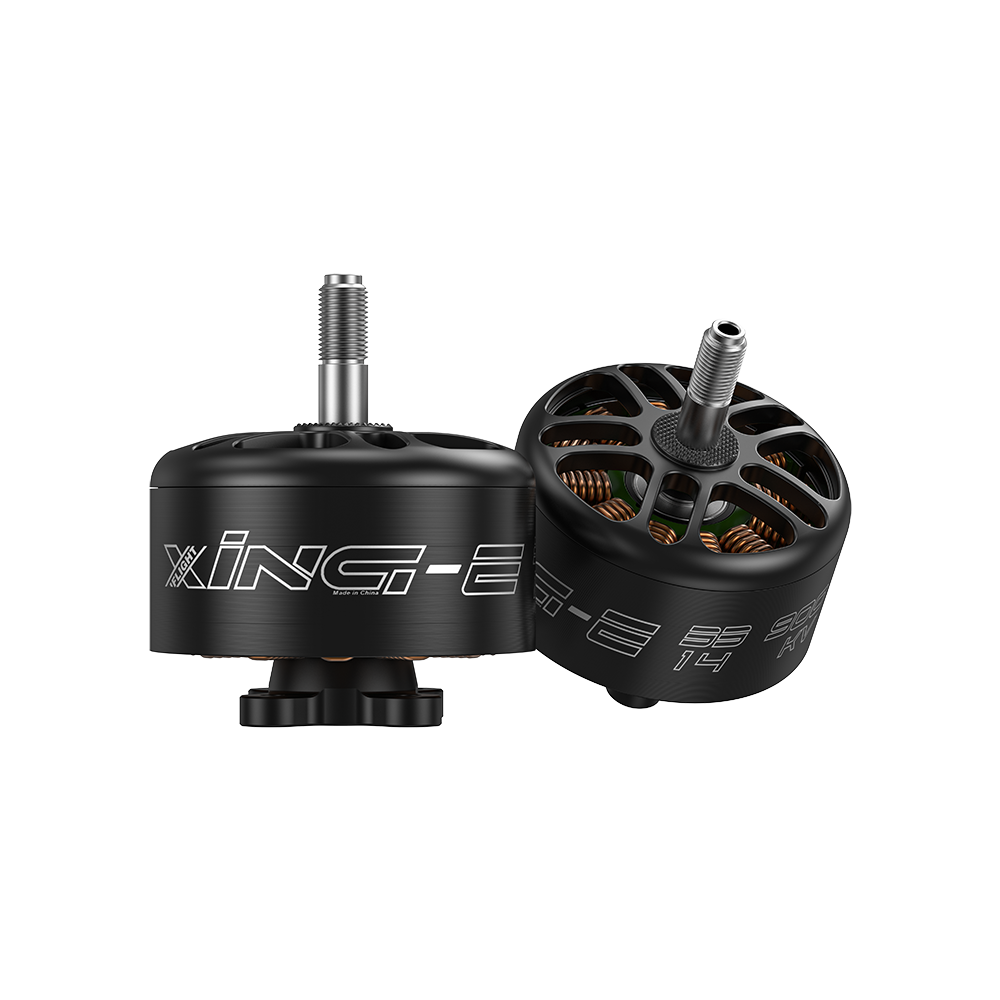

iFlight XING-E 3314 900KV Cinelifter Motor - Image 2

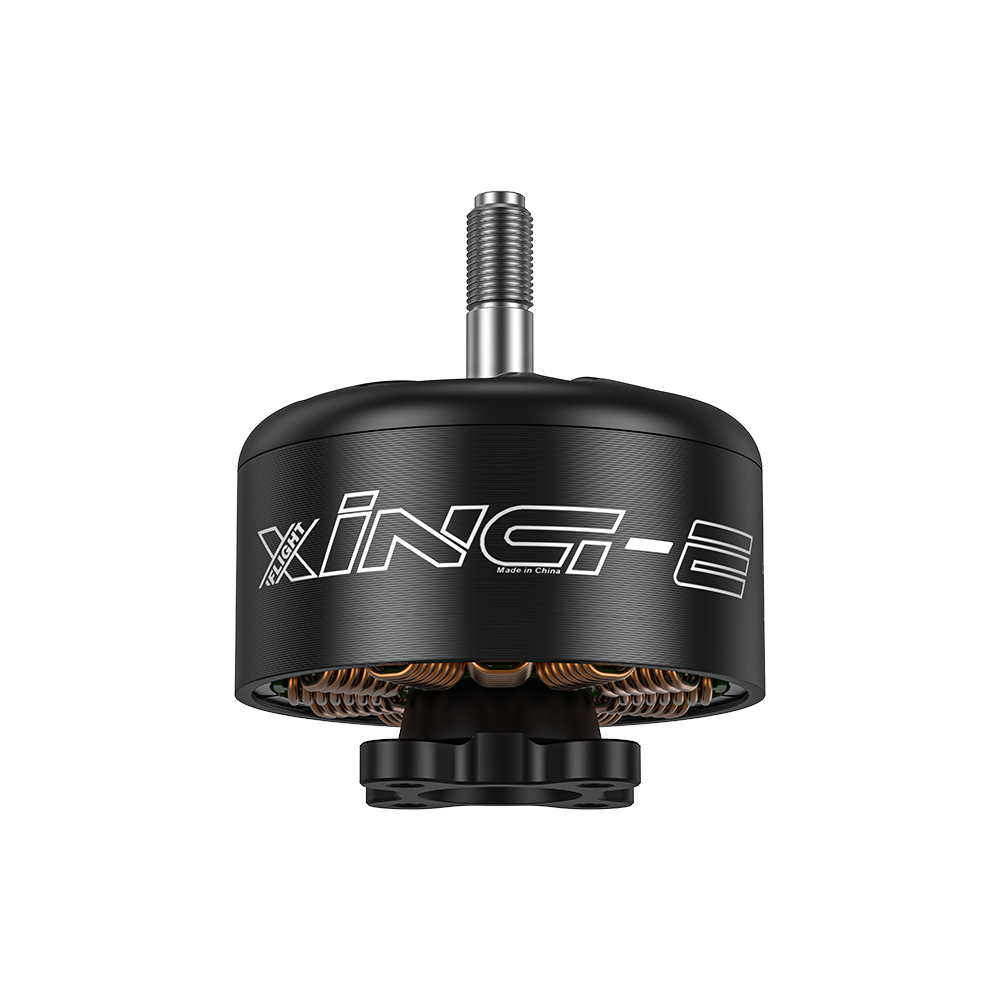

iFlight XING-E 3314 900KV Cinelifter Motor - Image 3

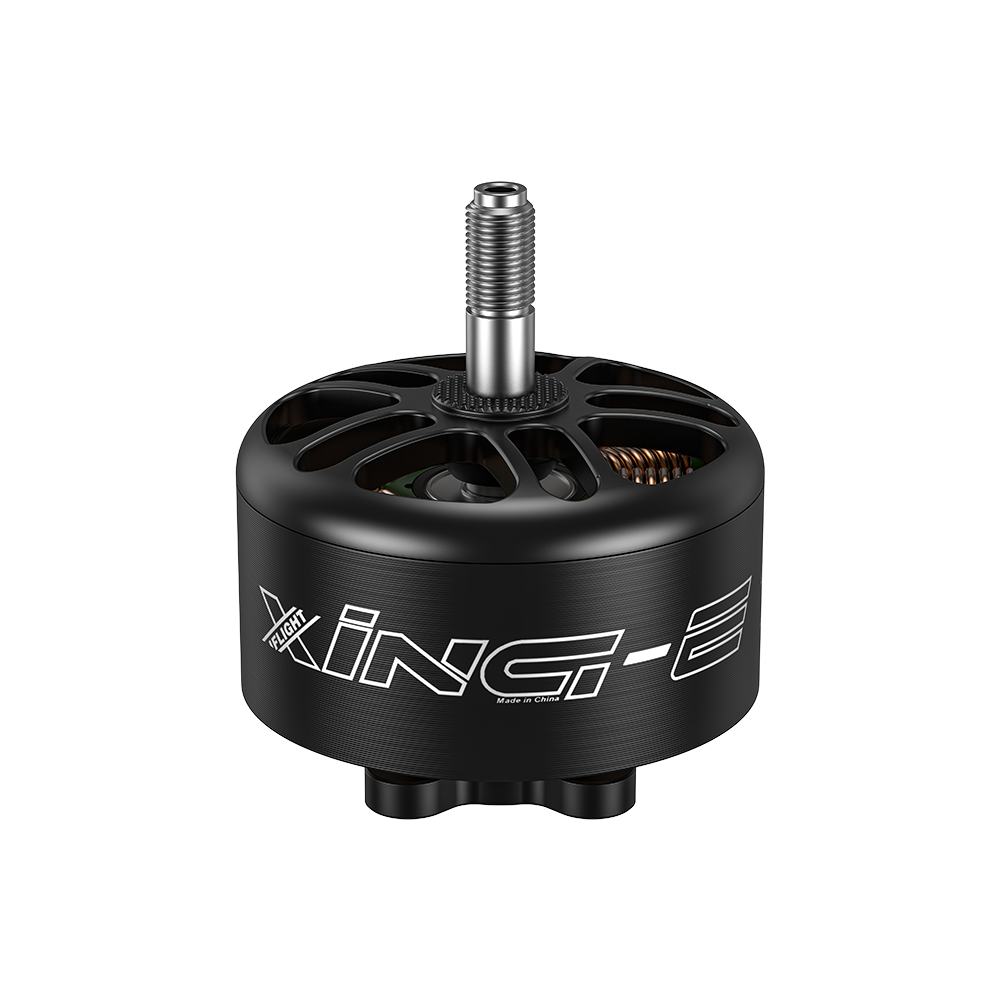

iFlight XING-E 3314 900KV Cinelifter Motor - Image 4

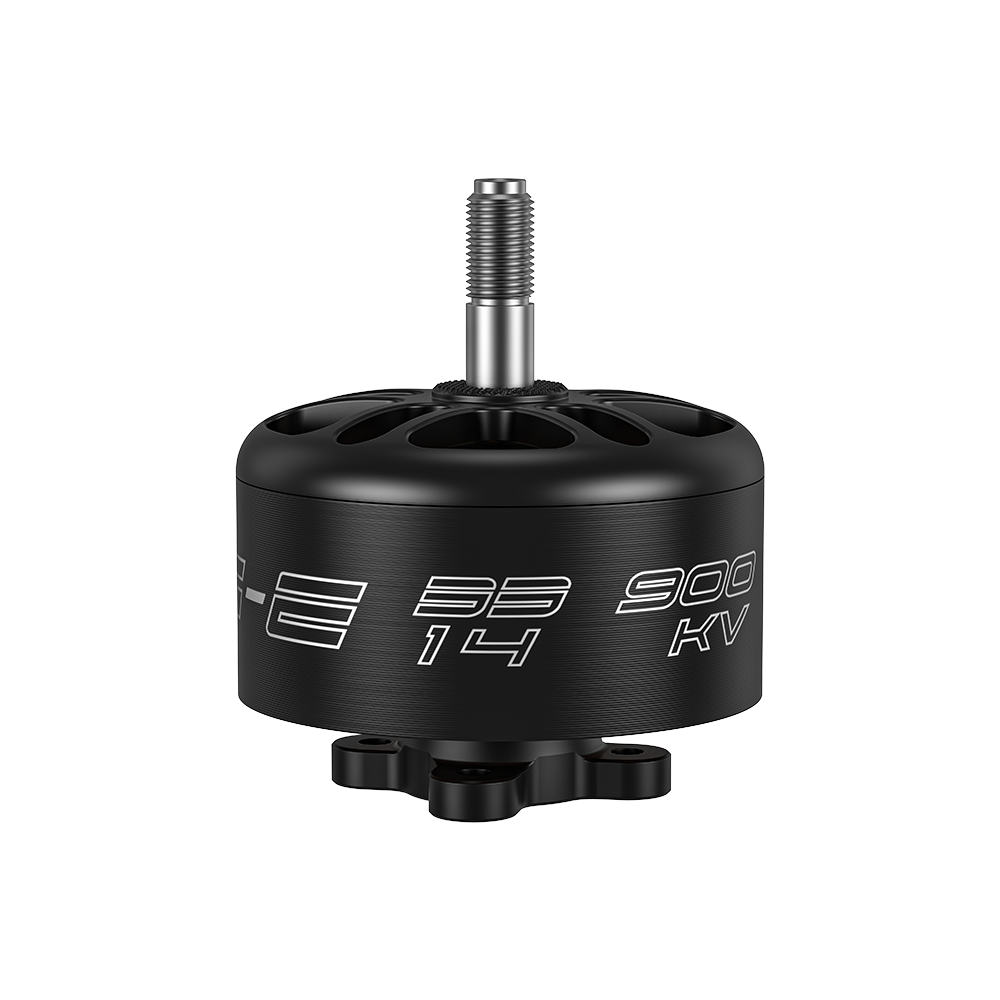

iFlight XING-E 3314 900KV Cinelifter Motor - Image 6

iFlight XING-E 3314 900KV Cinelifter Motor

In stock

₹4,199

Price is Inclusive of GST. Enter GST number at checkout.

In stock

SHARE

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

Changelog

March 11, 2024: The motor’s Shaft Protruding Length is available in 15mm and 17mm specifications and will be sent out randomly.

Specifications

Model: XING-E 3314 Motor

KV: 900KV

Weight(included wire): 120g

Dimension: φ38.6*46.8mm

Interphase Resistance: 48.1mΩ

Input Volts: 24V

Peak Current: 58.48A

Max Watt: 1366.1W

Mounting Holes: 19*19 φ3mm

Shaft Diameter: 5mm

Rotor Specifications: Segmented bell

Shaft Protruding Length: 15mm / 17mm

Lead: 400mm/16AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding

Packing List

1 x XING-E 3314 900KV Brushless Motor

4 x M3*10 screws

1 x M5 Flange Nut

Weight	150 g
