Crafted to push the boundaries of what’s possible, this motor harnesses the latest advancements in technology, ensuring reliable and consistent performance. Unlock the full potential of your X413 Frame Kit and experience the difference that Xing-E’s cutting-edge innovation can make.

Oct. 26, 2024: The screws specification in Packing is updated from M4x10 screws to M4x8mm.

KV: 400KV

Weight(included wire): 239g

Dimension: φ48.6*60.5mm

Interphase Resistance: 83.4mΩ

Input Volts: 32V

Peak Current: 65.54A

Max Watt: 3229W

Mounting Holes: φ30*30mm-M4mm

Rotor Specifications: Segmented Bell

Shaft Diameter: 6mm

Shaft Protruding Length: 26.5mm

Lead: 800mm/14AWG

Magnet: N48SH Curved

Configuration: 12N14P

Bearing Specification: φ12*φ6*4

Winding: Single Strand copper winding

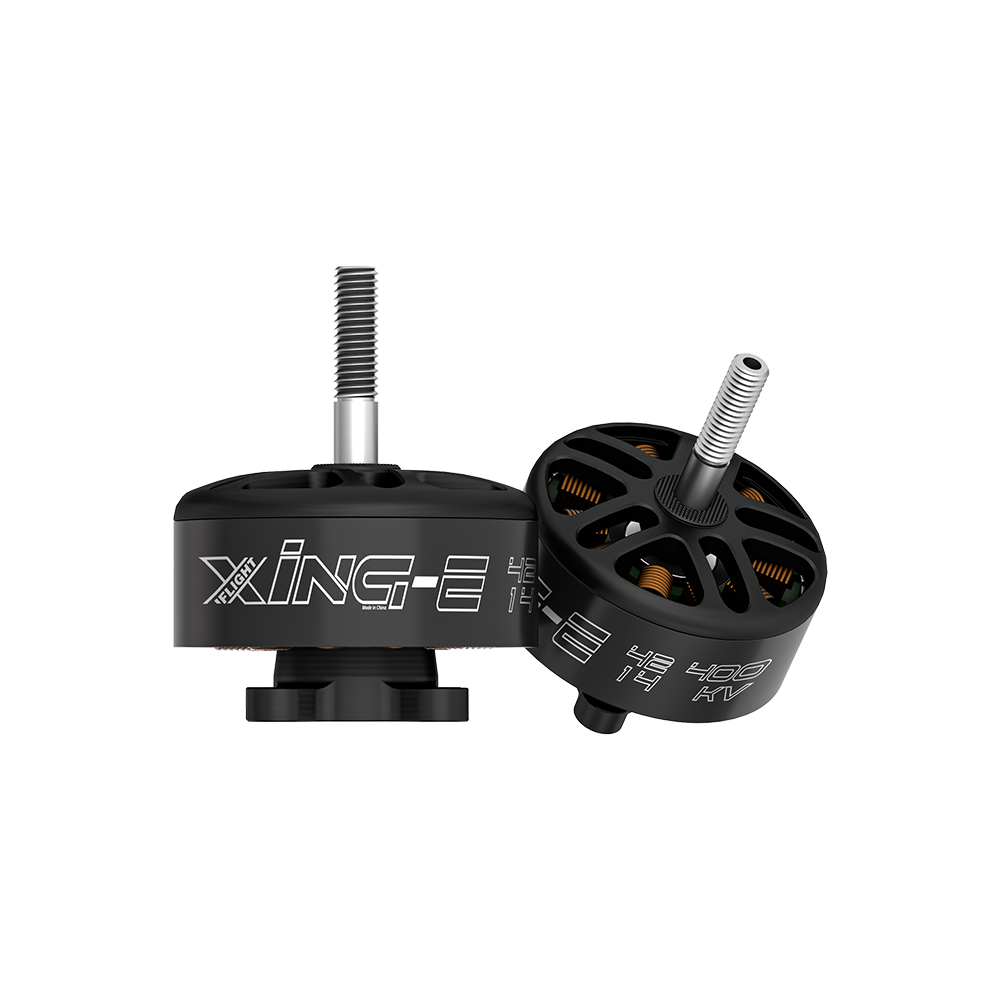

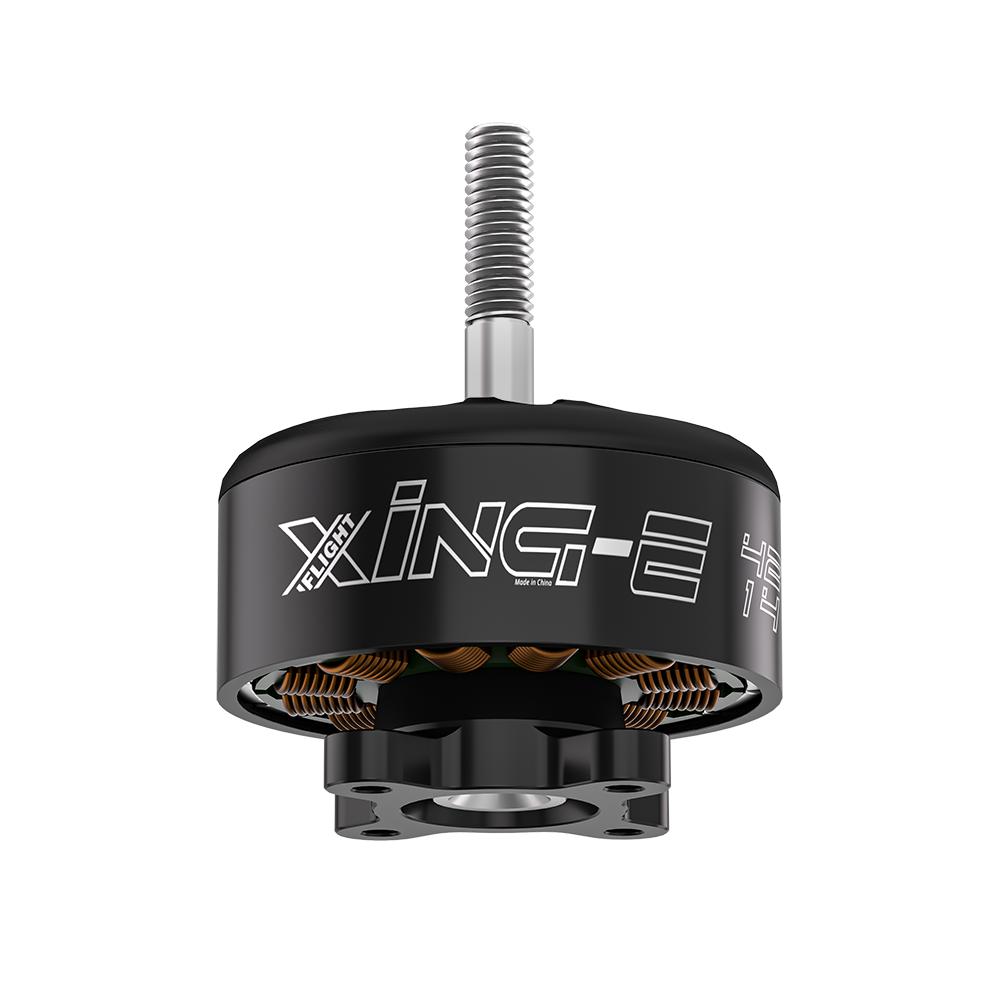

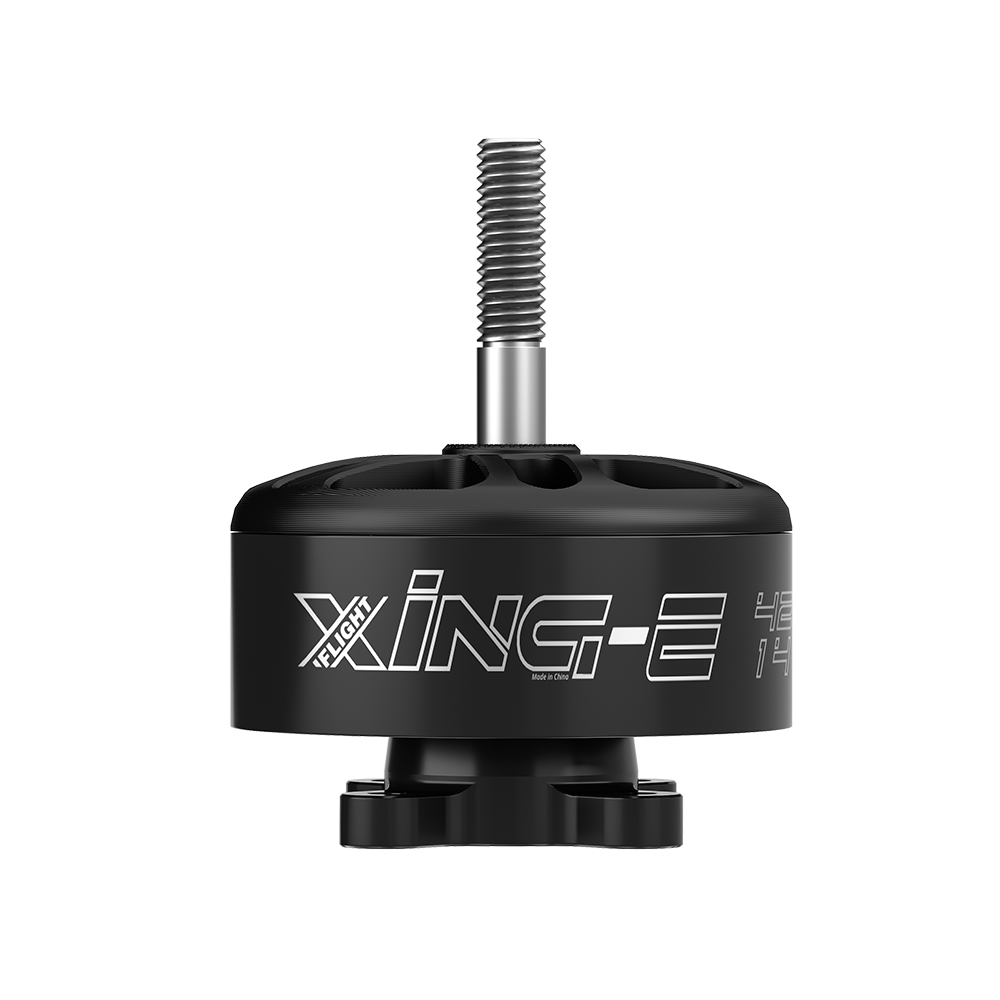

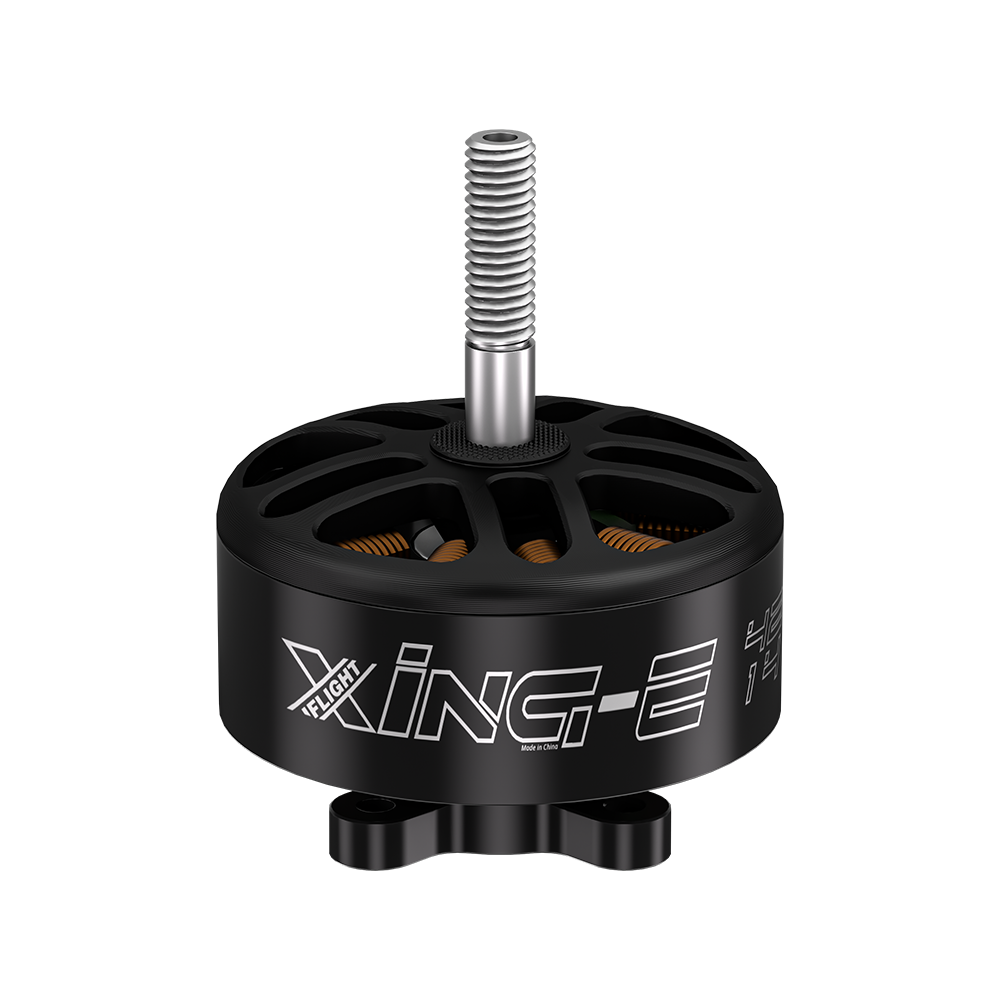

1 x XING-E 4214 400KV Motor

4 x M4x8 screws

1 x M6 Flange Nut
