Introducing the All-New Borg Series – Power Meets Precision!

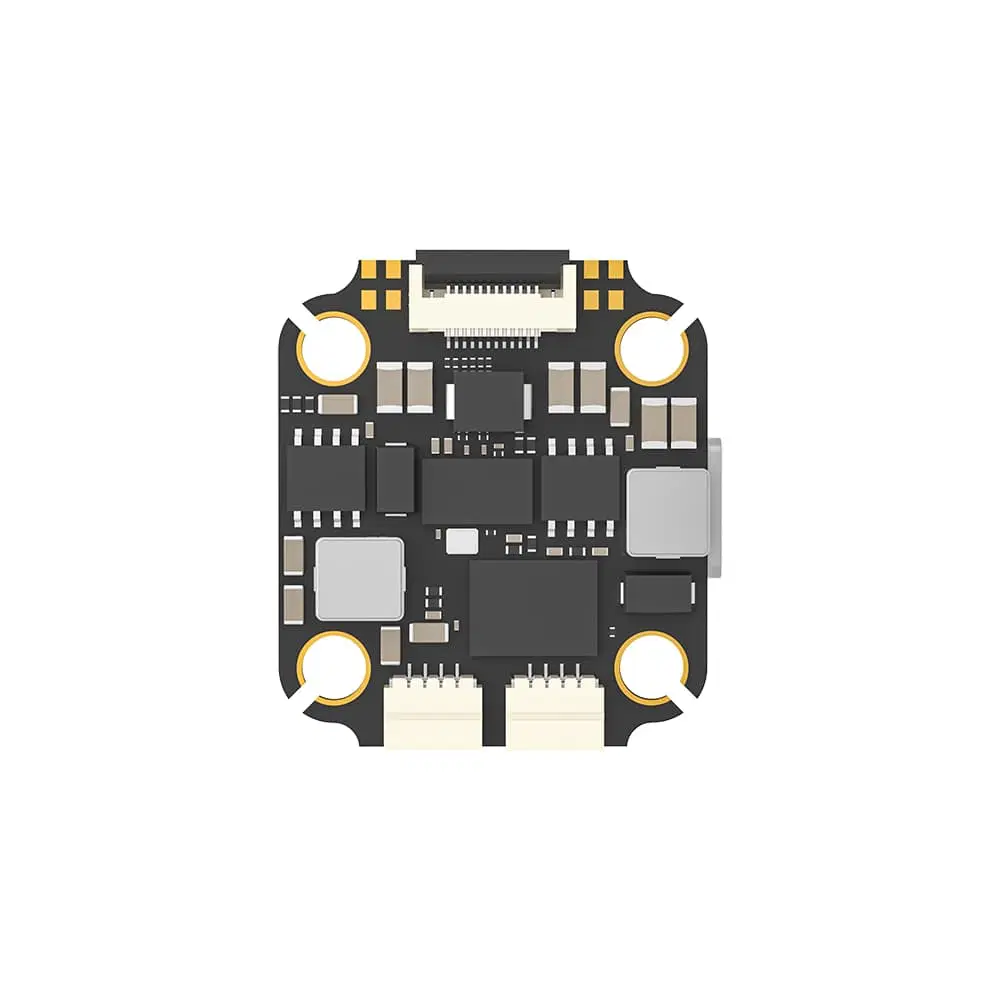

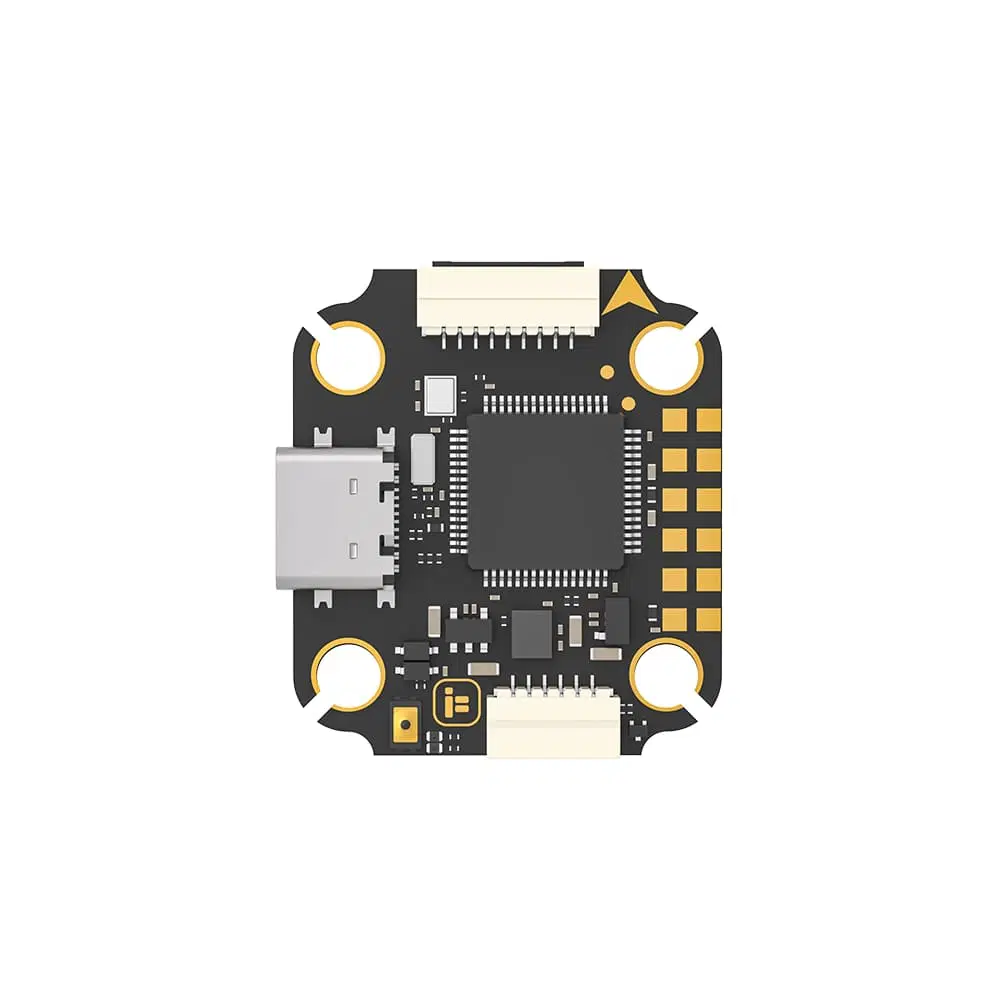

The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!

Features

• Supports 4S to 8S battery inputs, offering versatility for various racing setups.
• Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
• FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.

Specifications

• Input voltage: 4-8S; Support LIHV battery
• MCU: STM32F722RET6
• Gyro: ICM42688
• Barometer: SPA06-003
• OSD Chip: AT7456E（LGA）
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4
• I2C serial: Support
• VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
• LED controller: Yes
• Beeper pad: Yes
• Betaflight Firmware target: IFLIGHT_BLITZ_F722
• INAV Firmware target: IFLIGHT_BLITZ_F722

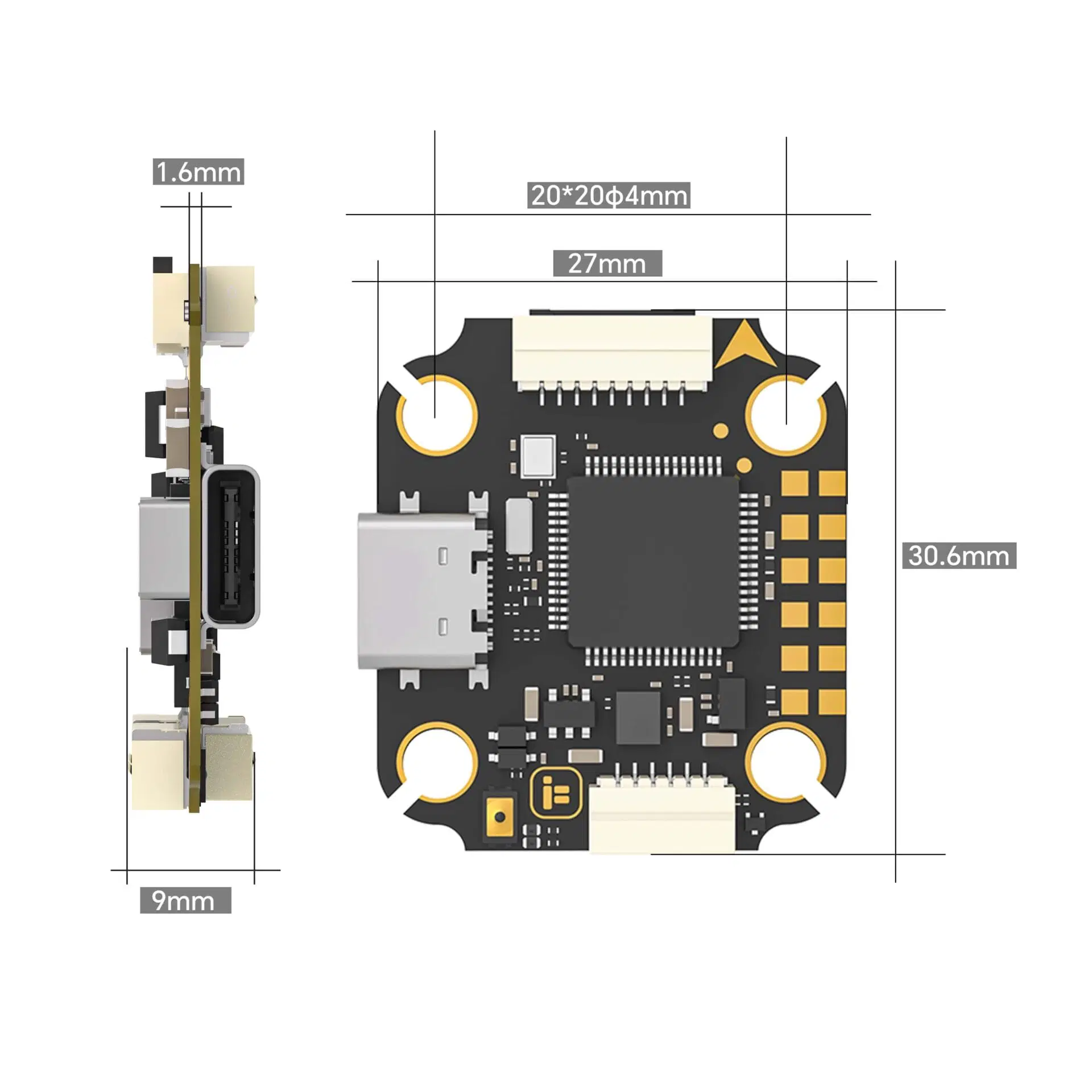

• Mount pattern: 20*20φ4
• Dimensions: 27*30.6mm±1
• Weight: 6.8g±1
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

Wiring

• UART 1 for VTX HD / Analog
• UART 2 for Receiver
• UART 3 for GPS or other sensors that require a serial port
• UART 4 for GPS
• UART 5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemet

VTX_ON_OFF Mode Command

resource PINIO 1 PC0

set pinio_config = 1,1,1,1

set pinio_box = 40,41,255,255

set box_user_1_name = VTX_ON_OFF

aux 0 40 8 900 2100 0 0

save

Includes

• 1 x Borg F7 Mini Flight Controller
• 1 x Cable set
• 5 x silicon grommets
