Summary

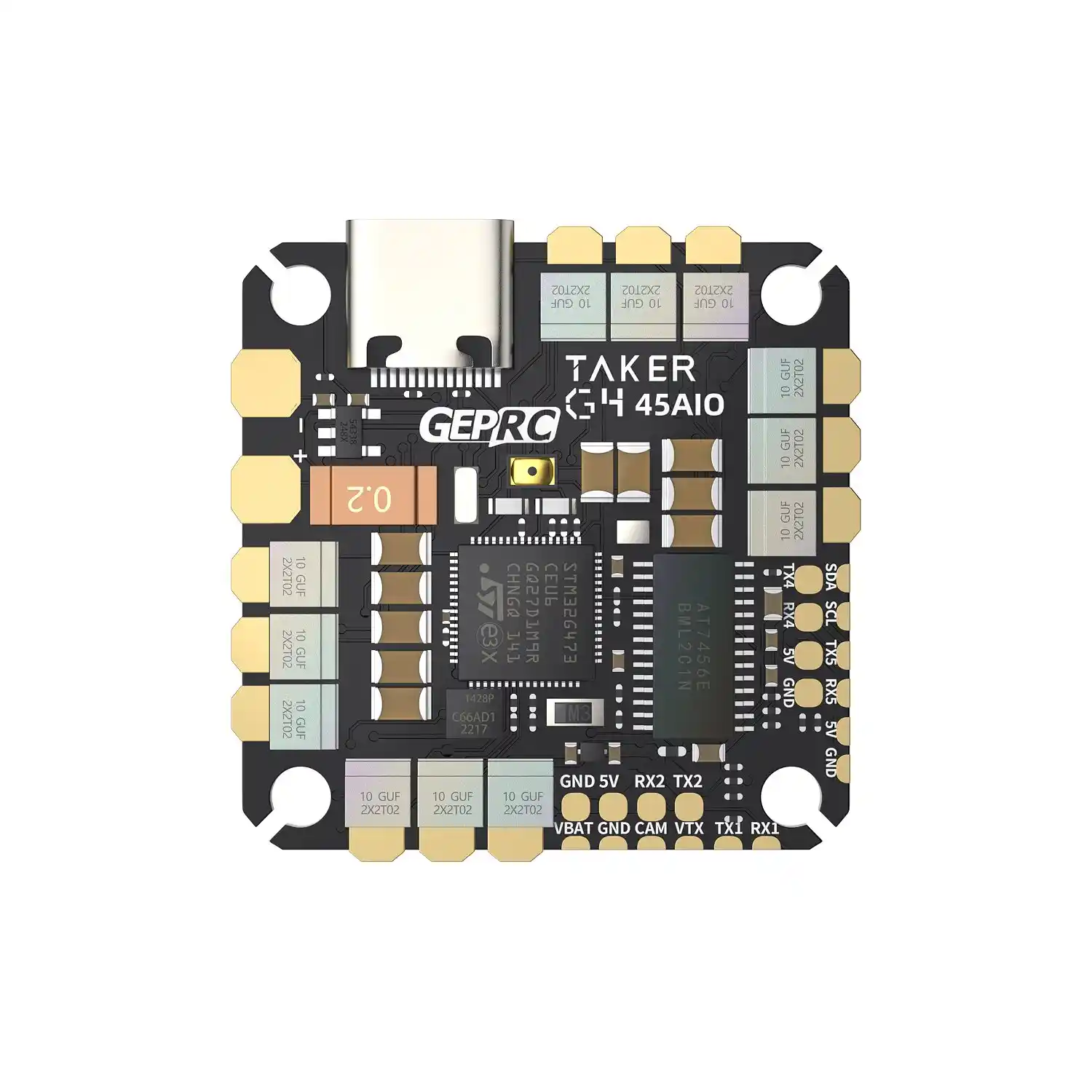

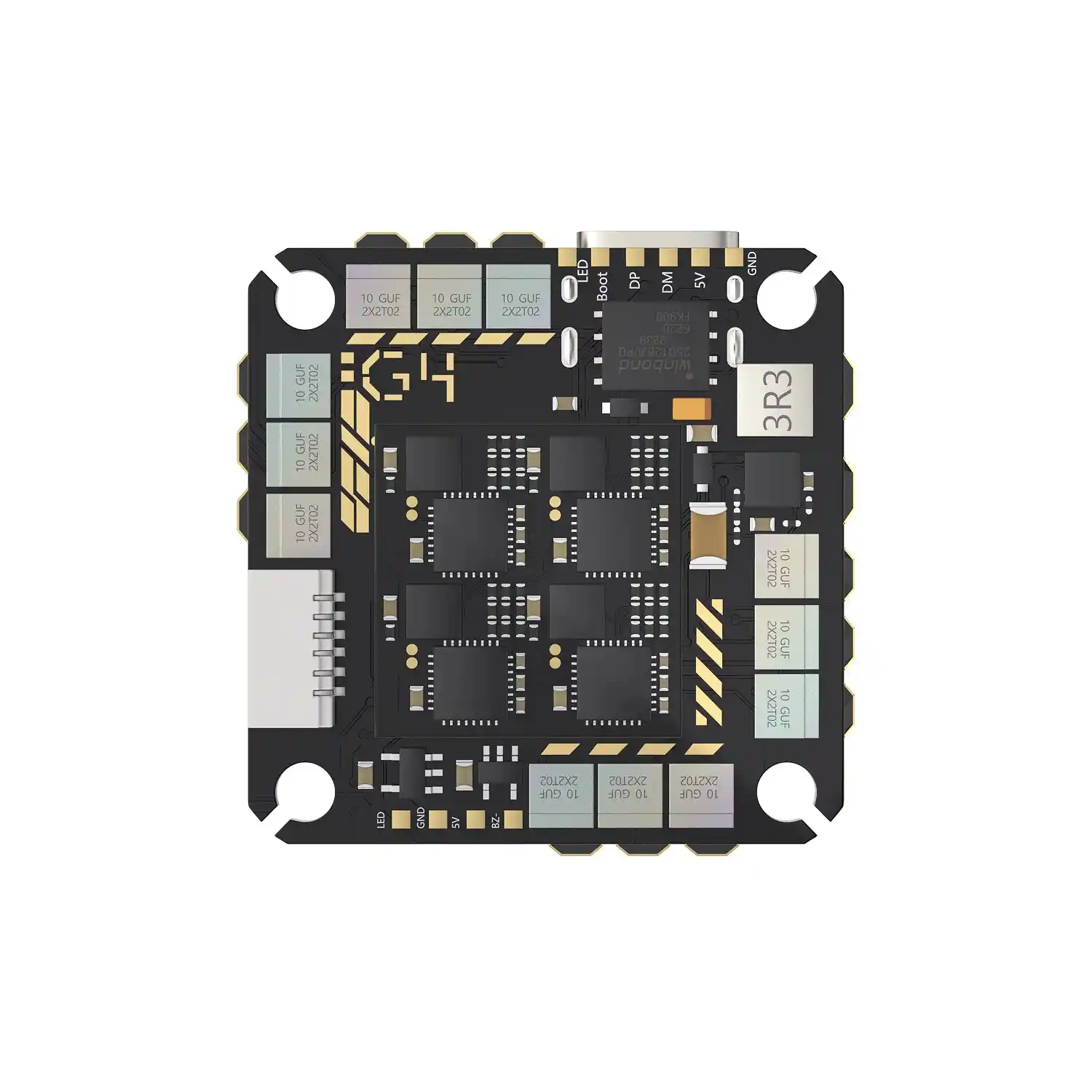

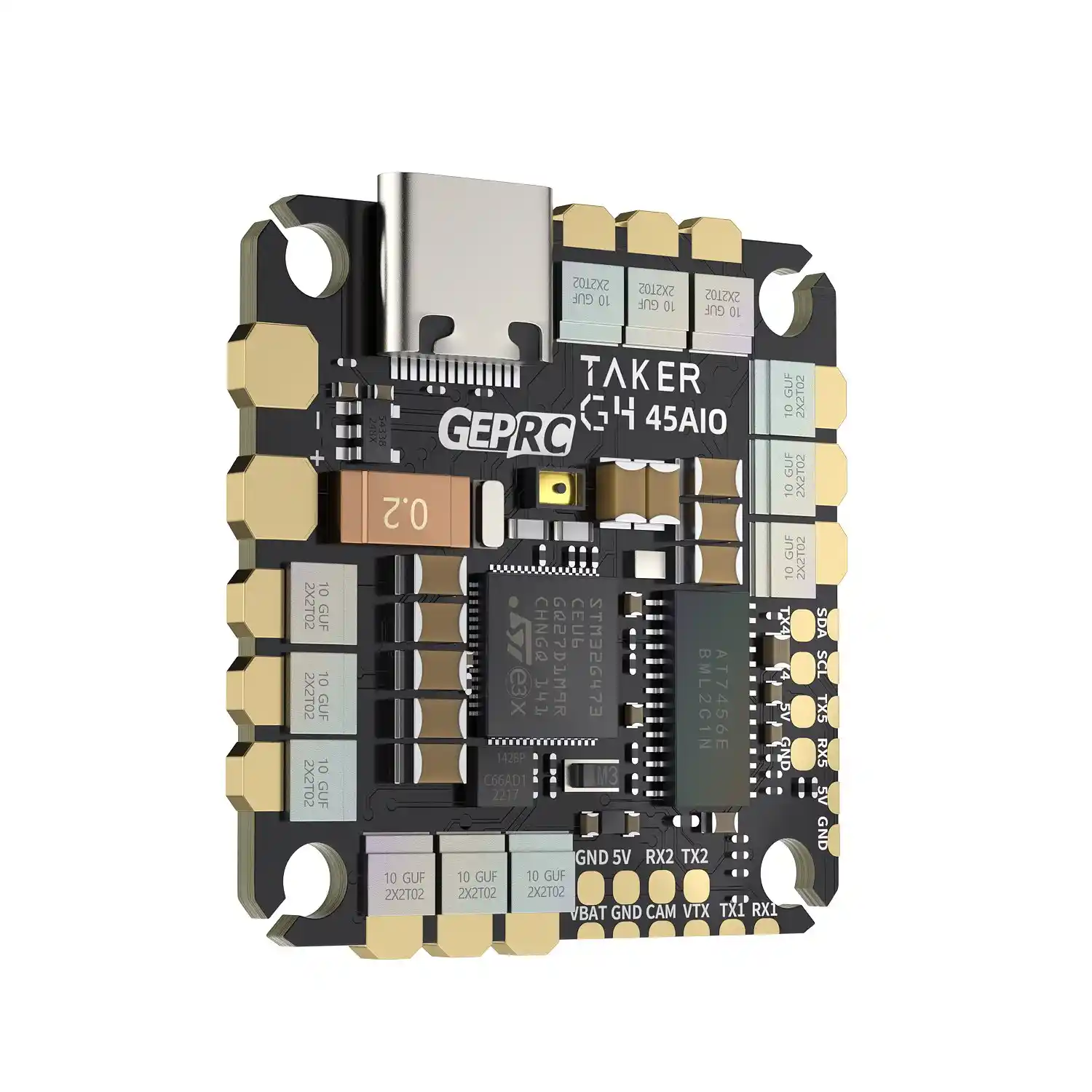

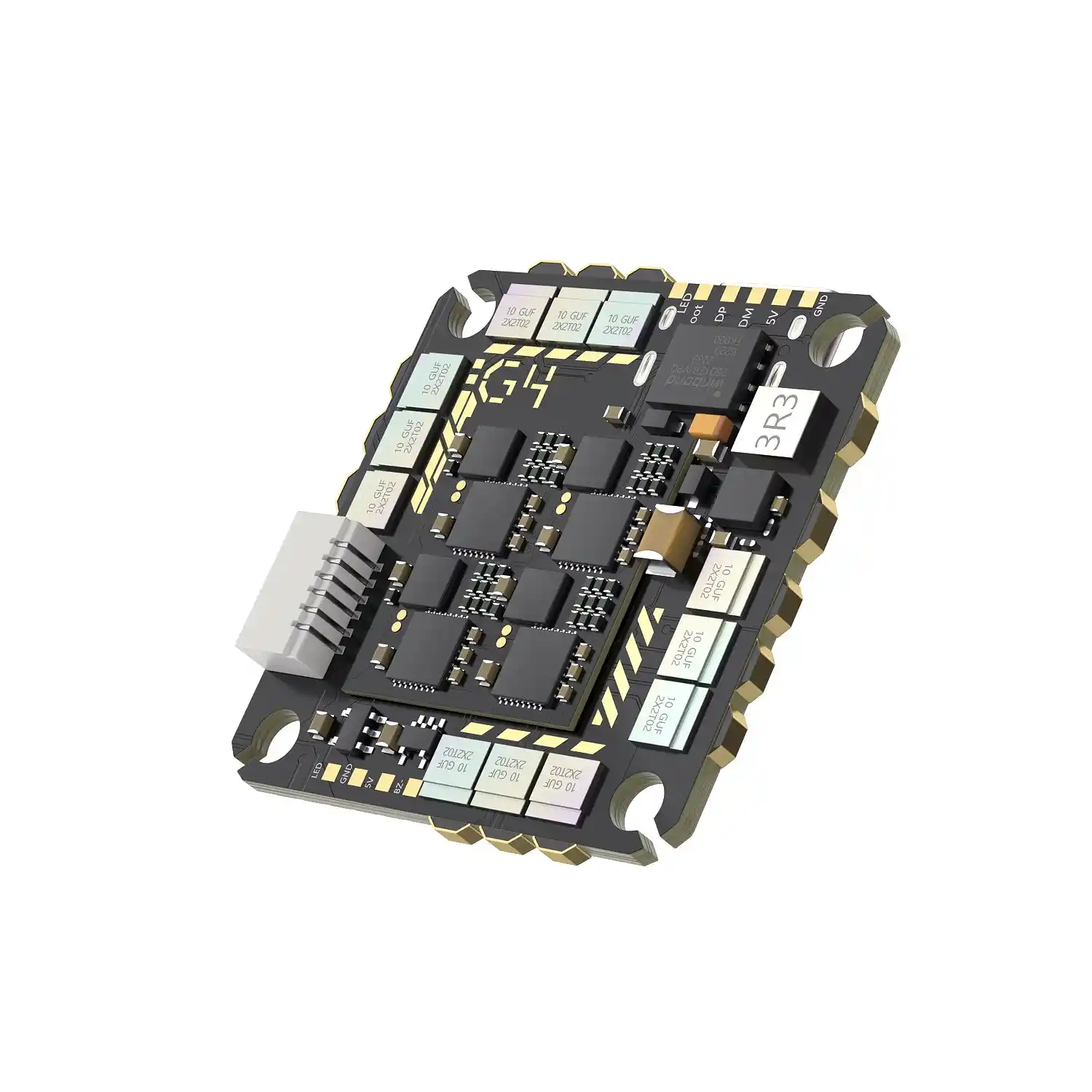

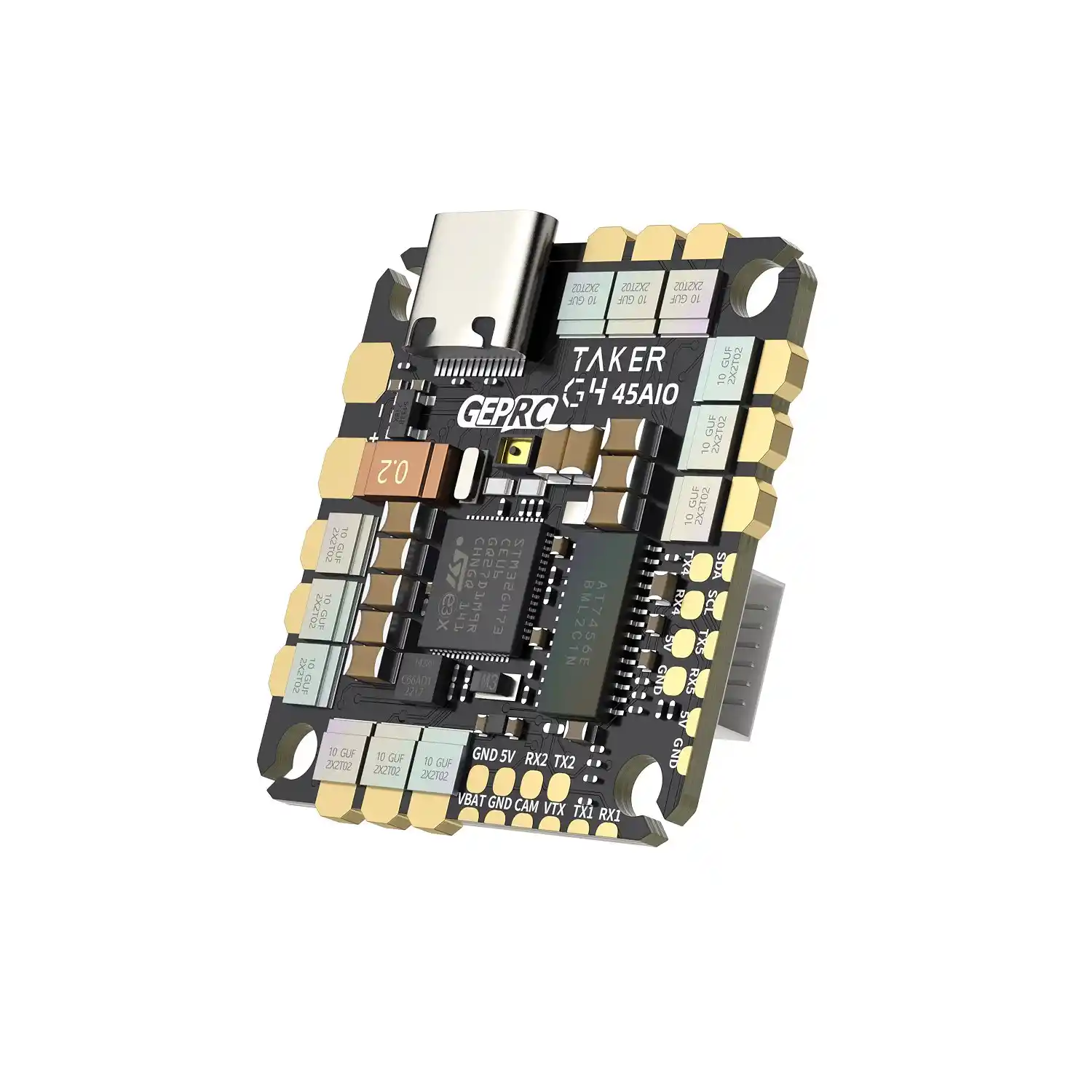

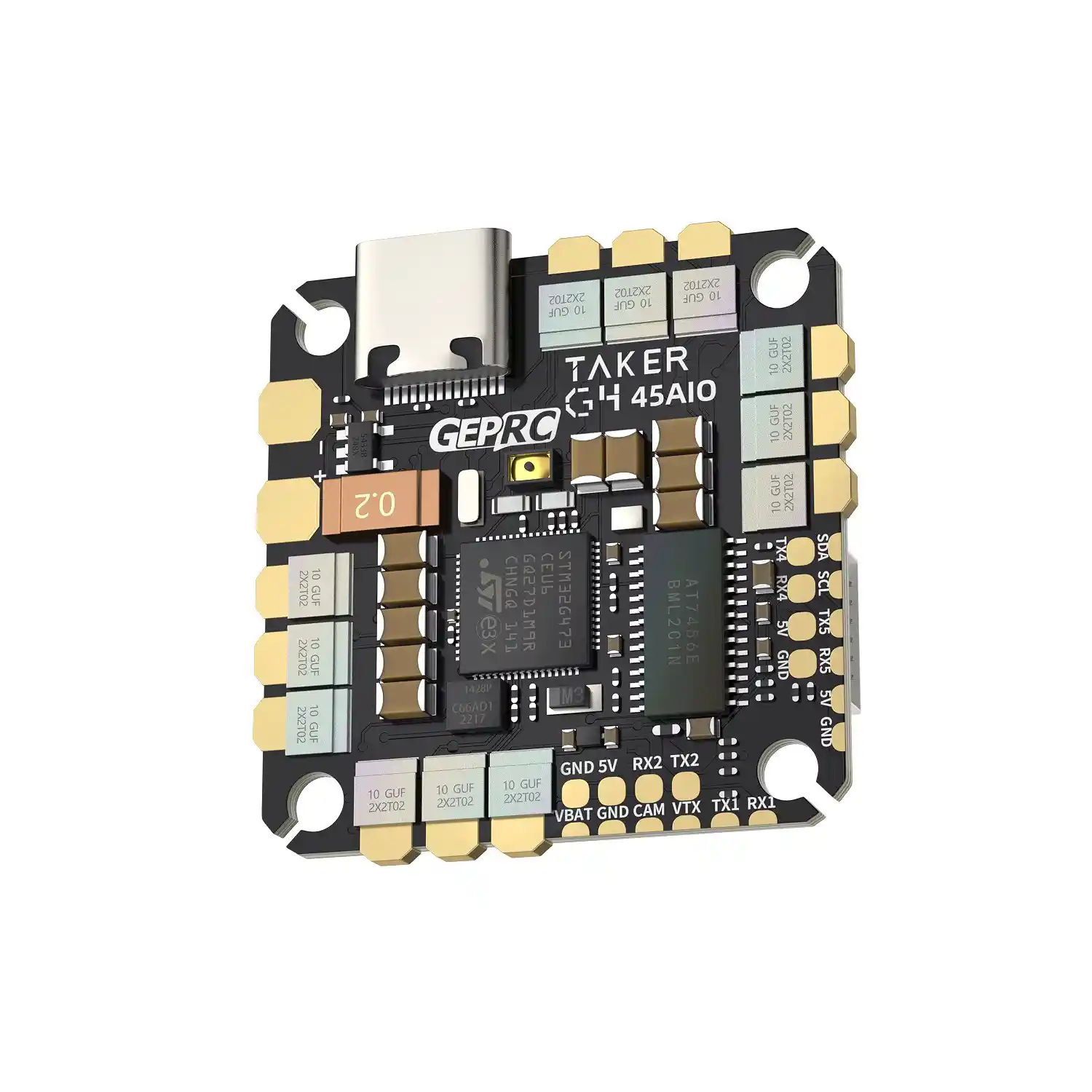

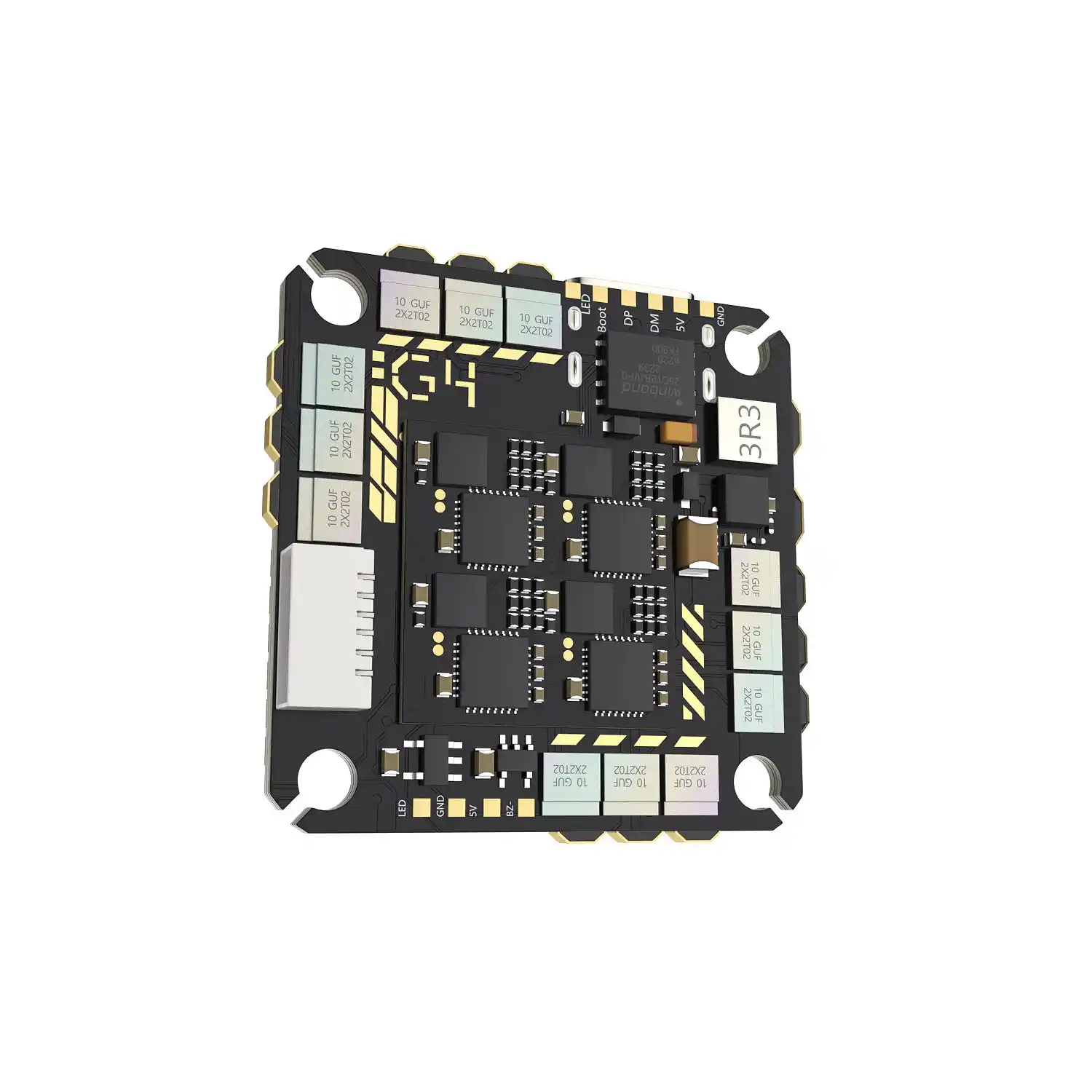

The TAKER G4 45A 8Bit AIO, developed by the GEPRC team, features the advanced G473 flight controller for enhanced computing capability.

Its robust overcurrent protection and compact design, powered by the QF32MT chip and integrated ESU and MCU, ensure superior performance.

We are confident that TAKER G4 45A 8Bit AIO will deliver exceptional enjoyment.

Feature

1. Weighs only 9 grams.
2. The G473 control possesses 170MHZ operating frequency and outsatnding computing capability.
3. The optimized Type-c USB has better versatility.
4. The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.

Specifications

• Model Name：TAKER G4 45A 8Bit AIO
• MCU：STM32G473CEU6
• IMU：ICM 42688-P
• Firmware target：TAKERG4AIO
• OSD：Betaflight OSD w/ AT7456Ev
• Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5
• Buzzer：YES
• LED ：YES
• USB ：Type-c USB
• BEC output：5V 3A
• ESC MCU：QF32MT
• Continuous Current：45A
• Burst Current：50A(5″)
• lnput Voltage：2~6S (LIPO Battery)
• Supports：Dshot600,Oneshot,Multishot
• Current meter：YES
• target：F4A AIO
• Size：33.8mm * 34.1mm Board
• Install hole：25.5 mm * 25.5mm
• Weight：9g

Includes

1 x GEP-TAKER G4 45A AIO

1 x Cable Set
