Geprc GEP-M1025 GPS Module

Geprc GEP-M1025 GPS Module

Out of stock

1,799

Orders placed before are shipped on same day

Out of stock

Summary

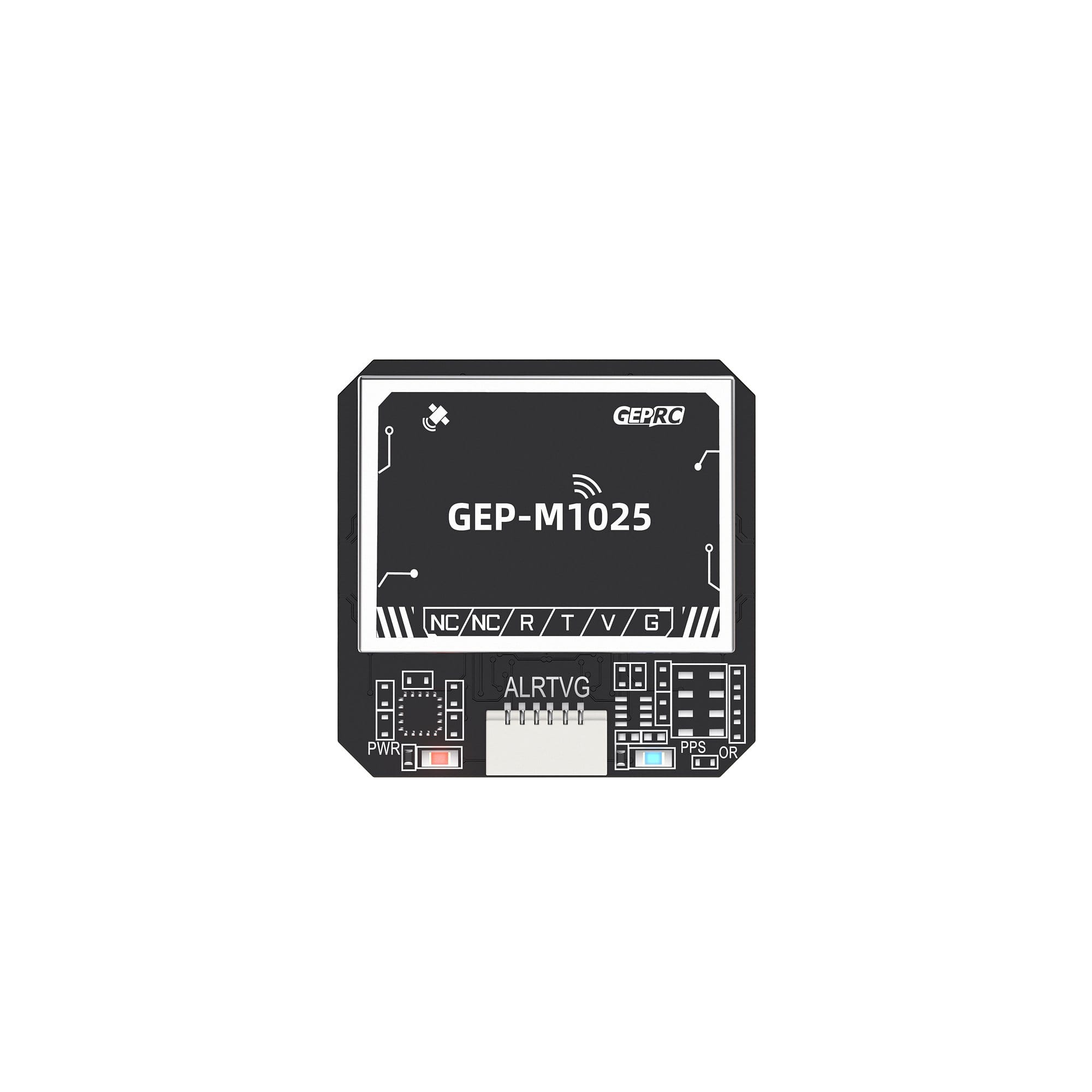

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.



Feature

  1. u-blox M10 series chip
  2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
  3. Fast positioning speed,Up to 32 satellites
  4. Stable connection quality
  5. 25*25mm antenna size, better signal receiving performance
  6. Built-in Flash chip and Farad capacitor
  7. Onboard indicator light, easy to use
  8. Optional integrated magnetometer+barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing



Weight 50 g
