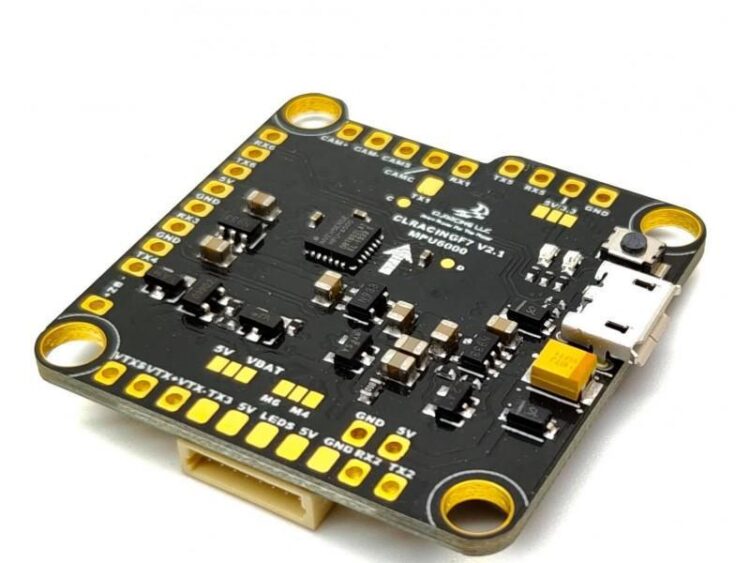

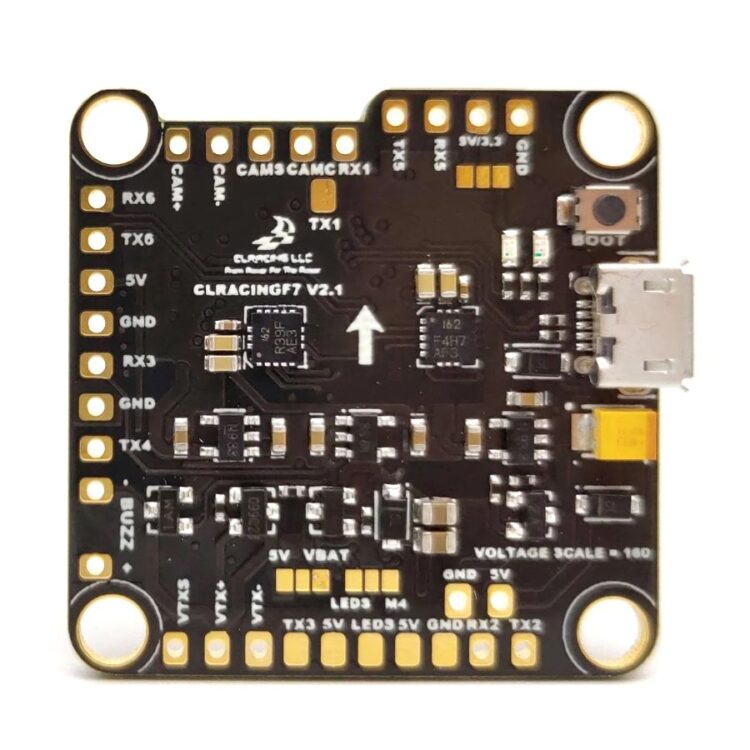

The CLRACING F7 V2.1 is available in 2 versions.
Dual gyro and single MPU6000 Gyro, the main difference between th eprevious version and this is the front side notch to give better room behind the camera area for tight builds.
Checkout all our 30×30 and 20×20 Flight Controller.
- MCU: STM32F722RET6 216MHz
- DUAL 6-Axis ICM20602 Separated Interrupts
- Build in Beta flight OSD
- Up to 8S(36V) direct battery power
- Build in Voltage monitoring resistor
- Build in 5V/3A BEC and 3.3V/250mA for system
- Led strip share 5V with 5V/3.0A BEC
- 5V OR VBAT, camera and VTX POWER VIA Pit Switch
- 6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6
- Build in Camera Control pin with necessary resistor and capacitor
- Buzzer pads for external buzzer
- VBAT Polarity protection
- Build in 32MB Blackbox flash chip
- M4 Can be selected either led strip signal or M4 signal for RPM filtering
