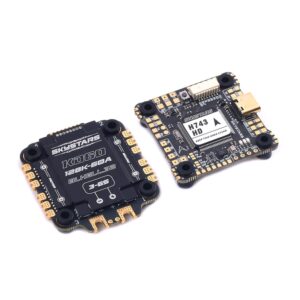

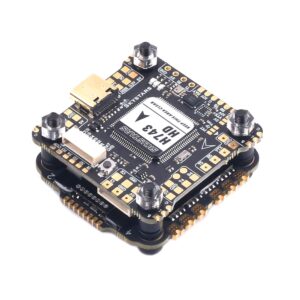

SkyStars H7 HD + KO60 128K BLHeli_32 ESC 30×30 Stack (Single Gyro)

SkyStars H7 HD + KO60 128K BLHeli_32 ESC 30×30 Stack (Single Gyro)

The SkyStars H7 + KO60 Blheli_32 Fly Tower Stack features the latest SkyStars H7 HD flight controller with large soldering pads which makes it beginner friendly, as well as the KO60 60A 4-in-1 ESC to give your multirotor full power!

Out of stock

8,999

Out of stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Svg Vector Icons : http://www.onlinewebfonts.com/icon

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

Features

  • Supports telemetry functions (including Voltage, RPMS, & Current)
  • Toshiba standard 40V 5×6 Mosfet & electronics
  • Lead-free SMT Processing technology
  • ESC Onboard Current Sensor
  • Over-Current Capabilities
  • Supports 6S Batteries
  • 6-layer Layout Design
  • BLHeli_32 Firmware

Specifications

Skystars H743 Singel Gyro FC Specifications
– MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
– Gyro: BMI270
– Baro: BMP280
– OSD: AT7456E
– Blackbox: 16M
– 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
– 8x PWM outputs
– 1x I2C
– 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
– USB Type-C(USB2.0)
– 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
– 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
– Dual Camera Inputs switch
– VTX 10V/Vbat filtered power ON/OFF switch
– DJI FPV OSD is supported by any spare UART
– Mounting: 30.5 x 30.5mm
– Dimensions: 39.5 x 39.5 x 7.8 mm
– Weight: 10.1g

KO60 – 60A

  • Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
  • Peak current [5 seconds]: 65A
  • Mount: 30.5mm x 30.5mm
  • Continuous current: 60A
  • Firmware: BLHeli_32
  • ESC weight: 12g
  • Supports 3-6S
  • BEC: No

Weight 50 g
