BLITZ F7 E55S 4-IN-1 +BLITZ 1.6W VTX Flight Tower System

This stack includes BLITZ F7 V1.2 Flight controller with ICM42688, BLITZ E55S 4-IN-1 ESC, and BLITZ 1.6W VTX.

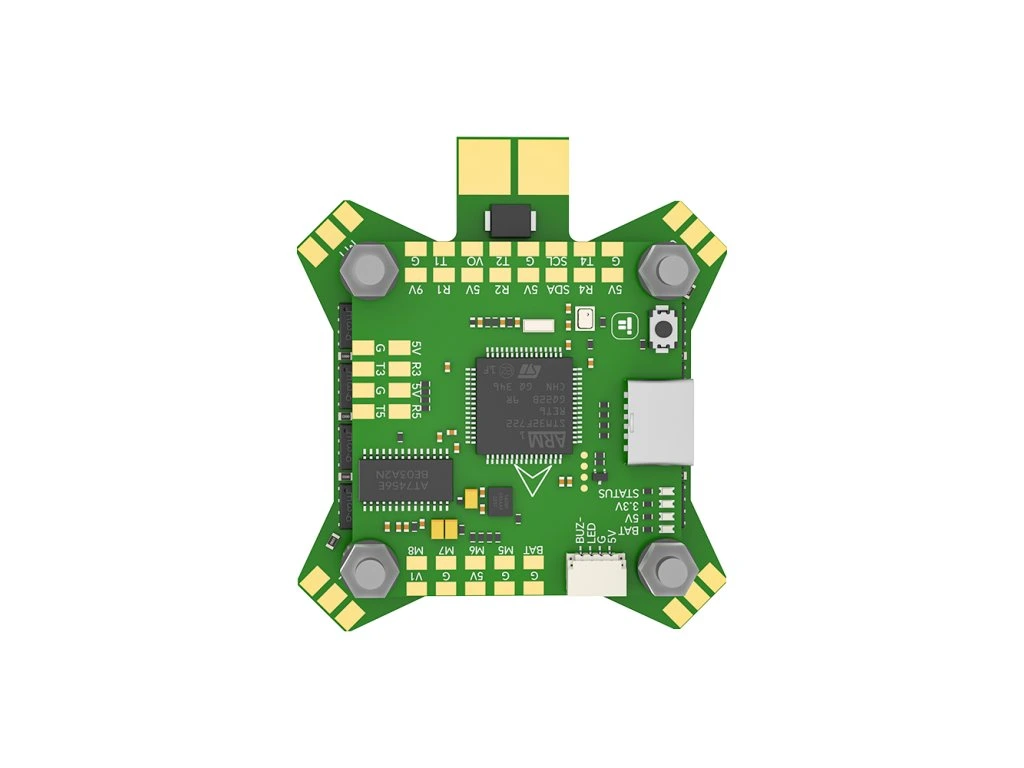

FC Specifications:
Mounting Pattern: 30.5*30.5mm / 4mm PCB hole diameter
Model: BLITZ F722 V1.2 FLIGHT CONTROLLER
SmartAudio / IRC Tramp VTX protocol supported
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Motor outputs: 4x (SH1.0 connector)
Flash: 32MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 36.5*35 mm
OSD Chip: AT7456E
Barometer: DPS310
MCU: STM32 F722
LED controller: Yes
Beeper pad: Yes
Gyro: ICM42688
Weight: 7.8g
UARTS: 6
BEC: 5V 2.5A / 9V 2A

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

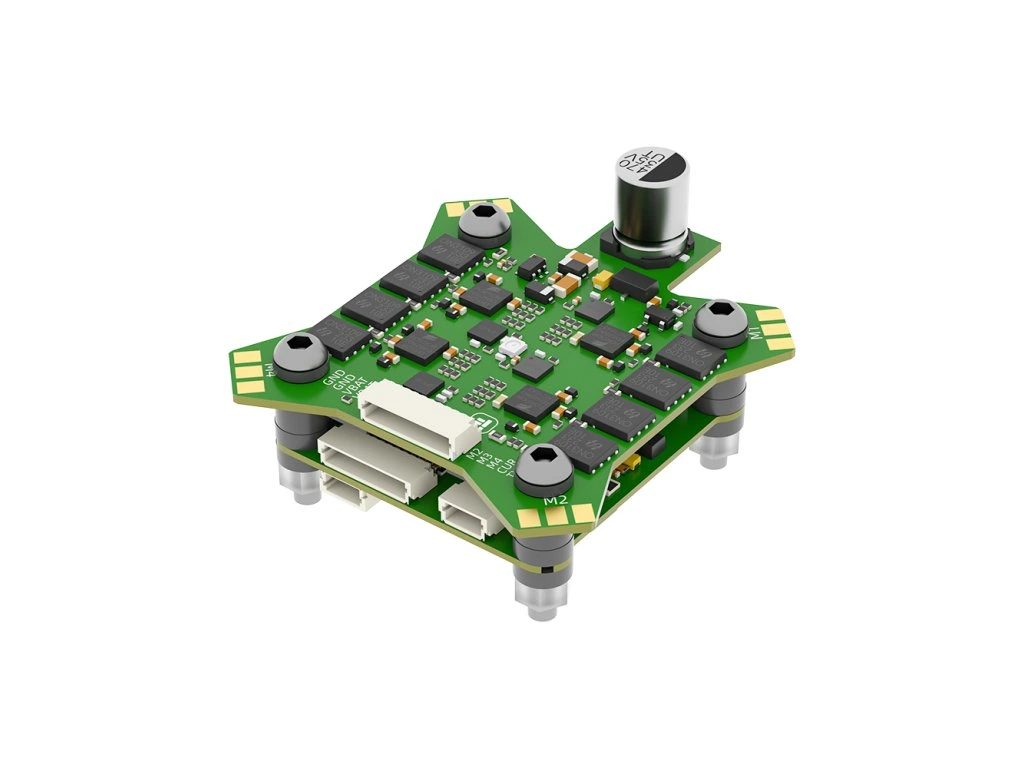

ESC Specifications:
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target:   Q-H-25 16.7(BlheliS) / Bluejay Q-H-25 (Bluejay)

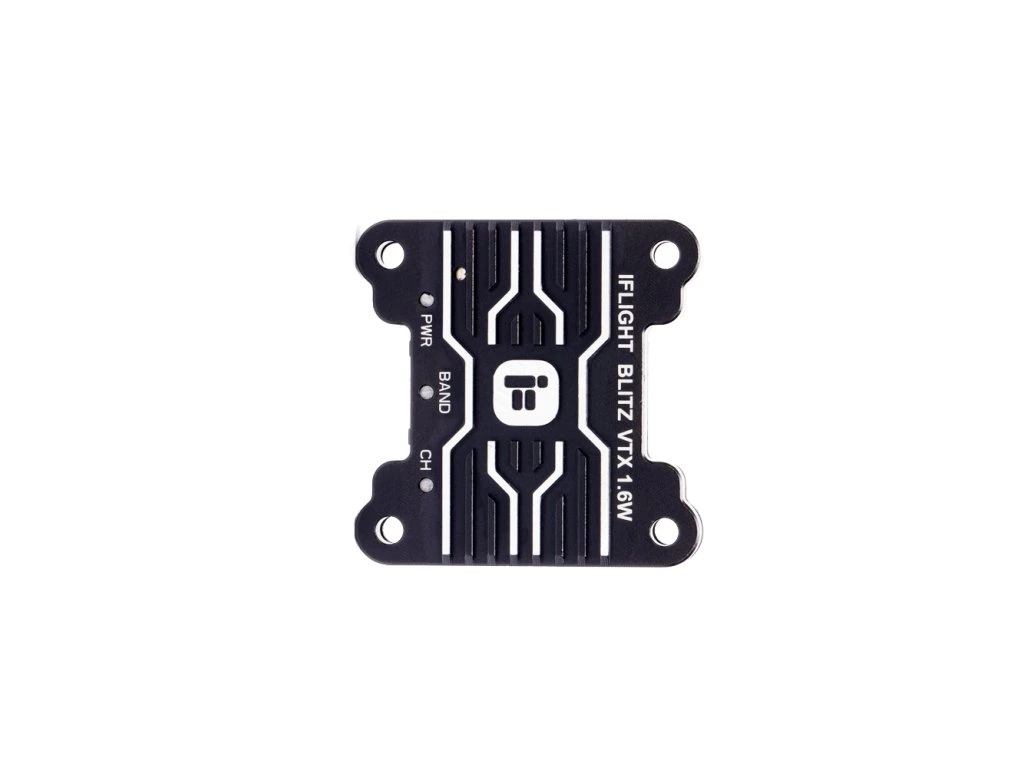

VTX Specifications:
Input voltage: 7V-34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Package Includes:
1 x BLITZ F7 V1.2 Flight Controller
1 x BLITZ E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
1 x BLITZ  1.6W VTX
