Product features:

• Double-sided fully wrapped CNC shell, efficient heat dissipation, isolation of foreign matter
• Dual MOS parallel solution, supports 90A continuous current, can withstand up to 100A peak current
• Support BL32 ESC telemetry, more stable ESC firmware, real-time monitoring of ESC parameters
• High-performance MCU G071, operating frequency up to 64MHz

Technical parameters:

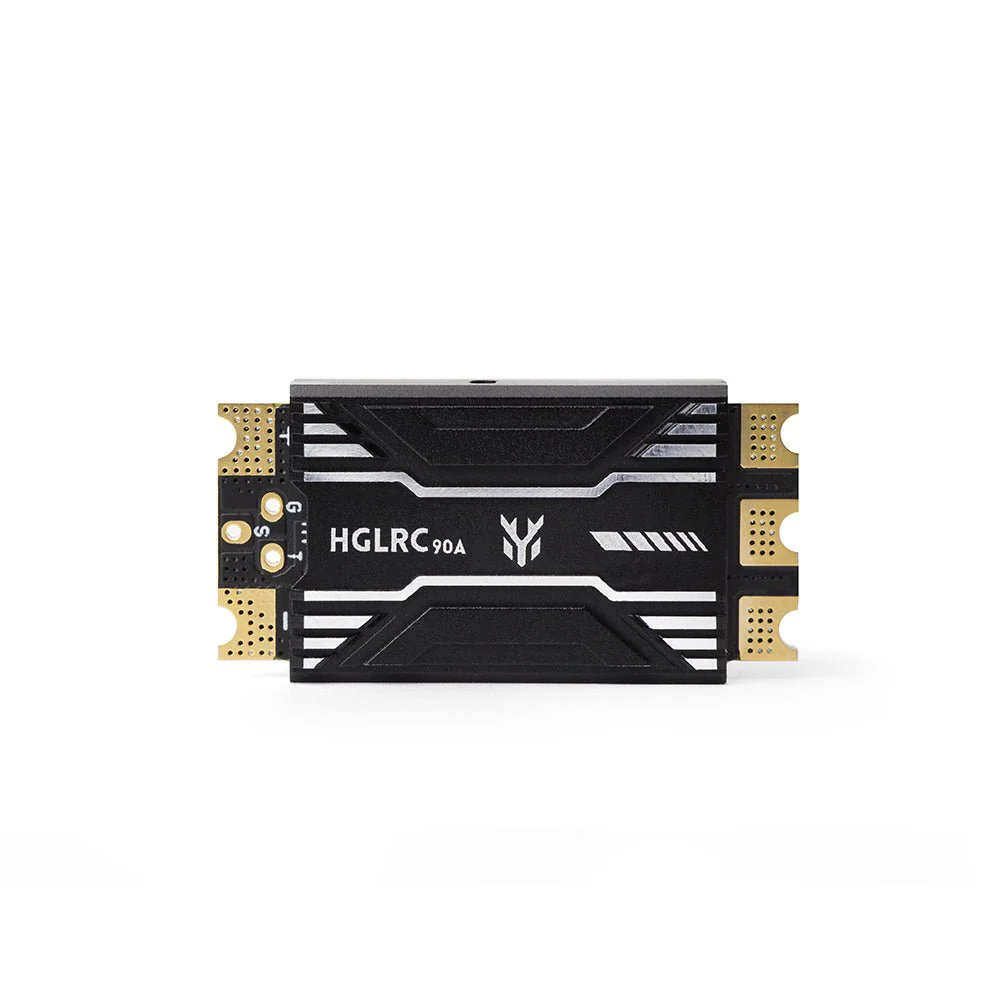

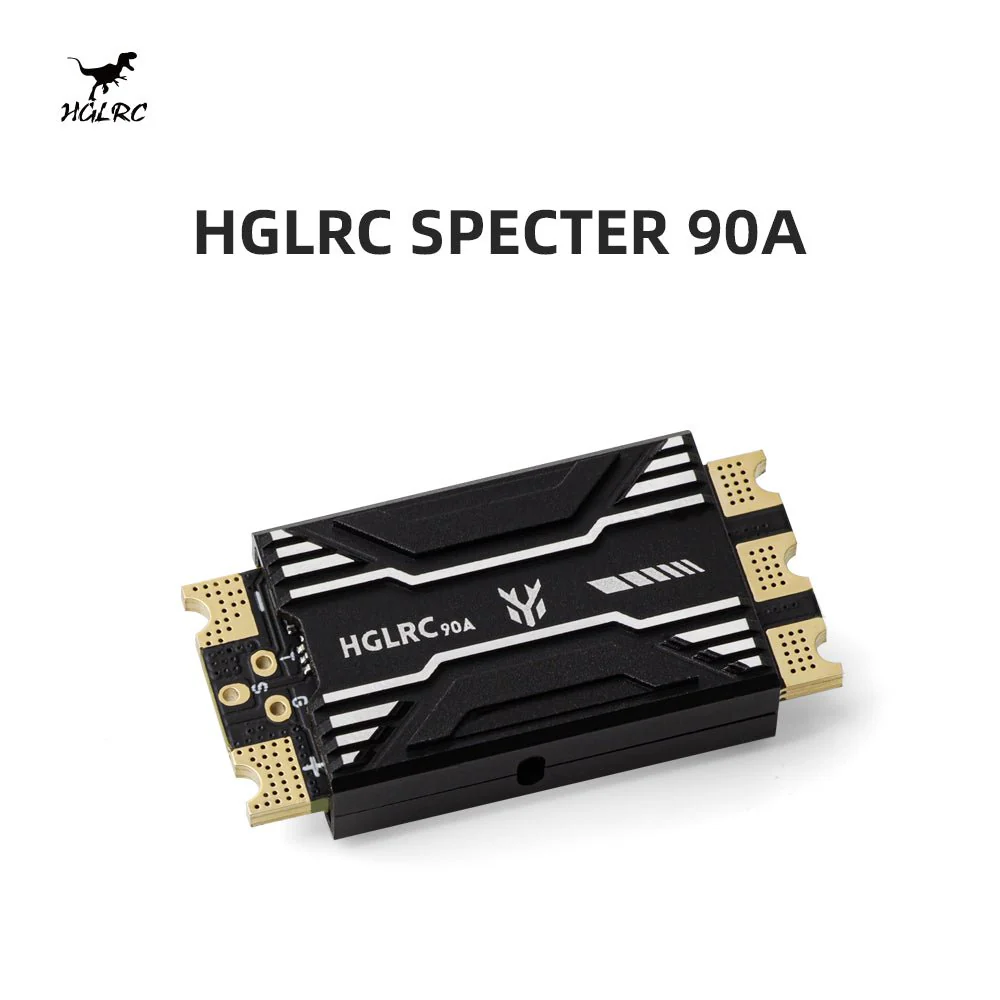

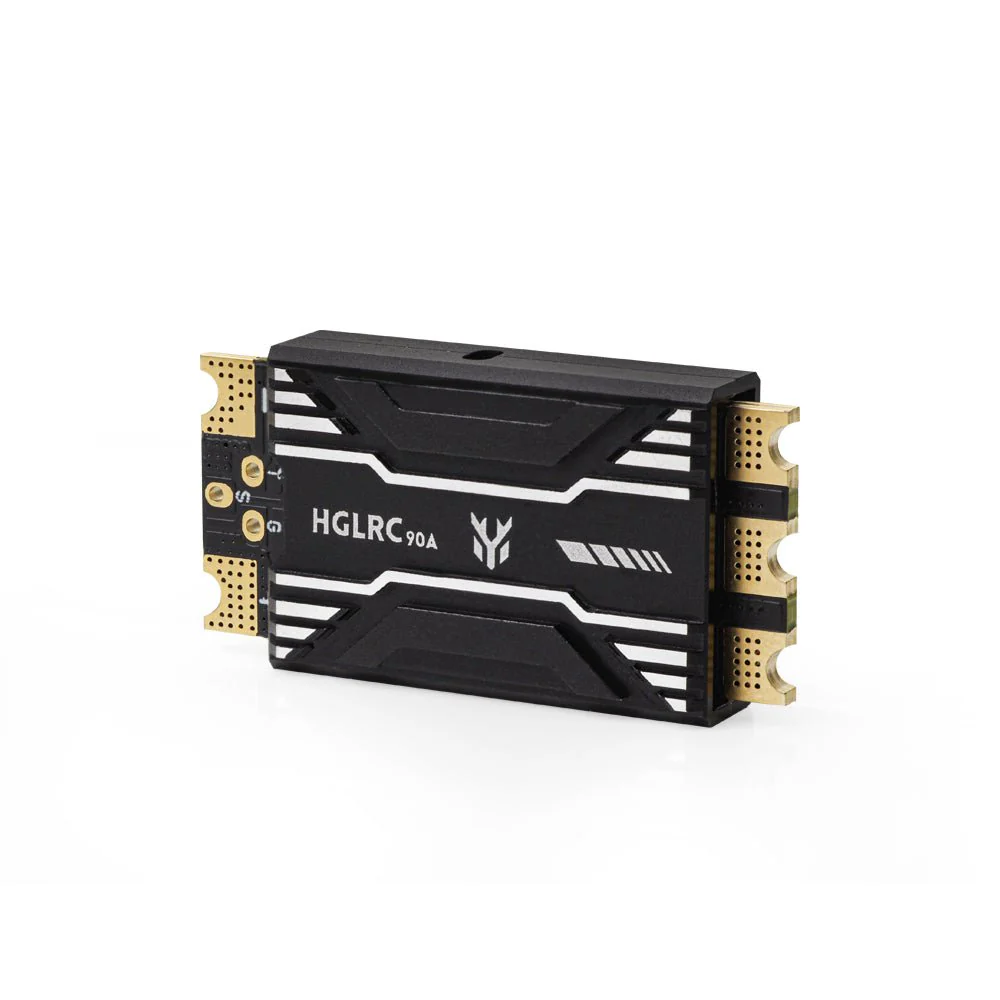

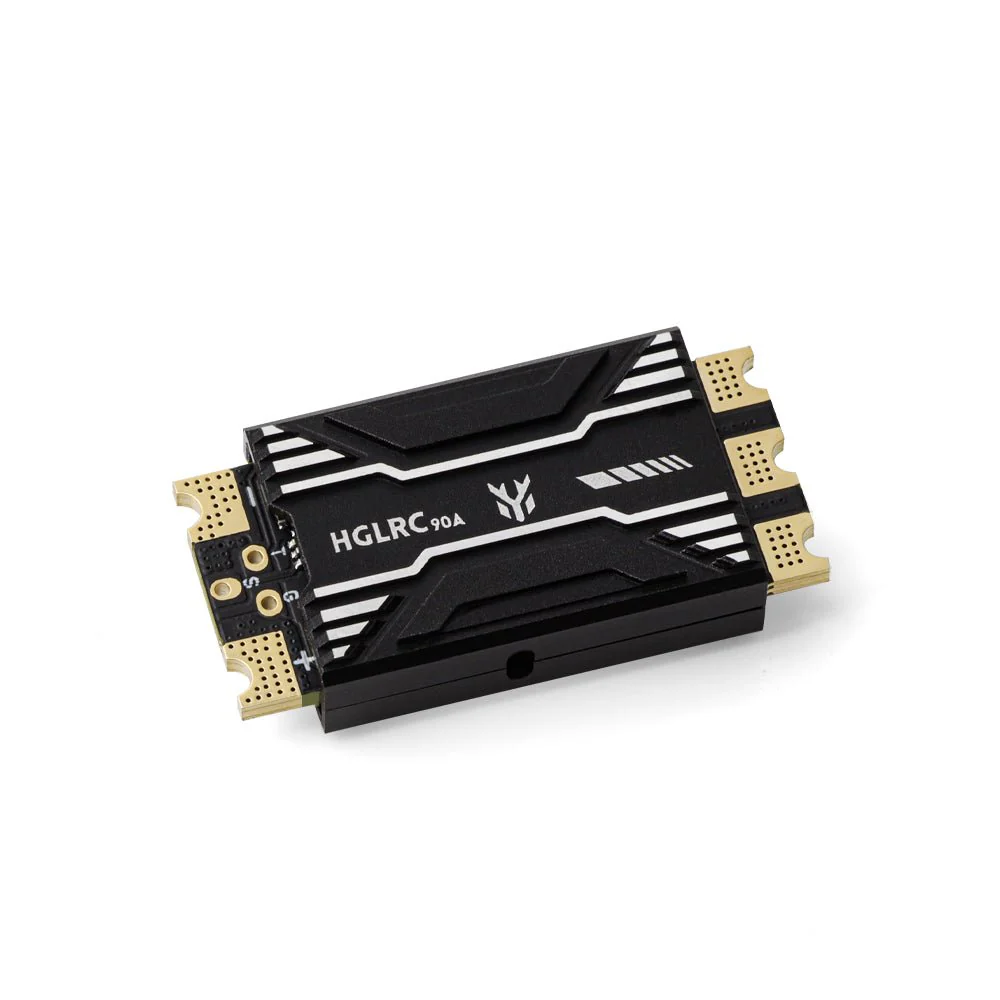

• Name: HGLRC Specter 90A ESC

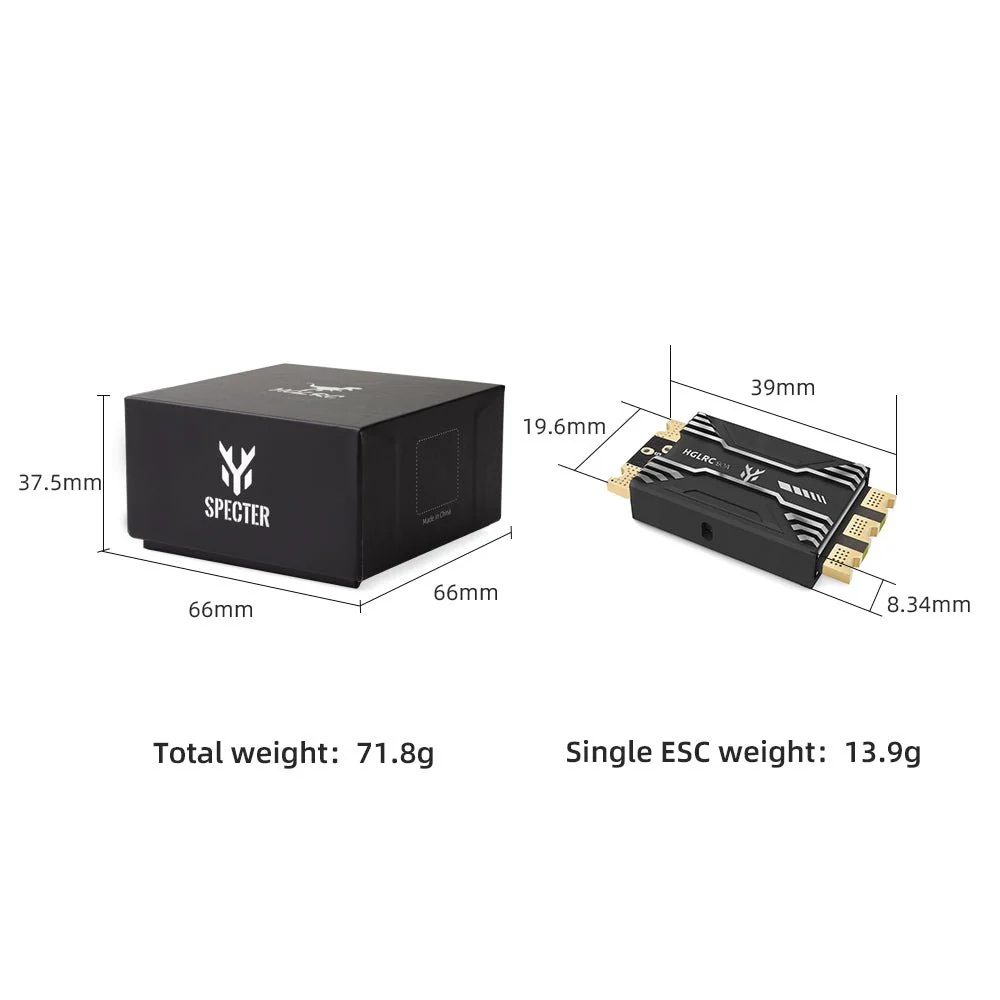

• Frame size: 39mm*19.6mm*8.34mm
• Weight: 13.9g
• Firmware version: BLheli32 32.9
• MCU: STM32G071
• Continuous current: 90A
• Instantaneous peak current: 100A
• Working voltage: 2-8S
• Temperature protection: Support
• Electric speed control telemetry: Support
• Drive signal: Dshot150, Dshot300, Dshot600, Oneshot, Multishot

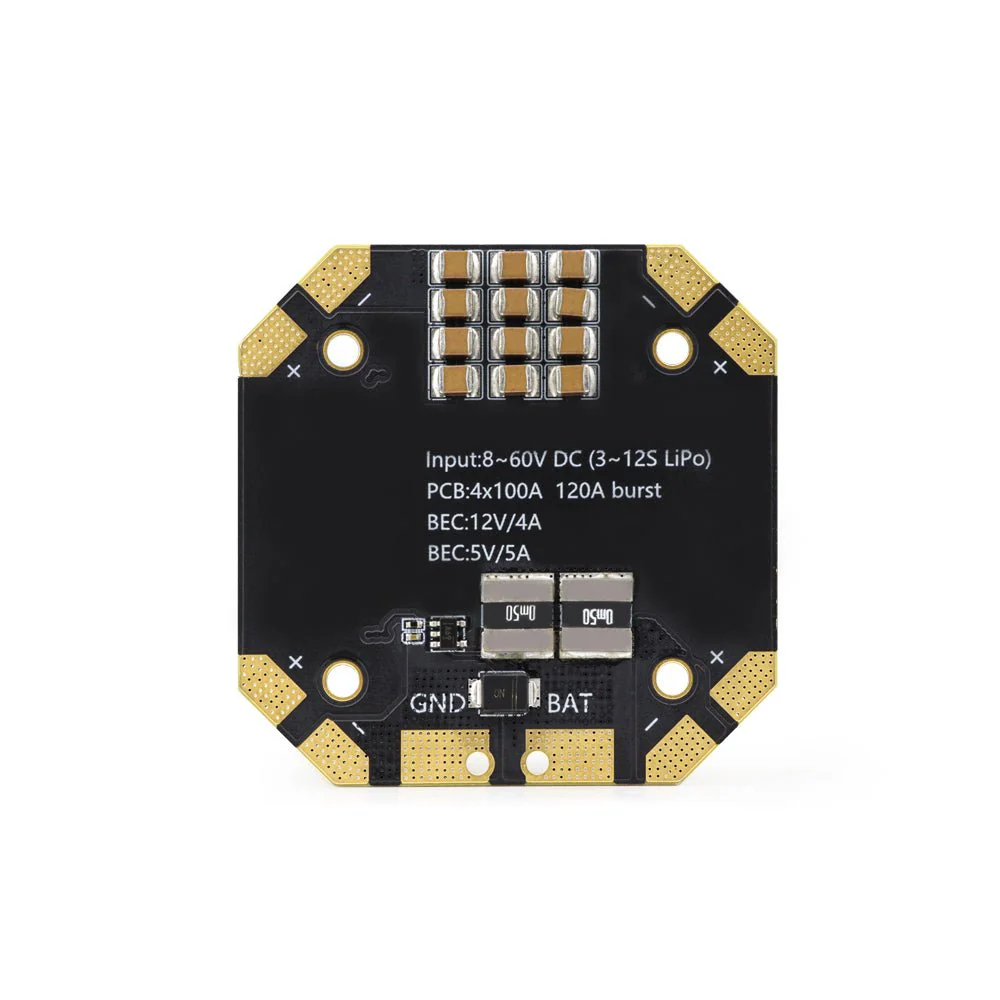

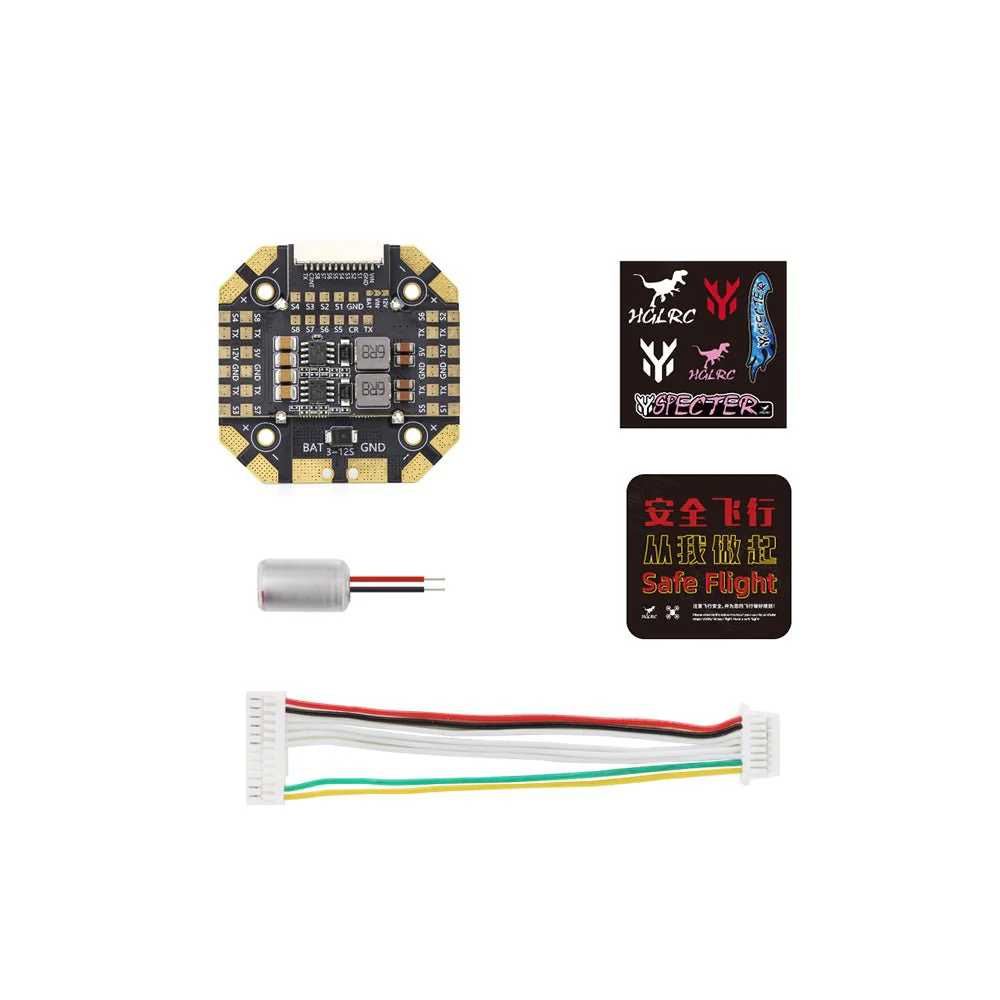

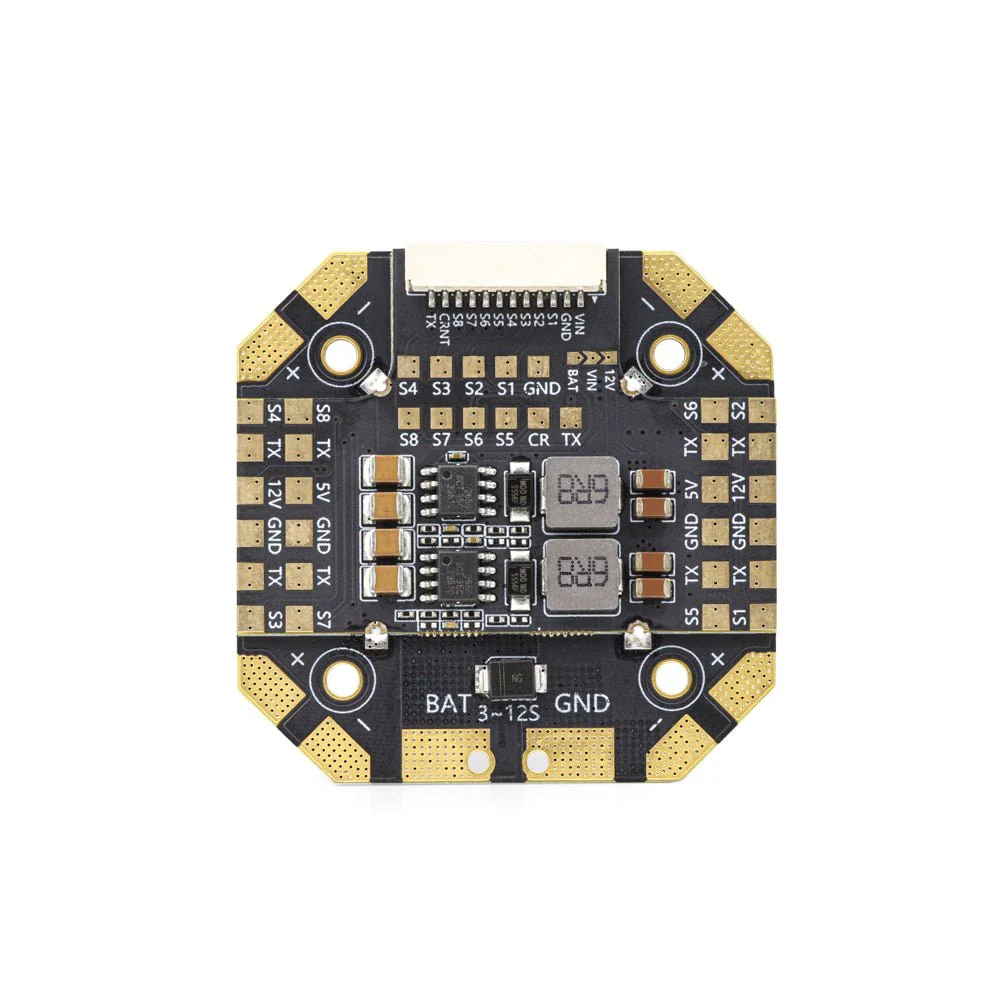

HGLRC 8-port 12S V2 Charger Board
Number of ESCs Supported: 8
Telemetry Feedback: Supported(ESCs must support telemetry)
5V BEC: 3A
12V BEC:  3A
24V BEC:  3A
Current Sensor: Supported
PCB Current: Continuous 4*100A(Peak 120A)
Outer Dimensions: 50mm*50mm*9.8mm
Mounting Hole Pattern: 30.5mm*30.5mm/M3
Weight: 26.5g(+2g)

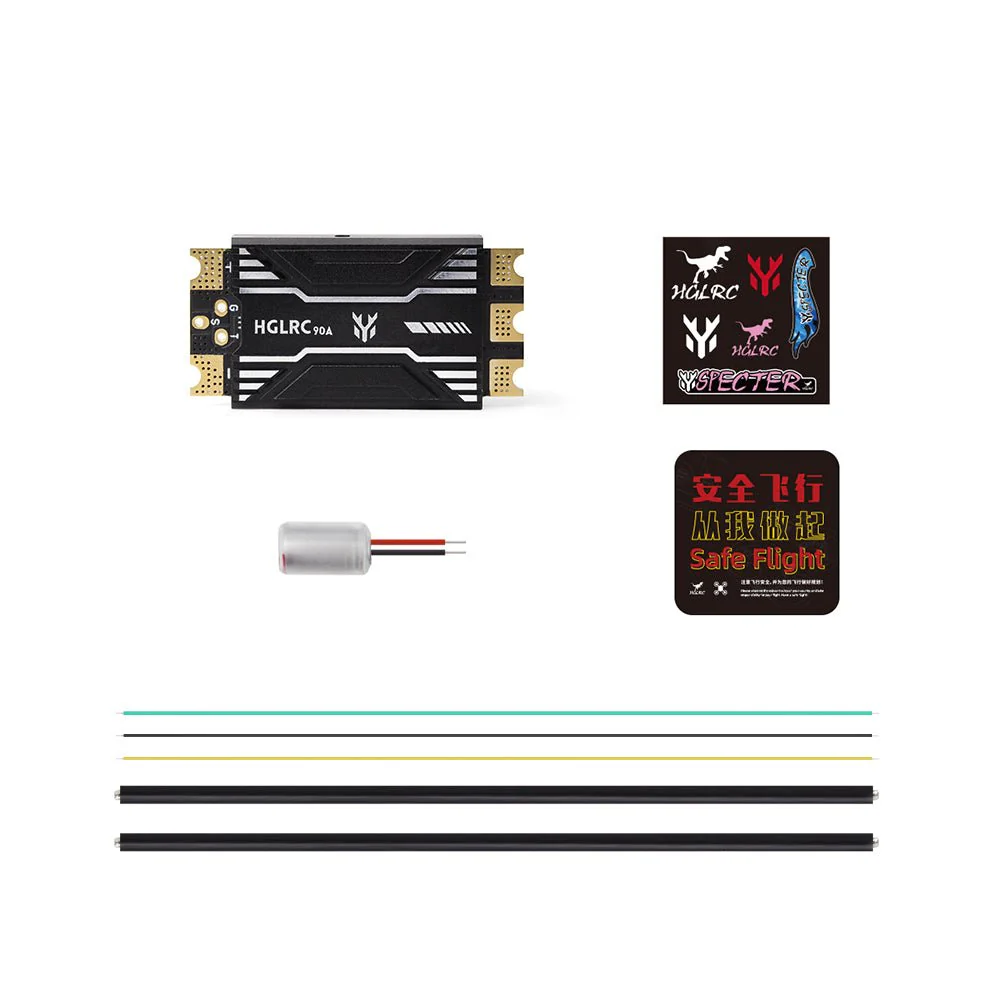

Delivery list

• HGLRC SPECTER 90A ESC
• 50V 470UF solid capacitor
• Red heat shrink tubing
• Black heat shrink tubing
• Black 12AWG power cord 20cm
• Black, green and yellow 30AWG silicone wire 20cm
