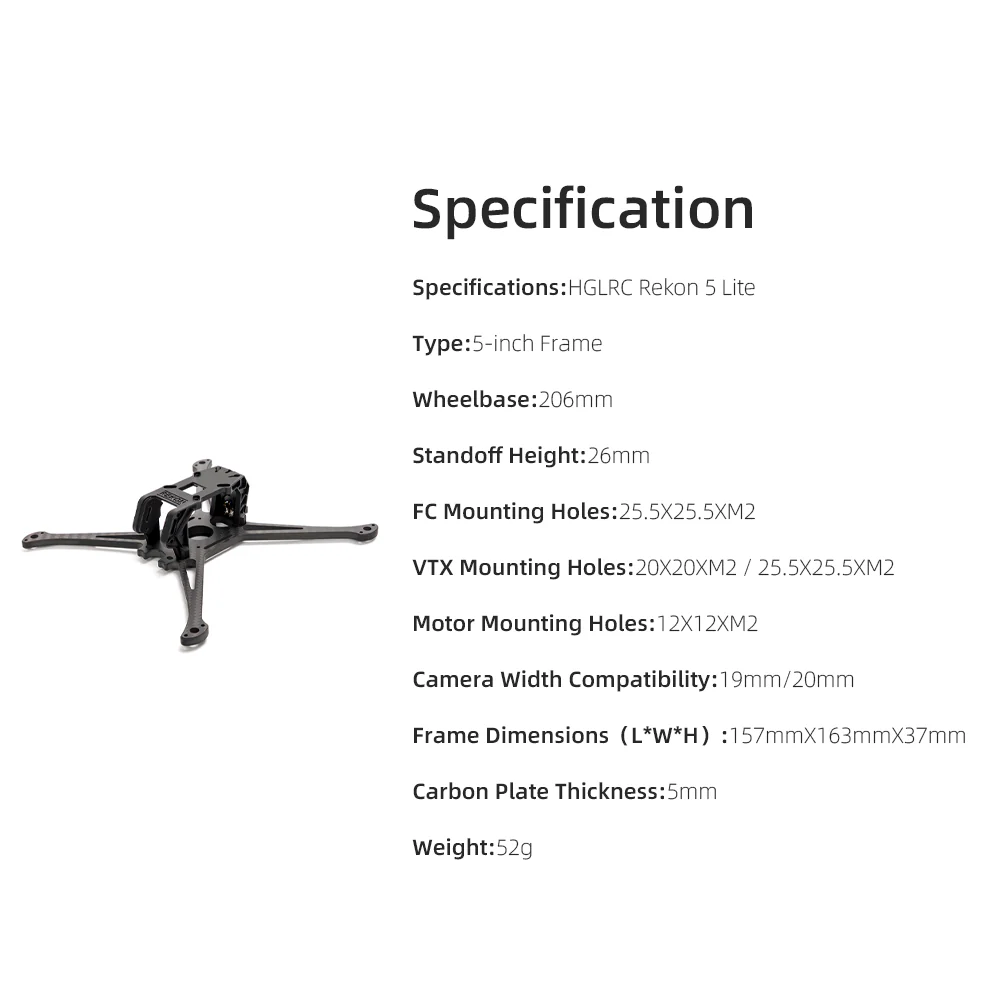

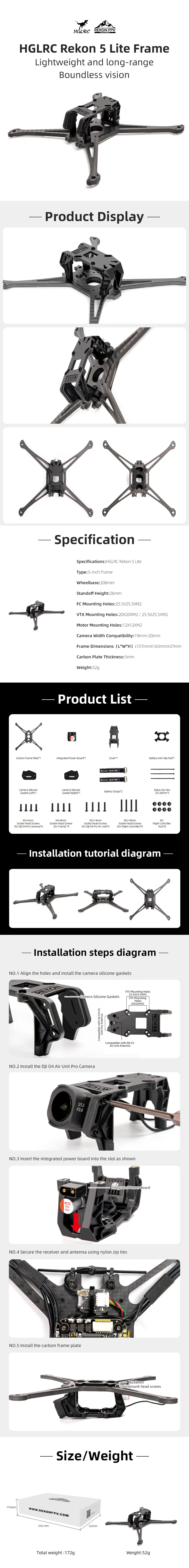

Product Specifications

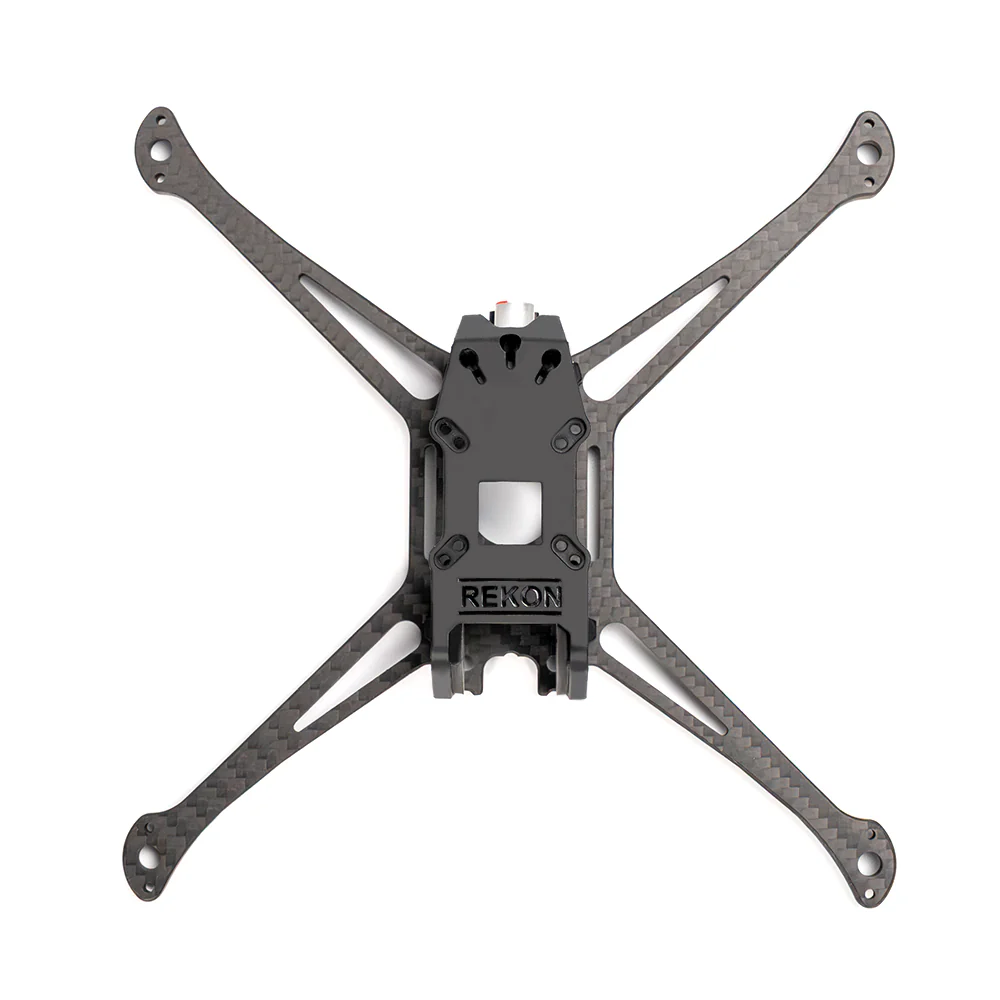

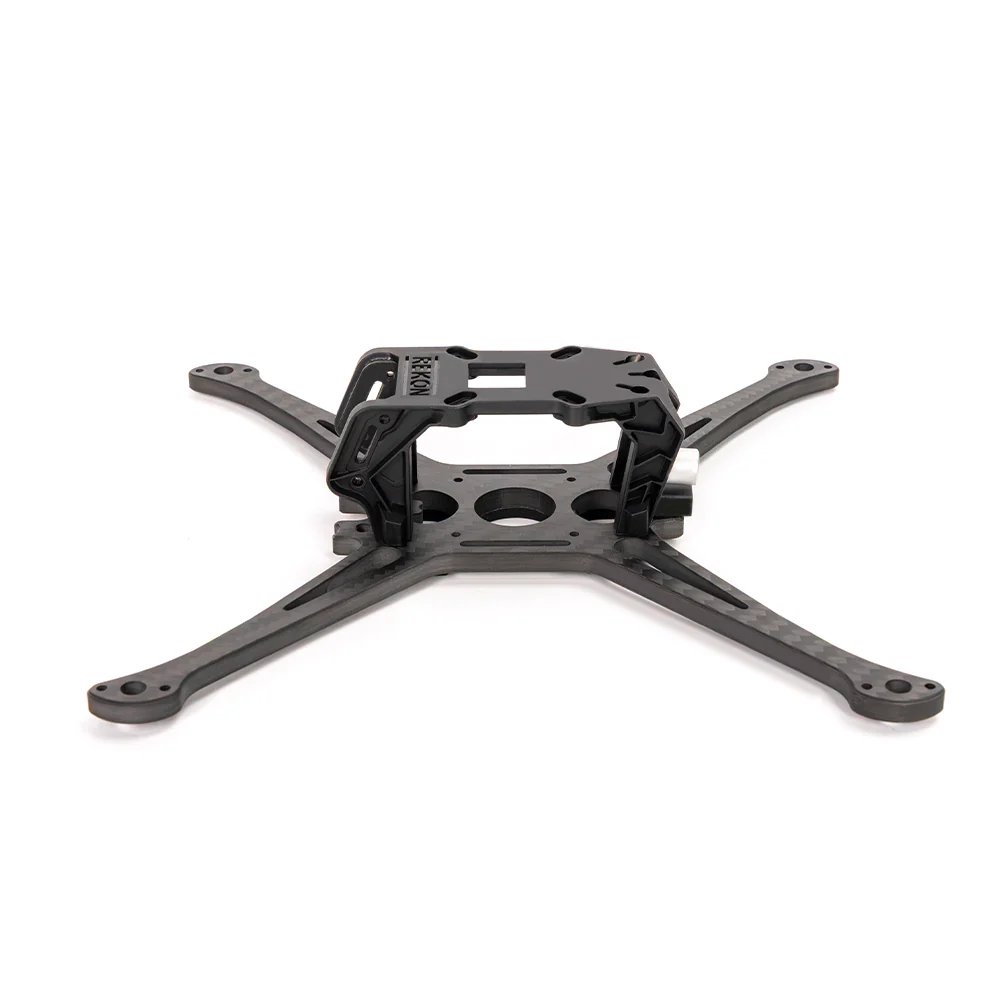

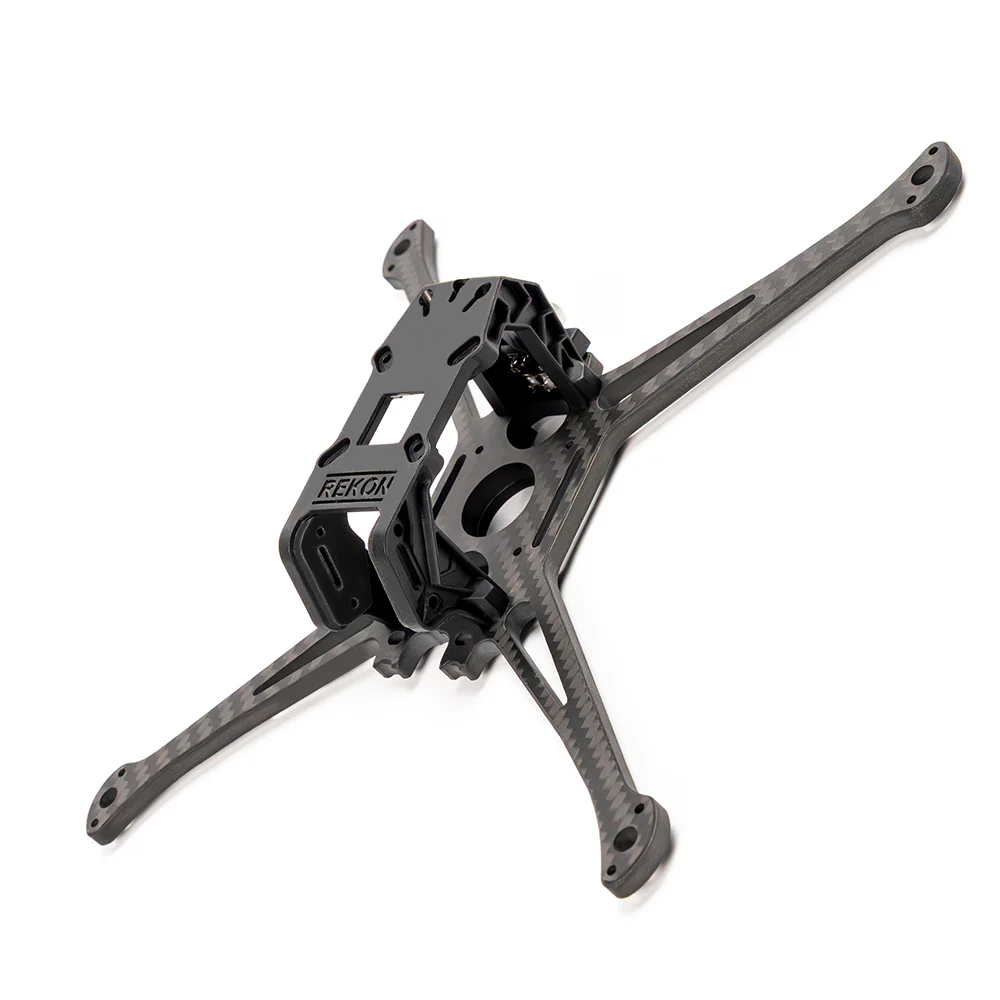

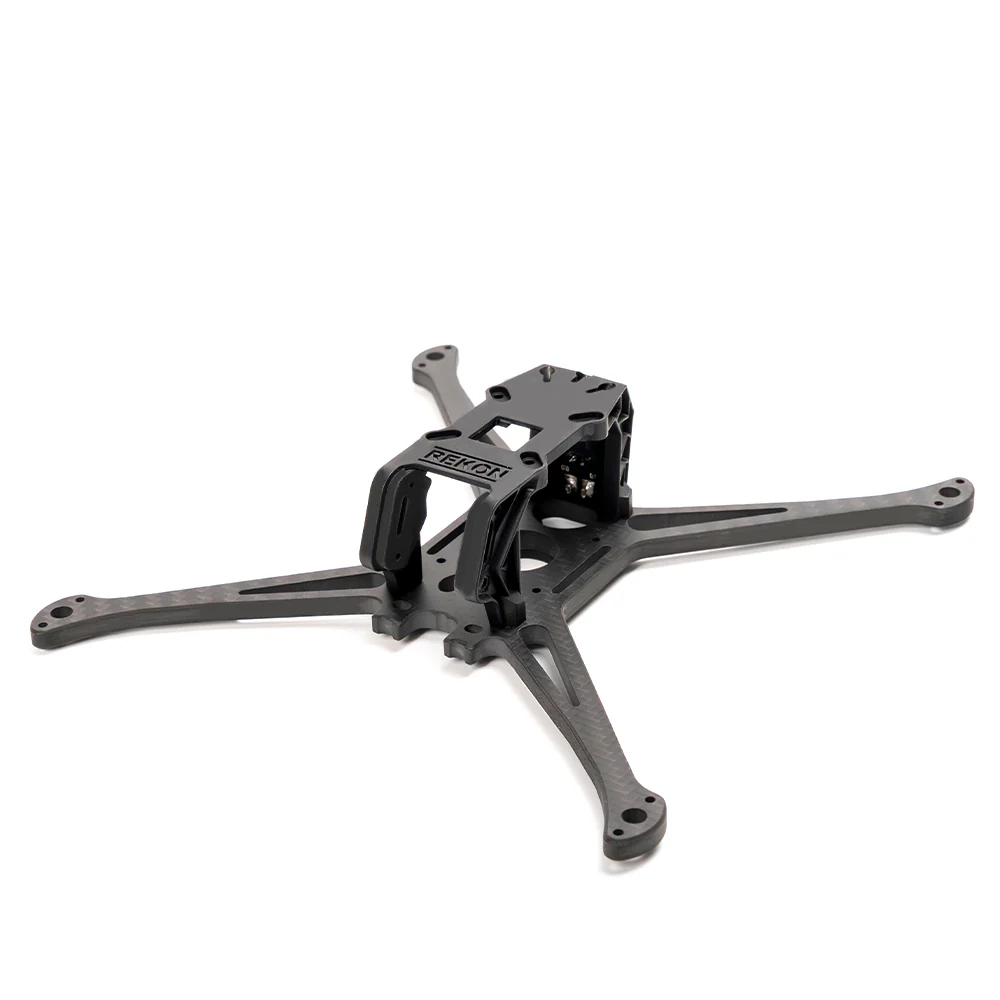

Frame Model: Rekon 5 Lite

Frame Wheelbase: 206mm

Mounting Height: 26mm

Flight Controller Mounting Holes: 25.5 x 25.5 x M2

VTX Mounting Holes: 20 x 20 x M2 / 25.5 x 25.5 x M2

Motor Mounting Holes: 12 x 12 x M2

Camera Width: 19mm / 20mm

Frame Dimensions (L x W x H): 157mm x 163mm x 37mm

Carbon Thickness: 5mm

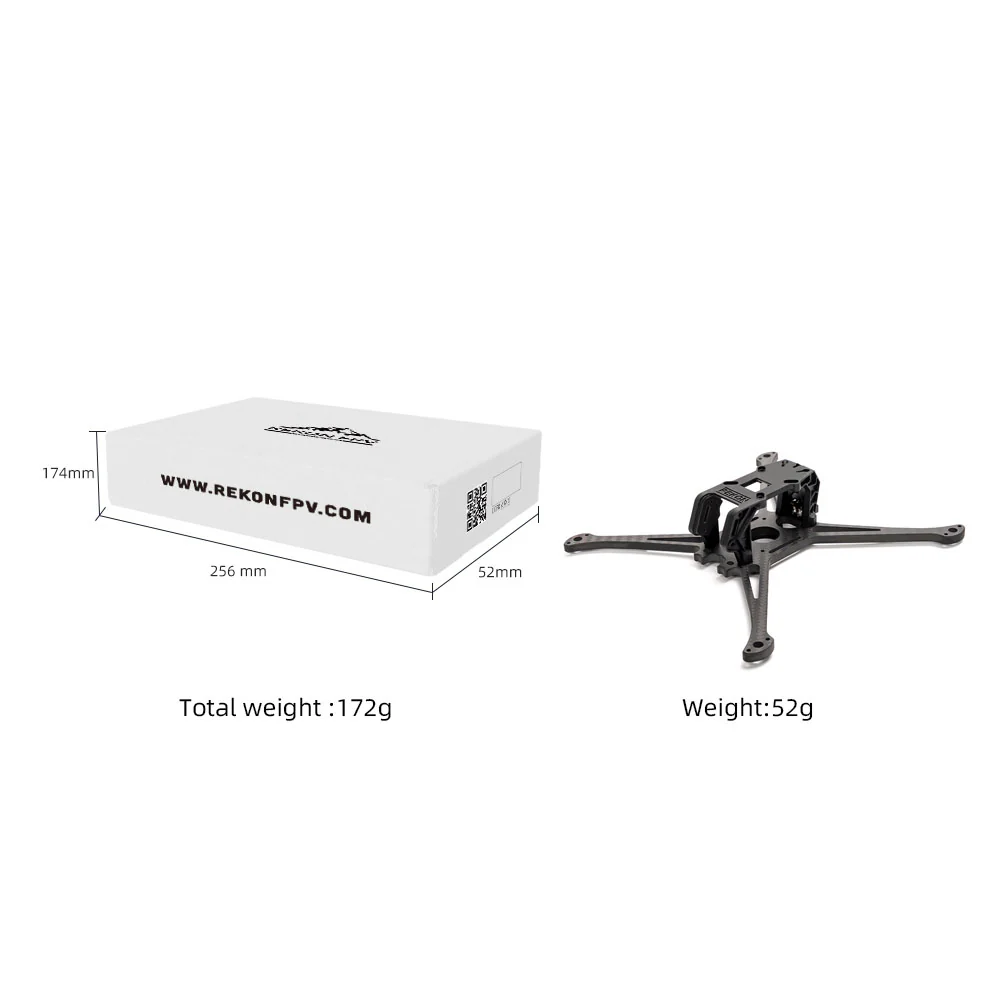

Frame Weight: 52g

Recommended Flight Equipment: (The following equipment is not included in the frame kit)

AIO: HGLRC SPECTER F722 40A AIO

Motor: HGLRC SPECTER 1804 3500KV

GPS: HGLRC M100 mini

VTX: DJI O4 Air Unit Pro

Battery: HGLRC LIHV 4S 850mAh

Propellers: HQ Prop T5 x2 x3

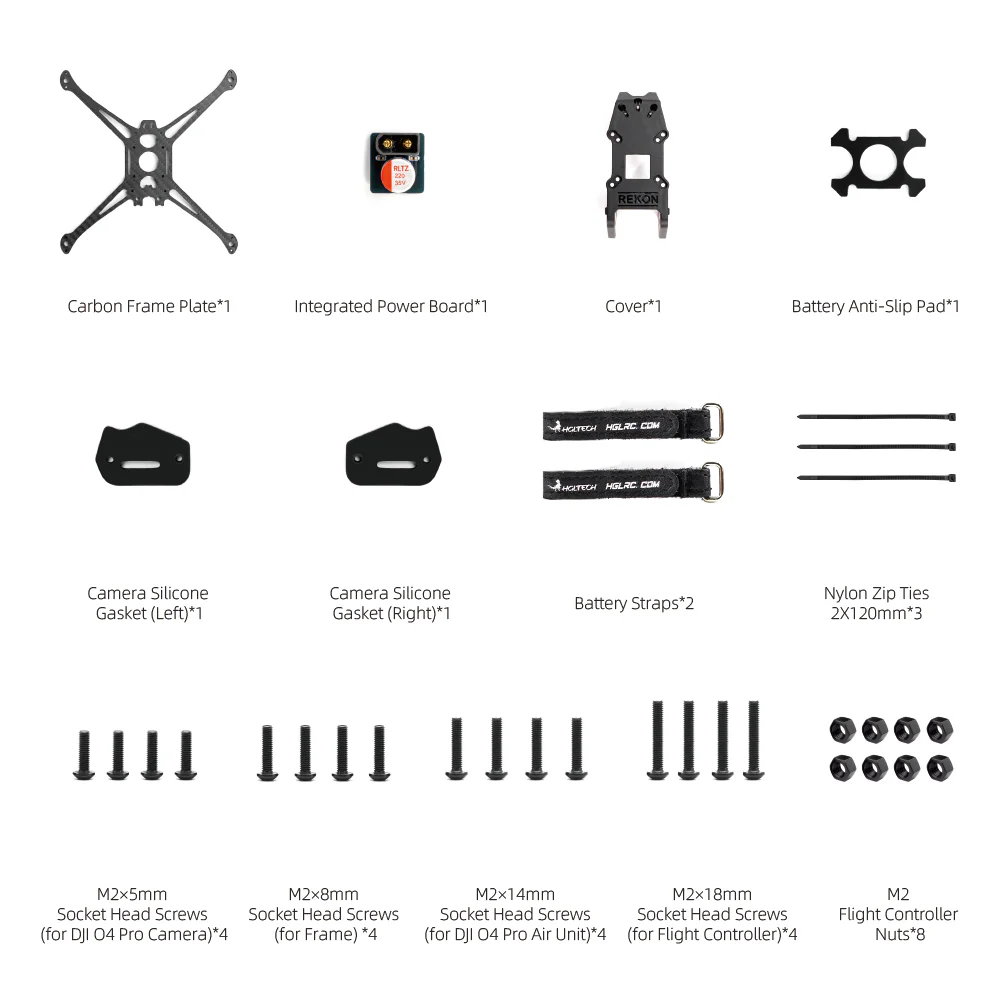

Shipping  List:

Frame Carbon Plate x 1

Canopy x 1

Battery Anti-Slip Pad x 1

Camera Silicone Gasket L x 1

Camera Silicone Gasket R x 1

Integrated Power Board x 1

Battery Ties x 2

Round Hexagon Socket M2*5 x 4

Round Hexagon Socket M2*8 x 4

Round Hexagon Socket M2*14 x 4

Round Hexagon Socket M2*18 x 4

M2 Hexagon Black Nylon Nuts x 8

Nylon Ties x 2 x 120mm x 3
