Coming Soon ProductsHGLRC PDB V2 4x100A 12S
New
HGLRC PDB V2 4x100A 12S
In stock
₹1,899
Price is Inclusive of GST. Enter GST number at checkout.
In stock
SHARE
Same Day Shipping
Mon-Sat til 2.00PM on Most orders
Provide Warranty
Seller & Manufacturer Warranty
Best Prices
Best Prices in India
Best Customer Support
Industry leading support

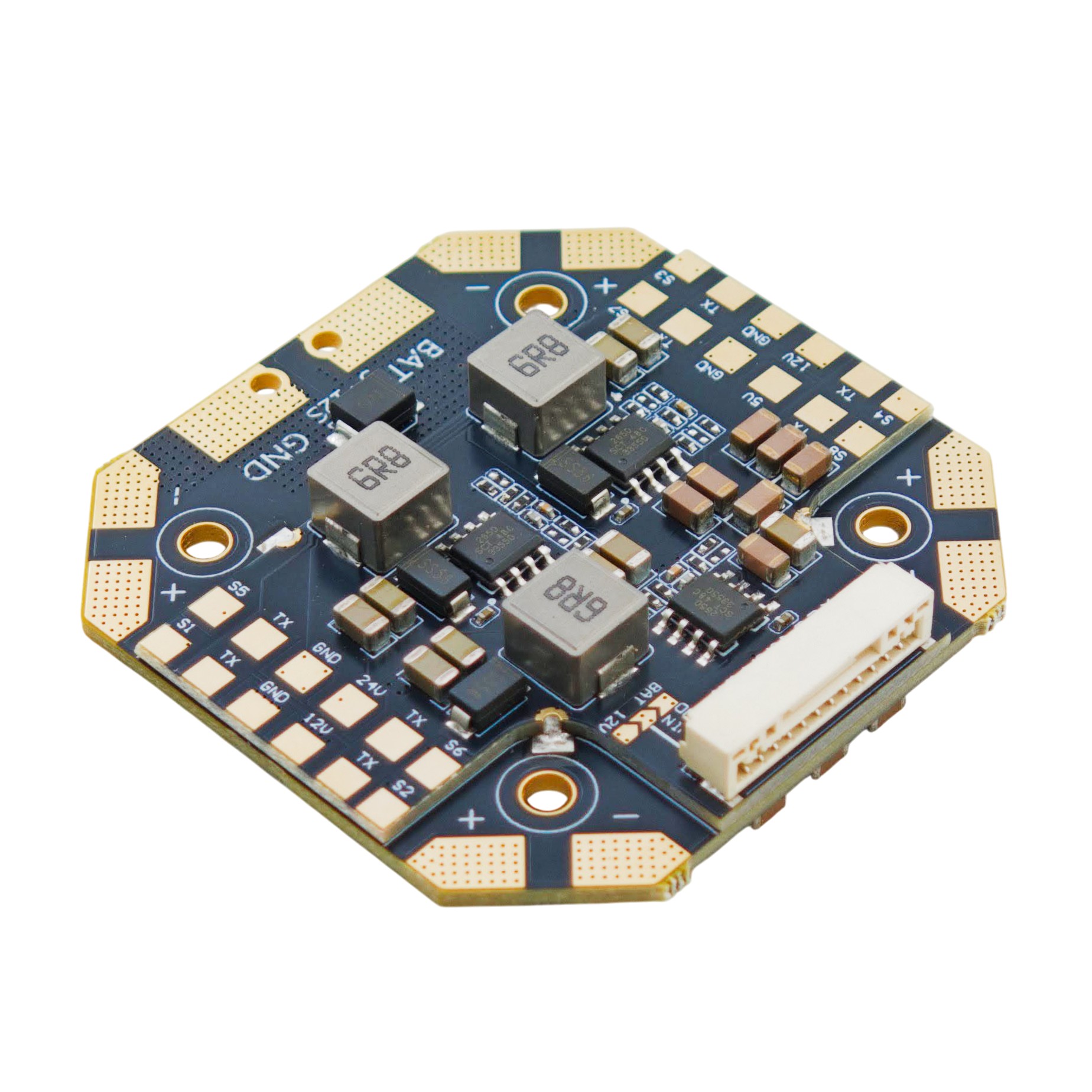

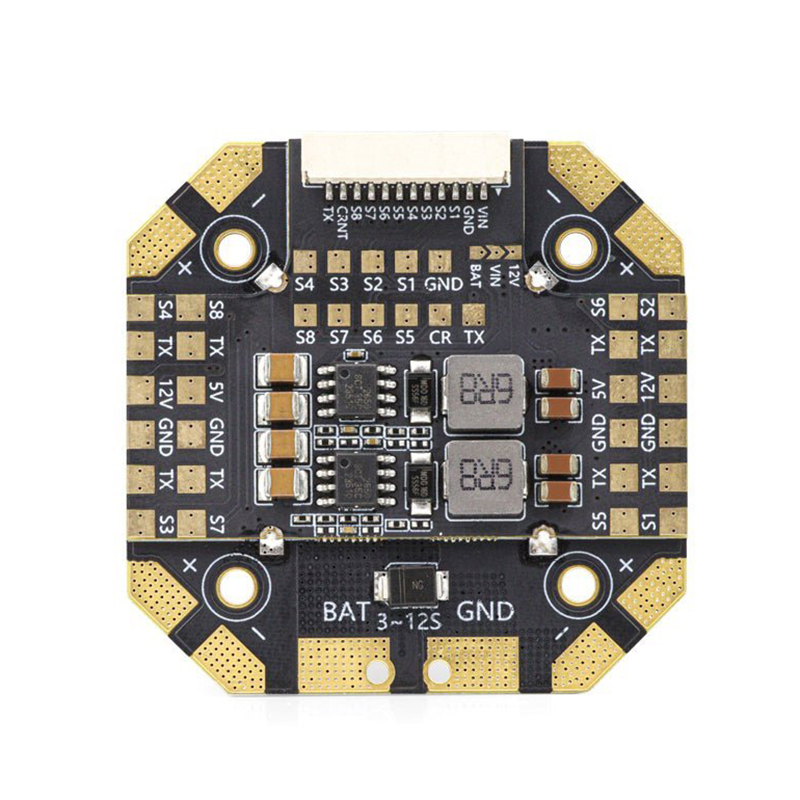

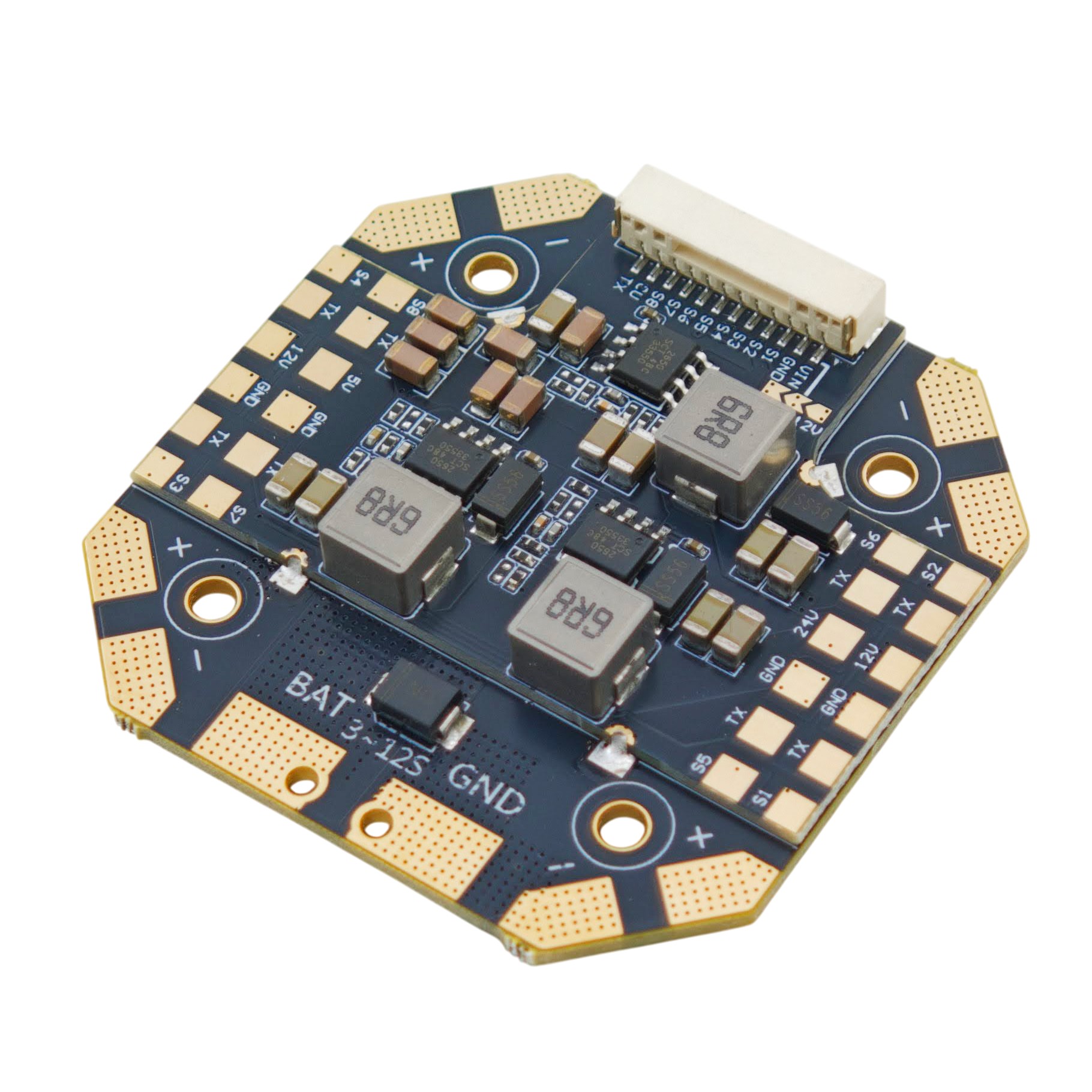

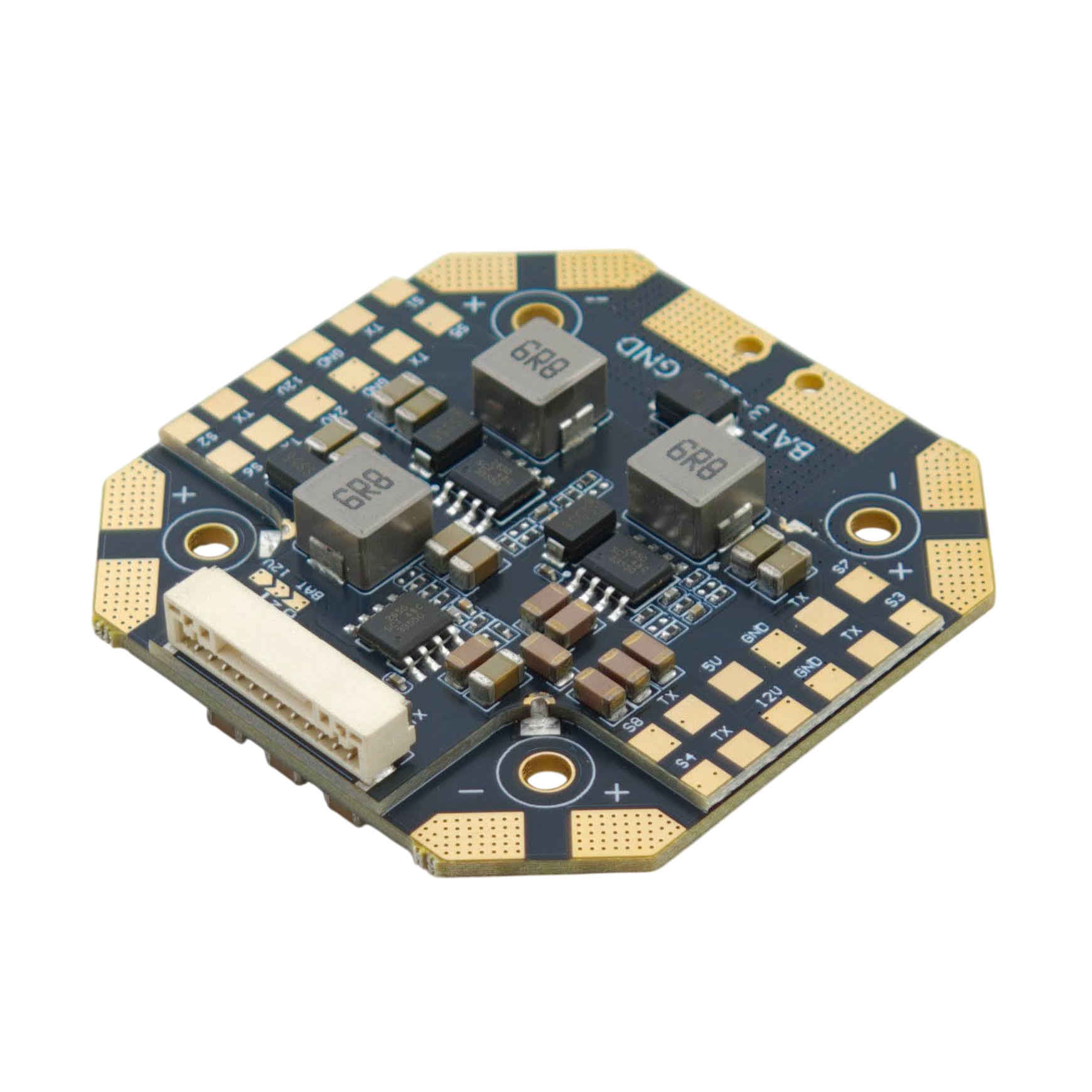

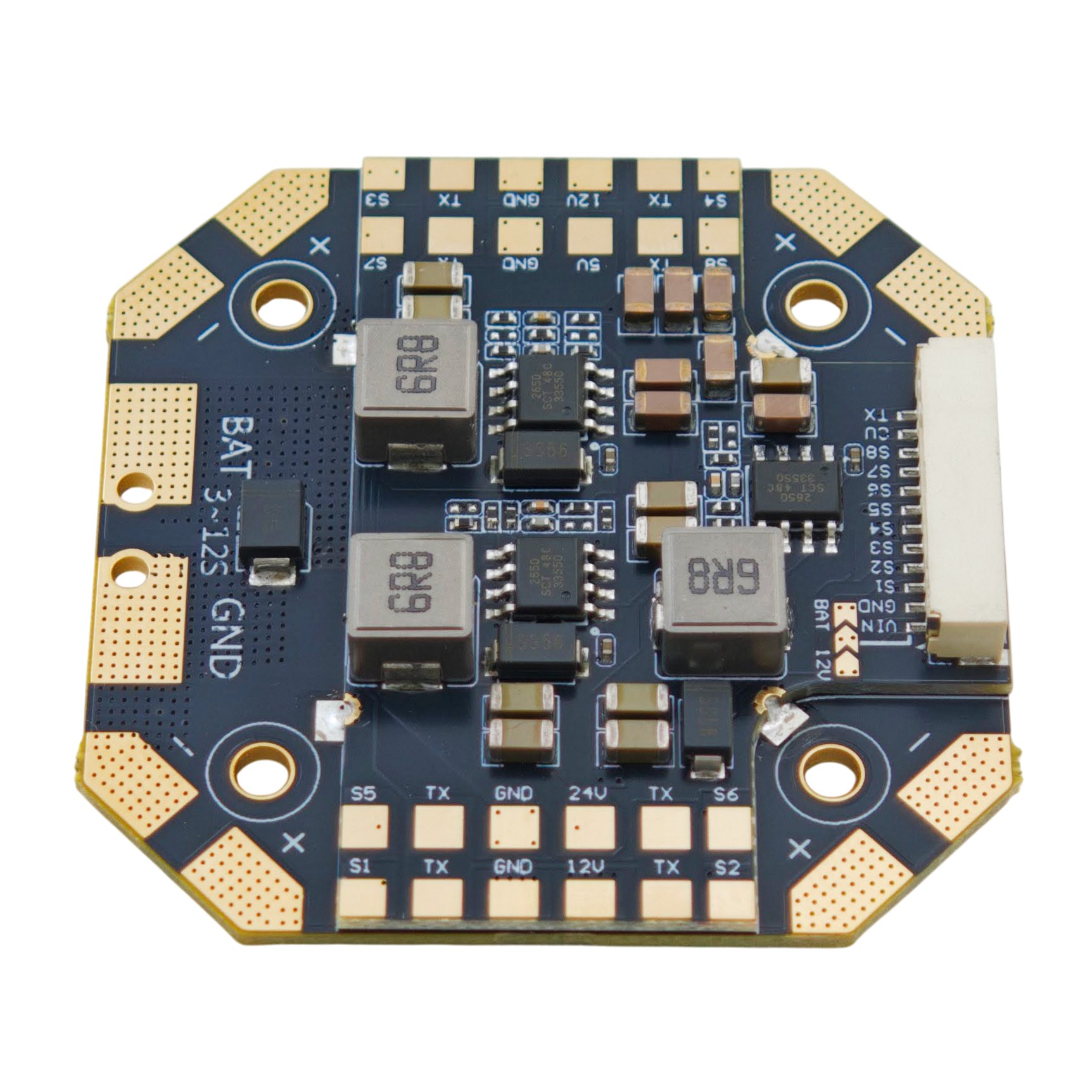

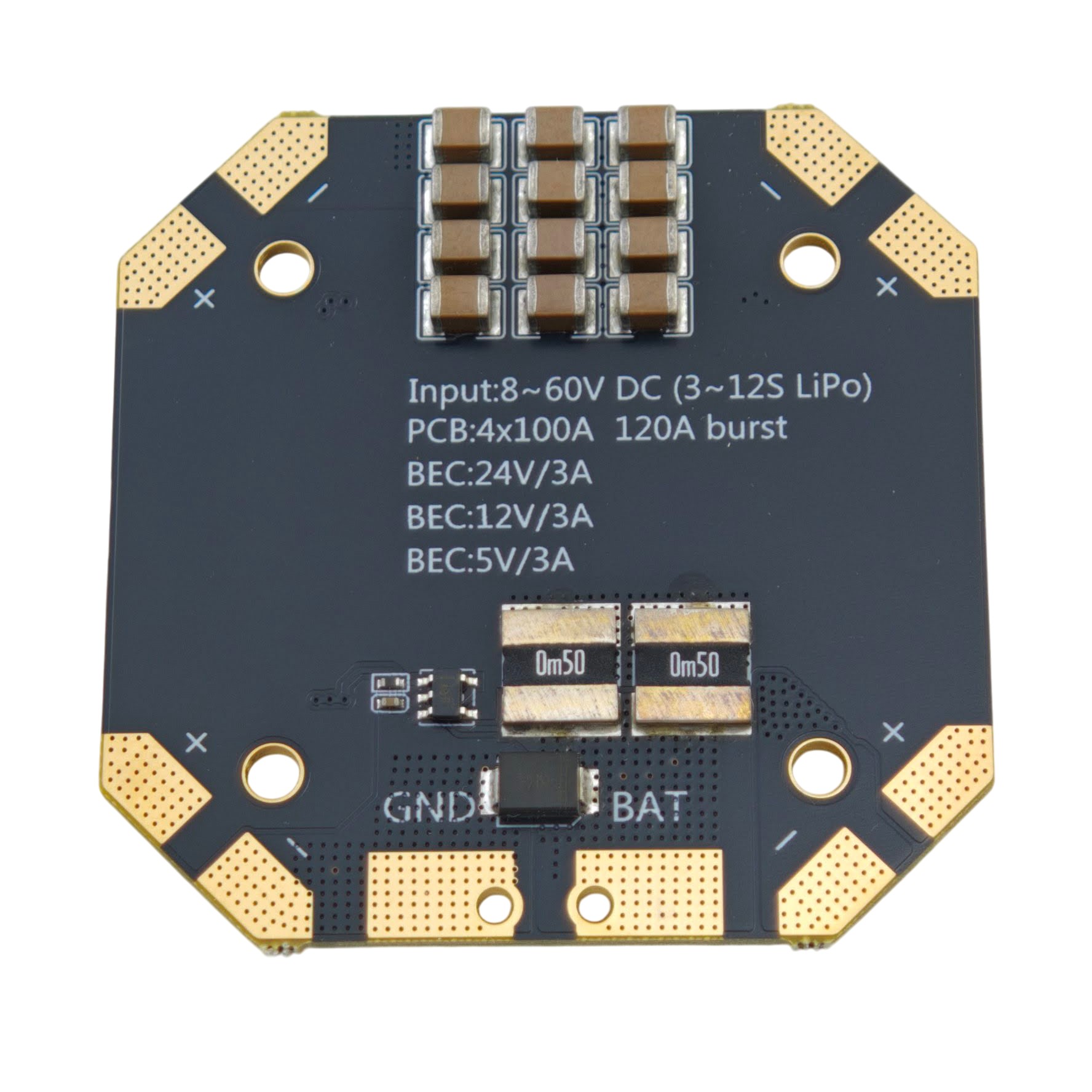

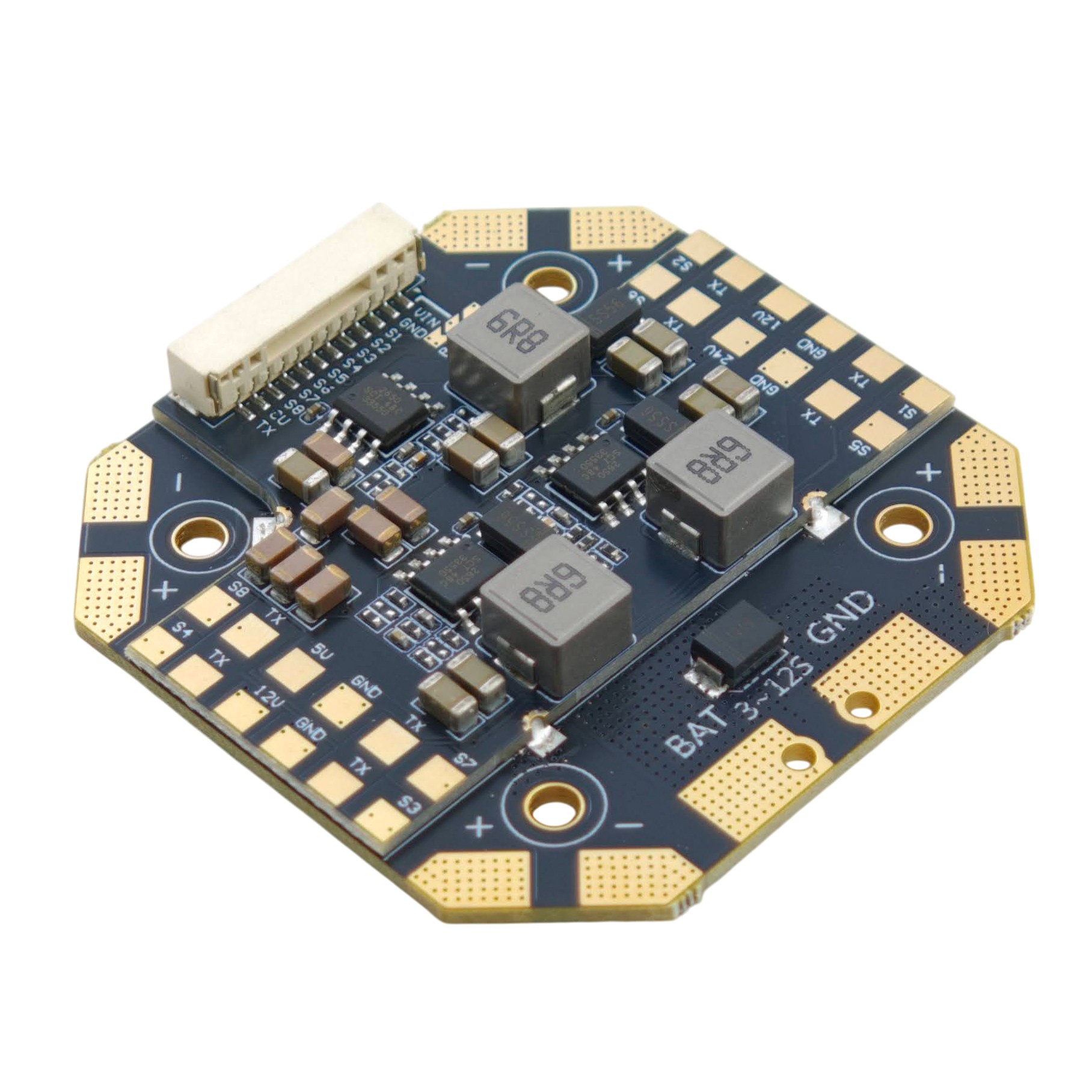

HGLRC Power Distribution Board V2 is a power distribution board for high-performance drones with individual regulators. The board supports powering up to 12S batteries. PDB allows connection of up to 8 regulators. It includes an integrated current sensor, a strong 5V/5A BEC, 12V/4A BEC, and 24/4A BEC.
The board can handle continuous load of 4×100A (8x50A) with a short peak of 120A. The physical dimensions are 50×50mm with a mounting hole spacing of 30.5×30.5mm (M3). The weight of the PDB is 24g.
Key Features
- Input voltage: 8-60V (3-12S) LiPo
- Continuous current: 4×100A (8x 50A)
- Peak current: 120A
- BEC: 5V/5A, 12V/4A, 24V/4A
- Regulator connectors: 8
- ESC telemetry: Yes
- Current sensor: Integrated

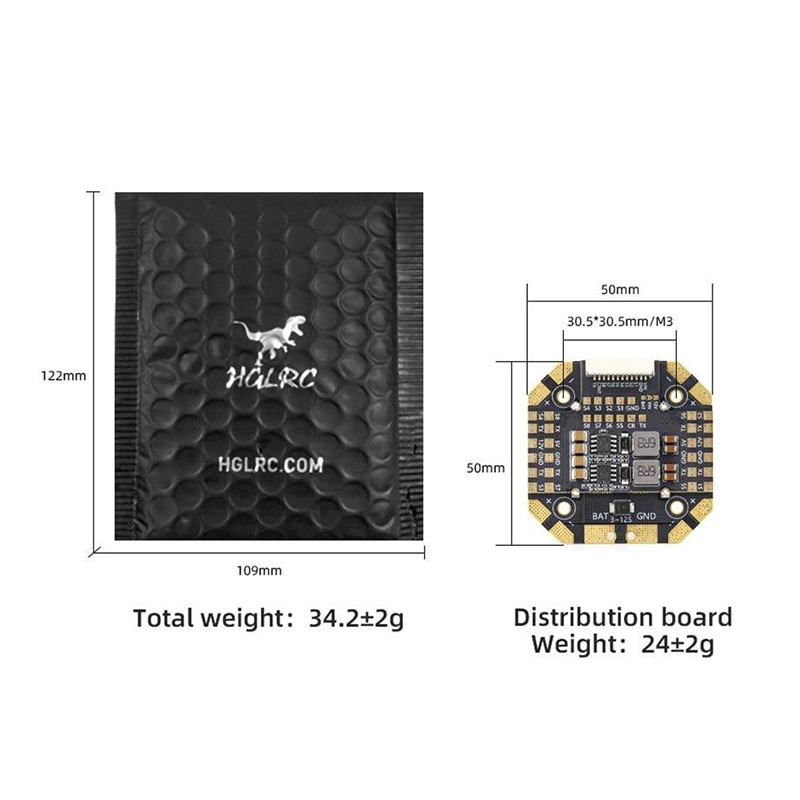

- Mounting hole spacing: 30.5×30.5mm (M3)

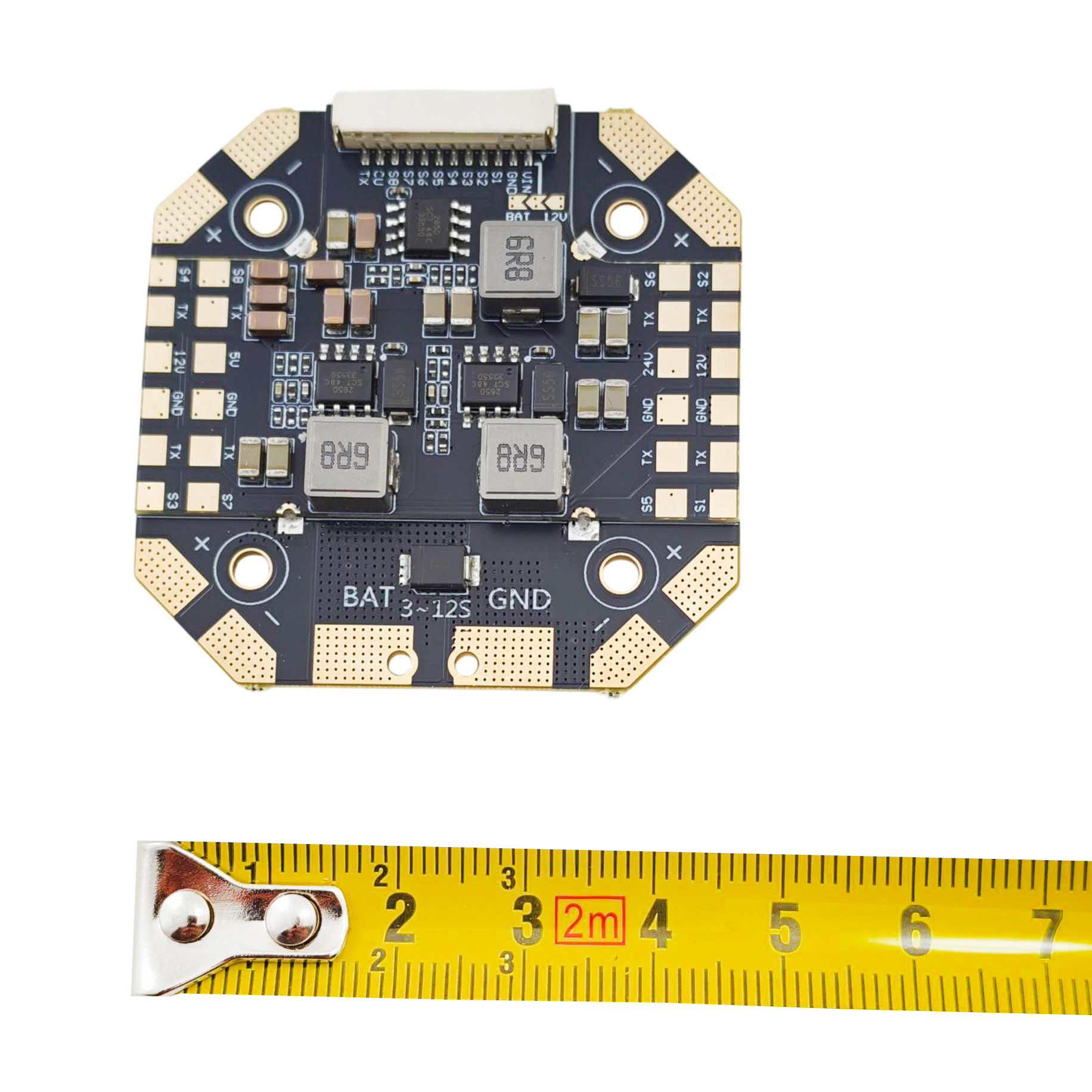

- Dimensions: 50×50×9.8mm

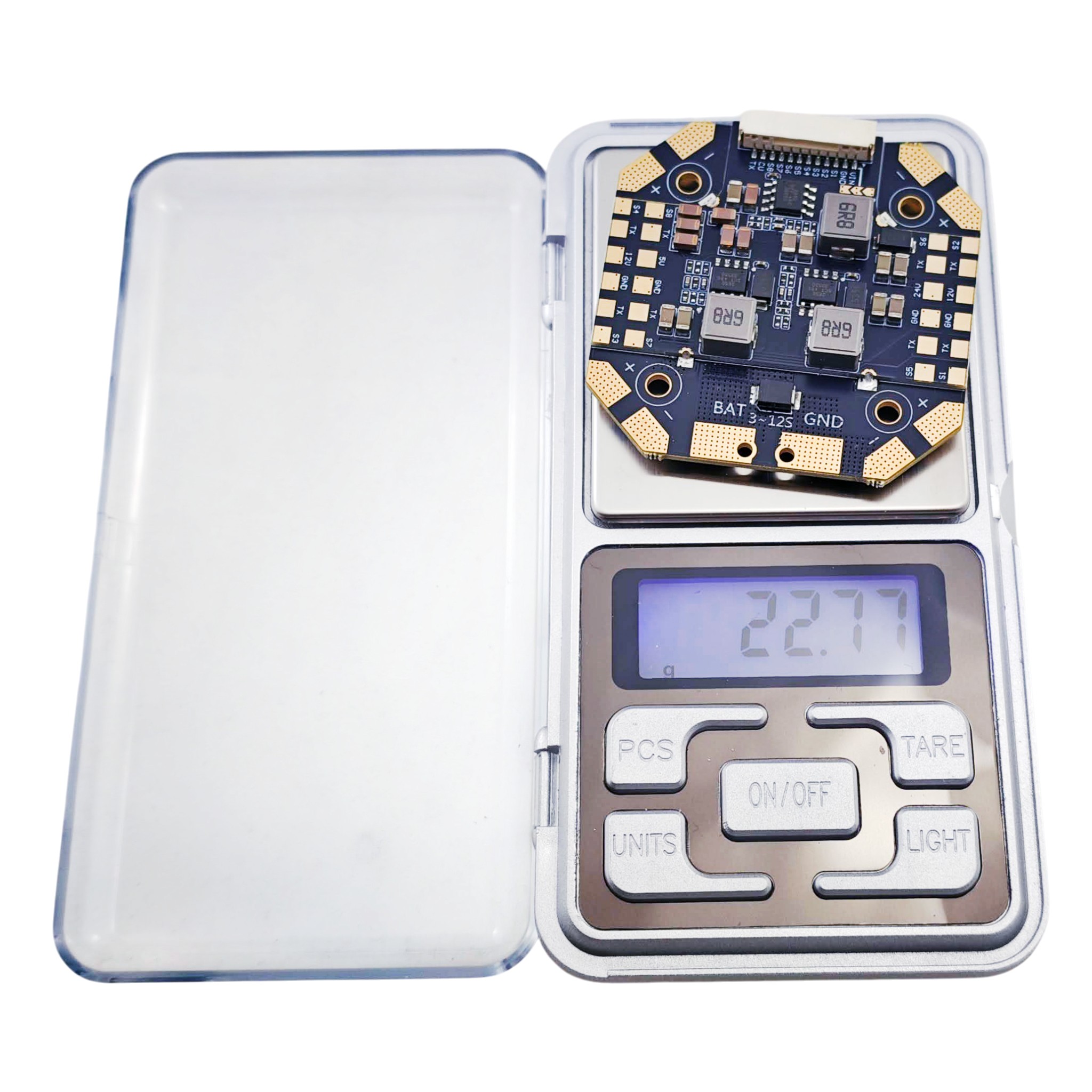

- Weight: 24g

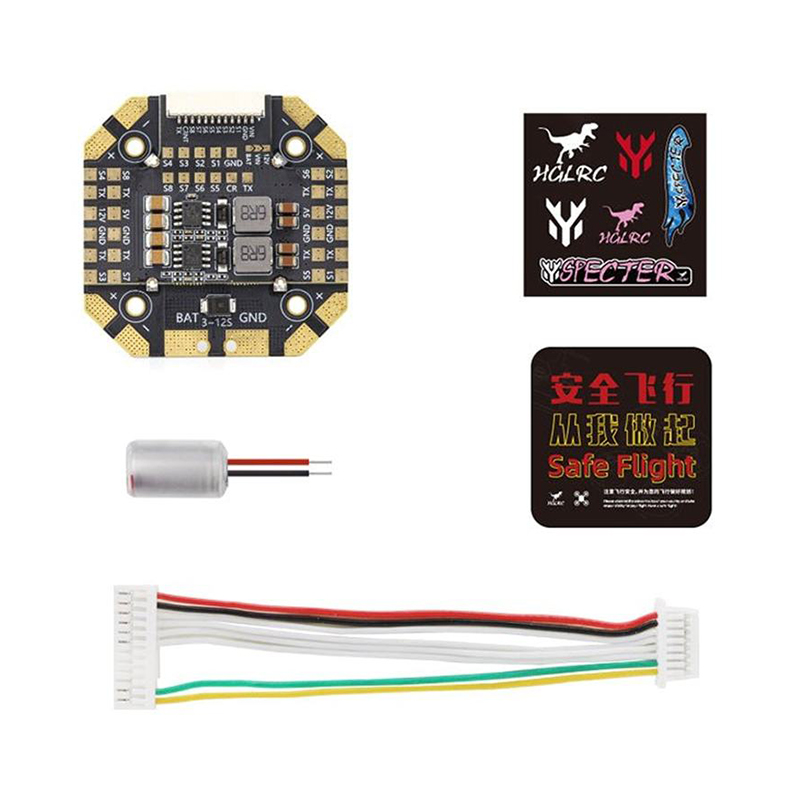

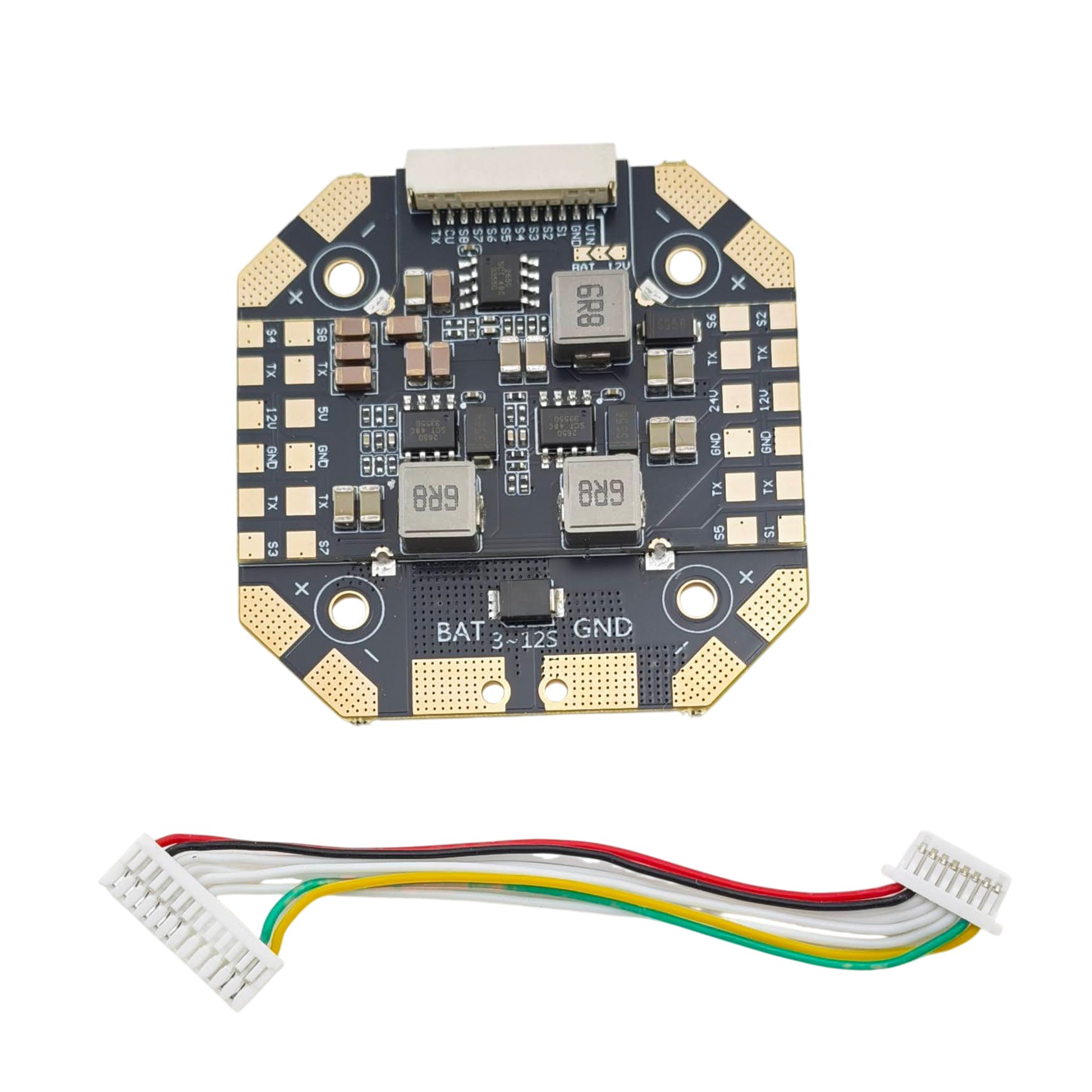

Package Includes
- 1x Distribution board 12S
- 1x Connector set
- 1x Jumper wire set
