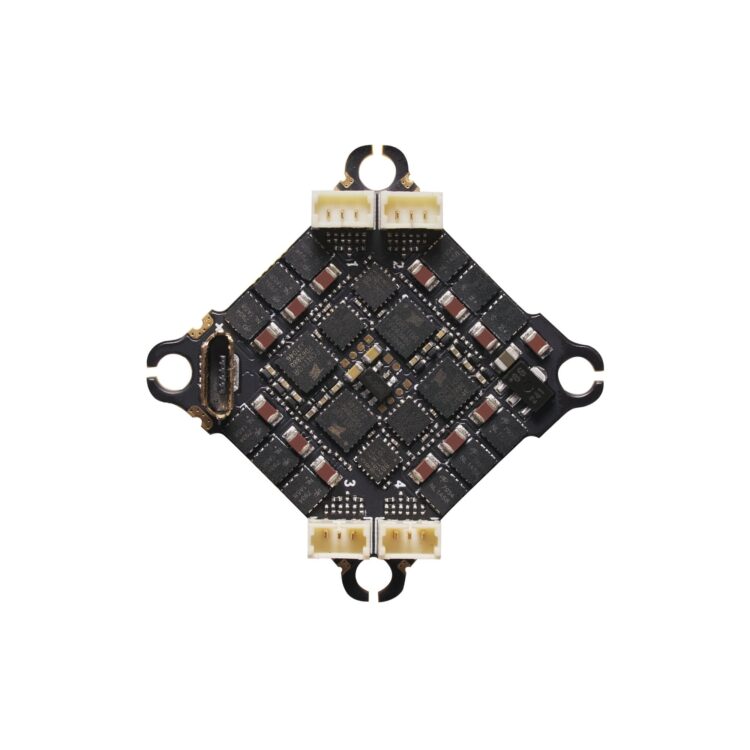

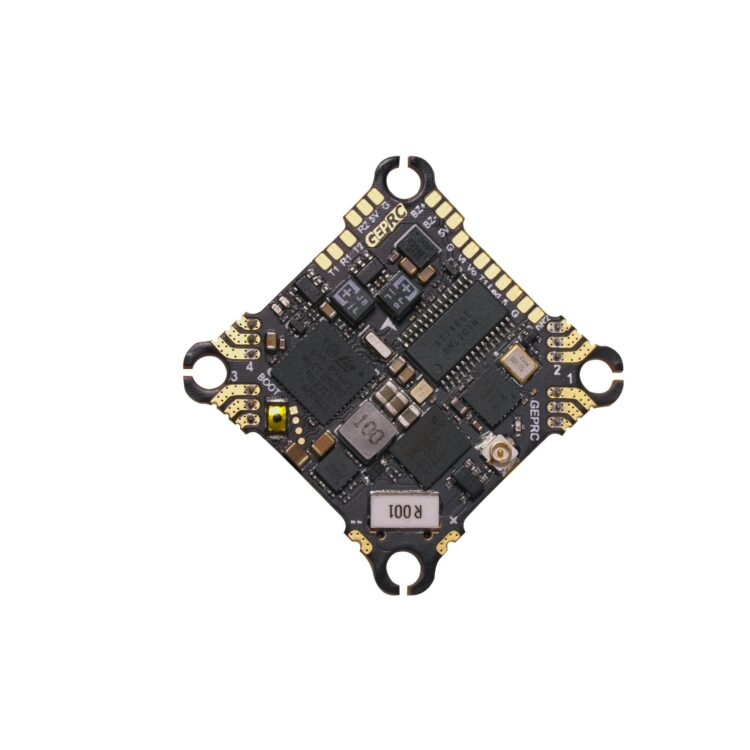

Brand new TAKER F411 8Bit 12A AIO adds new blood to the MINI FPV, the weight of the AIO integrated board is only 7 grams, making the small body lighter and improving the overall feel of the small FPV drones.

TAKER F411 8Bit 12A AIO adopts ICM-42688-P gyro, with precise and smooth touch, both racing and freestyle flying can be coped with easily. ESC supports up to 12A, supports 2-4S, and more powerful. These versions are divided into built-in SPI ELRS 2.4G receiver and without the receiver version, each with the advantages and convenience, pilots are free to choose. On-board black box with 16MB flash memory, convenient for pilots to adjust parameters.

It is believed that this highly integrated TAKER F411 12A AIO will bring you an easy and pleasant building experience.

Specifications

• Model: TAKER F411 8Bit 12A AIO (built-in/without ELRS receiver)
•  MCU: STM32F411
• IMU: ICM42688P
• Firmware target: GEPRC_F411_SX1280
• OSD: BetaFlight OSD w/ AT7456E chip
• UART Ports: R1 T1\R2 T2
• Reverse Port: NR2
• Buzzer: YES
• LED: YES
• USB Port: micro USB
• ESC MCU: BB21F16G
• Black Box: 16Mb onboard flash memory
• Continuous Current: 12A
• Peak Current: 13A
• Input: 2-4S
• ESC Protocol: Dshot300,Oneshot,Multishot
• Current Meter: 210
• ESC Firmware: G-H-30 – Bluejay, 0.16, 48kH

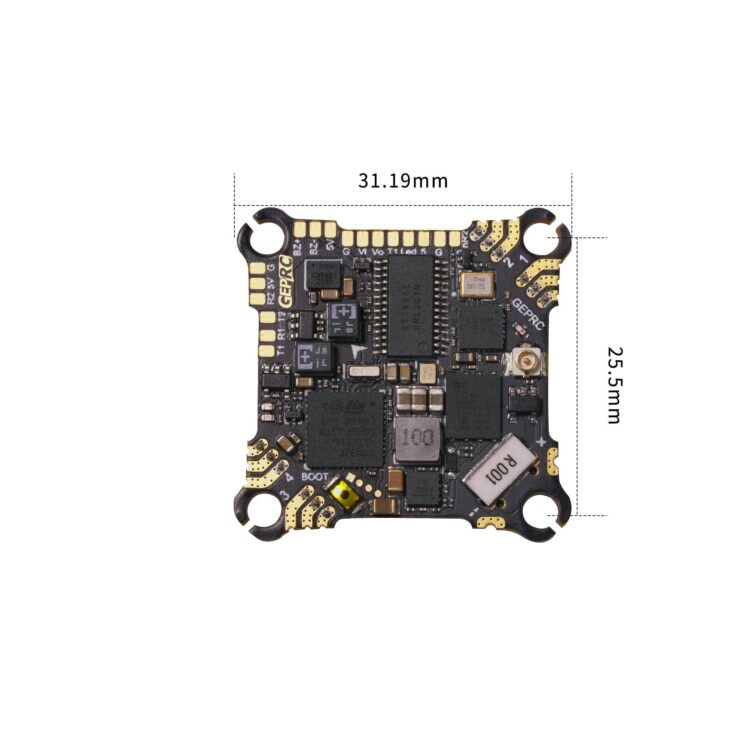

• Size: 31.2×31.2mm Board
• Mounting holes: 25.5mm*25.5mm hole, M2 hole
• Weight: 7g

Feature

1. Bluejay 12A ESC, support 2-4S battery, continuous current 12A, peak current 13A, built-in ammeter

2. using STM32F411 FC, the flight control is running stably

3. using IMU: ICM42688P gyroscope, 8K sampling rate

4. support buzzer and LED light function

5. With 25.5mm*25.5mm mounting holes

Includes

– 1 x TAKER F411 12A (built-in/without ELRS receiver)

– 1 x XT30-5.5CM-20AWG power cable

– 8 x M2*6.5mm FC damping balls (4 each in red/black)

– 1 x 35V220UF capacitor

– 5 x Self-tapping screws (M1.4X5)

– 1 x Instruction manual

– 1 x Aluminum foil bag
