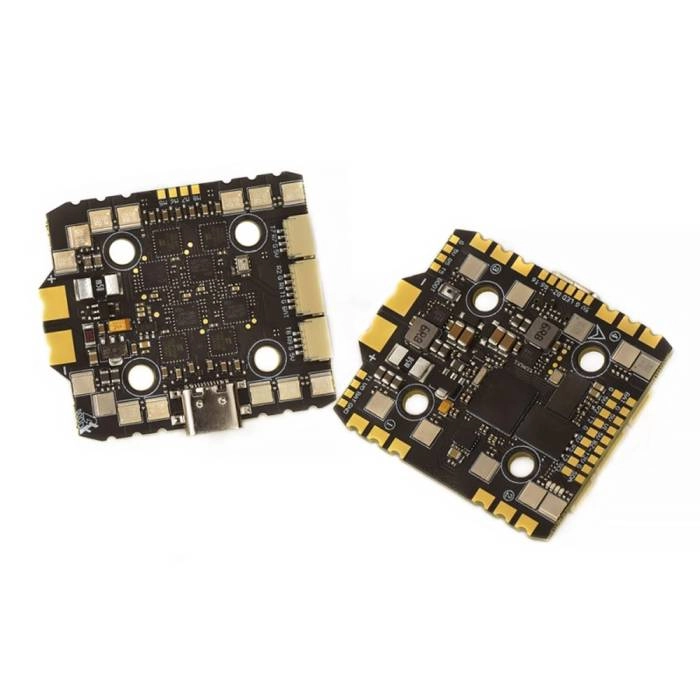

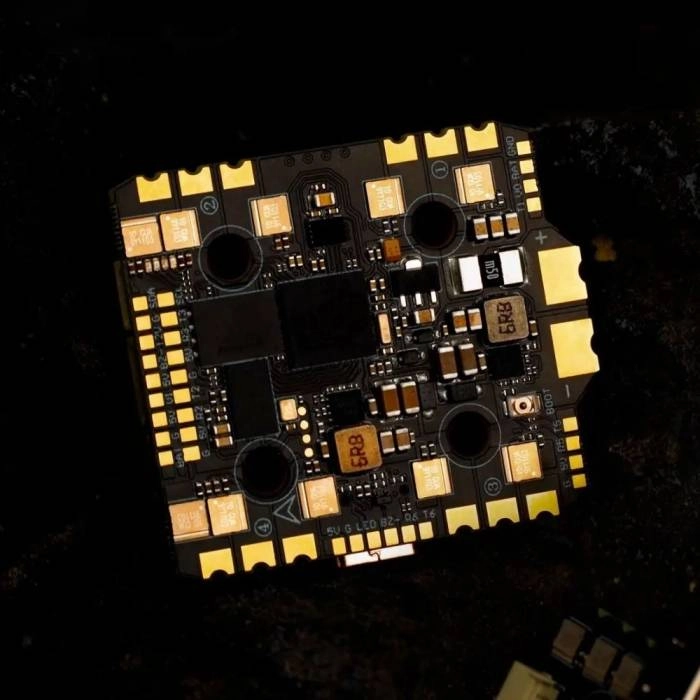

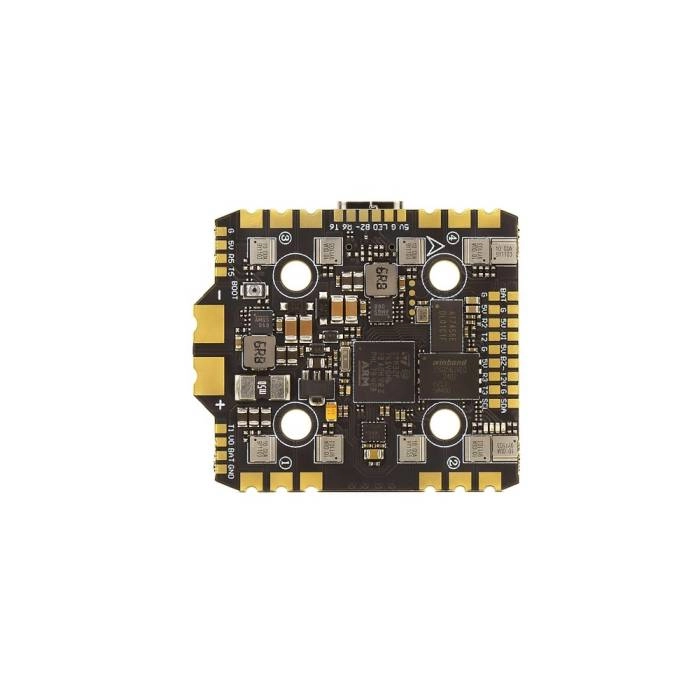

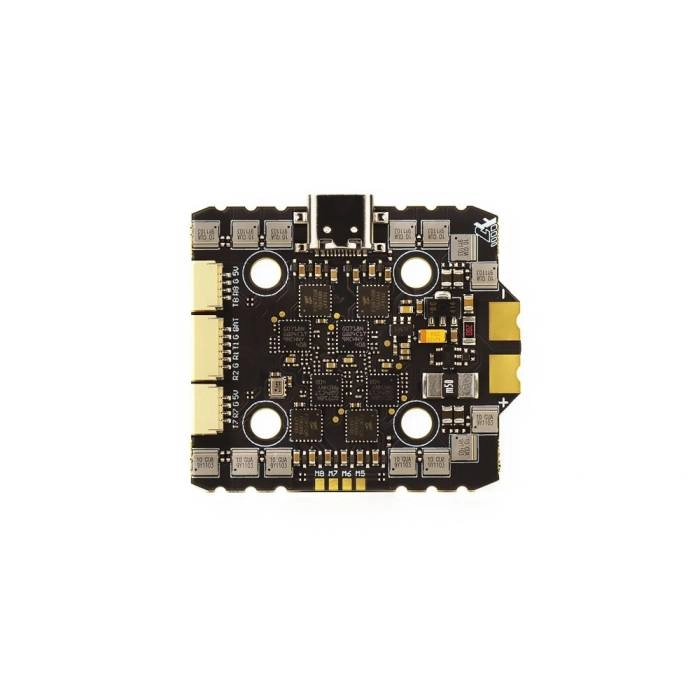

The AxisFlying Argus F745 AIO – F745 FC + 40A 4-6S AM32 ESC is a top-tier flight control system. Boasting high-quality circuit technology and 40A ESC power, this AIO ensures seamless performance. Equipped with an F745 MCU and 32M black box, it is reliable and an ideal choice for drone tuning.

•  Factory installed AM32 ESC firmware
• 8 Uarts
• F745 High-performance MCU
• 40A of power on an AIO

AxisFlying F745 40A AIO Flight Controller

•  FC Target: AXISFLYING F745 AIO
• DJI dedicated plug: Supported
• Barometer: Supported
• BEC: 5V / 2A(Max 3A) 12V / 2A(Max 3A)
• GPS: Supported
• Beeper: Supported
• Size: 38 x 45 x 7mm
• MCU: STM32F745
• Gyro: ICM42688P
• Uart: 8
• OSD: Supported
• LED: Supported
• Mounting: 20 x 20mm
• Weight: 14.4g

ESC

• Factory firmware: (AM32) ST_G0_06_N_G071
• Current: 40A
• Input voltage: 4-6S Lipo
• Amperage Meter: 200 Scale

• 1x AxisFlying Argus F745 AIO – F745 FC + 40A 4-6S AM32 ESC
• 1x High-Frequency 220uf/35V Capacitor
• 1x Amass XT60 Connector
• 2x 18 AWG
• 8x Silicone rubber vibration dampeners
