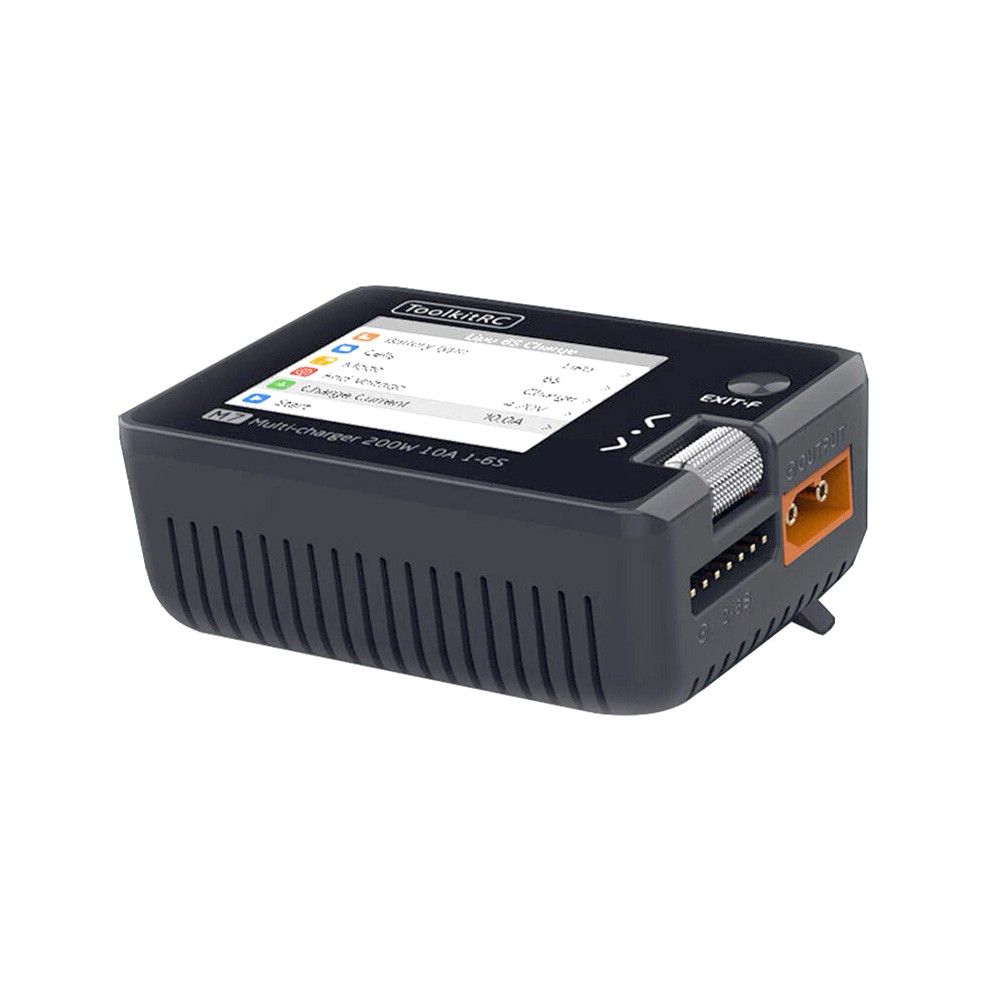

ToolkitRC M7 200W 10A 2-6S DC Multifunctional Balance Charger

The ToolkitRC M7 is a 200W multifunctional balance charger with 33.3% more power than the M6. With its IPS wide-angle display and simplified interface, this charger is ideal for outdoor viewing. The scroll wheel allows for better control for years of trouble-free use! Experience unmatched versatility with the ToolkitRC M7 200W 10A 2-6S DC Multifunctional Balance Charger. Compatible with a wide range of battery types, including LiPo Batteries, LiFe batteries, Li-ion batteries, NiMH, NiCd, and PB, this charger adapts to your needs. Its intuitive interface and customizable settings make it easy to tailor your charging experience to suit your specific requirements. From RC enthusiasts to drone pilots, this charger is the ultimate solution for all your charging needs

Features of ToolkitRC M7 Balance charger

• 240 X 320 Screen Resolution
• IPS Wide-angle display
• Simplified Interface
• Electricity Measure
• Multi-functionality
• Balance Charge
• Multi-language
• Signal Source
• Drone Charge
• Signal Testing

Specifications of ToolkitRC M7 Balance charger

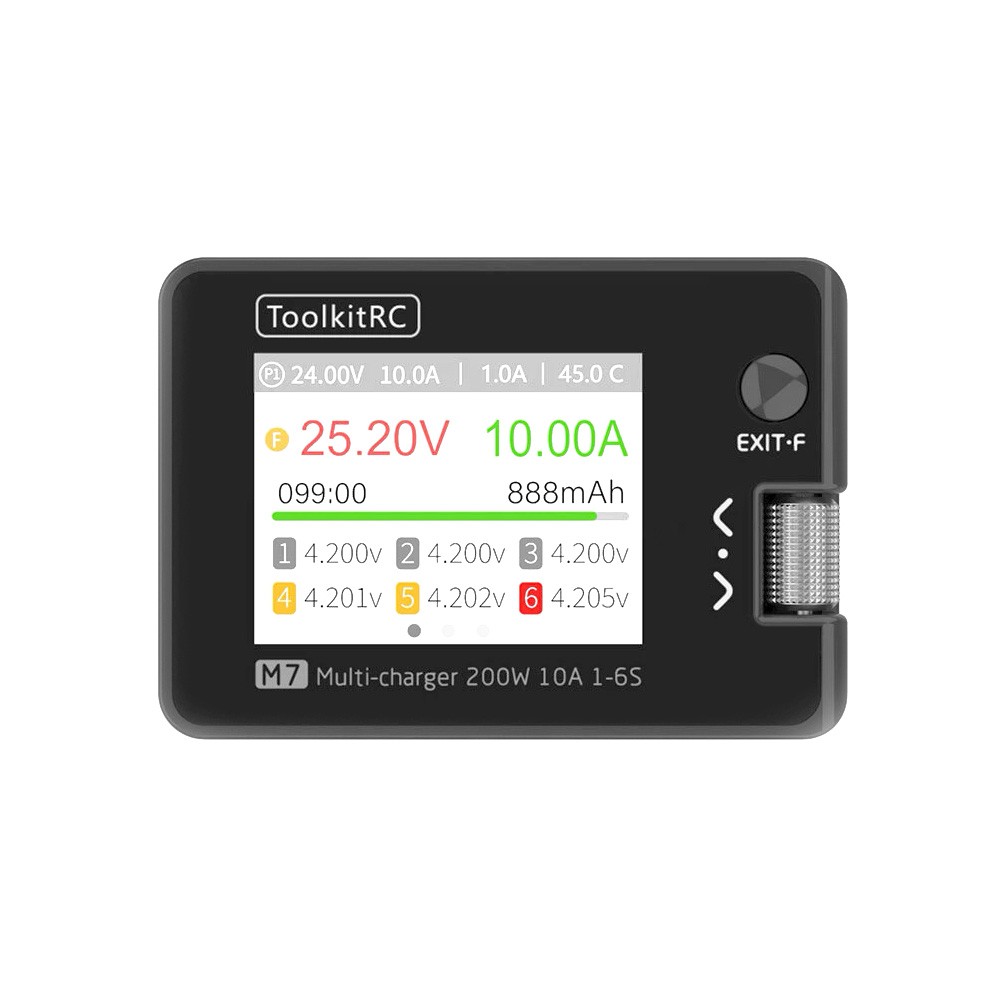

• LCD: IPS 2.0inch LCD 320*240 Pixel
• Product size: 73*51*27 mm
• Pack size: 84*79*39 mm
• Product weight: 90g
• Pack weight: 150g

CHARGER

• Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
• Type of battery: Lipo LiHV LiFe Lion @1- 6S / NiMh @1-16S Pb @1-10S

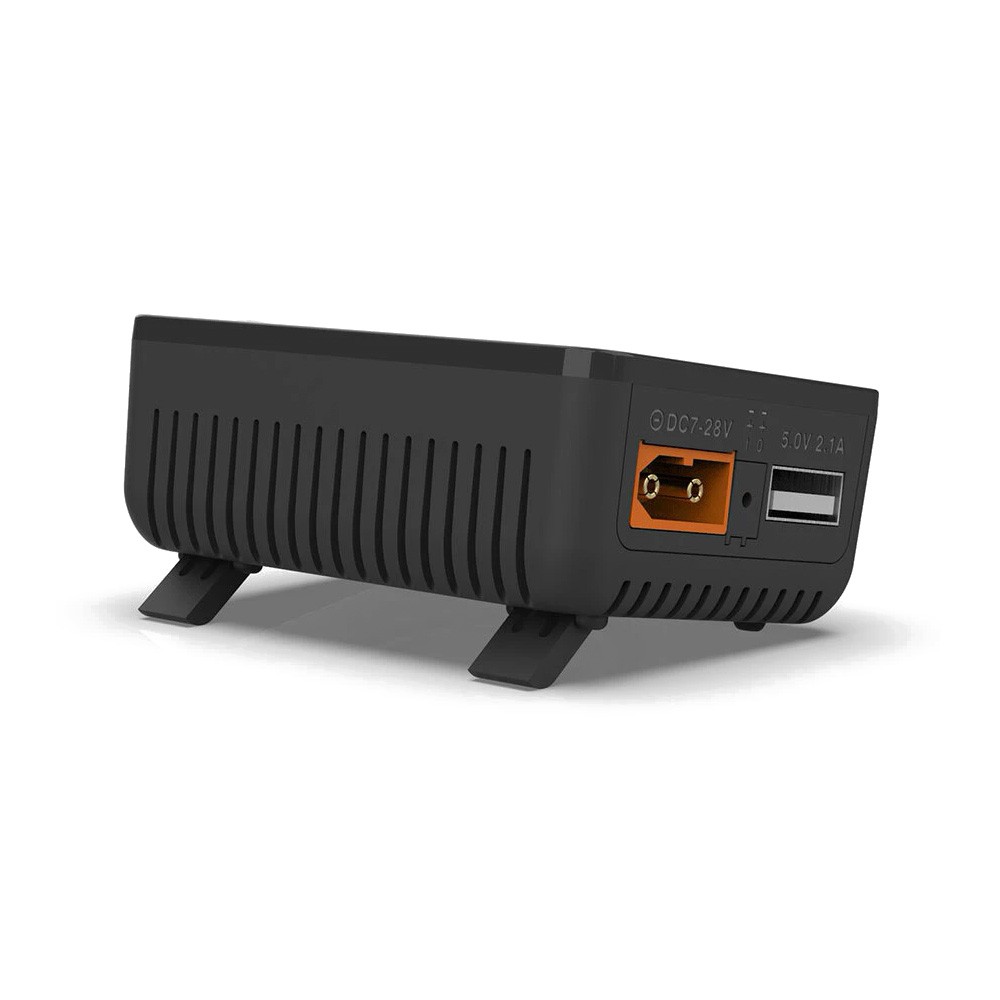

• Input voltage 7.0-28.0V @MAX 12A
• Charger power: 200W @MAX 10A
• Balance current 400mA @2- 6S
• USB: 2.1A @5.0V or Upgrade

OUTPUT

• Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
• SBUS: 880-2200us*16CH @20-100Hz
• PPM: 880-2200us*8CH @20-50Hz
• PWM: 500-2500us @20-1000Hz
• OverCurrent Cutoff time: <5ms

MEASURER

• SBUS: 880-2200us*16CH @20-100Hz
• Internal resistance: 1-99mR @1-6S
• PPM: 880-2200us*8CH @20-50Hz
• ESC: 200W@10A PWM Output
• PWM: 880-2200us @20-400Hz
• Voltage:1.0-5.0V @1-6S

Manual : M7-Manual-V1.0

Includes

• 1x ToolkitRC M7 Charger
• 1x USB Charger Cable
