Skystars F7 RS + MVP60 BL32 Stack MPU6000

9,499

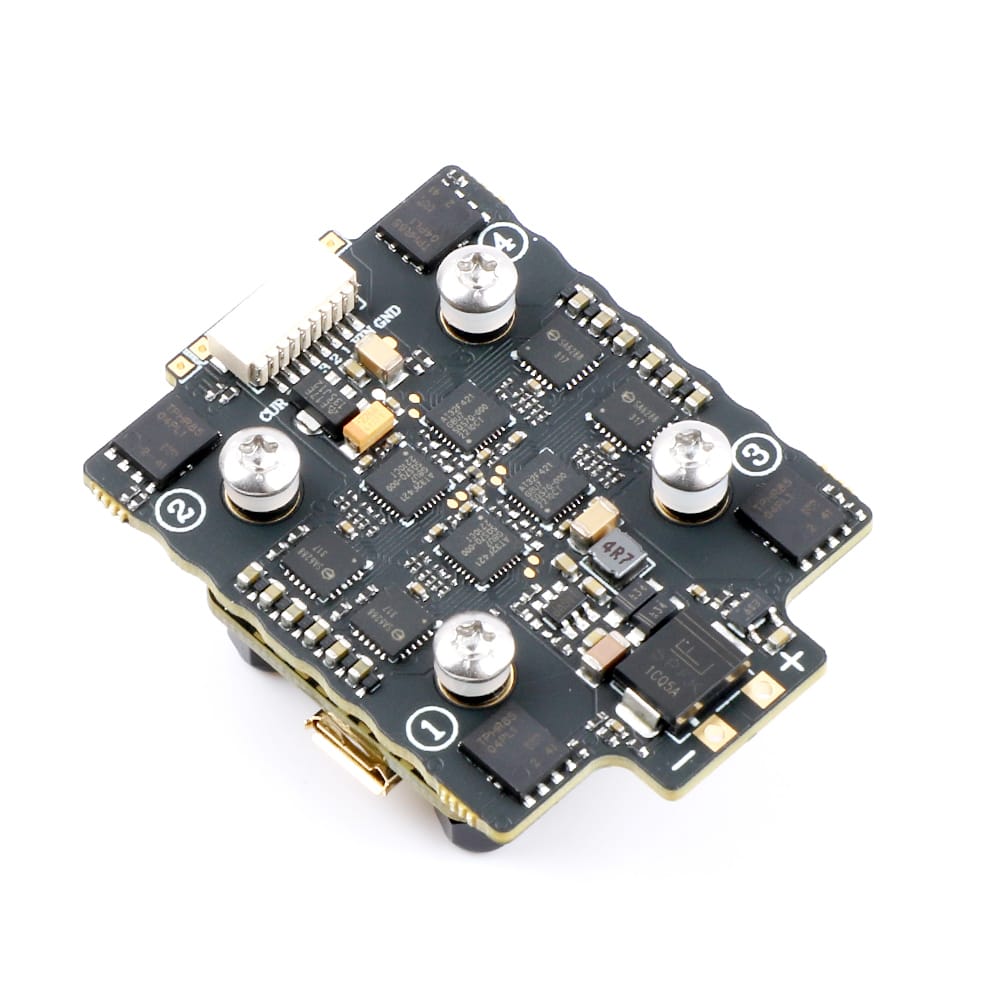

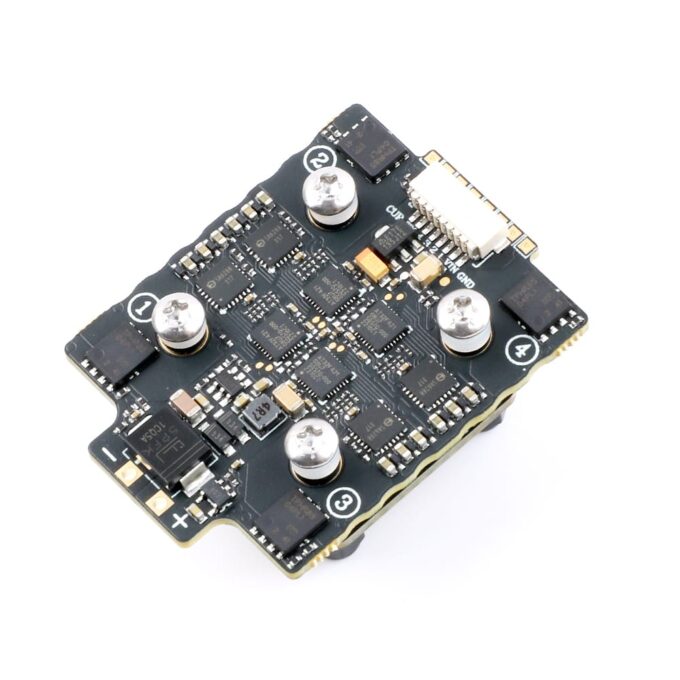

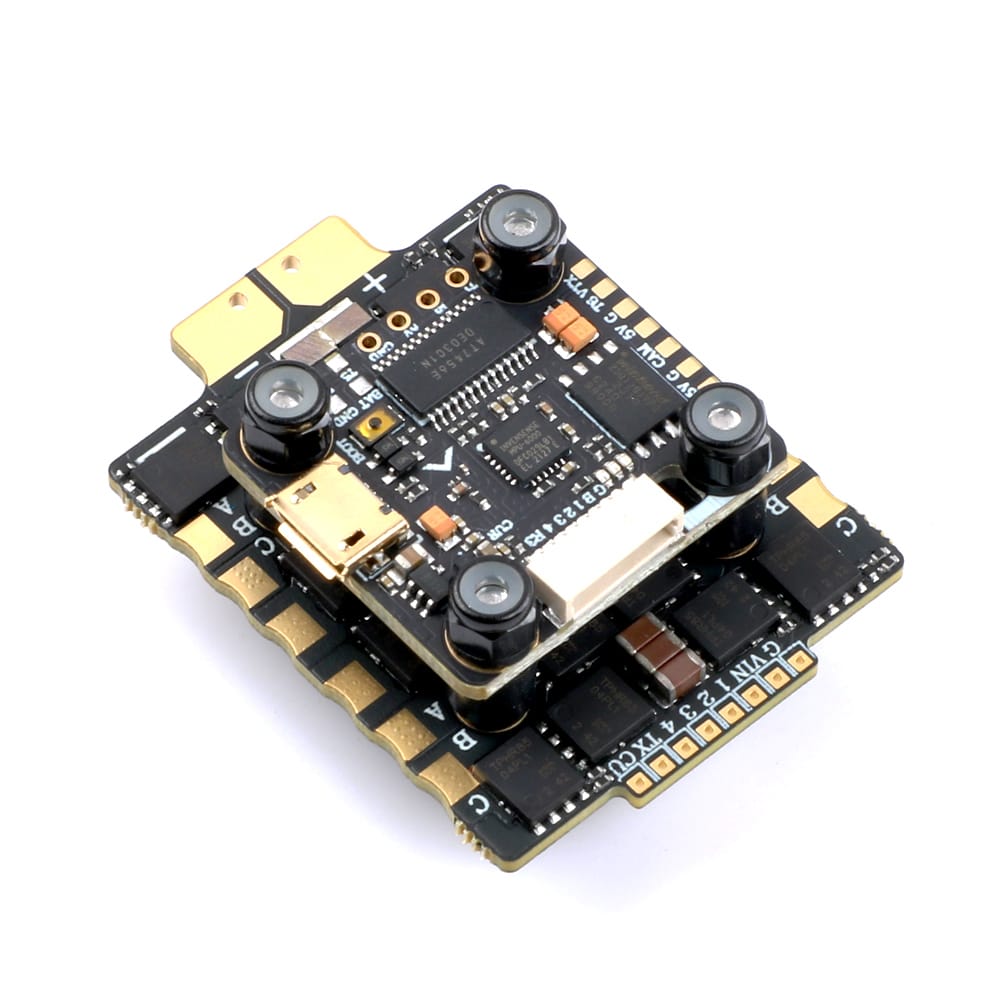

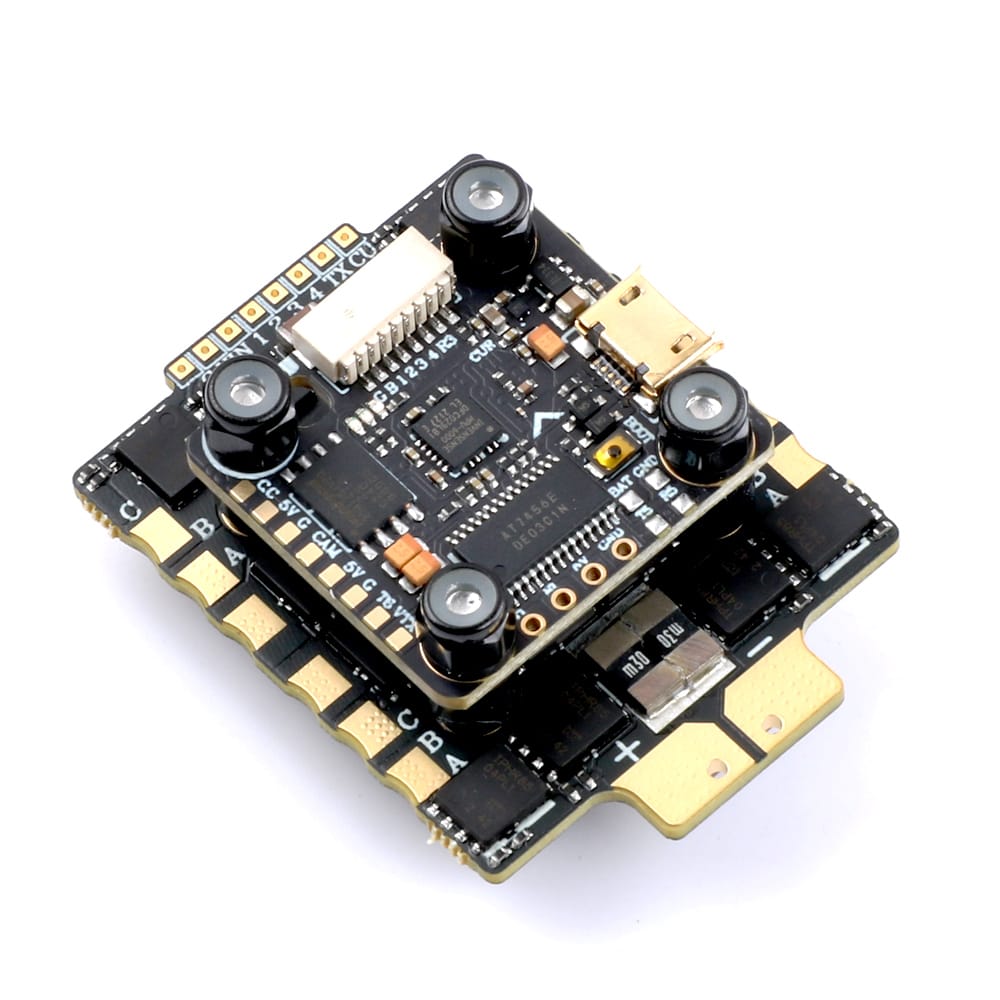

Skystars F7RS + MVP60 is a powerful stack designed for racing and freestyle 5″ drones. At the heart of the flight controller is the F722 processor with MPU6000 gyro. The flight controller also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The ESCs support power from 3-6S Lipo batteries and can handle current up to 60A (80A peak). Featuring a 32-bit processor, the ESCs use BlHeli_32 firmware that supports telemetry, bidirectional DShot and PWM frequency up to 128KHz. The stack has a 20x20mm mounting hole spacing with an M3 hole.

Key Features

  • MCU: STM32F722RGT6 216MHz
  • Gyro: MPU6000 (SPI)
  • Power input: 3-6S Lipo
  • Number of UARTs: 6
  • Barometer: No
  • BEC: 5V,3A
  • Blackbox: 16MB
  • FC size: 26x28x7mm
  • Weight of FC: 4.9g
  • Size of ESC: 35.8x47x6.5mm
  • Weight of ESC: 17g
  • Current: 60A (80A peak)
  • ESC FW: BlHeli_32
  • Mounting holes: 20x20mm M3

Package Includes

  • 1x FC
  • 1x ESC
  • 1x Screw Set
  • 1x Capacitor
  • 1x XT60 with cable
Weight 100 g
