Description
Brand: FLYWOO

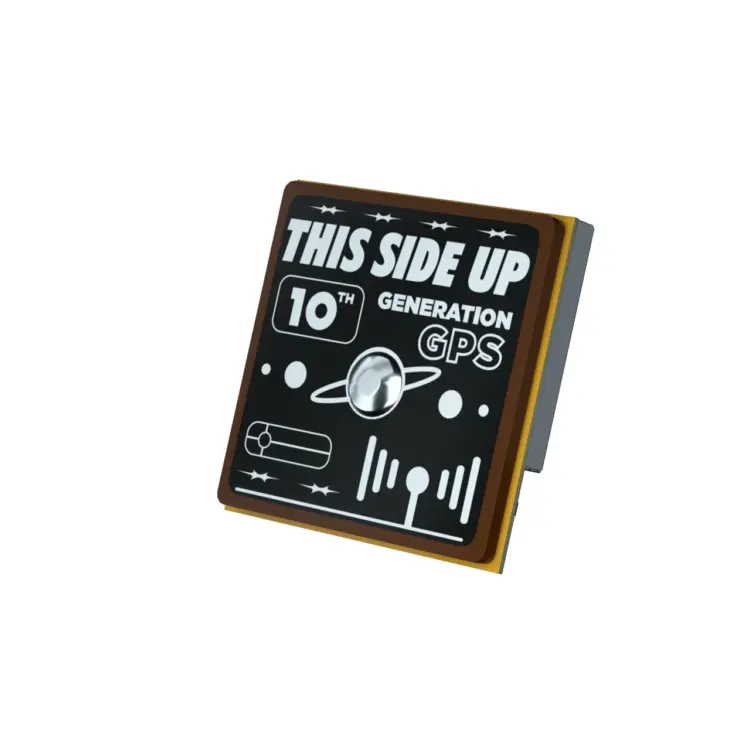

Model: GM10 MINI V3 GPS w/compass

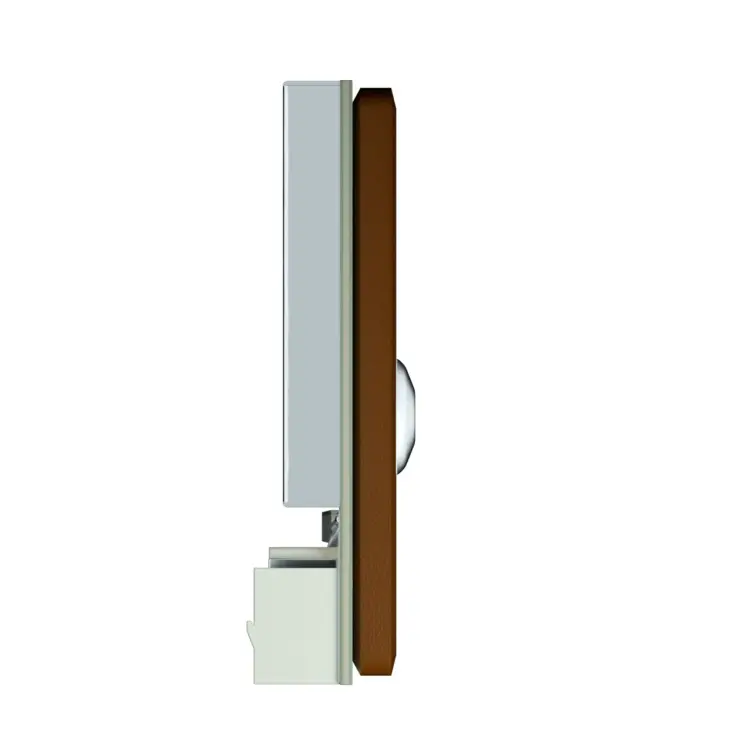

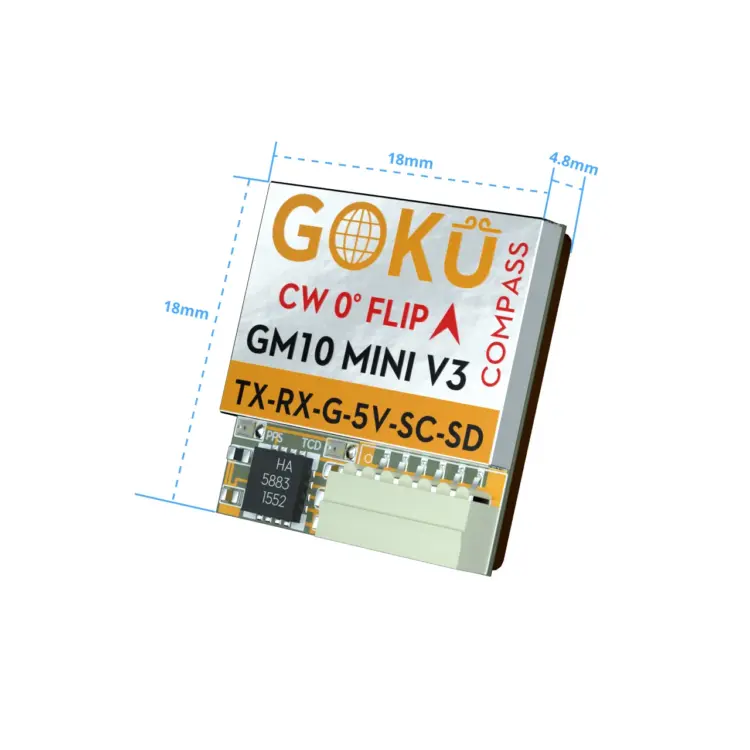

Dimension :18mm*18mm*4.8mm
Weight : 4.1g
Connector : 1.00mm spacing between the 4pins patch seat
Features:
1、GPS Module,Three Module Compass
2、With electronic compass IC QMC5883L
3、1.0mm spacing between the 6pins patch seat
Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz,Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage :5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
PPS LED: Yellow. The PPS LED remains unlit when the GPS signal has not been fixed, but starts flashing once the GPS signal has been successfully fixed.
The Module’s Pins: TX RX GND 5V SCL SDA
Includes
1x GM10 Mini V3 GPS w/ Compass
1x 150mm Cable
1x Copper Foi
Data Protocol | |||||
Chipset | |||||
Dimension | |||||
Weight | |||||
Connector | |||||
DC Voltage | |||||
Receiving Format | |||||
Default Protocol | |||||
Channels | |||||
Output frequency |
