The GEP-M10 Nano GPS module offers a compact size, fast and stable positioning, and user-friendly operation. It uses the u-blox M10 chip to support GPS, BDS, Galileo, QZSS, and SBAS for joint positioning with up to 32 satellites. It also features a built-in Flash chip and farad capacitor for quick hot starts, a small ceramic antenna for excellent reception, and an integrated QMC5883L magnetometer for precise azimuth and altitude data, making it suitable for a wide range of FPV drones and model products.

• U-blox M10 series chip
• Fast positioning speed
• GPS+BDS+Galileo+QZSS+SBAS joint positioning
• Up to 32 satellites
• Stable connection quality
• Unique appearance design
• Small size and lightweight
• Built-in Flash chip and Farad capacitor
• Onboard indicator light, easy to use
• Integrated magnetometer+barometer,integrated module (GEP-M10-DQ)

• Model: GEP-M10nano
• GPS chip: u-blox M10
• Magnetometer: GEP-M10nano: No
• Barometer: GEP-M10nano: No
• Input voltage: 3.3V-5V
• Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
• Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
• Channel: 72ch
• Navigation satellites: Up to 32 pieces
• Output protocol: GEP-M10nano: UART(ublox)
• Baud rate: 115200bps
• Output Frequency: 10Hz
• Speed Accuracy: 0.05 m/s
• Horizontal positioning accuracy: 2D ACC1.5m(Weather)
• Timing accuracy: 30 ns
• Receiver sensitivity: Trace-162dBm, Capture-160dBm
• Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
• Maximum acceleration: 4G

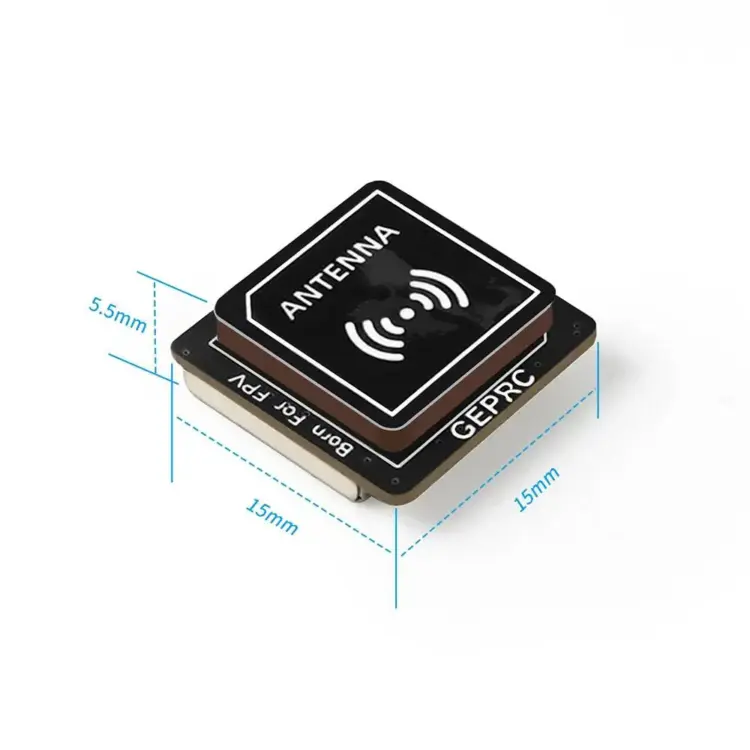

• Size: GEP-M10nano: 15x15x5.5mm
• Weight: GEP-M10nano: 2.5g

• 1x M10 Nano GPS Module
• 1x Instruction manual
• 1x Heat shrink tubing
• 1x GEPRC sticker
• 1x Terminal wire
