GEPRC CL35 Cinelog 35 V2 Frame Kit

GEPRC CL35 Cinelog 35 V2 Frame Kit

The CineLog 35 V2 features a main carbon plate and injection protection frame with an increased 7075 aluminum column for structural strengthening.

In stock


Orders placed before are shipped on same day

In stock

GEPRC CL35 Cinelog 35 V2 Frame Kit

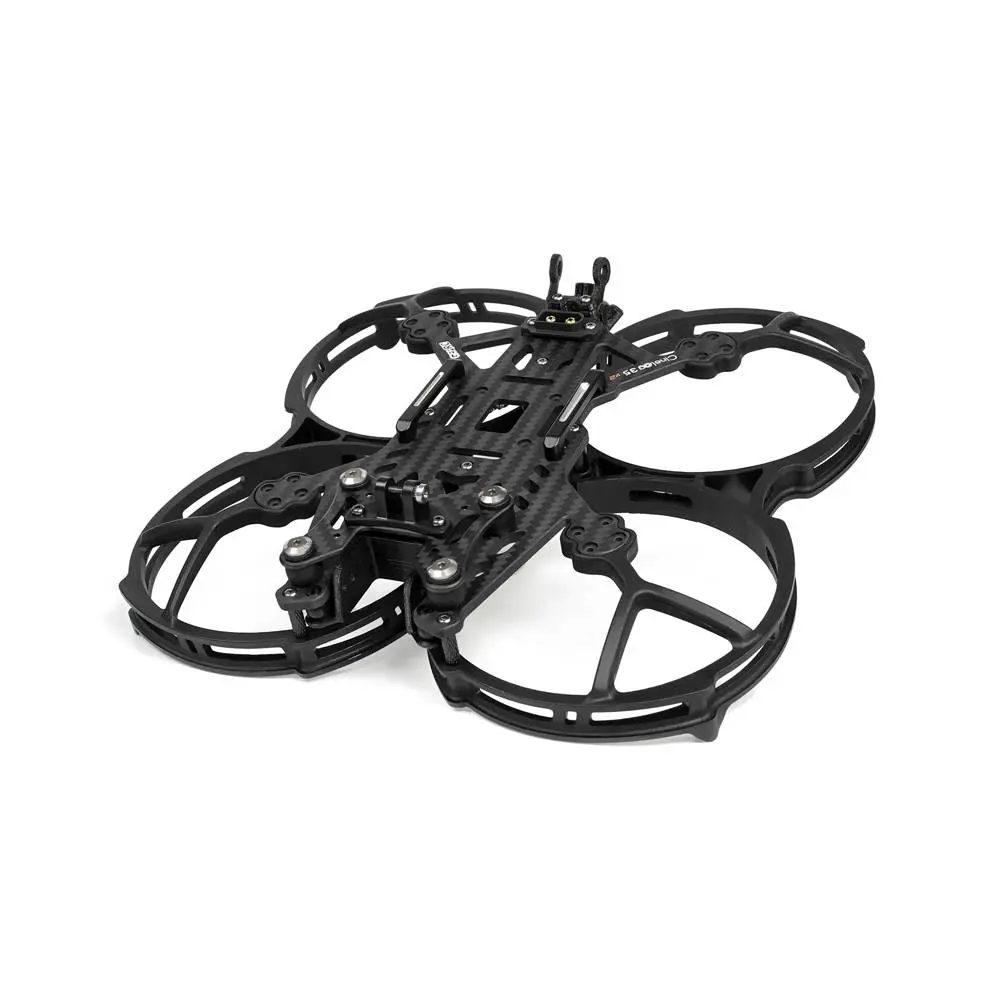

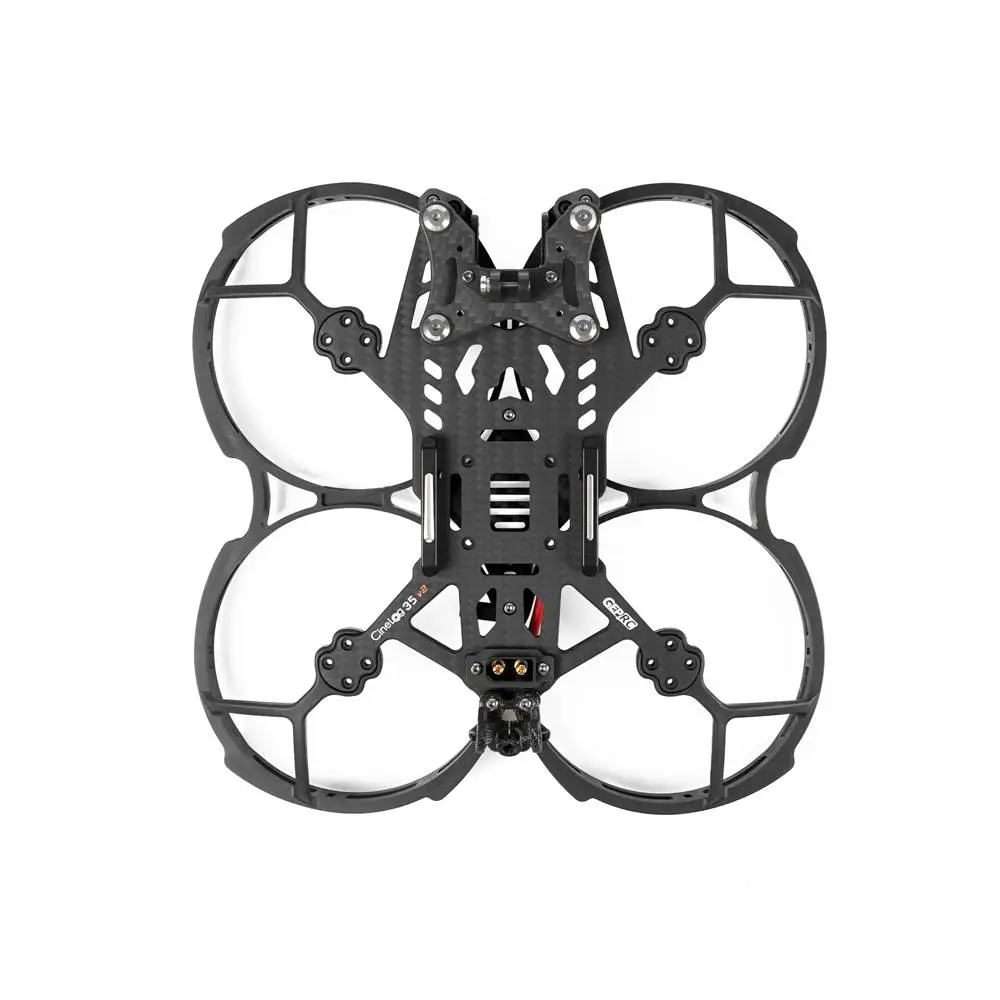

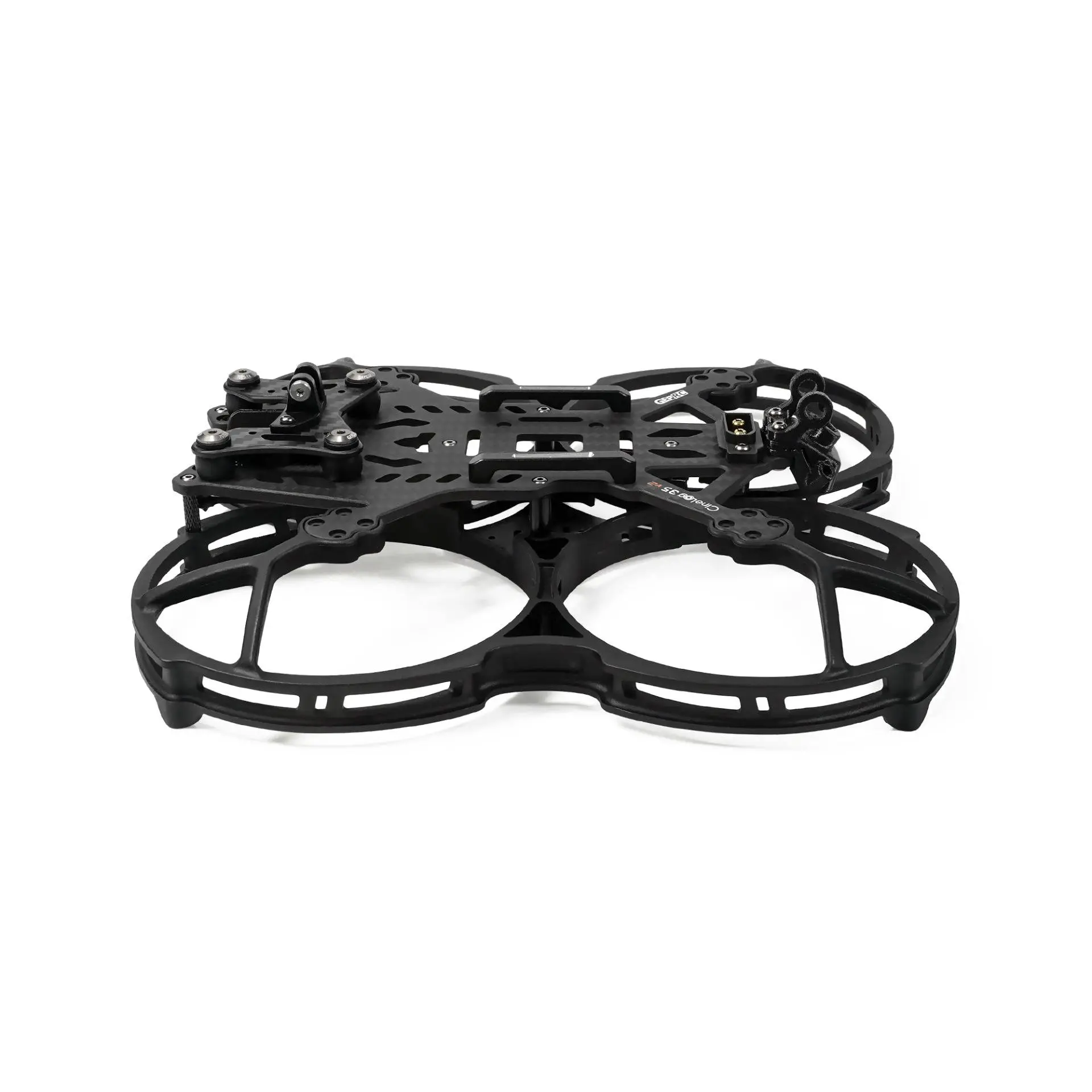

The CineLog 35 V2 features a main carbon plate and injection protection frame with an increased 7075 aluminum column for structural strengthening. The battery mounting uses a tie with 7075 aluminum parts fixed, and the power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame adds a memory card and USB port for easy data reading. This is a 3.5-inch cinematic FPV frame that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors.


  • Innovative camera shock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.
  • Strengthened carbon plate, hollow design, injection protection frame, and noise reduction design
  • Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading
  • 7075 aluminum parts are fixed, solid and stable


  • VTX Mounting Hole : 20mm x 20mm/25mm x 25mm
  • Propeller Guard Internal Diameter: 95mm
  • Suitable Propeller Size: 3.5-inch propeller
  • FC Mounting Hole: 25.5mm x 25.5mm
  • Motor Mounting Hole: 12mm x 12mm
  • Camera Installation Space: 20mm
  • Motor to Motor: 142mm
  • Model: GEP-CL35 V2
  • Bottom Plate: 1.5mm
  • Gimbal plate: 2.0mm
  • Wheelbase: 142mm
  • Arm Plate: 3.5mm
  • Top Plate: 2mm
  • Weight: 133.7g


  • 1x Naked GP Camera base mount ( 1 X base mount, 2 X round head M2*12, 2 X press rivet nut M2)
  • 4x Camera gimbal shock absorbing rubber ring M3*10.5*10.25
  • 1x Bottom plate 1.5mm1 X Injection molded prop guard
  • 4x Vibration dampening rubber for FC M2*6
  • 2x Battery non-slip pads for Cinelog 35 v2
  • 6x Camera vibration dampening rubber
  • 1x Power XT60E1-M plug with cable
  • 3x 5.8G VTX extension cable 80mm
  • 2x Receiver Antenna Stick 100mm
  • 1x L-shaped screwdriver 1.5MM
  • 1x L-shaped screwdriver 2.0MM
  • 1x L-shaped screwdriver 3.0MM
  • 1x Main carbon plate 3.0mm
  • 1x Battery strap M20*250
  • 1x Battery strap M20*220
  • 4x Motor hub M7*15mm
  • 1x Guide for Quick Start
  • 1x Top Plate 2.0mm
  • 2x GEPRC Stickers
  • 7x Heatshrink tube
  • 1x Promotion Card
  • 1x Packaging box
  • 1x User manual
  • 1x Service card
  • 1x M5 wrench
  • 4x BEC pads
  • 1x Keychain
Weight 250 g
