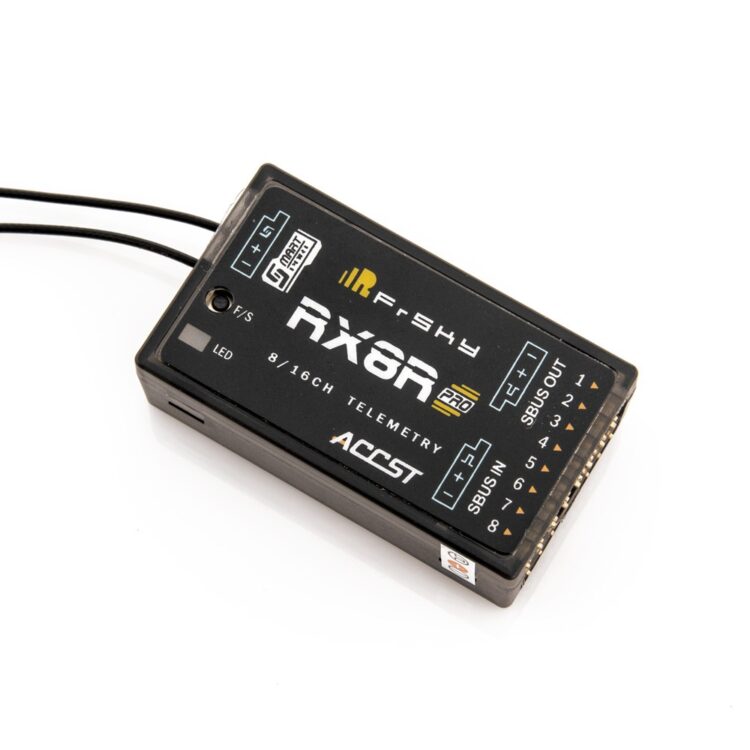

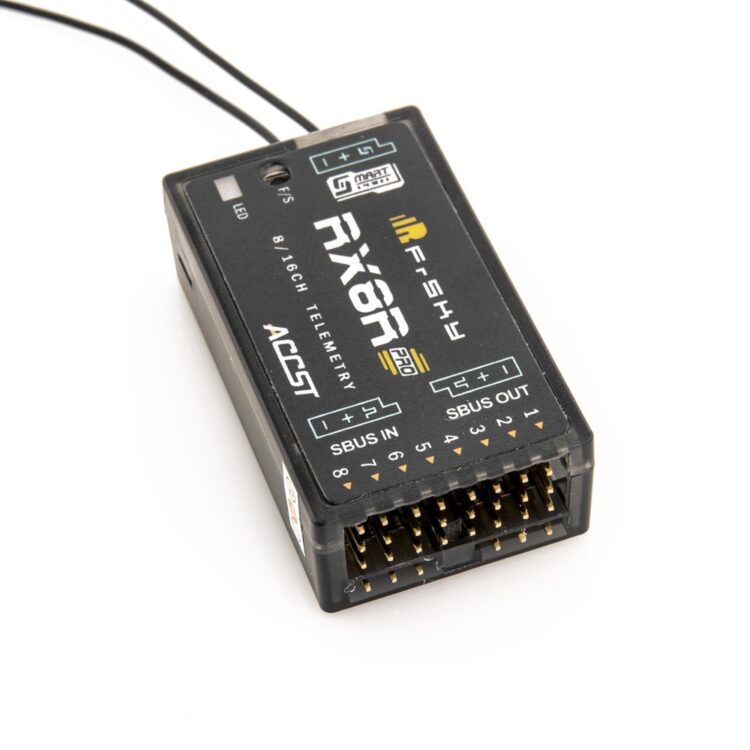

The FrSky RX8R Pro is an upgraded version of RX8R receiver, it has all the same features including redundancy. The new ‘Pro’ version has higher precision and lower latency. Its deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high-speed mode. Another feature that is new with the RX8R Pro is the reduction of interference caused by the ignition process.
- Dimension: 46.3mm*26.6mm*14.2mm (L*W*H)
- Weight: 14.8g
- Numbers of Channels: 16CH(1～8CH PWM or 9~16CH PWM from conventional channel outputs, 1~16CH from SBUS port)
- With RSSI Output on Board: Analog DC 0~3.3V
- Operating Voltage Range: 3.5V~10V
- Operating Current: 100mA@5V
- Operating Range: full range (>1.5km)
- Firmware Upgradeable
- Servo Frame Rate: 9ms (HS— High-Speed Mode)/18ms (FS—Normal Speed Mode)
- Compatibility: FrSky transmitters/transmitter modules in D8/D16 mode
- Strong anti-interference performance in ignition process
- Higher precision of PWM
- Lower latency on the PWM output
- Support redundancy function
- Smart Port enabled and support telemetry data transmission
The Redundancy Function
For the master and slave receivers, when the master receiver goes into failsafe, the output signal from the slave receiver will be used until the master receiver works again.
Note: When both the master and slave receivers go into failsafe, the failsafe signal from the master receiver will be output; The slave receiver should be in no telemetry mode.
- 1x RX8R Pro Receiver
