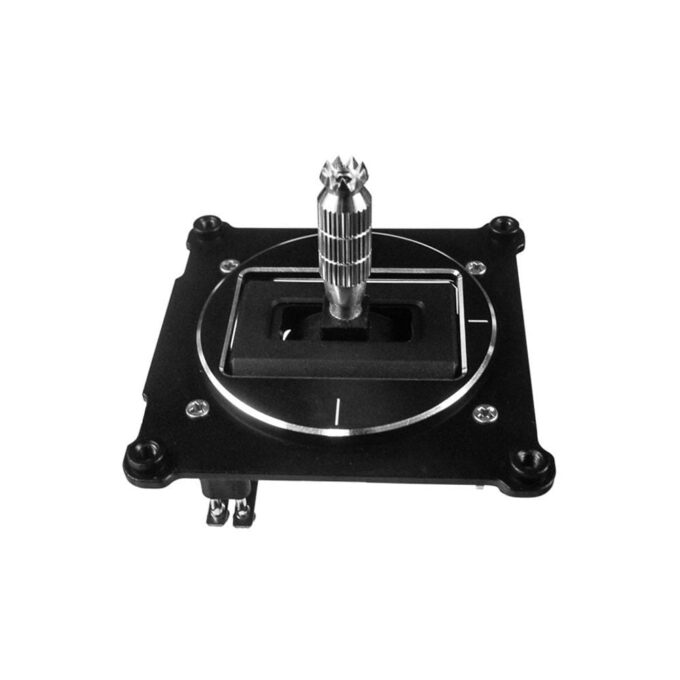

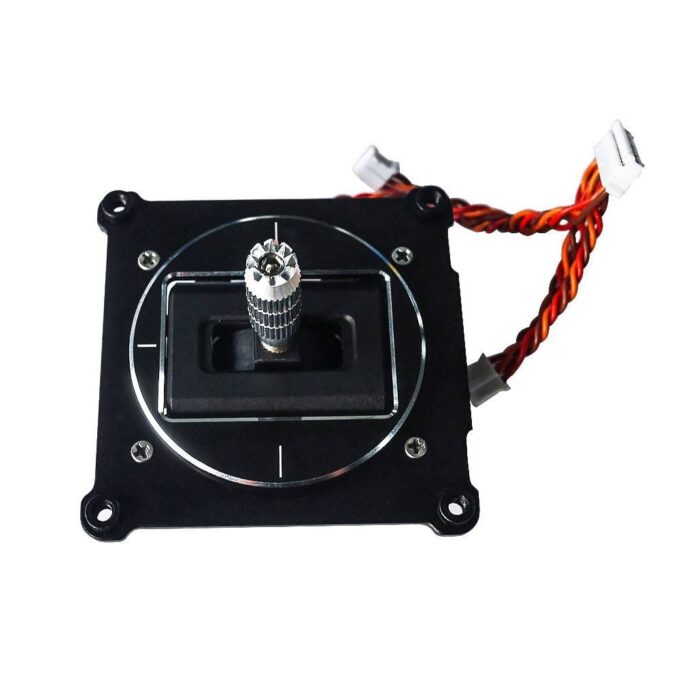

FrSky M9 Hall Sensor Gimbal For Taranis X9D & X9D Plus

FrSky M9 Hall Sensor Gimbal For Taranis X9D & X9D Plus

The FrSky M9 Hall Sensor will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Sold individually – two identical gimbals are required to upgrade your radio.

Out of stock

1,949

Orders placed before are shipped on same day

Out of stock

Upgrade your Taranis X9D with this plug-n-play high resolution M9 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

Features

  •  Hall sensor
  •  4 ball-bearings
  •  Adjustable tension
  • Can be enable or disable self centering on both axis and ratcheting on the Y axis
  • Special material quality that wears well

Specifications

  • Supply Voltage (VCC): DC 3.0 ~ ±0.5V
  •  Sensitivity: 2.50 mV/G
  •  Linear Output Voltage Range:
  •  0.1   ~ ( VCC +0.1) V
  •  Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
  •  Noise (no load): ≤40mVpp

Video

Weight 251 g
