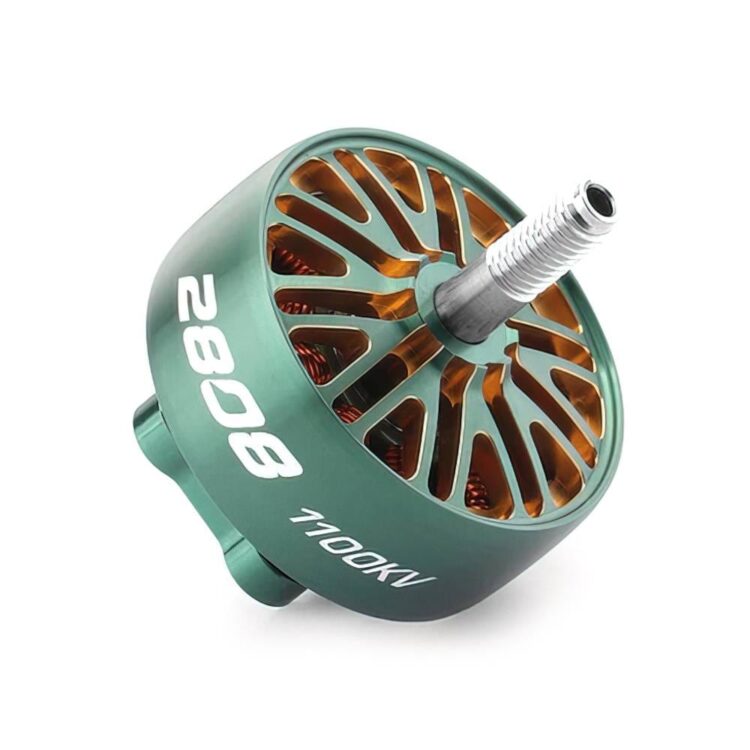

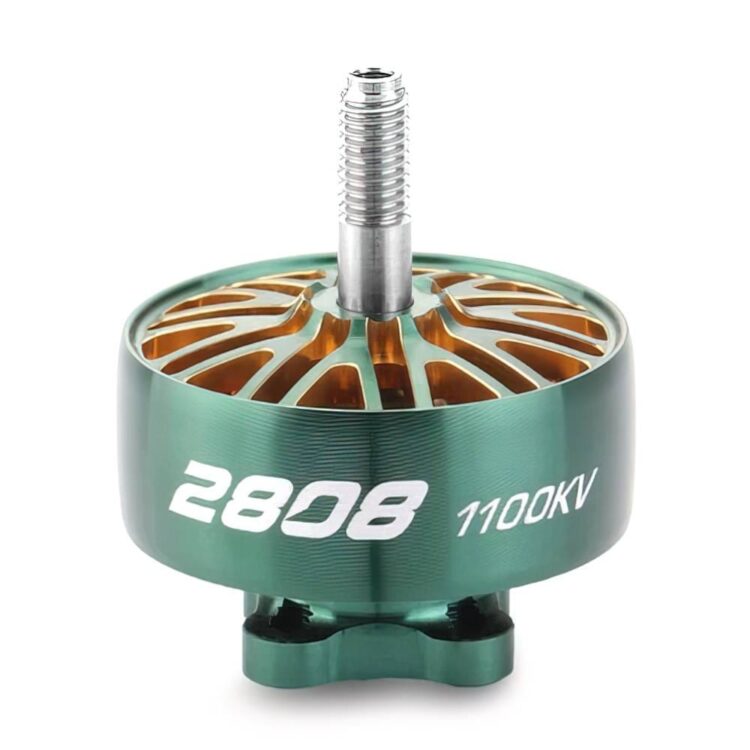

The Diatone Mamba Toka 2808 1100KV motor is an ideal motor for 7″ quads, such as the Diatone Roma F7. Experience the epitome of performance with the Diatone Mamba 2808 Motor. Engineered with precision and power in mind, these motors boast an impressive 1100KV rating, ensuring unparalleled thrust and stability for your FPV drone.
Features of Toka 2808 1100KV Drone Motor
- 2808 Stator
- 1100KV Brushless motor
Specifications
- Installation hole position: 16×16mm – M3
- Magnet Wire: 240℃ Enameled Wire
- Rated Voltage: 4~6S (16.8V~25.2V)
- Prop mounting shaft diameter: 5mm
- Overall Dimension: 35.1×40.3mm
- Internal Resistance: 68mΩ
- Maximum Power: 862.5W
- Bottom Bearing: 13x6x5
- Shaft Diameter: 6.0mm
- Stator Diamter: 28mm
- Top Bearing: 10x6x4
- Peak Current: 38.7A
- Slots/poles: 12N14P
- Ladle Current: 1.2A
- Stator Height: 8mm
- Weight 63.5g
- Color: Green
- Stator: 2808
- Propeller: 7 inch
- KV: 1100KV
Includes
- 1x Diatone Mamba Toka 2808 Motor – 1100KV
