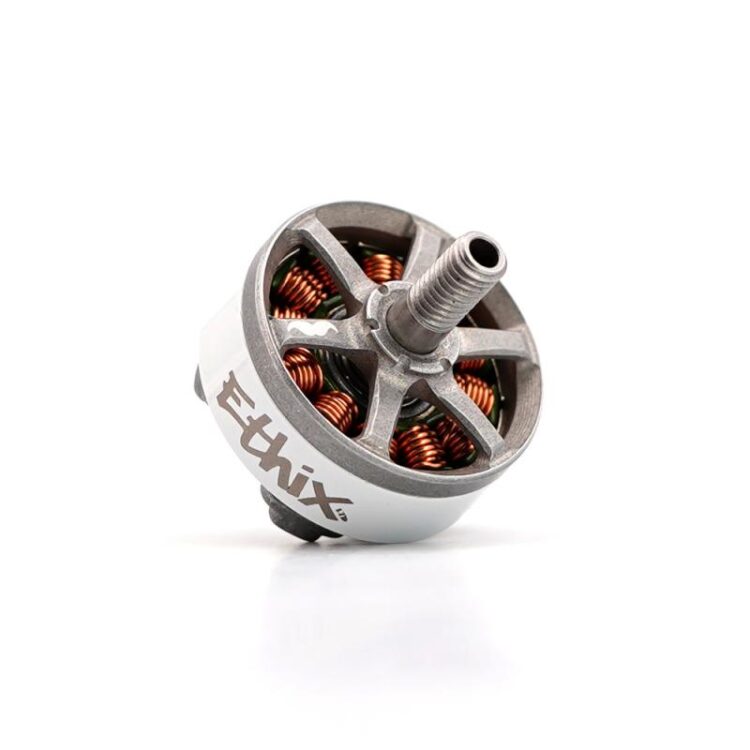

Ethix Mr Steele Silk V3 Legacy 2345KV Motor

Ethix Mr Steele Silk V3 Legacy 2345KV Motor

Out of stock


Orders placed before are shipped on same day

Out of stock

Since the Mr Steele V3 was released it was one of the most popular freestyle motors in the world. We decided to offer the same tried and true formula at a fraction of the price. Now featuring a thicker single strand copper winding for increased efficiency and resilience to high amp loads. We also changed your the color way to an all new raw tumbled aluminum finish. The V3 Legacy motors offer maximum performance and compatibility without breaking the bank. V3 legacy motors share completely reverse compatibility with Mr Steele V3 motors. Now with sustainable packaging the V3 legacy can live on with less impact on the planet.


Stator Size (Diameter) 23mm*6mm
Kv 2345kv
Magnets N52SH Curved
Windings 15turn DLRK
Shaft Length (mm) 11.5mm
Shaft Diameter (mm) 4mm
Shaft material Steel
Bearing NMB684
Weight (With Wires) (g) 30.4g
Cells (Lipo) 6S
Max Current (A) 45A
Max Burst Current (A) 50A
Internal Resistance (Rm) 98mΩ
Wire Spec (AWG) 20#-135mm
Base Mounting Pattern 19x19mm
Base Mounting Thread M3 Thread
Motor Overall Dimensions φ27.5mm*17.2mm
Weight 90 g
