5mm titanium alloy shaft, our strongest prop shaft ever!

Smooth and long-lasting NSK 10x4x4 bearings

Center slotted N52H curved arc magnets

XING O-ring bearing gap protection

Crash resistant 7075 aluminum bell

Motor wires protector

Dynamically balanced

Specifications:

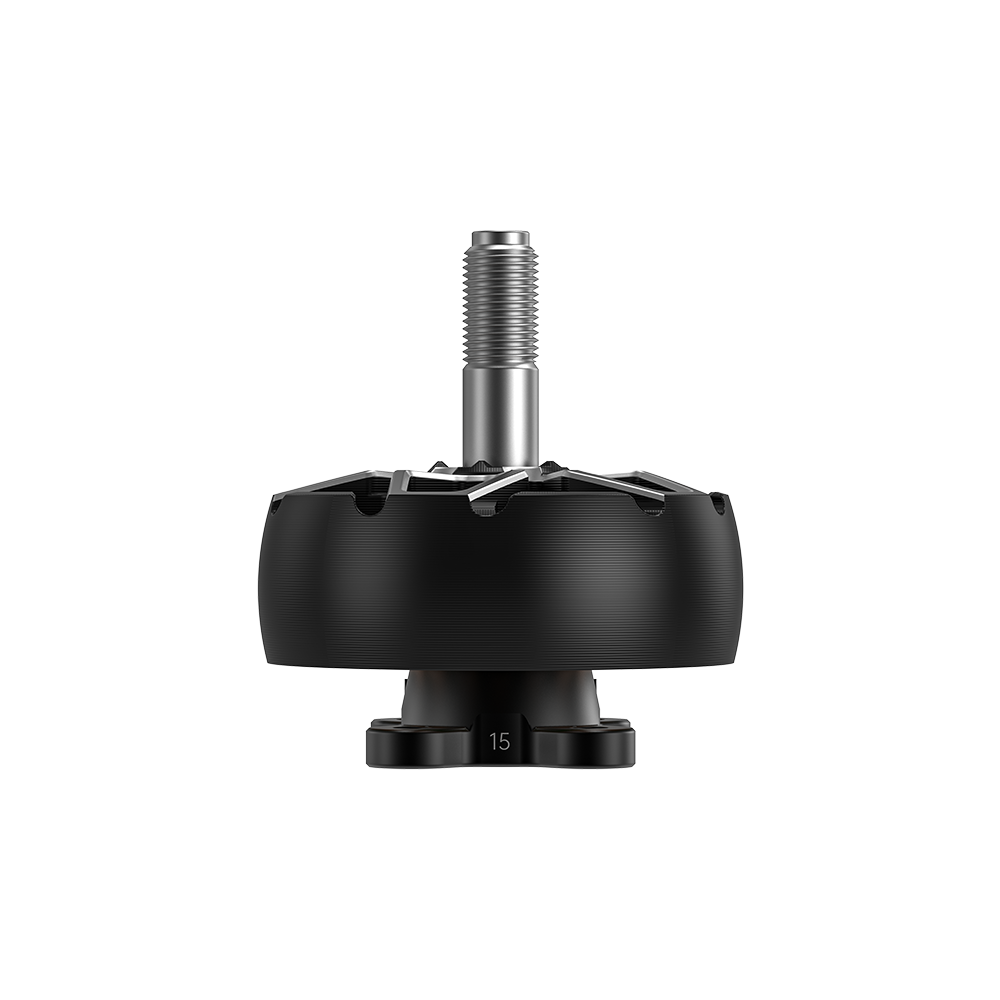

Model: XING2 2506 Black Motor

KV: 1500KV / 1850KV

Weight(included wire): 38.2g / 40.2g

Dimension: φ31.7*19.6mm

Interphase Resistance: 74.88mΩ / 64.33mΩ

Input Volts: 25.2V

Peak Current: 33.26A / 41.55A

Max Watt: 817.5W / 1013W

Mounting Holes: 16*16 φ3mm

Rotor Specifications:  Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 15mm

Lead: 160mm-20AWG  / 200mm-18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ10*φ4*4

Winding: Single Strand copper winding

Packing List:

1 x M5 Flanged Nylon Insert Lock Nut

1 x XING2 2506 Motor Black (KV is optional)

4 x M3*8mm screws
