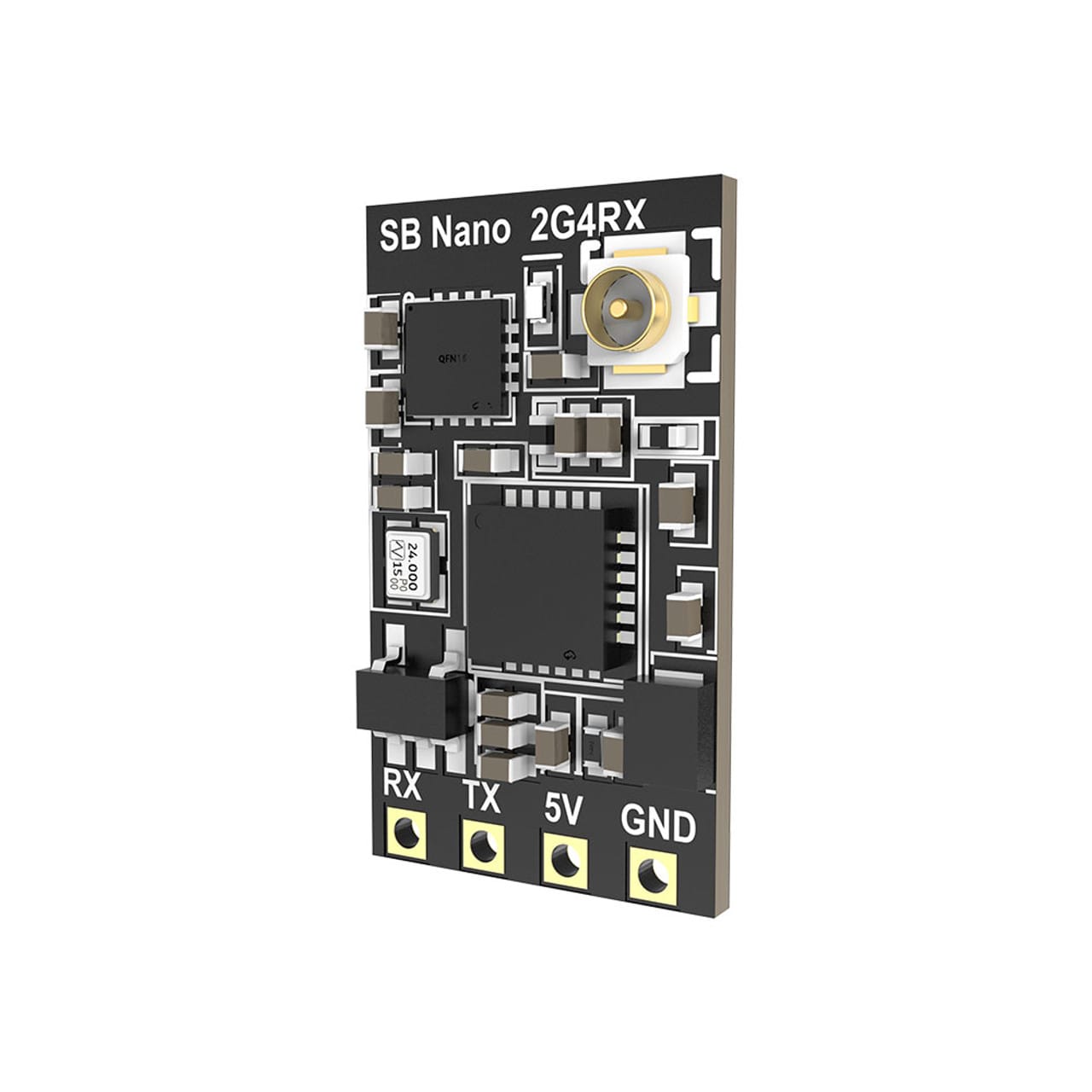

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

In stock

999

Orders placed before are shipped on same day

In stock

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

999

SpeedyBee Nano 2.4GHz RX
SpeedyBee Nano 2.4GHz RX
Specifications
Model SpeedyBee Nano 2.4GHz RX
Name ExpressLRS Receiver
Frequency 2.4Ghz

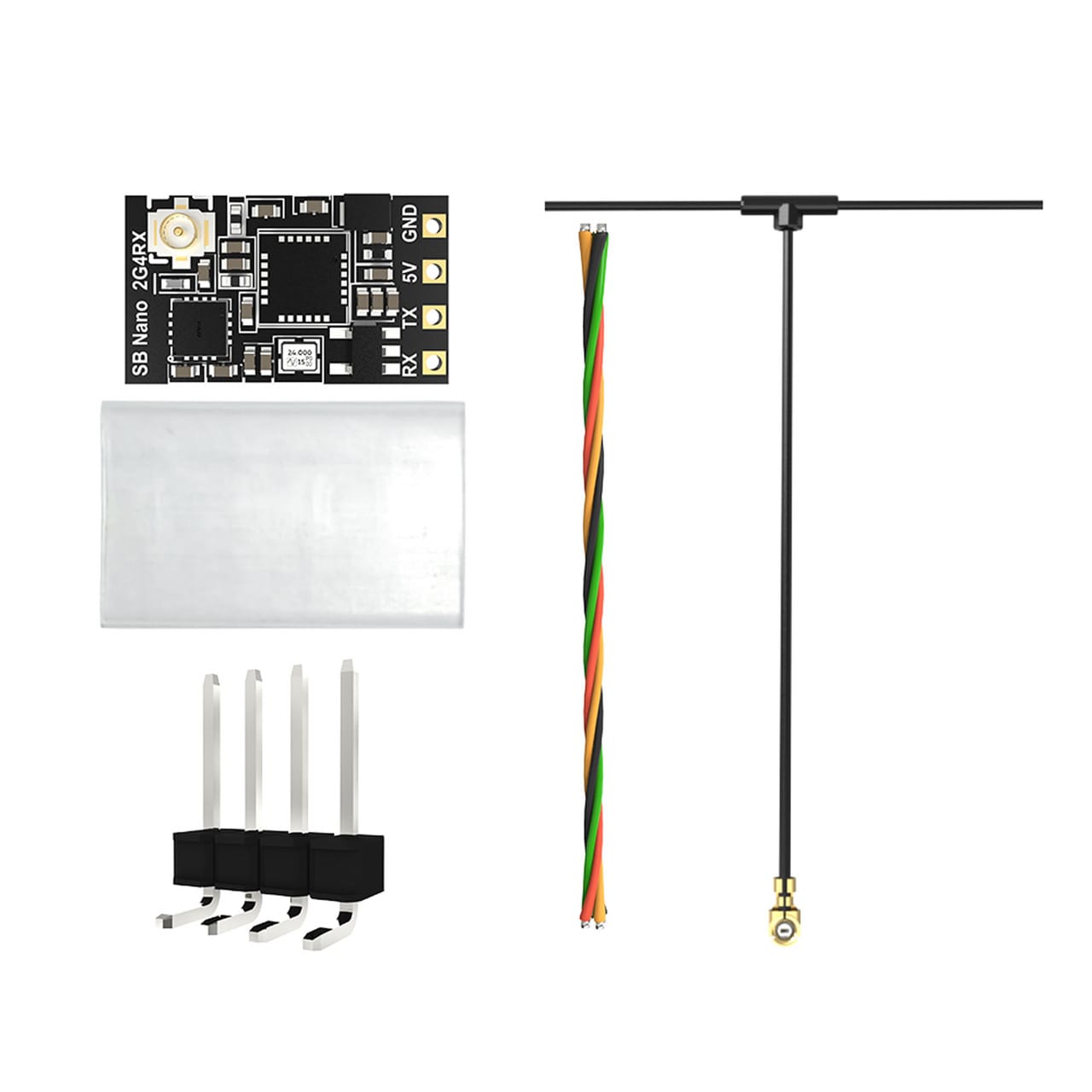

Antenna T-antenna (54*78mm, 0.6g)
Chip SX1280+ESP8285
Power 100mW
Input voltage 5V
Antenna connector IPEX1
Weight 0.7 gram(without antenna)
Dimension 10.4mm*18.4mm
Default Firmware SpeedyBee Nano 2.4GHz RX 3.3.1
Light indicator
Double red blinking binding
Slow red blinking powering up but unlinked, no packages received from the transmitter
Solid red receiver is connected, with signal received
Fast red flashing Wi-Fi is turned on, and updating via Wi-Fi is available
PS.
To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds
Quick to cut off the power 3 times, it enters the binding mode
Manual
UserManualEnglish UserManual中文
Weight 100 g
