SpeedyBee F405 WING APP Flight Controller

SpeedyBee F405 WING APP Flight Controller

The SpeedyBee F405 WING APP Flight Controller features an upgraded sensor for enhanced precision and navigation.

Out of stock

3,999

Orders placed before are shipped on same day

Out of stock

The SpeedyBee F405 WING APP Flight Controller features an upgraded sensor for enhanced precision and navigation. It supports multiple fixed-wing planes with up to 11 PWM outputs and offers dual firmware options: INAV and Ardupilot for tailored flight experiences. Configuration is streamlined through the Speedybee and QGroundcontrol apps for a wireless and efficient setup.

Features

  • Upgraded Sensor: Beyond the traditional consumer IMUs, this controller offers reduced noise and improved temperature stability combined with a centralized IMU for accurate navigation and adjustments.
  • Seamless Configuration: The BOOT button provides easy configuration, allowing for firmware flashing, light color changes, and wireless mode switching. Additionally, the buzzer mute switch ensures a quiet setup process.
  • Battery Monitoring: The 4-level LED battery indicator facilitates quick battery level checks, making separate LiPo checkers unnecessary. Additionally, the precision current sensor is optimized for monitoring low current ranges, particularly those below 10A.
  • LED Features: Four LED strip plugs enhance visibility and aesthetics in the sky, with the BOOT button simplifying the management of lighting effects.
    Telemetry & Receivers: The controller is designed for straightforward integration with ELRS/TBS receivers, delivering telemetry data through OpenTX/EdgeTX platforms for real-time monitoring.
  • Flight Modes & Versatility: Support for various flight modes, including Tiltrotor and Quadplane, is integrated. With its 11 PWM outputs, it’s adaptable to a diverse range of fixed-wing planes.
  • Firmware Choices: Choose between the INAV and Ardupilot firmware based on your flight needs, whether straightforward FPV flight or more advanced functionalities.
  • Connection Options: The controller promotes a user-friendly approach with plug-and-play connectors for elements like digital VTX, receivers, cameras, and more. Those who prefer soldering also find it accommodating. Multiple connection channels, including BLE, Wi-Fi, and classic Bluetooth, ensure flexibility in setup and monitoring.

Stay ahead with wireless configuration capabilities via the Speedybee and QGroundcontrol apps, promoting a hassle-free and cable-free setup experience.

Specifications

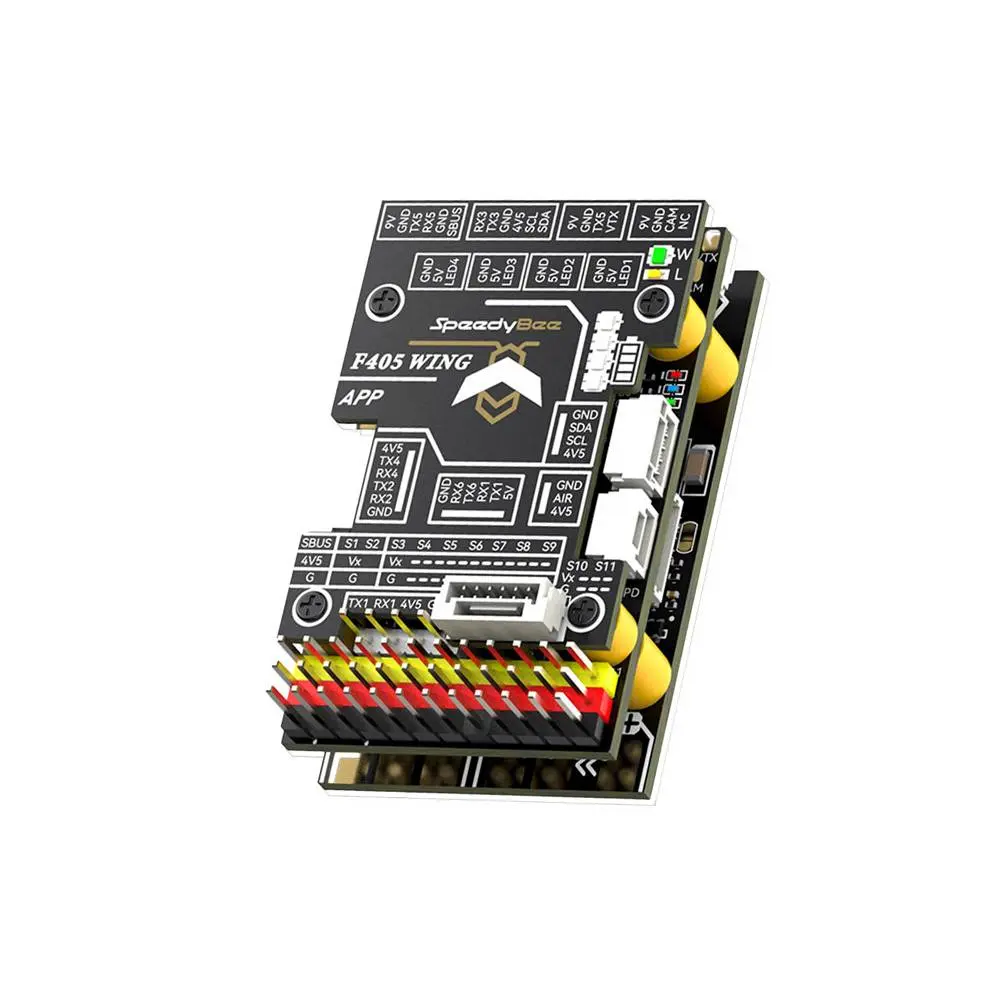

SpeedyBee F405 WING FC board

  • MCU: STM32F405, 168MHz, 1MB Flash
  • IMU (Gyro & Accelerometer): ICM-42688-P
  • Barometer: SPL006-001
  • OSD Chip: AT7456E
  • Blackbox: MicroSD Card Slot
  • UART: 6 sets, specific for various functions including wireless board telemetry connection
  • I2C: Used for magnetometer, digital airspeed sensor
  • ADC: 4 types (VBAT, Current, RSSI, Analog AirSpeed)
  • PWM: 12 types (11 regular and 1 “LED” pad)
  • ELRS/CRSF receiver: Supported, connected to UART1
  • SBUS: Built-in inverter for SBUS input (UART2-RX)
  • LED: 3 for FC STATUS and 1 RGB
  • RSSI: Supported, named as RS
  • Supported FC Firmware: INAV and ArduPilot for SpeedyBeeF405WING
  • Weight: 8.9g

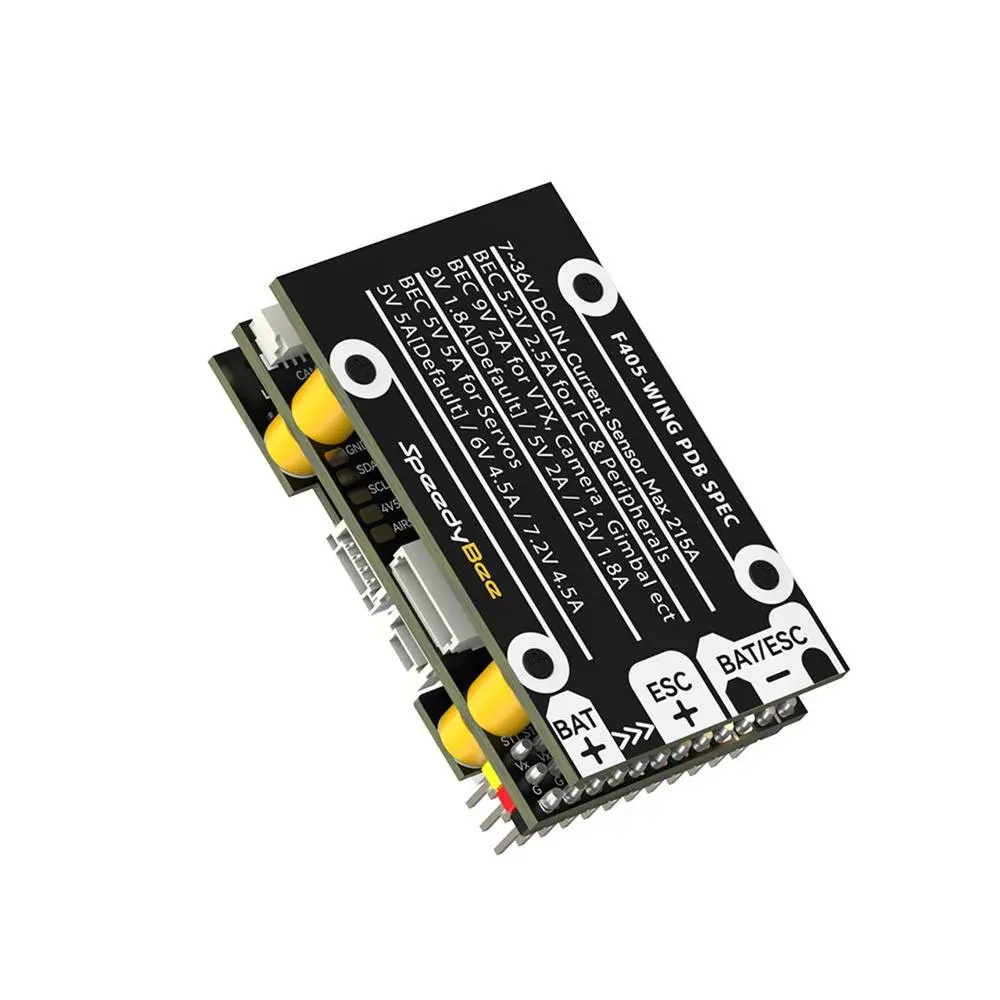

SpeedyBee F405 WING PDB board

  • Input voltage range: 736V (26S LiPo)
  • Battery Voltage Sensor: Connects to FC board VBAT
  • Battery Current Sensor: 90A continuous, 215A peak connection to FC board
  • TVS Protective diode: Included
  • FC BEC output: Designed for multiple components, including FC, Receiver, and GPS module
  • VTX BEC output: Designed for video transmitter and camera
  • Servo BEC output: Designed for servos
  • Weight: 11.4g

SpeedyBee F405 WING Wireless board

  • Wireless Configuration: Multiple modes, including BLE, Wi-Fi, and Classic Bluetooth SPP
  • LED strip controller: 4x WS2812 LED strip connectors
  • On-board battery level indicator: 4x RGB LED for battery level display
  • Weight: 4.2g

Includes

  • 1 x F405 WING FC board
  • 1 x F405 WING PDB board
  • 1 x F405 WING Wireless board
  • 1 x F405 WING USB extender
  • 1 x 90 Degree pin Header(3×12)
  • 3 x straight pin header(1×12)
  • 0 x M2x4 small head cross screw
  • 1 x White straight pin header(1×4)
  • 5 x M2 x 12 copper Standoff Spacer
  • 5 x M3x4 mm Silicone Grommets
  • 1 x 8pin SH1.0 USB extender Cable (80mm)
  • 1 x 4pin SH1.0 Analog VTX Cable (250mm)
  • 1 x 6pin SH1.0 GPS Module Cable without Connector on another end (250mm)
  • 1 x 6pin Digital VTX Cable (250mm)
  • 1 x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable(250mm)
  • 1 x 6pin GH1.25 Telemetry module Cable(200mm)
  • 1 x 4pin Dupont single-head Cable(150mm)
  • 1 x Double-sided tape for isolating pins and cables(32x9x1mm)
Weight 200 g
