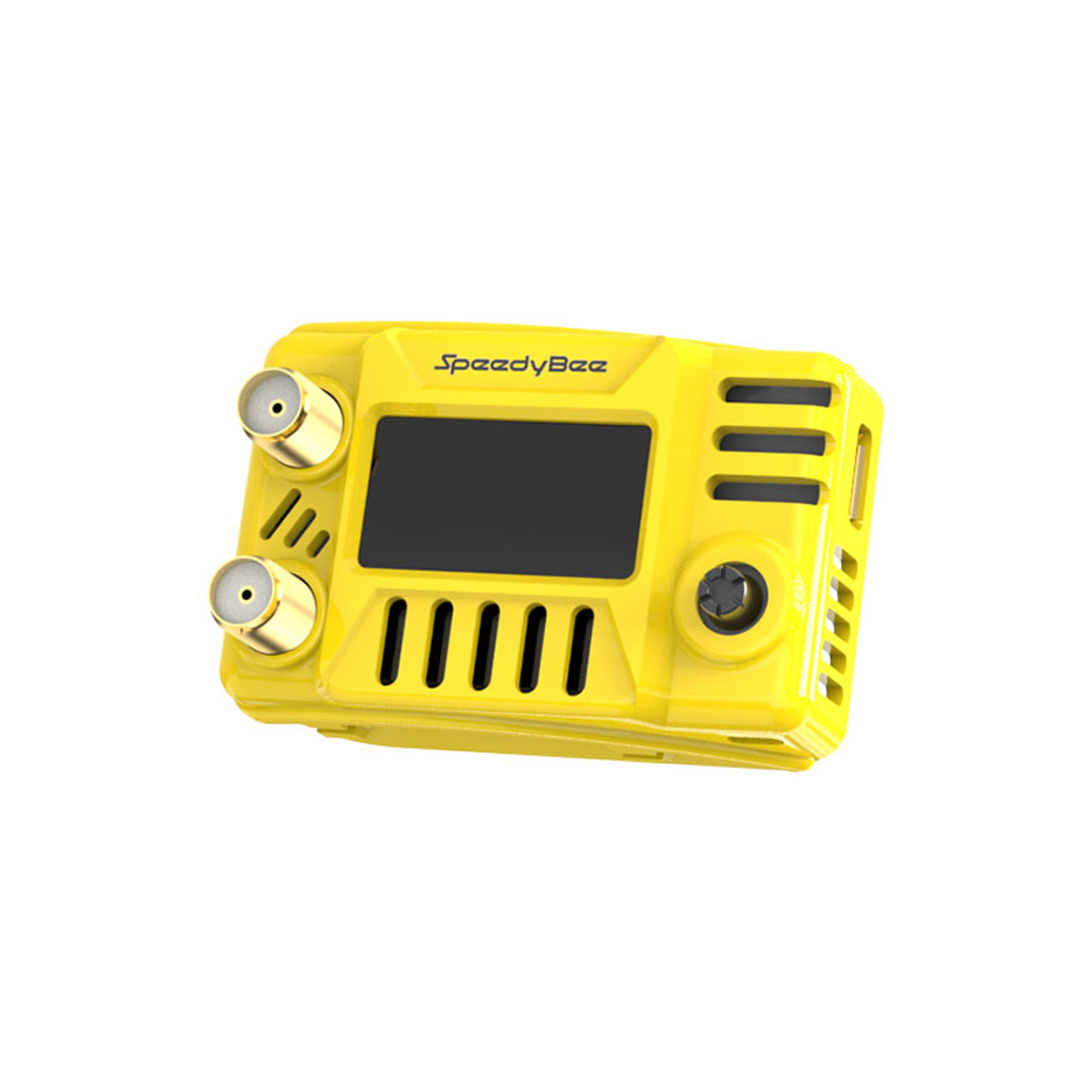

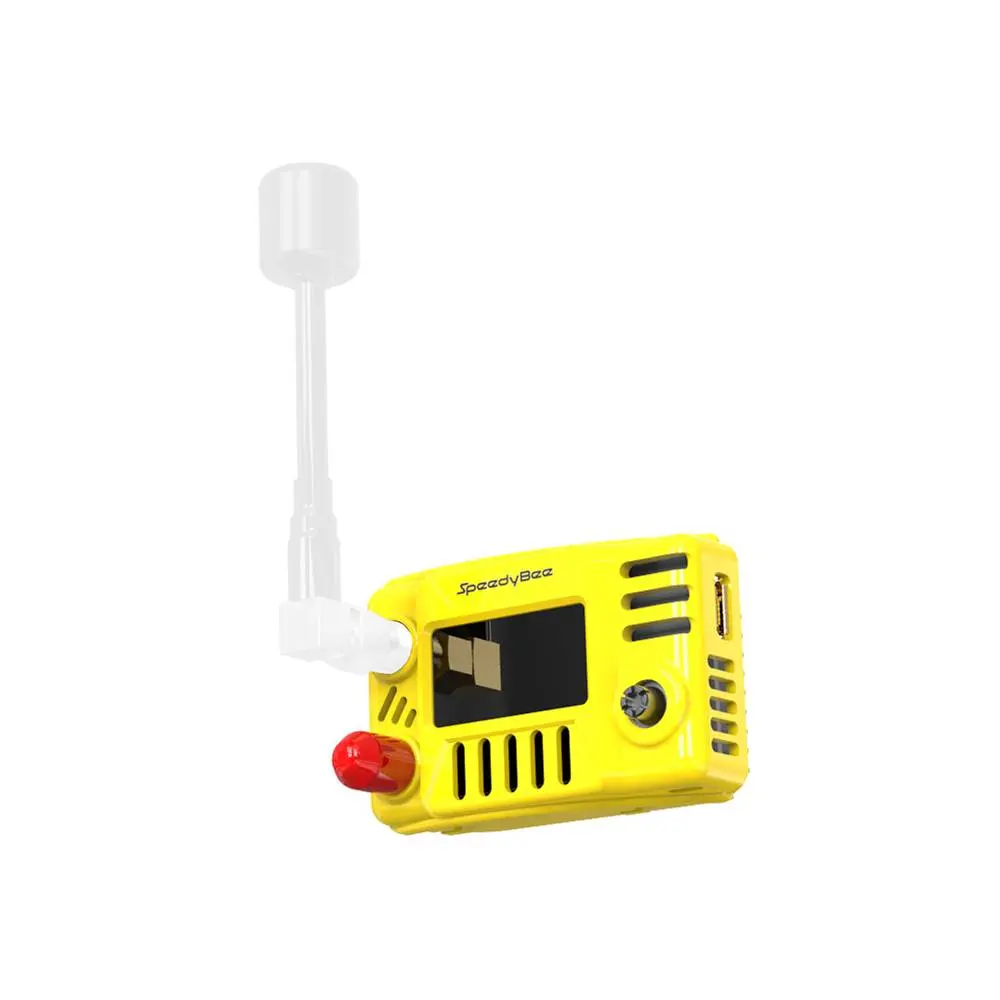

Experience seamless FPV with the SpeedyBee Goggles Receiver. This compact device delivers efficient power usage at 5V, ensuring a clear and immersive experience. Compatible with a wide range of FPV goggles, it supports multiple frequency bands, making it an essential addition for enthusiasts seeking versatile and high-quality video reception.

• Operates at 5V with low power consumption (450mA@5V).
• Works with various FPV goggles, including Fat Shark Dominator series, HDZero, and DJI Goggles (with adapter).
• Supports multiple frequency bands (A, B, E, F, R, L) with 48 channels.
• Compact dimensions (51x34x17.8mm) and lightweight (32.8g) for easy integration.

• Operating Voltage: 5V
• Operating Current: 450mA @ 5V
• Supported FPV Goggles:
  • Fat Shark Dominator series including V1, V2, V3, SE, HD1, HD2, HD3, HDO, HDO2.
  • Orqa: Currently not compatible with the factory housing of Orqa goggles. We have designed a 3D-printed housing that supports Orqa’s FPV.One, FPV.One Pilot, FPV.One Race.
  • HDZero: Supports HDZero FPV goggles analog conversion module.
  • DJI: Supports DJI V1 and V2 Goggles (an adapter board needs to be purchased separately when using DJI Goggles).
• Working Frequency: Supports A, B, E, F, R, and L bands with 48 channels from 5.3GHz to 5.9GHz.
• Dimension: 51x34x17.8mm
• Weight: 32.8g

• Manual

• 1x SpeedyBee 5.8GHz Goggles Receiver
