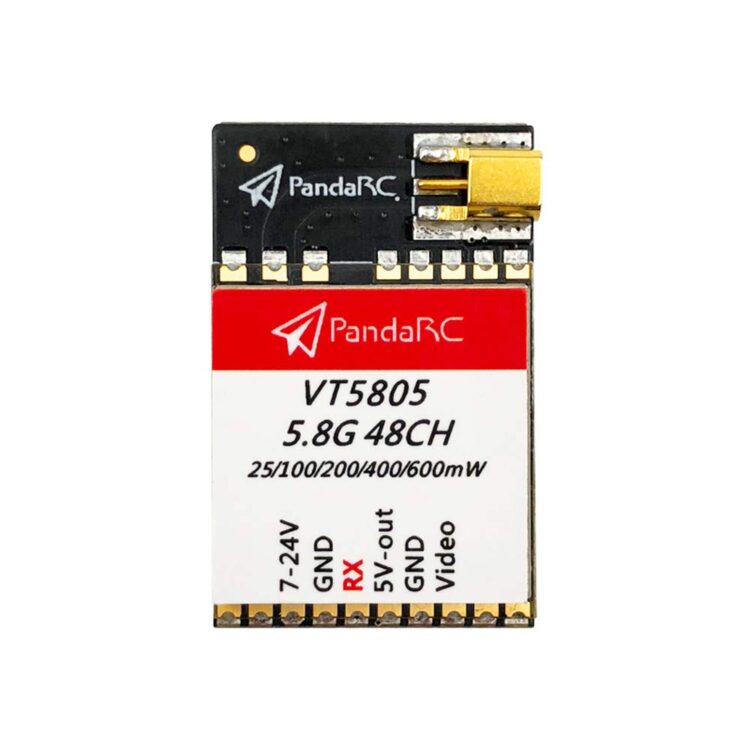

PandaRC VT5805 5.8GHz 25-600mW VTX – MMCX

PandaRC VT5805 5.8GHz 25-600mW VTX – MMCX

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This version features an MMCX connector and a heatsink for more stable transmission power.

Out of stock

1,399

Out of stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Svg Vector Icons : http://www.onlinewebfonts.com/icon

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This version features an MMCX connector and a heatsink for more stable transmission power.

Features

  • Pre-installed heat sink on the back for more stable image transmission
  • Transmission distance 0.5km@25mw, 1km@200mw, 2km@600mw (original antenna)
  • Image transmission supports OSD decoding and tuning
  • Key frequency control: short press once, change the channel number CH (CH1-CH8)
  • Long press the button for 2 seconds and then press the button to change the frequency group FR (A, b, E, F, r, L)
  • Button power control: long press the button for 10 seconds and then press the button to change the power level 25/100/200/400/600mw
  • Power indicated by red LED

Specifications

  • Input¬†voltage: 7-24V
  • Output Power: 25/100/200/400/600mw switchable
  • Frequency: 5.8G 48CH
  • Connector: MMCX
  • Weight: 8.2g
  • Size: 20x31x8mm

Includes

  • 1x PandaRC VT5805 5.8GHz 25-600mW VTX – MMCX
Weight 30 g
