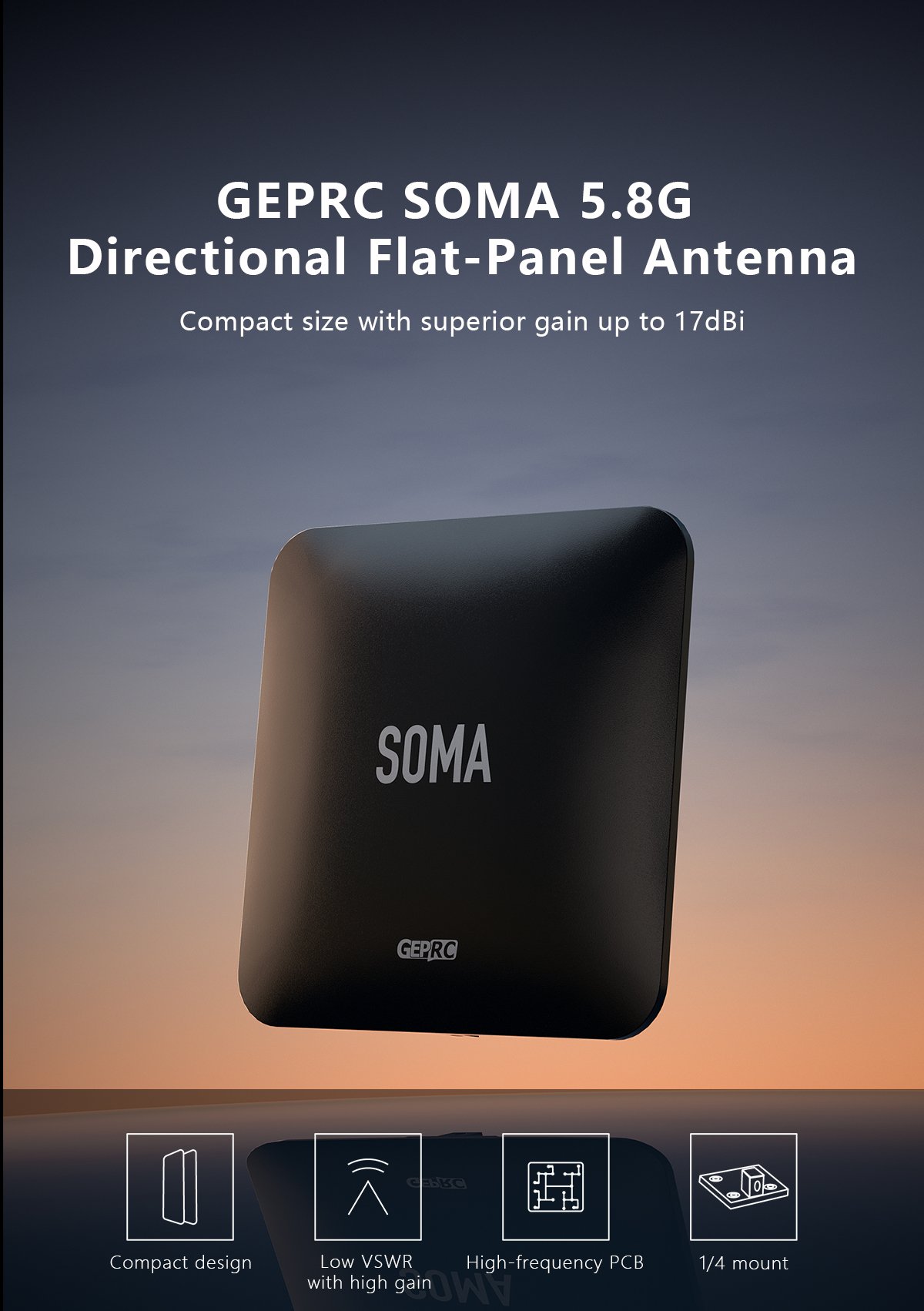

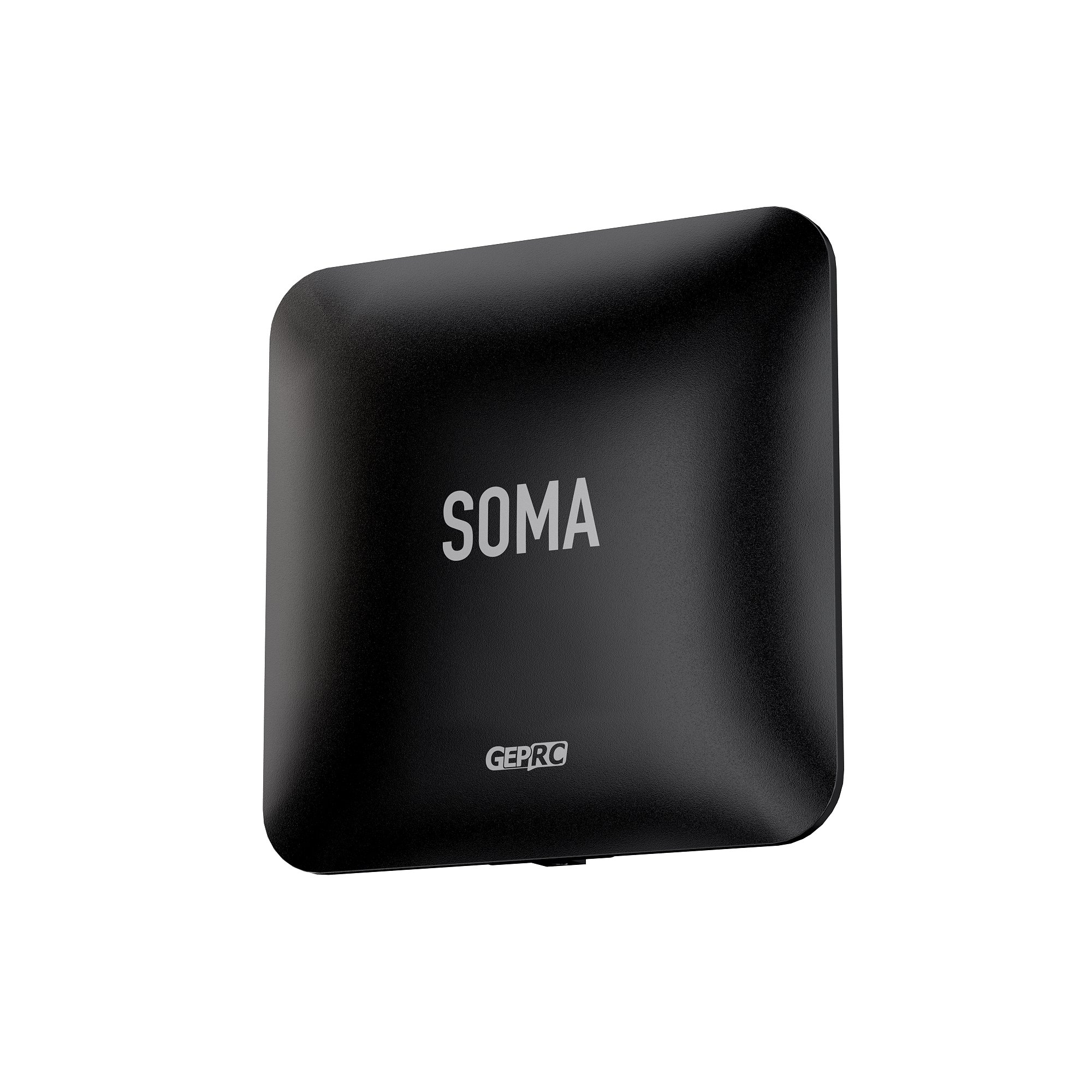

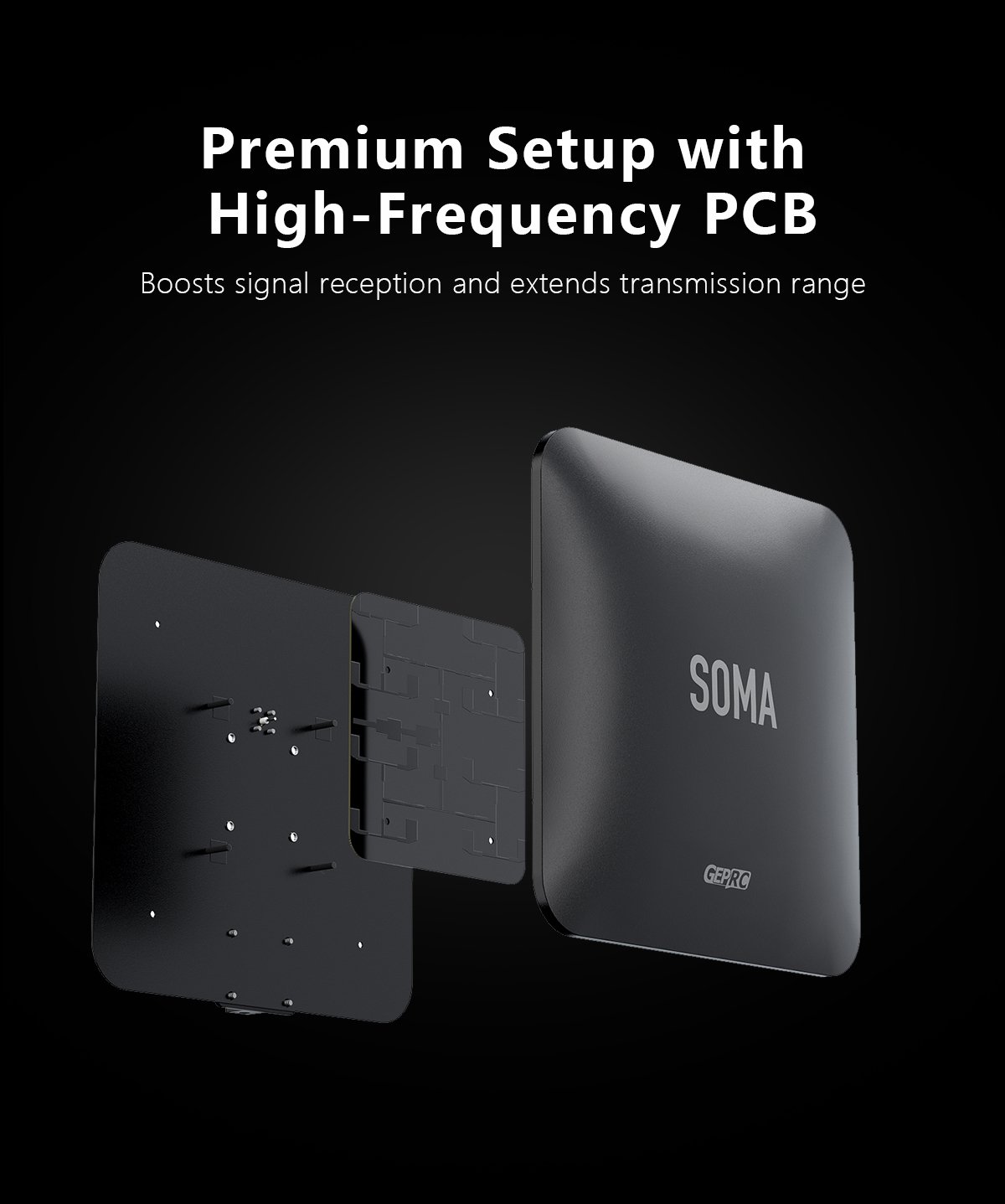

The GEPRC SOMA 5.8G Directional Flat-Panel Antenna features a high-frequency PCB RF solution, offering a high gain of up to 17dBi and a low average VSWR of 1.5, ensuring excellent signal reception.

It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity

Features

1.  Smooth, ultra-thin design.
2. Low VSWR, high gain directional antenna, up to 17dBi.

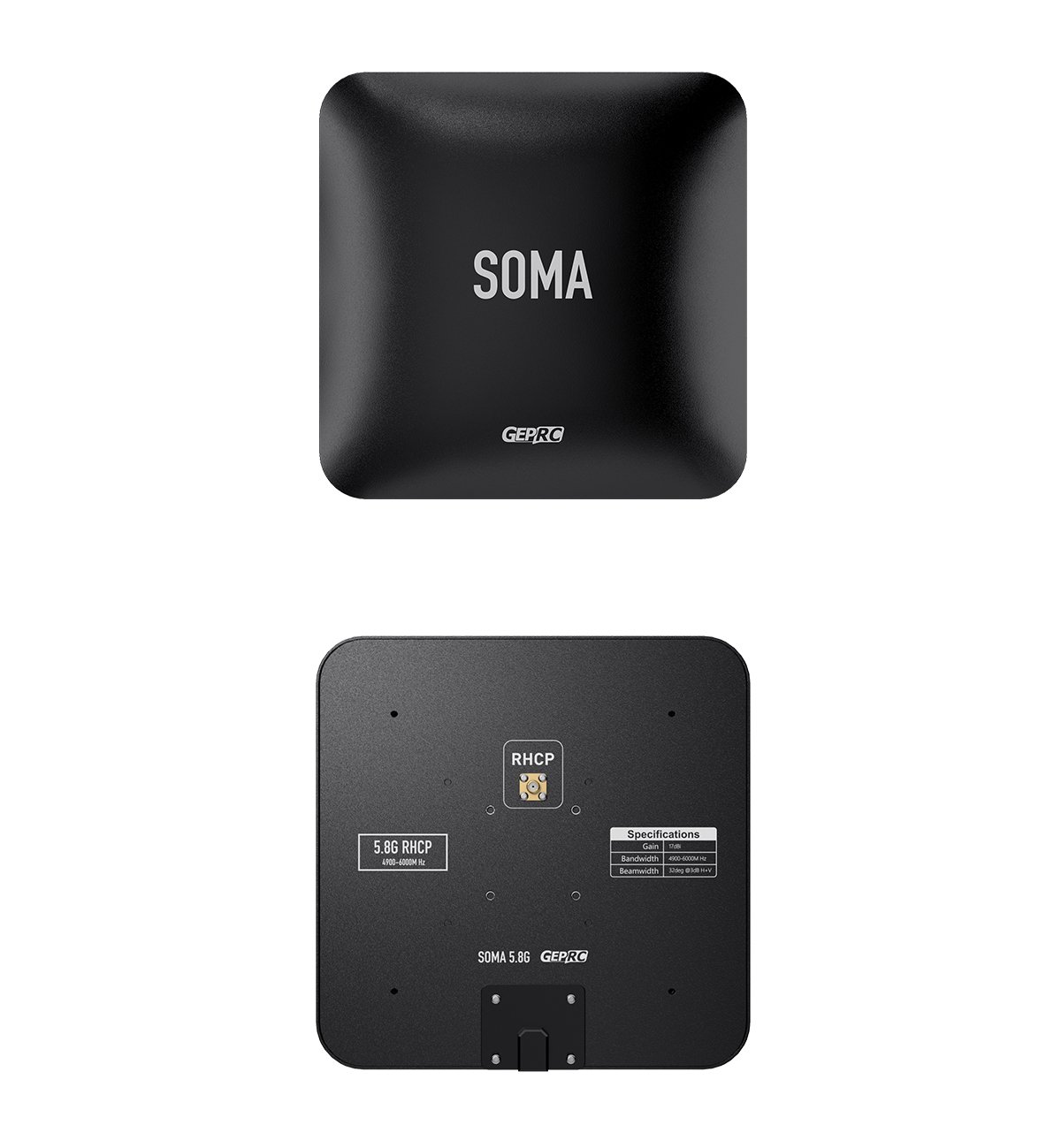

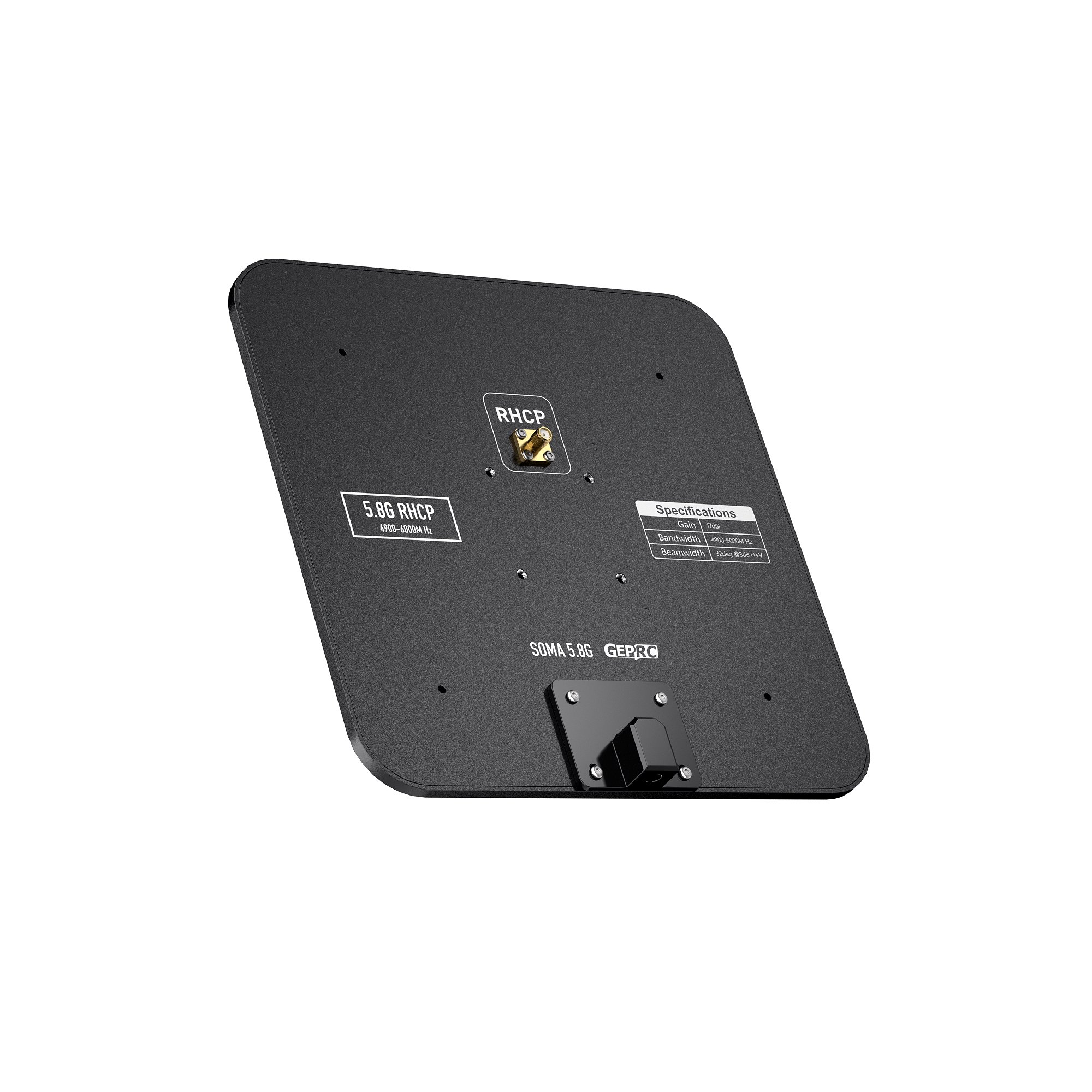

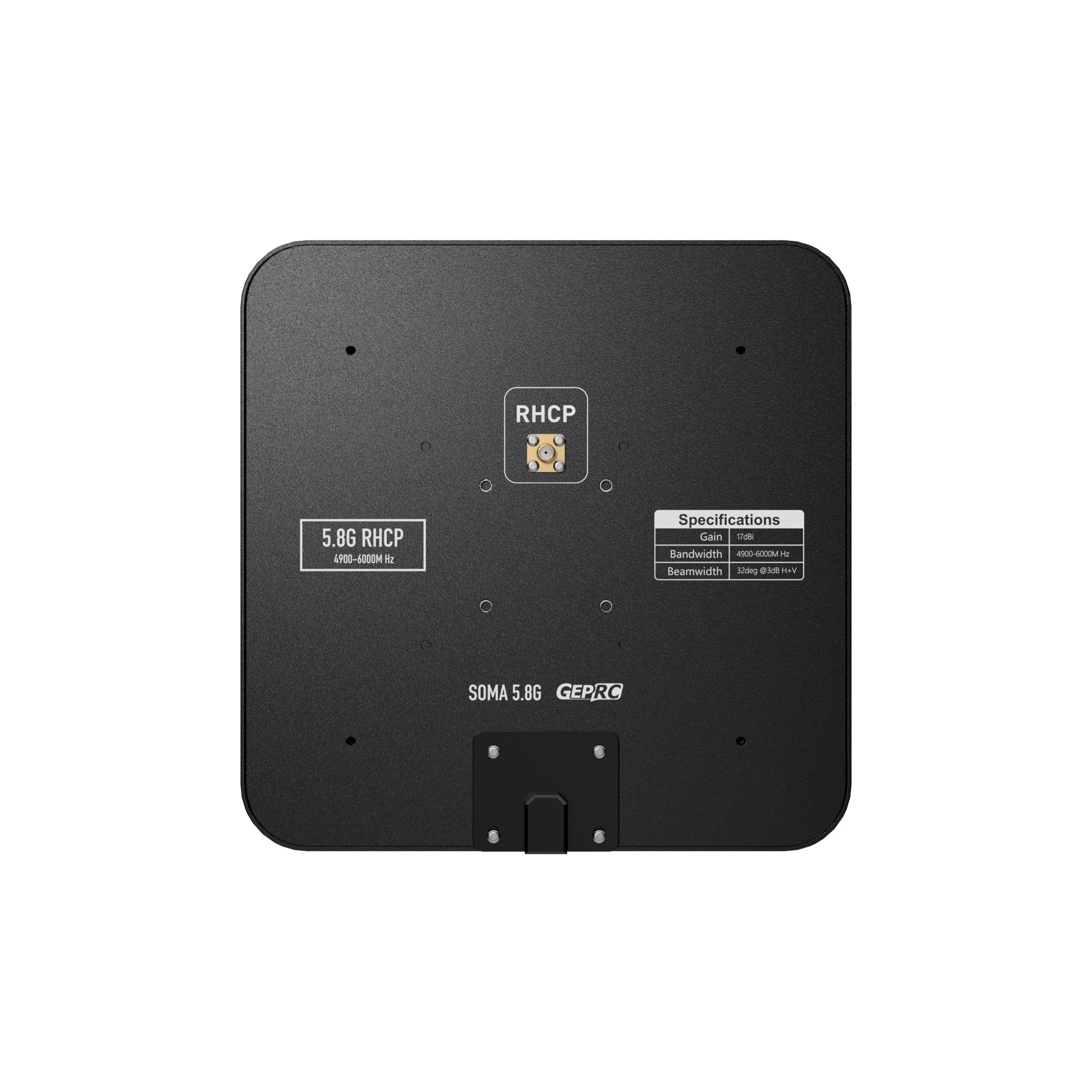

3.  1/4 aluminum alloy base, compatible with various brackets.
4.  High-quality SMA connector for lower impedance and better transmission efficiency.

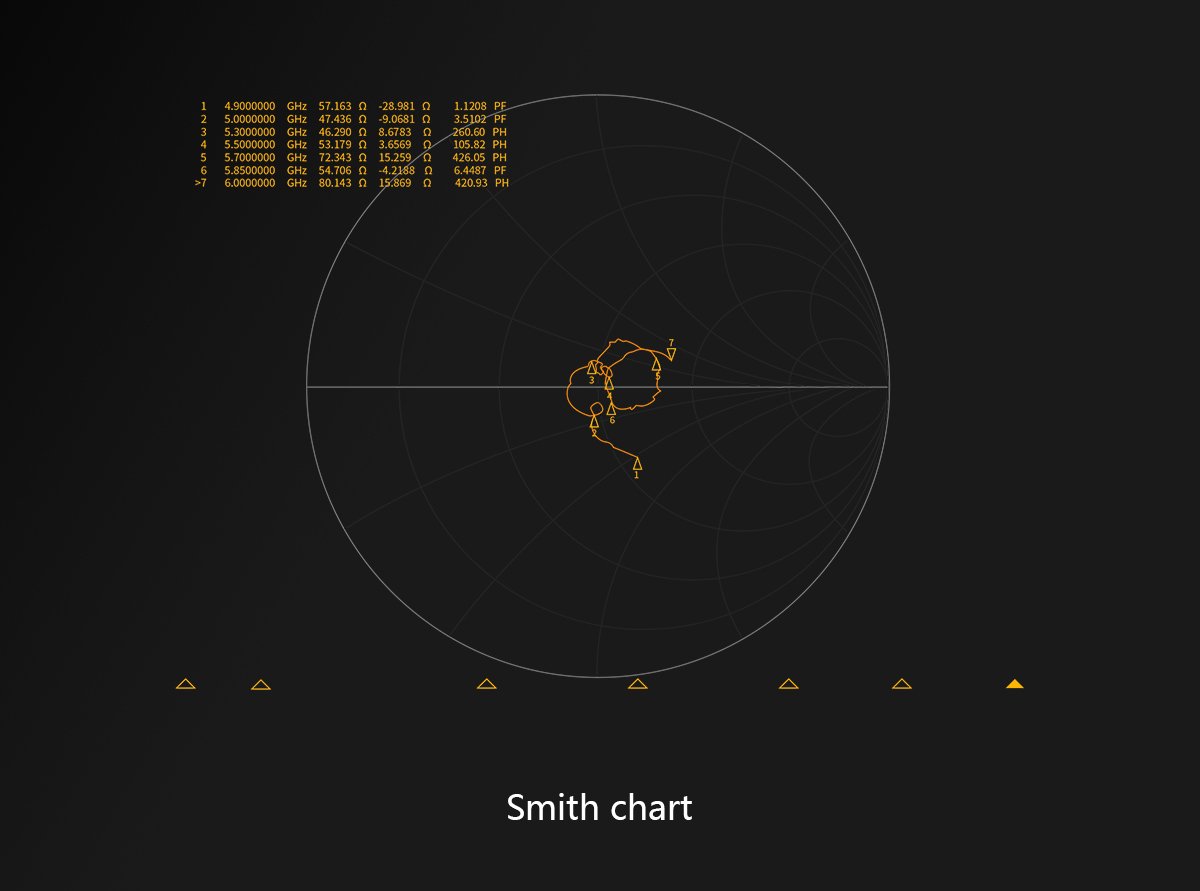

5.  Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

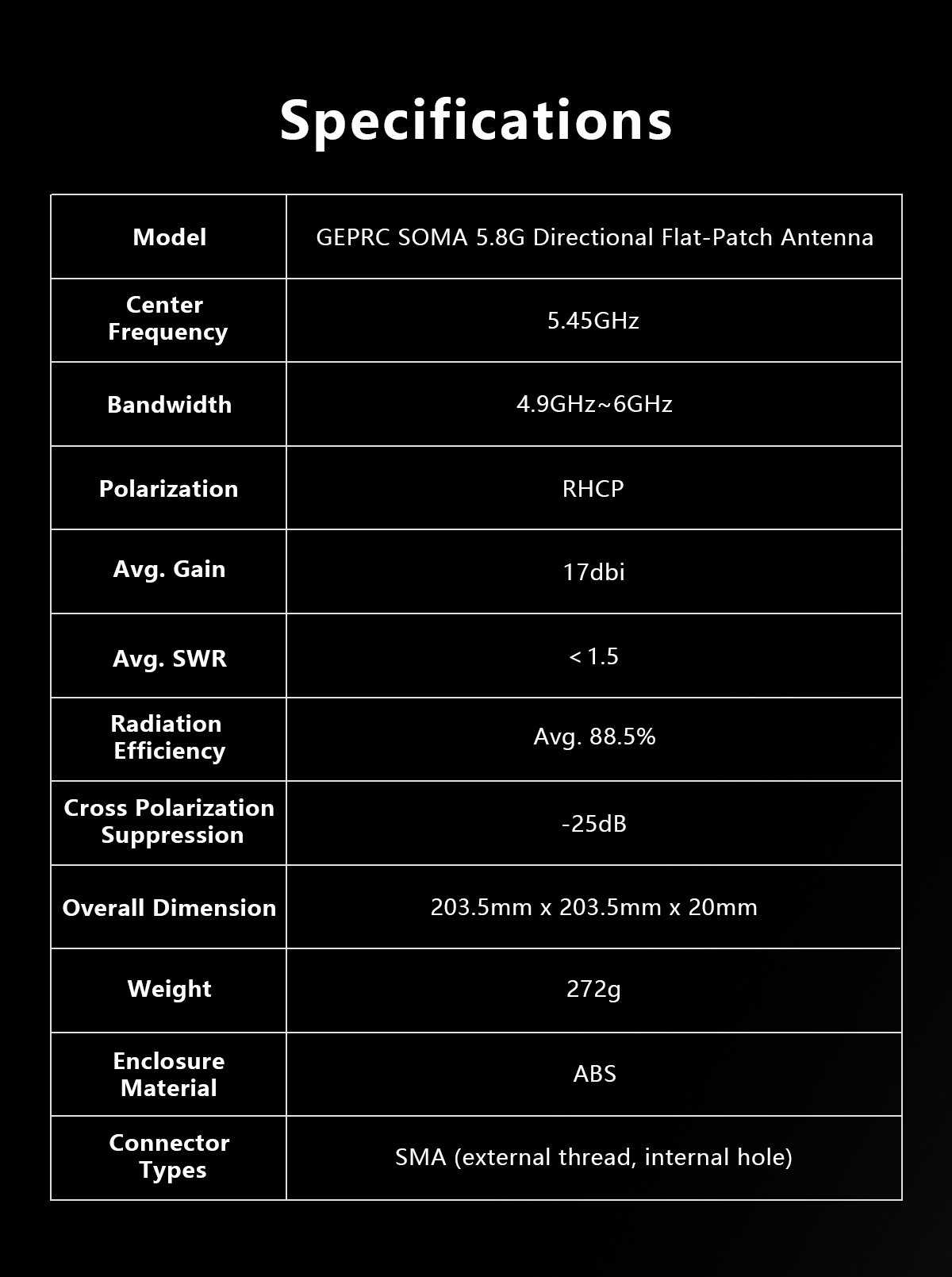

Specifications

• Model: GEPRC SOMA 5.8G Directional Patch Antenna
• Center Frequency: 5.45GHz
• Bandwidth: 4.9GHz~6GHz
• Polarization: RHCP
• Gain: 17dBi
• Axial Ratio: ≤3

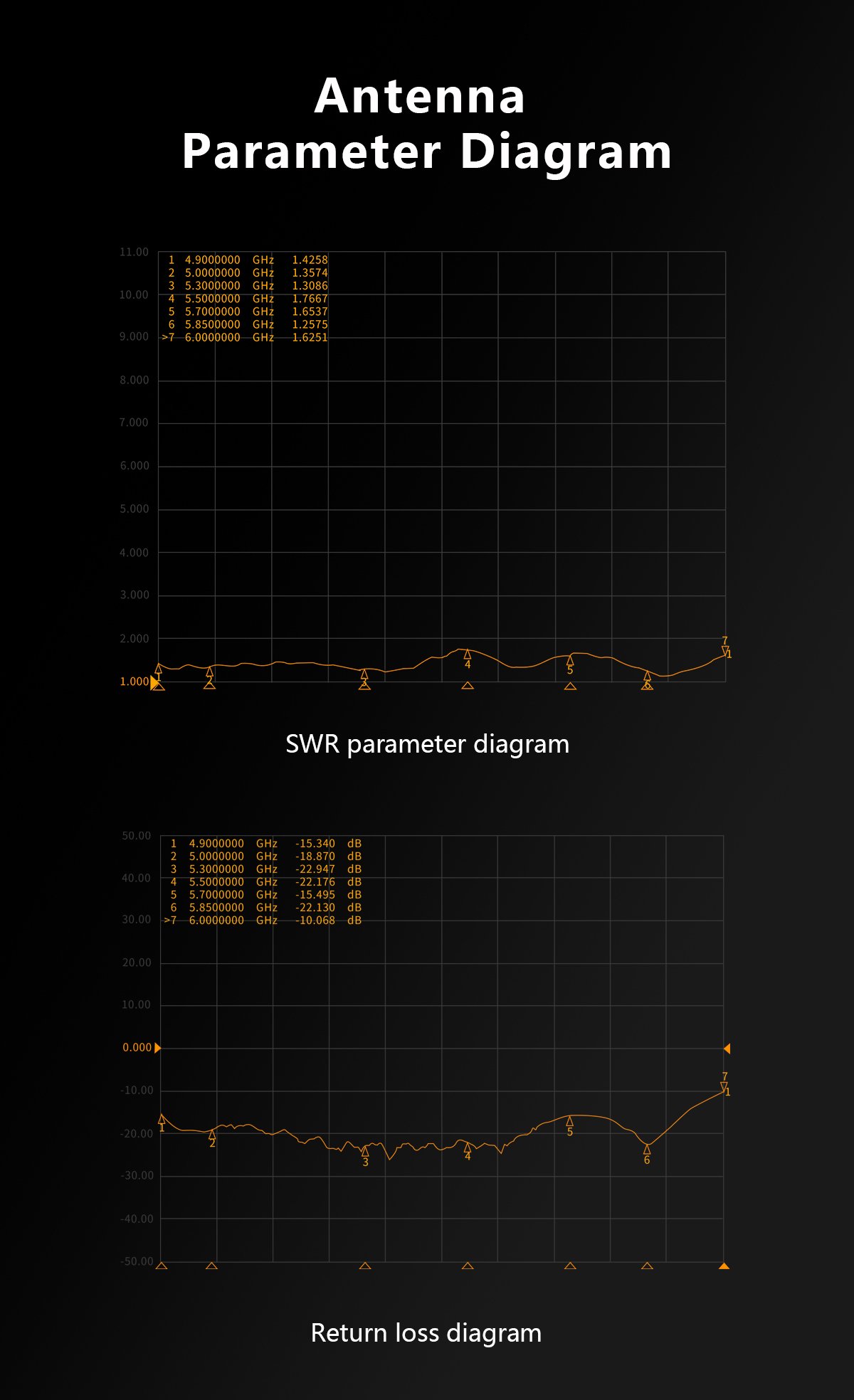

• SWR：≤1.5
• Radiation Efficiency: 88.5%
• Cross polarization suppression: -25dB

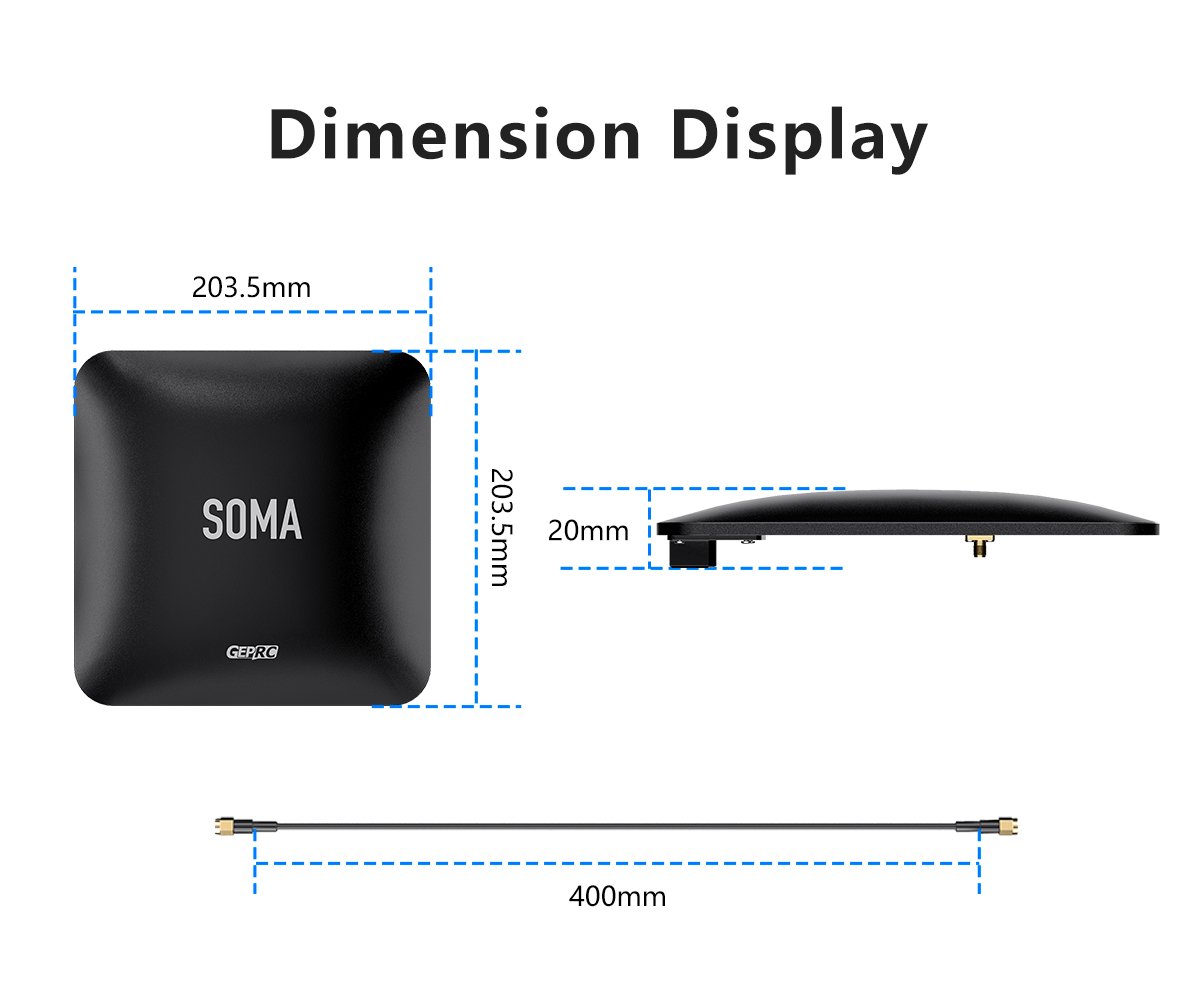

• Overall Dimension: 203.5mm x 203.5mm x 20mm
• Antenna Weight: 272g
• Enclosure Material: ABS
• Connector Type: SMA (external thread, internal hole）

Includes

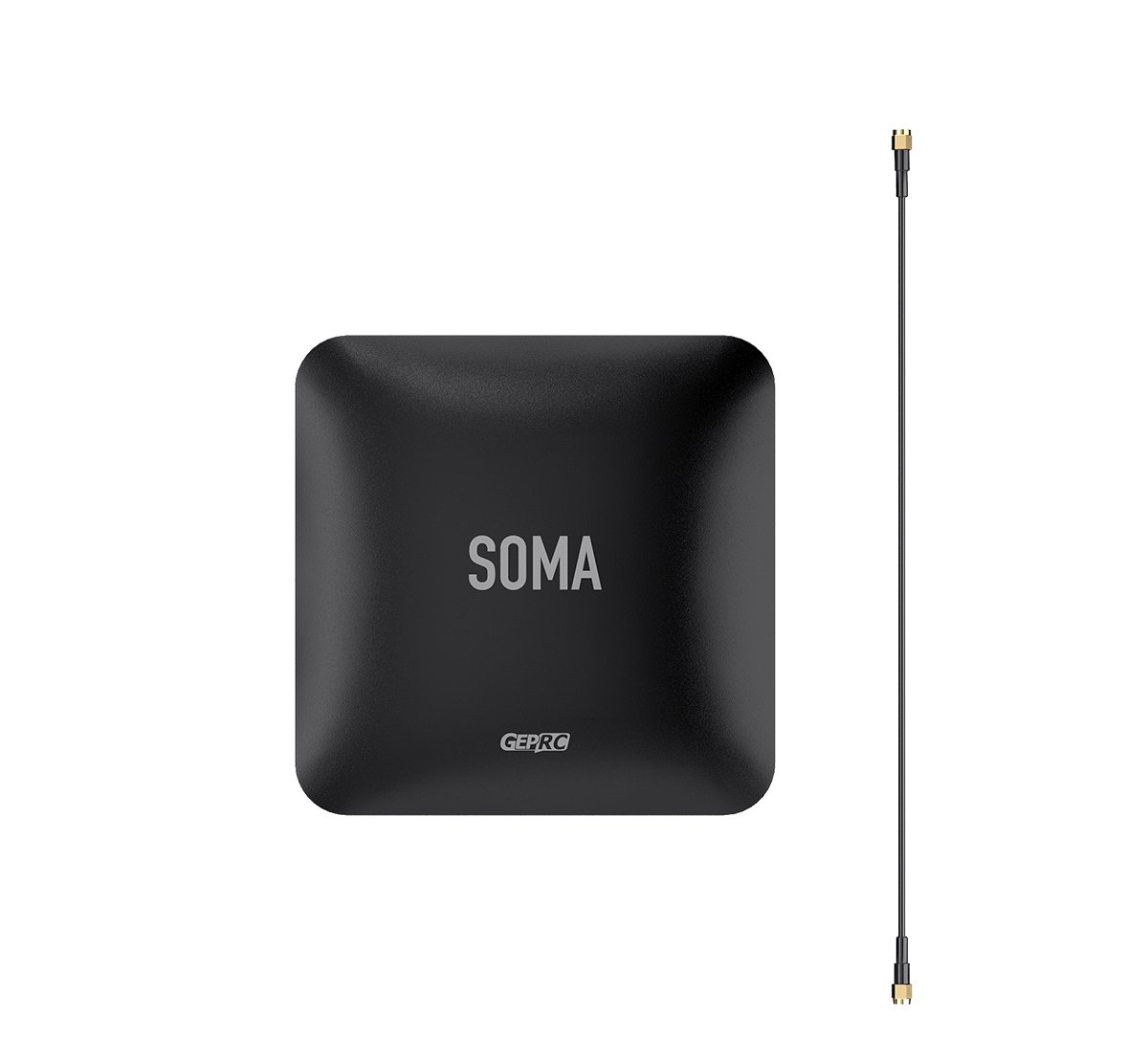

1 x SOMA 5.8G Directional Patch Antenna
