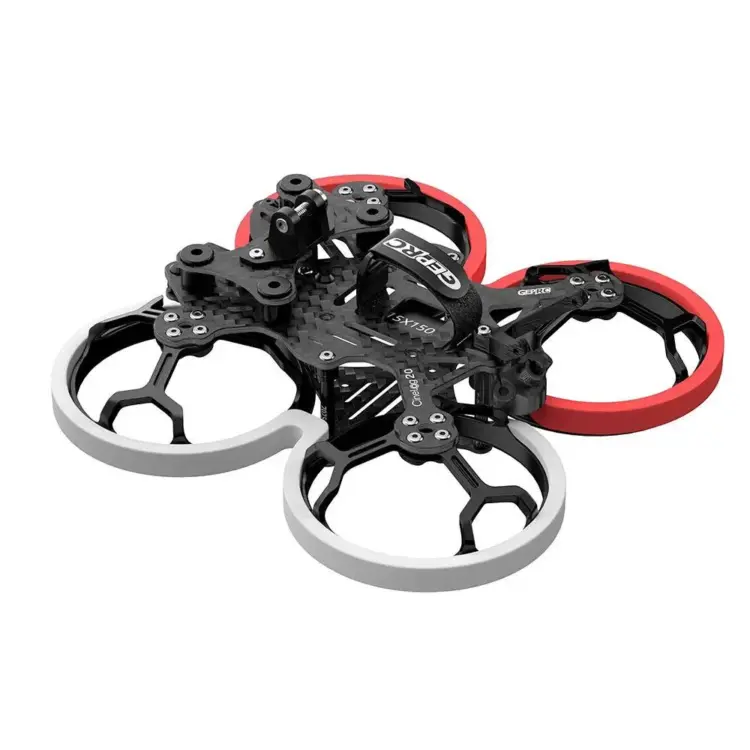

GEPRC Cinelog 20 2″ Frame Kit

The new GEPRC Cinelog 20 Frame Kit 2″ can be shuttled in a narrow space, and can be adapted to O3 VTX, and can also shoot shocking effects in a narrow space. The resigned camera gimbal can easily eliminate high-frequency vibration and jello issues. Soft connection damping design of the camera gimbal and can also be mounted with a naked GoPro base, which supports the installation of Naked GoPro 8/910/11, Insta360 Go2 and DJI Action2 cameras. The flight controller mounting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.

Features of GEPRC Cinelog 20 Frame

  • Supports the installation of Naked GoPro 8/910/11, Insta360 Go2 and DJI Action2 cameras
  • Camera gimbal can easily eliminate high-frequency vibration and jello issues
  • Design the outer EVA damping ring to effectively reduce the impact force
  • Flight controller mounting hole spacing is 25.5mm*25.5mm
  • Combining aesthetics and engineering for compact design
  • Soft connection damping design of the camera gimbal
  • Shoots shocking effects in a narrow space
  • Can be shuttled in a narrow space
  • Can be adapted to O3 VTX
GEPRC Cinelog 20 2" Frame Kit Infographic

Specifications of GEPRC Cinelog 20 Frame

  • Flight controller: GEP-F4-35A AIO (mounting holes: 25.5mm×25.5mm)
  • VTX mounting holes: 20mm x 20mm /25.5mm x 25.5mm
  • Motor: 1303.5 (mounting holes: 9mm×9mm)
  • Suitable propeller size: 2 inch propeller
  • FC mounting holes: 25.5mm x 25.5mm
  • Camera gimbal triangle plate : 1.5mm
  • Motor mounting holes: 9mm x9mm
  • Recomended Battery: 4S 660mAh
  • Camera gimbal plate: 2.0mm
  • FPV camera spacing: 20mm
  • Motor plate gasket: 2.0mm
  • Bottom plate: 1.5mm
  • Wheelbase: 100mm
  • Main plate: 2.5mm
  • Propeller: 2 inch
  • Weight: 53.4g
  • ESC: 35A



Includes

PLATES

  • 1 x Camera gimbal triangle plate: 1.5mm
  • 1 x Camera gimbal plate: 2.0mm
  • 1 x Motor plate gasket: 2.0mm
  • 1 x Bottom plate: 1.5mm

HARDWARE

  • 1 x Single-ended bright-edge aluminum column M2*3.5*28
  • 1 x Single-ended bright-edge aluminum column M2*3.5*25
  • 4 x M2*1.9-OD4.9 self-clinching nut-brass color M2
  • 4 x Camera gimbal shock absorbing rubber ring
  • 5 x Camera gimbal vibration dampening rubber
  • 1 x 7075 Aluminum Column M2*3.5*28
  • 1 x 7075 Aluminum Column M2*3.5*25
  • 2 x Round head screw with pad M2*8
  • 6 x Round head screw M2*4 X6
  • 10 x Round head screw M2*12
  • 4 x Round head screw M2*16
  • 18 x Round head screw M2*7
  • 18 x Round head screw M2*8
  • 4 x Round head screw M2*5
  • 4 x Half-round head M1.6*8
  • 4 x Nylon column M2*5mm
  • 10 x Self-clinching nut M2
  • 4 x BEC silicone gasket
  • 10 x Nylon nut M2

3D PRINTED PARTS

  • 1 x VTX Antenna mount(small hole)
  • 1 x VTX Antenna mount (big hole)
  • 1 x Camera mount (2 holes)
  • 1 x Camera mount (1 hole)
  • 1 x TBS Antenna mount
  • 1 x Receiver mount
  • 1 x Receiver mount

INJECTION MOLDED PARTS

  • 4 x Propeller guard

ACCESSORIES

  • 1 x 4S Naked GoPro power cable (with balanced terminal head)
  • 2 x Receiver antenna tubes 100mm
  • 1 x L-shaped screwdriver 1.5MM
  • 2 x 3M double-sided tape
  • 1 x Naked GoPro 8 base
  • 2 x Battery anti-slip pad
  • 2 x Battery tie M15*150
  • 4 x EVA damping ring
  • 2 x Damping pad
  • 1 x Keychain

Click here to view more frames from our store

Weight 200 g
