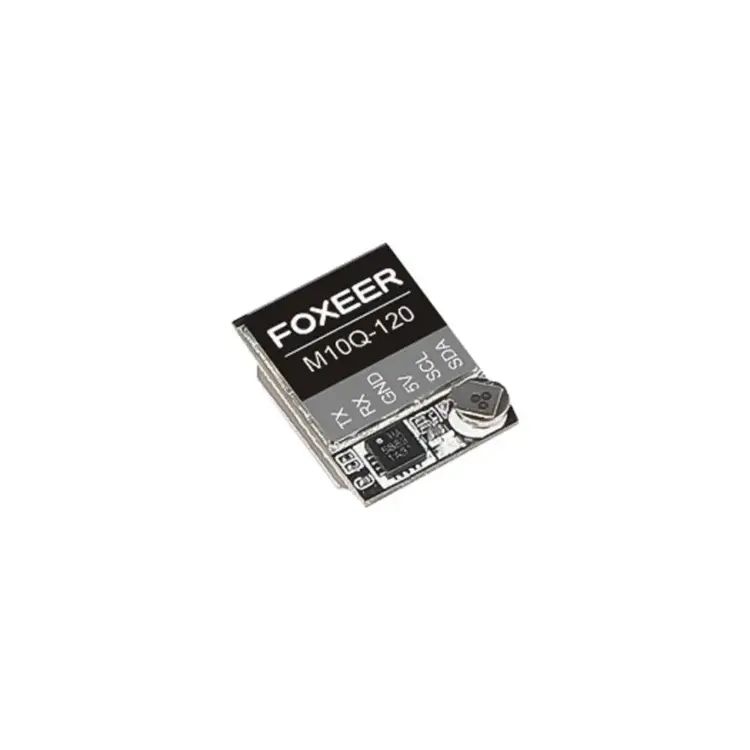

Foxeer M10Q-120 GPS w/ 5883 Compass

Foxeer M10Q-120 GPS w/ 5883 Compass

Enhance your drone’s navigation with the Foxeer M10Q-120 GPS.

In stock

1,699

Orders placed before are shipped on same day

In stock

Foxeer M10Q-120 GPS w/ 5883 Compass

1,699

Enhance your drone’s navigation with the Foxeer M10Q-120 GPS. This compact GPS receiver boasts a powerful 10th-generation chip and support for multiple satellite systems, ensuring precise and dependable positioning. Its lightweight design and broad operating temperature range make it an ideal choice for FPV enthusiasts.

Features

  • Broad Operating Range
  • Compact Design
  • Multi-Frequency
  • High Sensitivity
  • 10th Gen Chip

Specifications

  • Chip: M10 (10th Generation Chip)
  • Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO ESBAS L1, QZSS L1
  • Input Voltage: 5V
  • Antenna: Ceramic Antenna
  • Channel: 72
  • Battery: Built-in
  • Compass: QMC5883
  • Compass Orientation: Plug facing the direction of flight with the antenna up, BF: CW 180° Flip
  • Baud Rate: 115200bps
  • Protocol: Dual NMEA/UBLOX
  • Output Frequency: 1Hz-10Hz (10Hz default)
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC 1.5m (outdoor)
  • Receiver Sensitivity: Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics: Height 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +105°C
  • Weight: 2.7g
  • Size: 12.5 x 17 x 5mm

Includes

  • 1x Foxeer M10Q-120 GPS w/ 5883 Compass
Weight 80 g

Reviews

There are no reviews yet.

Be the first to review “Foxeer M10Q-120 GPS w/ 5883 Compass”

Enhance your drone’s navigation with the Foxeer M10Q-120 GPS. This compact GPS receiver boasts a powerful 10th-generation chip and support for multiple satellite systems, ensuring precise and dependable positioning. Its lightweight design and broad operating temperature range make it an ideal choice for FPV enthusiasts.

Features

  • Broad Operating Range
  • Compact Design
  • Multi-Frequency
  • High Sensitivity
  • 10th Gen Chip

Specifications

  • Chip: M10 (10th Generation Chip)
  • Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO ESBAS L1, QZSS L1
  • Input Voltage: 5V
  • Antenna: Ceramic Antenna
  • Channel: 72
  • Battery: Built-in
  • Compass: QMC5883
  • Compass Orientation: Plug facing the direction of flight with the antenna up, BF: CW 180° Flip
  • Baud Rate: 115200bps
  • Protocol: Dual NMEA/UBLOX
  • Output Frequency: 1Hz-10Hz (10Hz default)
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC 1.5m (outdoor)
  • Receiver Sensitivity: Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics: Height 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +105°C
  • Weight: 2.7g
  • Size: 12.5 x 17 x 5mm

Includes

  • 1x Foxeer M10Q-120 GPS w/ 5883 Compass
