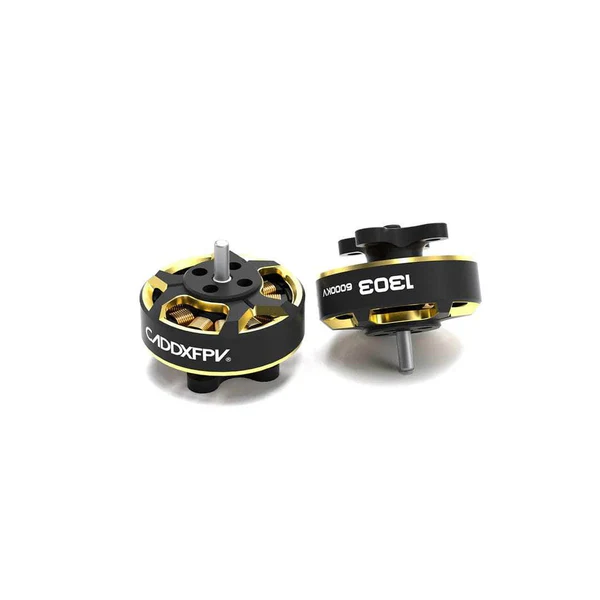

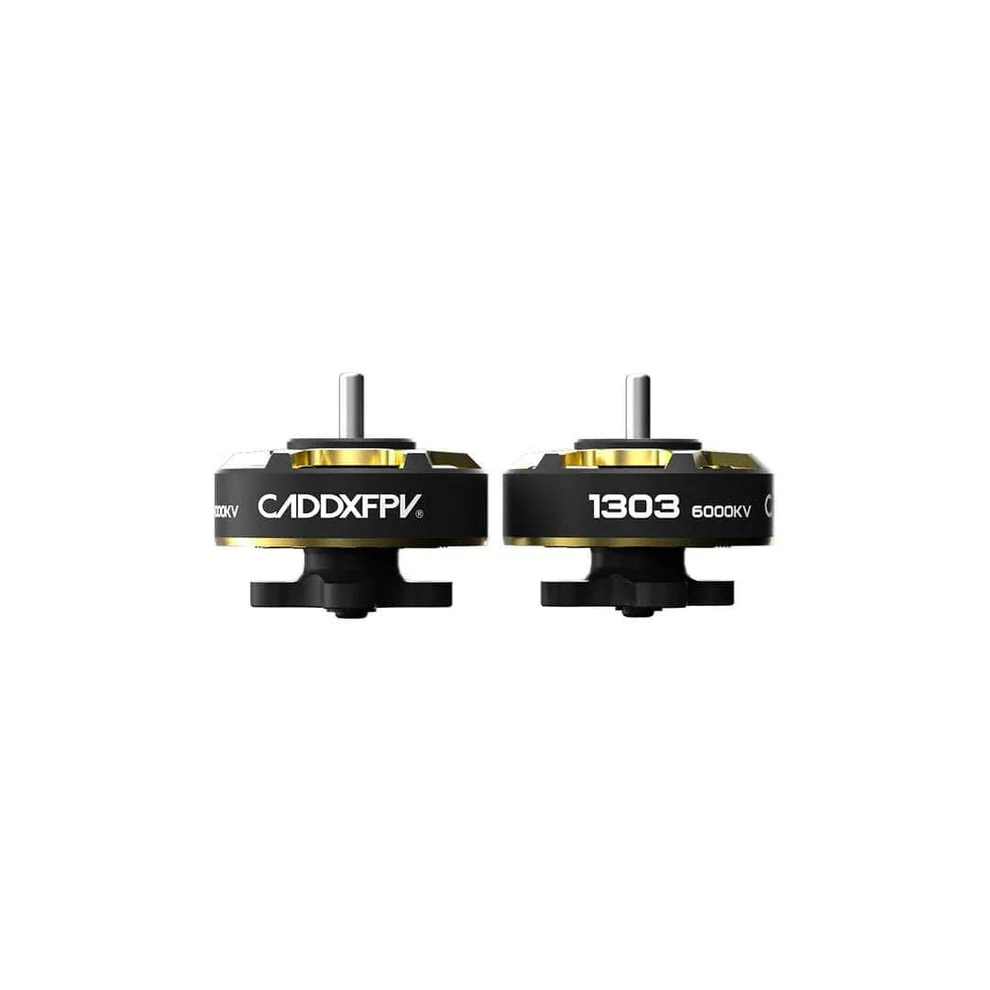

Caddx 1303 6000Kv Micro Motor

Caddx 1303 6000Kv Micro Motor

These are the replacement motors for the Caddx Gofilm 20. But works well with any 2″ micro running 2S-4S batteries!

In stock

1,599

Price is Inclusive of GST. Enter GST number at checkout.

In stock

SHARE

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Svg Vector Icons : http://www.onlinewebfonts.com/icon

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

These are the replacement motors for the Caddx Gofilm 20. But works well with any 2″ micro running 2S-4S batteries!

Features

  • The CADDXFPV 1303 motor is a perfect candidate for a lightweight 2S to 4S setup. It can be built using regular one-piece injection molding to run 2-inch props on. And take it to the next level with our Gofilm 20 Brushless Whoop Quadcopter.
  • CADDXFPV T2-2-3 3-Blade Propellers 1.3mm Shaft will be the best match with CADDXFPV 1303 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels.
  • Perfectly match with Super F405HD ELRS AIO, this motor will bring pilots a powerful flight experience.
Caddx 1303 6000Kv Micro Motor
Caddx 1303 6000Kv Micro Motor

Specifications

  • Model: 1303 6000KV Brushless Motors
  • KV: 6000
  • Configuration: 12N14P
  • Stator Diameter: 13mm
  • Stator Length: 3.2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension(Dia. x Len): Ф 16.5 x 10.1mm
  • Weight(g): 5.6(5cm wire)
  • Idle current(5)@5V(A): 0.7
  • No.of Cells(Lipo): 2~4S
  • Max ContinuousPower(W)3s: 250
  • internal Resistance: 166mΩ
  • Max Current(3S): 16.9A
  • Max. Effciency Current: (2-5A)>85%

Includes

  • 1x Caddx 1303 6000Kv Micro Motor
Weight 30 g
Stator Size

KV

6000KV

Motor Shaft

1.5MM
