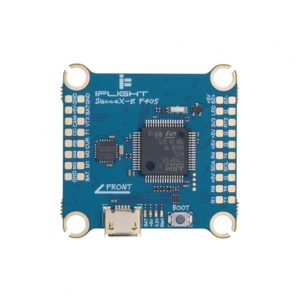

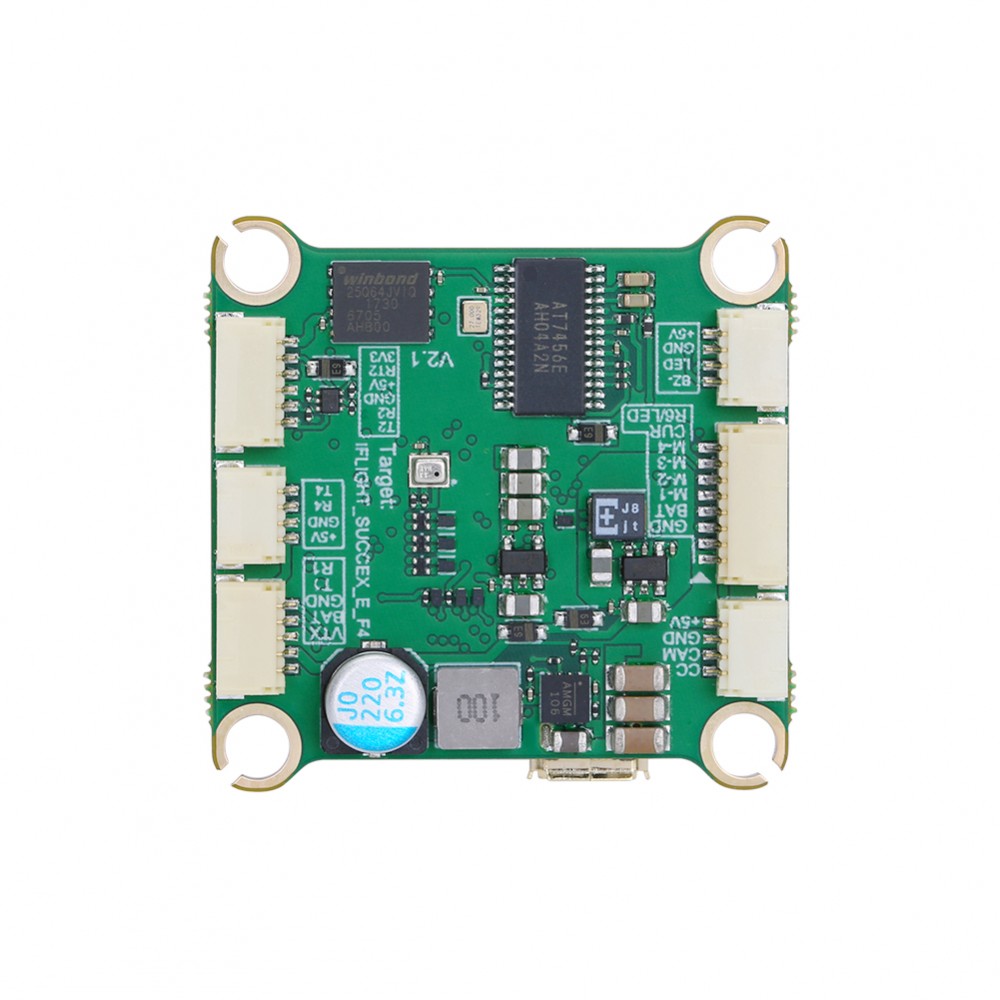

iFlight SucceX-E F4 V2.1 Flight Controller (MPU6000)

iFlight SucceX-E F4 V2.1 Flight Controller (MPU6000)

The advanced SucceX V2.1 F4 Flight Controller from iFliight to push your FPV racer to the max.

Out of stock

2,899

Orders placed before are shipped on same day

Out of stock

iFlight SucceX-E F4 V2.1 Flight Controller (MPU6000)

PRODUCT DESCRIPTION

Specs:

– MCU:STM32F405

– Gyro:MPU6000

– Betaflight OSD:IFLIGHT OSD (AT7456E)

– Blackbox:16MB(W25Q128)

– 4X Uarts

– 4 x Dshot/Proshot/Oneshot output

– 4×0201 LEDs for FC STATUS (Blue, Red,Orange ) and 3.3V indicator(Red)  BAT/+5V/3.3V/start

– 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

– VTX telemetry: YES

– WS2812 led Strip:YES

– Baro: BMP280(I2C)

– Beeper:YES

– Input:2-6S(Max 8S)

– BEC:5V / 3A

– Firmware target : IFLIGHT_SUCCEX-E F4

– Mounting:30.5*30.5/φ4

– Dimensions:36*36mm

– Weight:6.9g

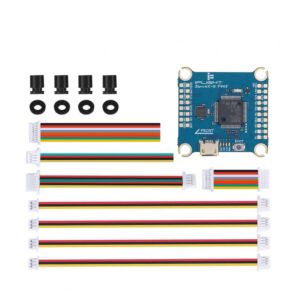

Package included:

1pc x SucceX-E F4 V2.1 Flight Controller

1set x Wire harness

NOTE: F.PORT protocol RX input support, telemetry not supported.

Weight 40 g
