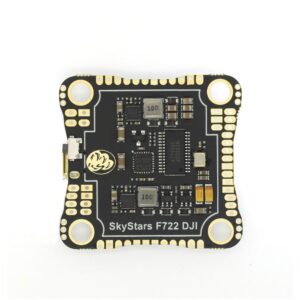

SkyStars F7 3-6S 30x30 HD Flight Controller

SkyStars F7 3-6S 30x30 HD Flight Controller

The SkyStars F7 3-6S 30×30 HD Flight Controller features 6 UARTS, MPU6000, 8MB BlackBox, Betaflight OSD & DJI HD OSD, and many other features!

Out of stock

3,199

Orders placed before are shipped on same day

Out of stock

SkyStars F7 3-6S 30×30 HD Flight Controller

The SkyStars F7 3-6S 30×30 HD Flight Controller features 6 UARTS, MPU6000, 8MB BlackBox, Betaflight OSD & DJI HD OSD, and many other features!

Features

  • Designed the LED installation position in the four corners supports the WS2812 Programmable LED.
  • Supports serial receivers (SBUS iBus Spektrum CrossfirePPM). Support 3.3V Satellite Receiver.
  • High-performance / low-noise / high sensitivity IMU. MPU6000 with 6-axis gyro and
  • accelerometer.
  • includes a DJI HD cable in default
  • Input voltage12V-26V (3-6S)
  • Automatic voltage monitoring.

Specifications

  • Brand Name: Skystars
  • Model: F722 HD
  • Item Name: F7 OSD 3-6S Flight Controller
  •  MCU: STM32F722RGT6 216MHz
  • IMU: MPU6000 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • BEC Output: 5V 3A & 10V 3A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 8MB
  • Firmware: SKYSTARS F7HD
  • 6 hardware UARTS (UART1,2,3,4,6)
  • Dimensions: 38.5x40x6.2mm
  • Mounting Holes: Standard 30.5mm square to the center of holes
  • Weight: 6.2g

Includes

  • 1 x SkyStars F722 HD Flight Controller
  • 4x Anti-vibration Ball
  • 1x Cable

Reviews

There are no reviews yet.

Be the first to review “SkyStars F7 3-6S 30×30 HD Flight Controller”
