S99 Product Description:
– Compatible with C245 series soldering iron tips, temperature adjustable range 50℃-500℃/122℉-932℉.

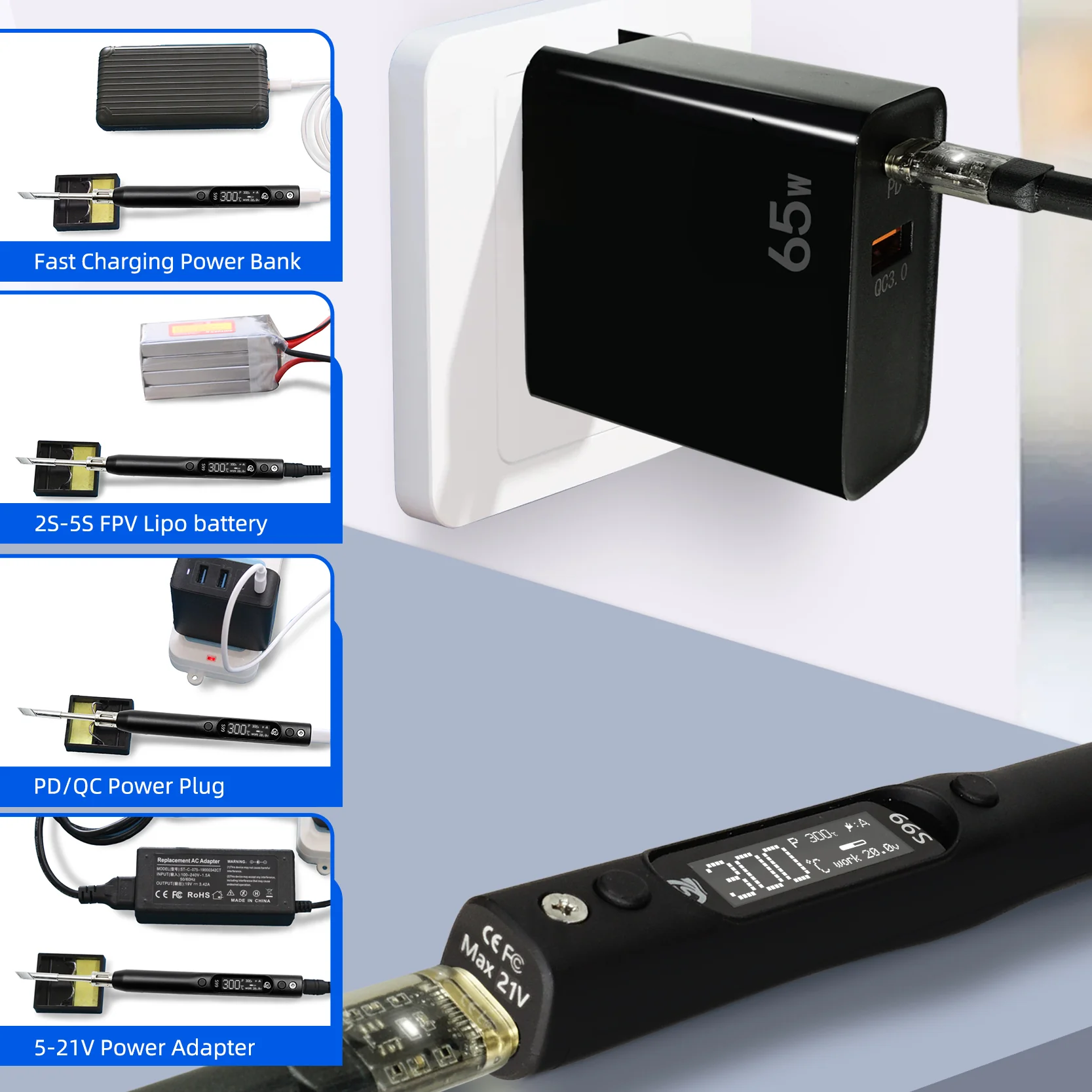

– Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.

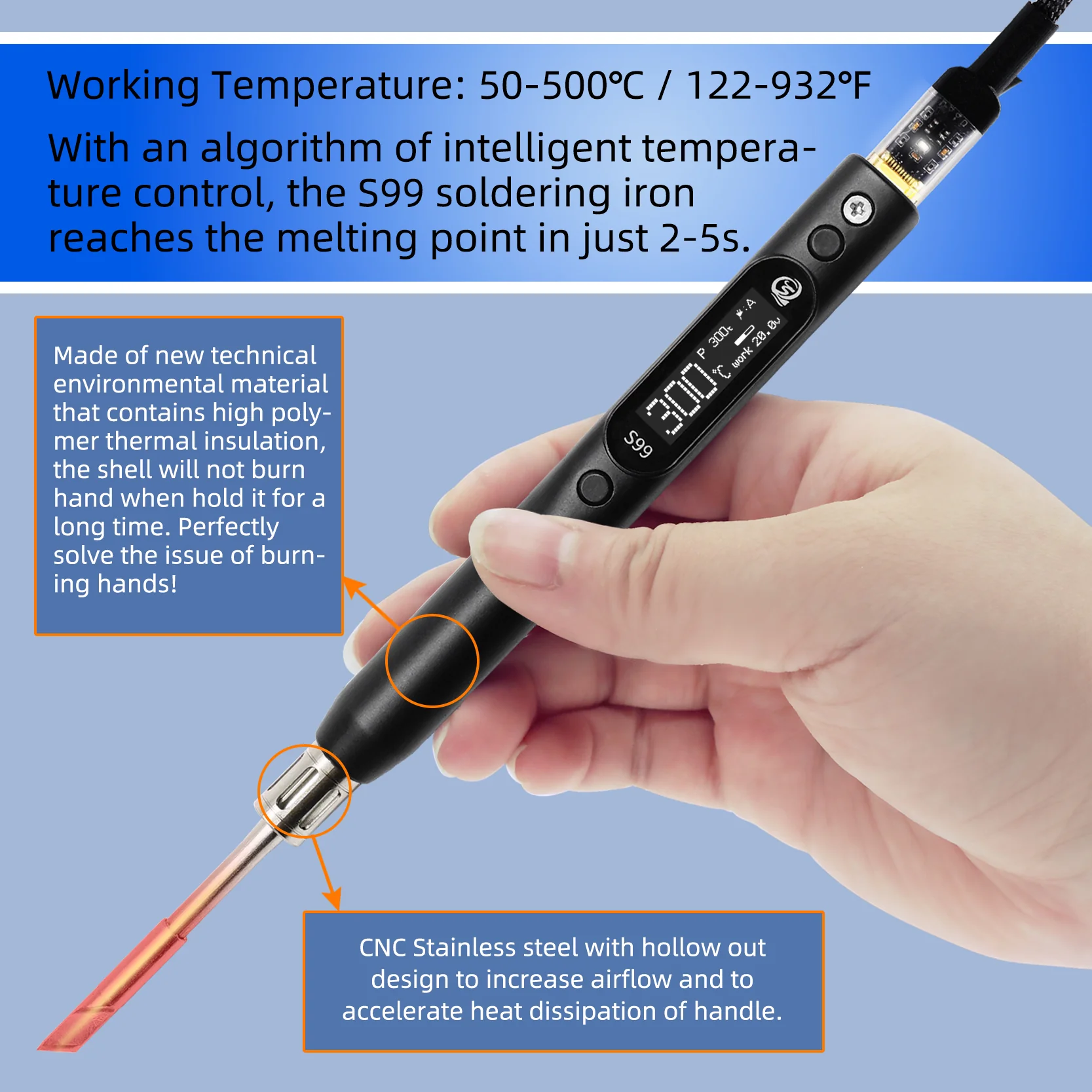

– Intelligent temperature control algorithm, supports temperature compensation and temperature self-calibration.
– The shell is made of industrial special materials, which is extremely resistant to high temperature and has effective anti-static treatment.
– 128*32 OLED display, built-in buzzer for work reminder.
– Sensitivity can be set to reject interference from environmental factors.

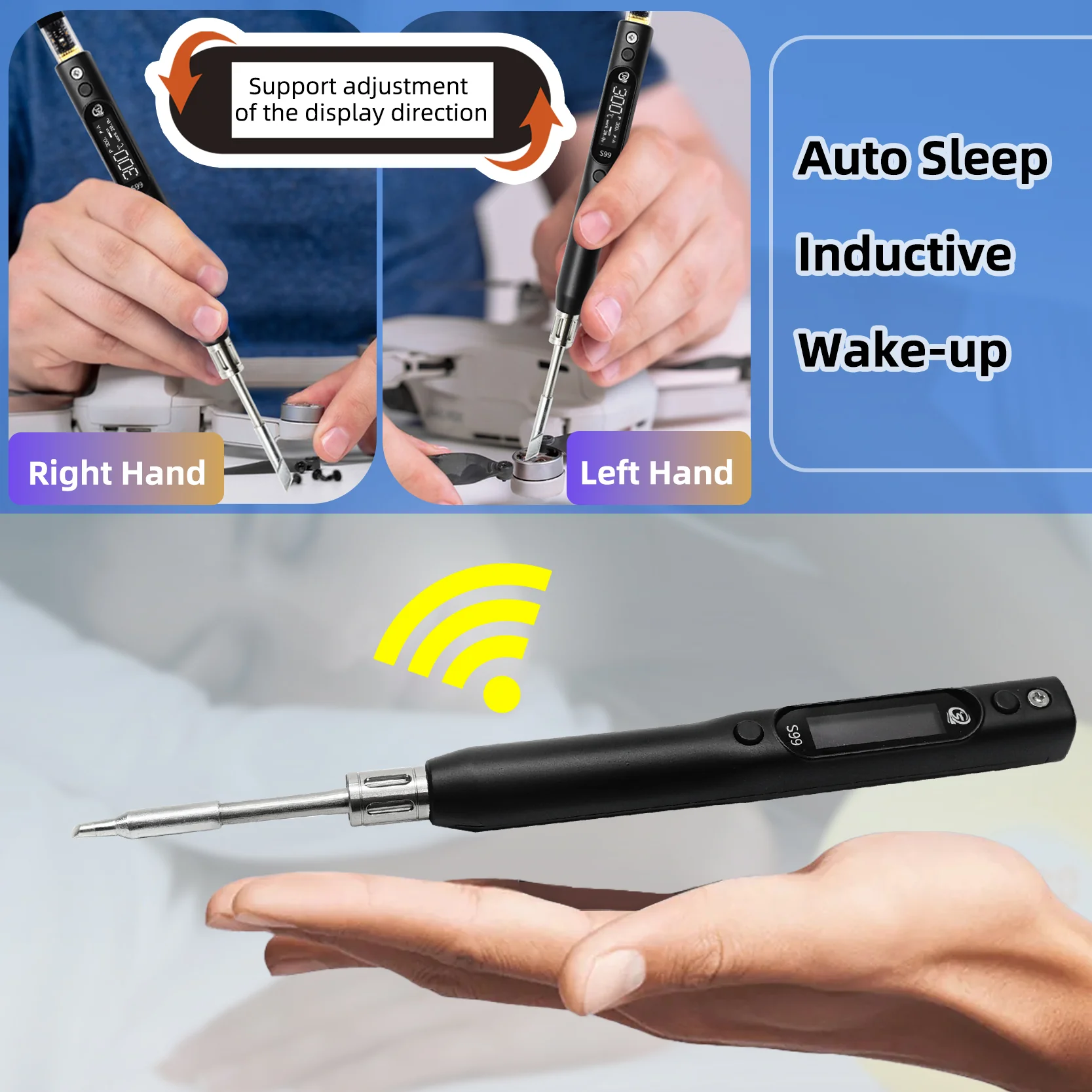

– Support ℃/℉ switch, left and right hand screen flip, firmware upgrade.
-Available in three languages： Chinese, English, and Russian
The resistance of the shipped soldering iron tip is about: 5.5 Ω
If you want to buy 2.5Ω soldering iron tip, you can purchase it through this link: https://bit.ly/3QdLDIu

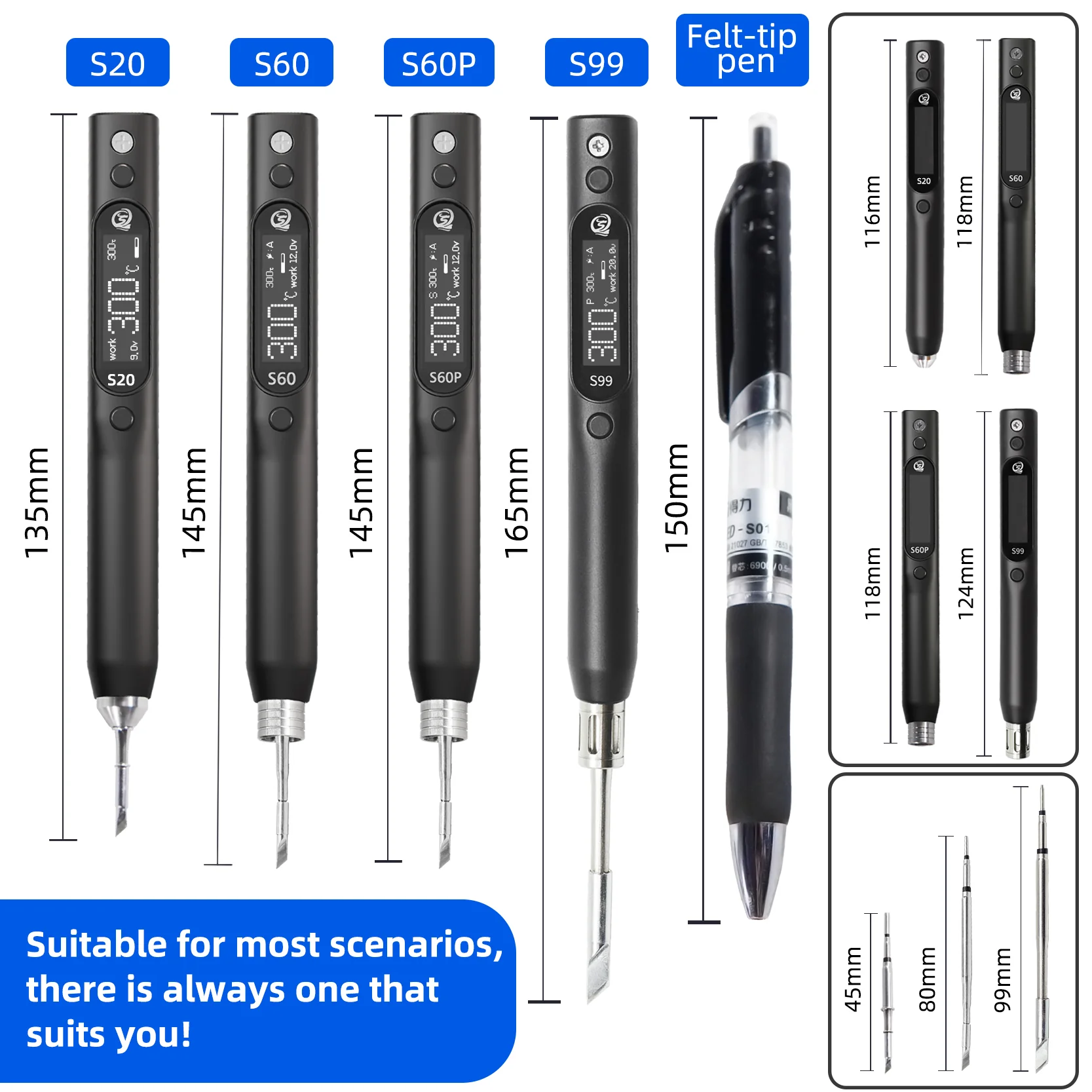

S20/S60/S60P/S99 parameter comparison
| Model | S20 | S60 | S60P | S99 |
| Maximum Voltage | 9V | 12V | 21V | 21V |
| Maximum Power | 20W | 60W | 60W | 150W（2.5Ω），75W（5.5Ω） |
| Fastest Melting Tin Time | 3s | 2s | 2s | 2s（2.5Ω），5s（5.5Ω） |
| Working Temperature | 50-500℃ | 50-500℃ | 50-500℃ | 50-500℃ |
| Screen Size | 128*32 OLED | 128*32 OLED | 128*32 OLED | 128*32 OLED |
| Interface Type | Type-C | Type-C | Type-C | Type-C |
| Power Supply | PD，QC，DC | PD，QC，DC | PD，QC，DC，PPS | PD，QC，DC，PPS |
| Protocol Selection | not support | not support | support | support |
| Host Size | 116*13*15mm | 118*13*15mm | 118*13*15mm | 124*13*15mm |
| Host Weight | 22g | 22g | 22g | 22g |
| Soldering Iron Tip Length | 45mm | 80mm | 80mm | 99mm |
| Soldering Iron Tip Weight | 1g | 2g | 2g | 5g |
| Host+Soldering Iron Tip Size | 135*13*15mm | 145*13*15mm | 145*13*15mm | 165*13*15mm |
| Host+Soldering Iron Tip Weight | 23g | 24g | 24g | 28g |
| Application | Nano welding, chip flying lead | Mobile computer repair | Mobile computer repair | Drone, RC model welding |
Package included:
- Host × 1
- Soldering iron tip × 1
Overall Dimension:

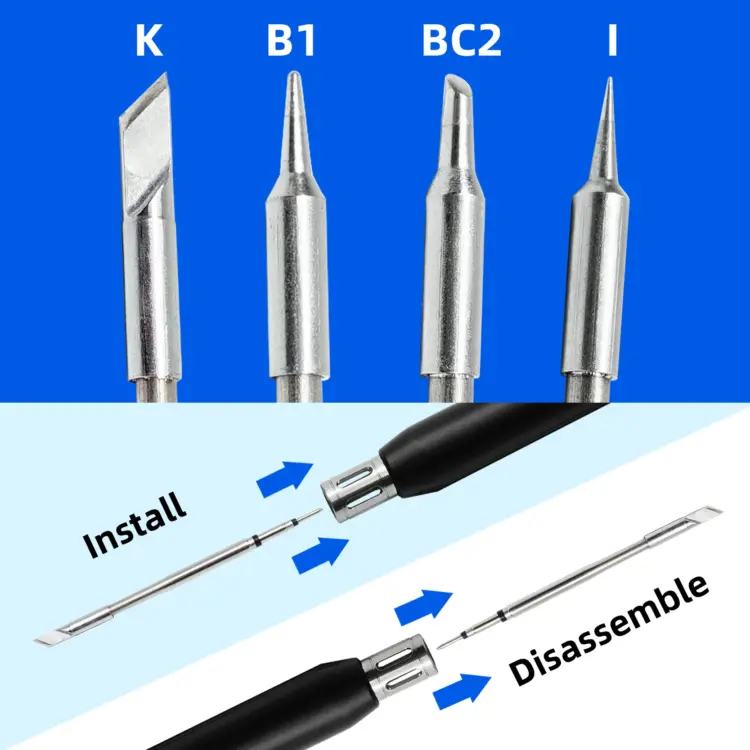

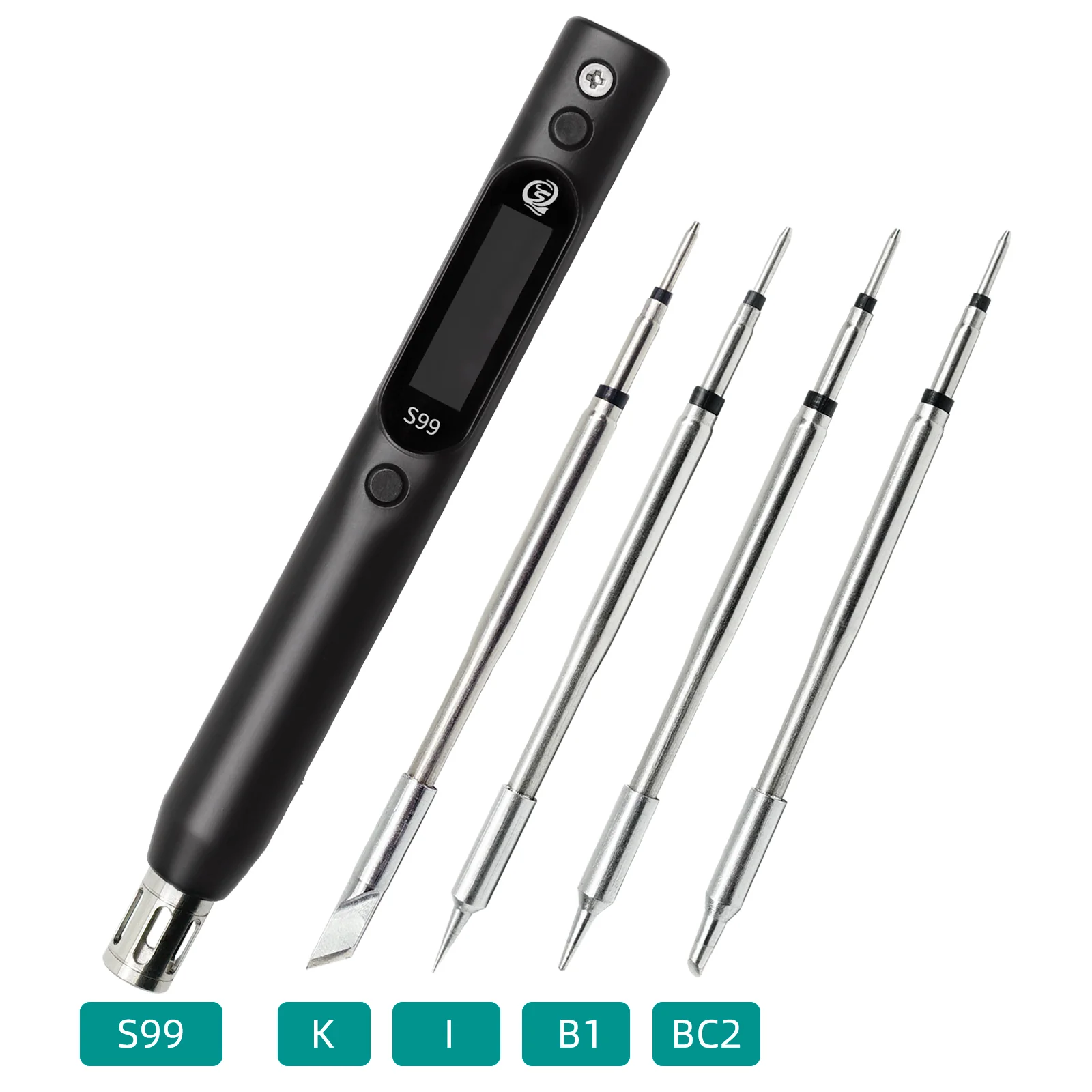

S99（K+I+B1+BC2）
- Product Size: 124*13*15mm
Net Weight Of Product: 22g
- Package Size: 125*50*25mm
Packing Weight: 76g
- Package Size (Including Outer Carton)：205*115*40mm
Packing Weight (Including Outer Carton)：117g
