GEPRC SPEEDX2 1404 3000KV Brushless Motor

GEPRC SPEEDX2 1404 3000KV Brushless Motor

In stock

1,399

In stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Svg Vector Icons : http://www.onlinewebfonts.com/icon

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

Feature

  1. Red with black color is obviously high-end.
  2. Use bearings with excellent performance and strong anti-wear ability.
  3. Lightweight silhouette, strong power.
  4. Suitable for 2-inch-4-inch lightweight chassis.

Specifications

SPEEDX2 1404 3000KV Motor
  • Model: SPEEDX2 1404 3000KV Motor
  • Max Watt: 160W
  • Peak current: 10A/3″
  • Interphase resistance: 0.33Ω
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 9N12P

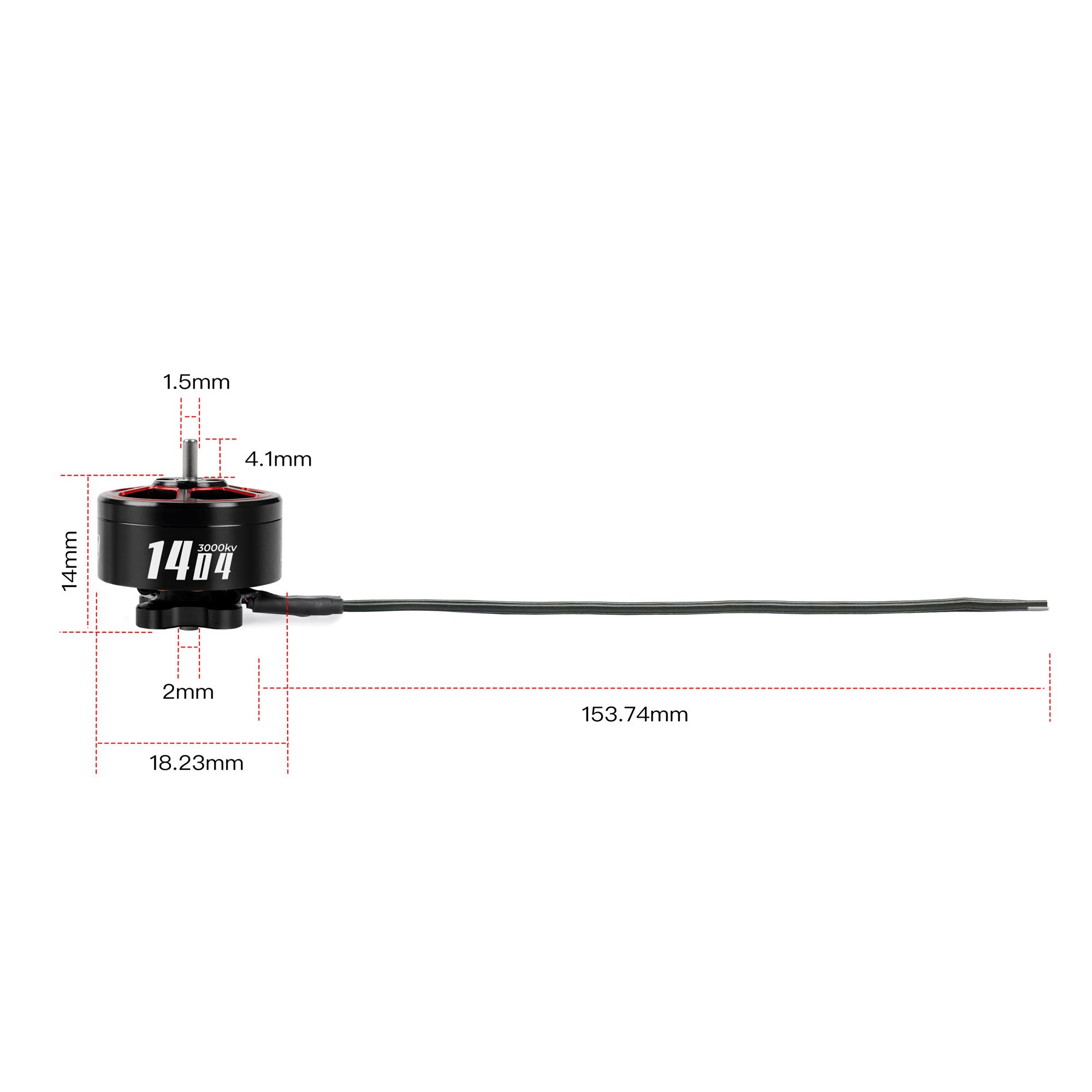

  • Dimension: φ18.2mm*13.8mm
  • Shaft Diameter: φ1.5mm
  • Shaft Protruding Length: 4mm
  • Mounting holes: 9mm*9mm(M2)
  • Lead: 160mm/26AWG
  • ESC: 12A/2-4S(7.4V-14.8V)
  • Input Volts: 14.8V(4S LiPo)
  • Winding: Single strand copper winding
  • Weight: 10.5g (included wire)
  • Suitable for: 3 inch – 4 inch lightweight models
SPEEDX2 1404 4600KV Motor
  • Model: SPEEDX2 1404 4600KV Motor
  • Max Watt: 180W
  • Peak current: 14.3A/3″
  • Interphase resistance: 0.19Ω
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 9N12P
  • Dimension: φ18.2mm*13.8mm
  • Shaft Diameter: φ1.5mm
  • Shaft Protruding Length: 4mm
  • Mounting holes: 9mm*9mm(M2)
  • Lead: 160mm/26AWG
  • ESC: 20A/2-4S(7.4V-14.8V)
  • Input Volts: 11.1V – 14.8V(3S – 4S LiPo)
  • Winding: Single strand copper winding
  • Weight: 10.5g (included wire)
  • Suitable for: 2 inch – 3 inch lightweight models

Weight 50 g
